House Plan 439B Hidden Hill Cove, Multi-Family House Plan
Floor plans
NDG 439B
House Plan 439B Hidden Hill Cove, Multi-Family House Plan
Plan Details
- Plan Number: NDG 439B
- Total Living Space:1697Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: 1
- Garage: 2 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 105
- Width In.: 8
- Depth Ft.: 37
- Depth In.: 10
Description

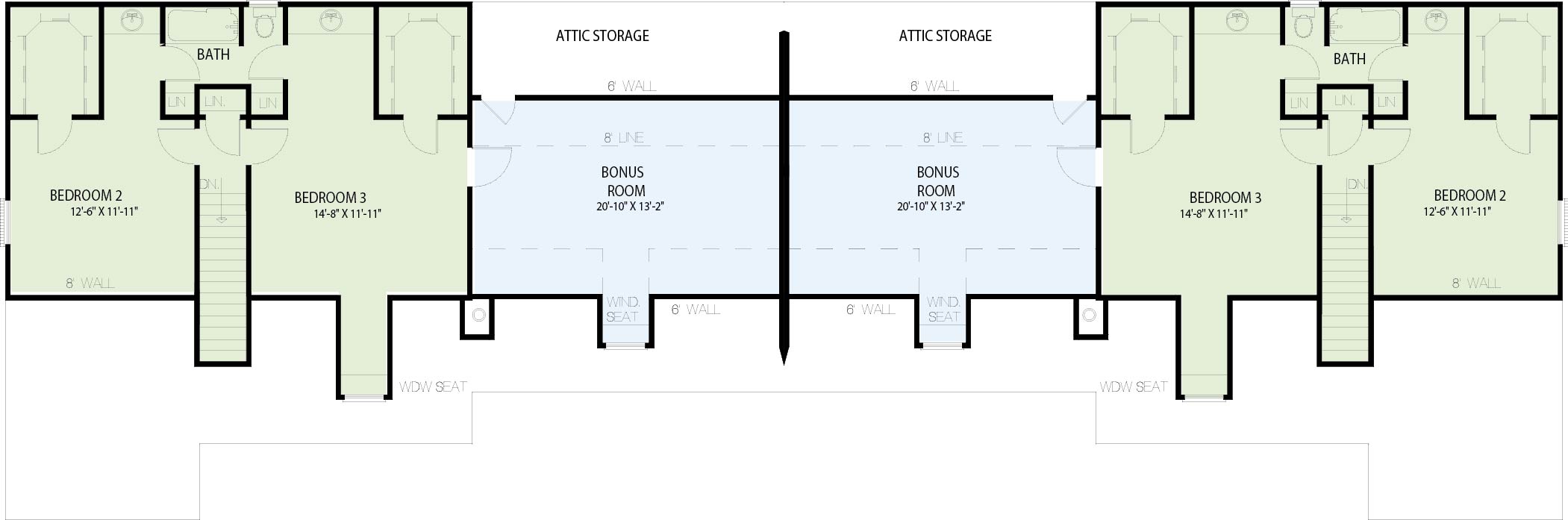

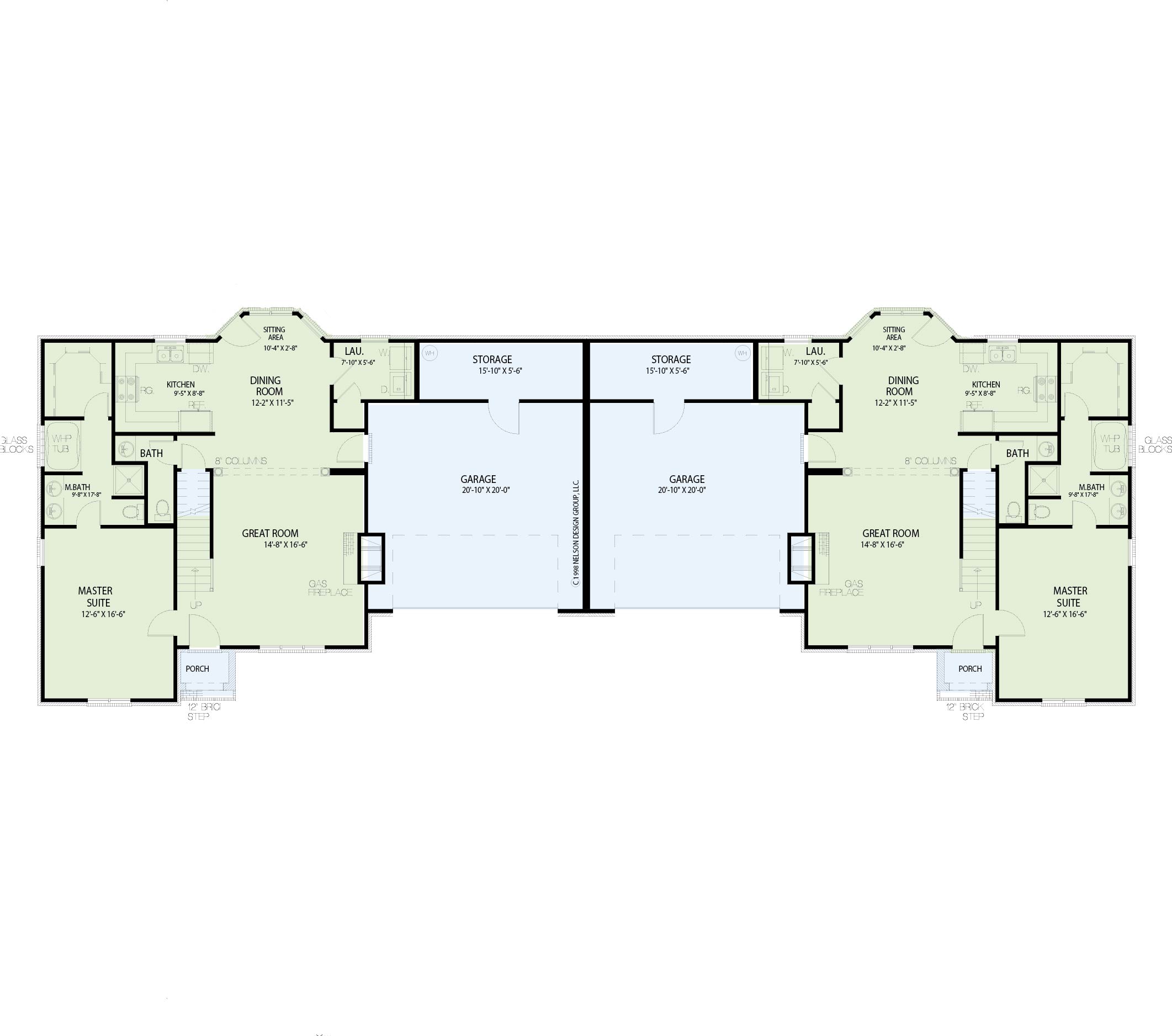

Family will thoroughly enjoy this duplex plan. The great room has a cozy fireplace and opens to the formal dining room and kitchen. A bay window sitting area has a wonderful view and access to the back yard. For privacy and convenience, the master suite is located on the main floor and has a large bathroom with whirlpool tub, separate shower, and large walk-in closet. Upstairs you'll find two additional bedrooms each with a large walk-in closet, private vanity and sharing a bathroom. A spacious bonus room has a dormer window seat and sloped ceiling.
Specifications
- Total Living Space:1697Sq.Ft.
- Main Floor: 1048 Sq.Ft
- Upper Floor (Sq.Ft.): 649 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 295 Sq.Ft.
- Porch (Sq.Ft.): 208 Sq.Ft.
- Garage (Sq.Ft.): 834 Sq.Ft.
- Total Square Feet: 3034 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 12:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 25
- Ridge Height (In.): 0
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
- Master Bedroom: Master Bedroom Lower Level
