House Plan 437 Elm Street, Traditional House Plan

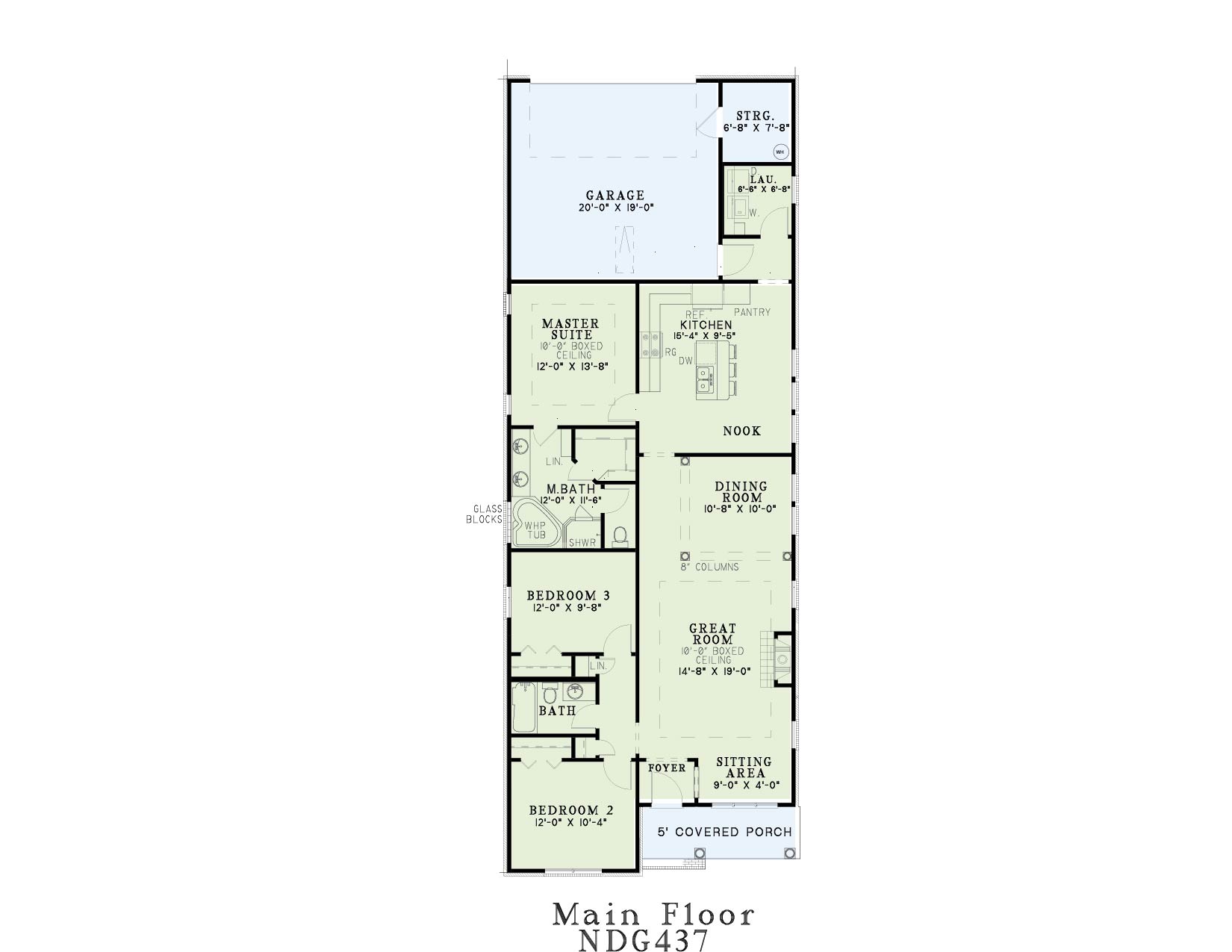

House Plan NDG 437 Main Floor
House Plan NDG 437 Main Floor

Floor plans

NDG 437

House Plan 437 Elm Street, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 437
  • Total Living Space:1574Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 27
  • Width In.: 8
  • Depth Ft.: 76
  • Depth In.: 4

Description

Extending less than 28 feet wide, this home is perfect for narrow or zero lot developments. The vast great room is perfect for holiday entertainment as it offers a handsome fireplace and flows into separate sitting and dining areas. The walk-through kitchen features an island that also serves as an eat-at bar and blends with a breakfast nook. Lots of windows adorn the house, providing loads of natural lighting.

Specifications

  • Total Living Space:1574Sq.Ft.
  • Main Floor: 1574 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 174 Sq.Ft.
  • Garage (Sq.Ft.): 380 Sq.Ft.
  • Total Square Feet: 2128 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
