House Plan 436 Mockingbird Lane, Country Home House Plan

House Plan NDG 436 Main Floor
House Plan NDG 436 Main Floor

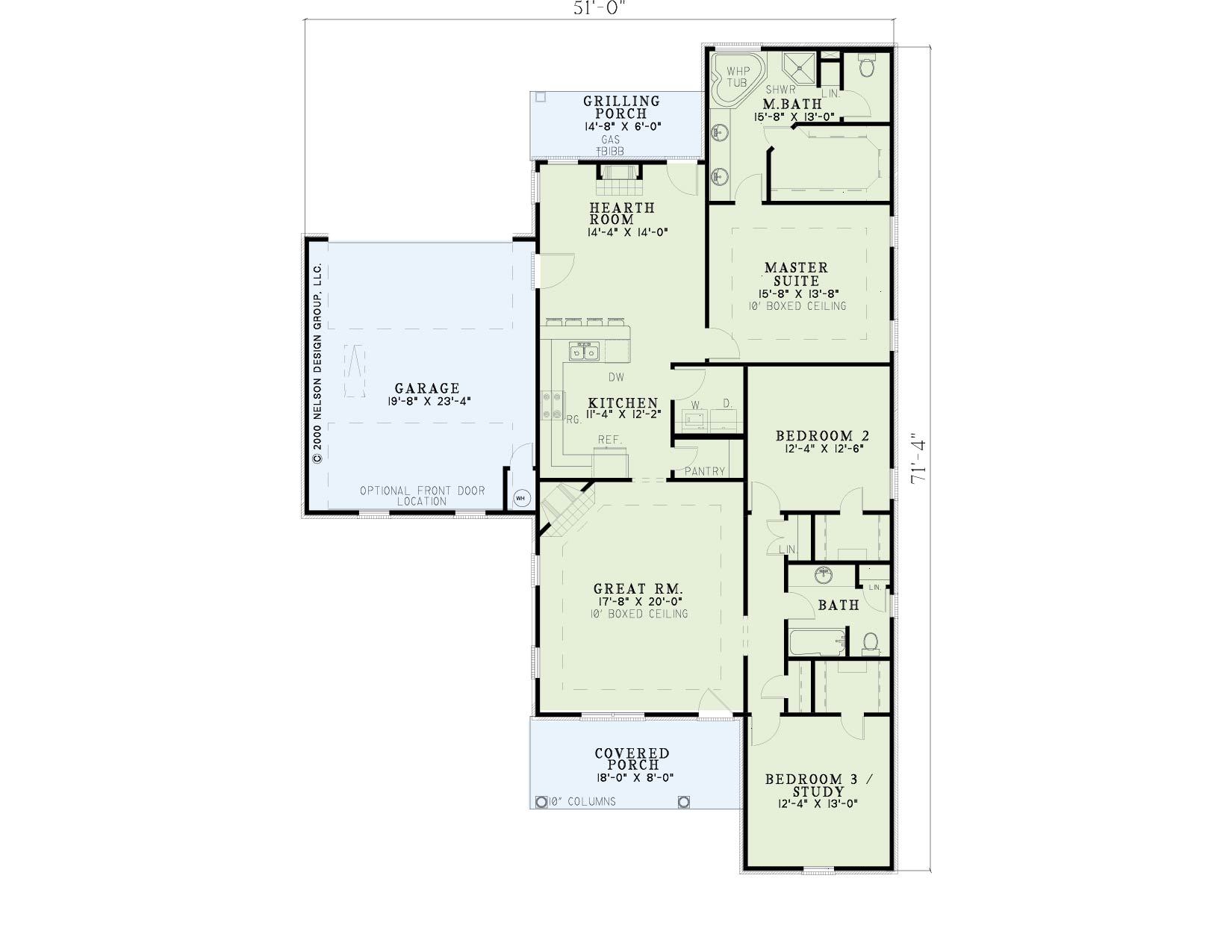

Floor plans

NDG 436

House Plan 436 Mockingbird Lane, Country Home House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 436
  • Total Living Space:1881Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 1 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 51
  • Width In.: N/A
  • Depth Ft.: 71
  • Depth In.: 4

Description

Large living spaces with quick and easy access to outdoor areas make this home a popular choice for those who entertain frequent guests. Lose yourself in the immense great room with a captivating fireplace and 10′ boxed ceiling. The central kitchen allows quick and easy service to a breakfast bar, great room and magnificent hearth room. Holiday guests will be able to mingle in comfort with the spacious areas of this house.

Specifications

  • Total Living Space:1881Sq.Ft.
  • Main Floor: 1881 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 225 Sq.Ft.
  • Garage (Sq.Ft.): 459 Sq.Ft.
  • Total Square Feet: 2565 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
