House Plan 433 Heather Ridge, Multi-Family House Plan

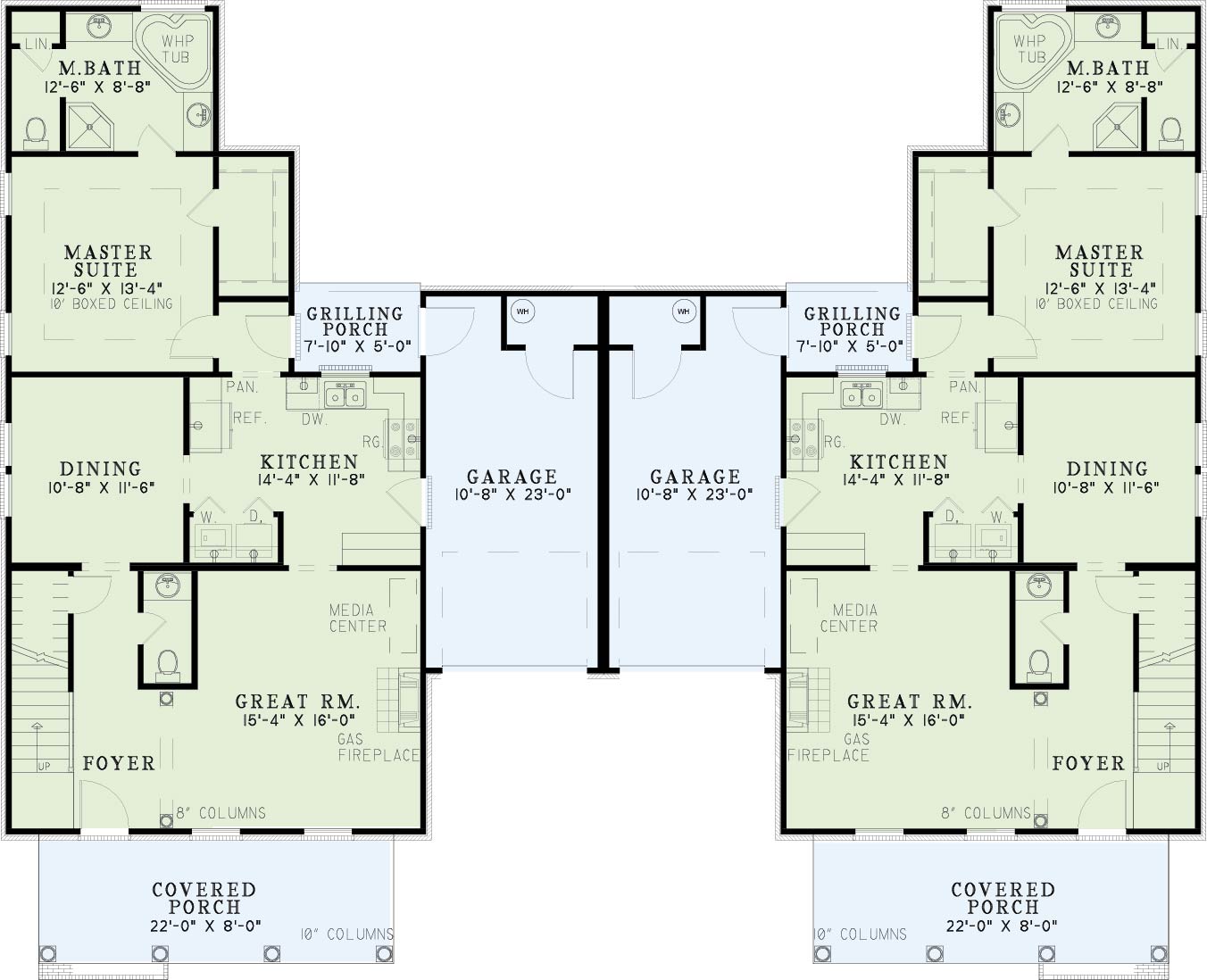

House Plan NDG 433 Main Floor

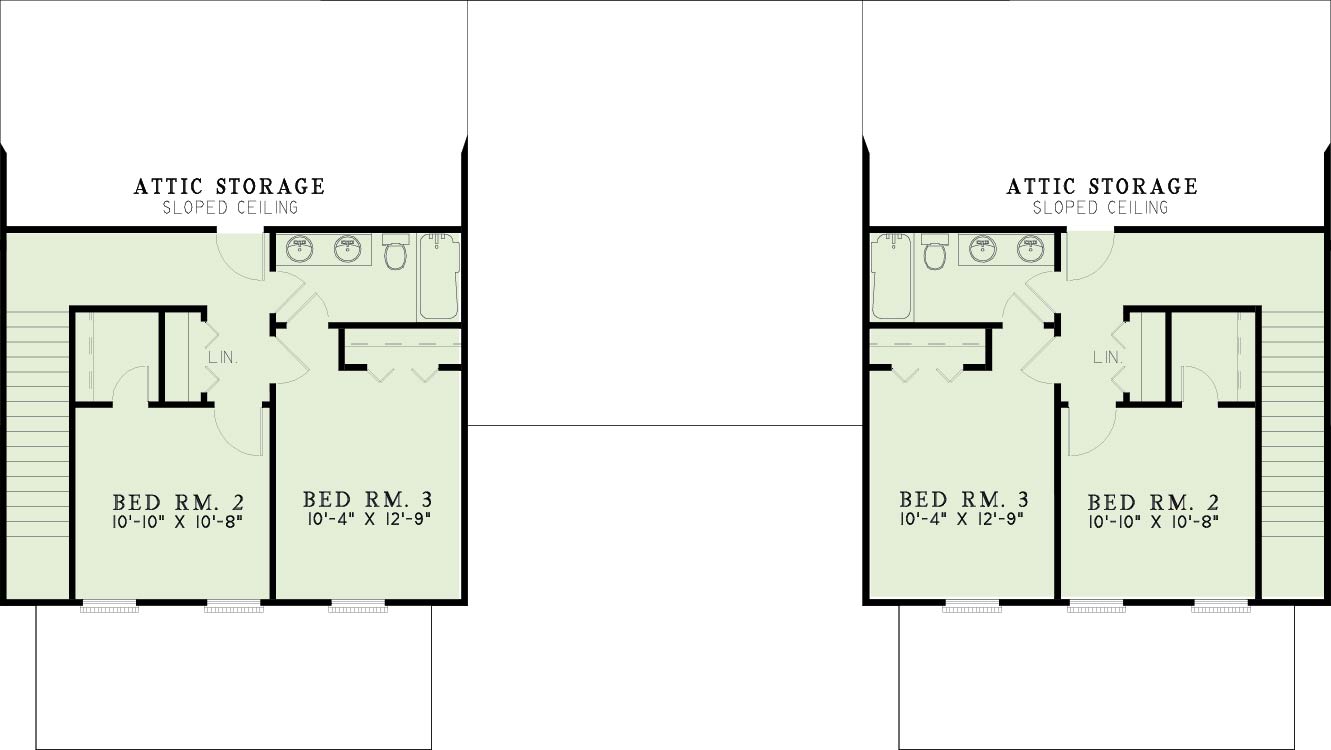

House Plan NDG 433 Upper Floor
House Plan NDG 433 Main Floor
House Plan NDG 433 Upper Floor

Floor plans

NDG 433

House Plan 433 Heather Ridge, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 433
  • Total Living Space:1589Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 1 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 74
  • Width In.: N/A
  • Depth Ft.: 59
  • Depth In.: 4

Description

This duplex includes a luxurious interior layout perfect for privacy as well as entertaining. Upon entering the foyer you’ll notice columns lining the Great room entry, a built-in media center and a cozy gas fireplace. A centrally located kitchen enjoys a view of the grilling porch and quietly leads you to the private master suite. This glorious suite has a ten foot boxed ceiling and a bathroom with separate vanities, corner whirlpool tub, separate shower, and a large linen closet. The upstairs includes a full bathroom, two bedrooms and an abundance of attic storage.

Specifications

  • Total Living Space:1589Sq.Ft.
  • Main Floor: 1106 Sq.Ft
  • Upper Floor (Sq.Ft.): 483 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 458 Sq.Ft.
  • Garage (Sq.Ft.): 490 Sq.Ft.
  • Total Square Feet: 2537 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
