House Plan 432 Brookshire, Multi-Family House Plan

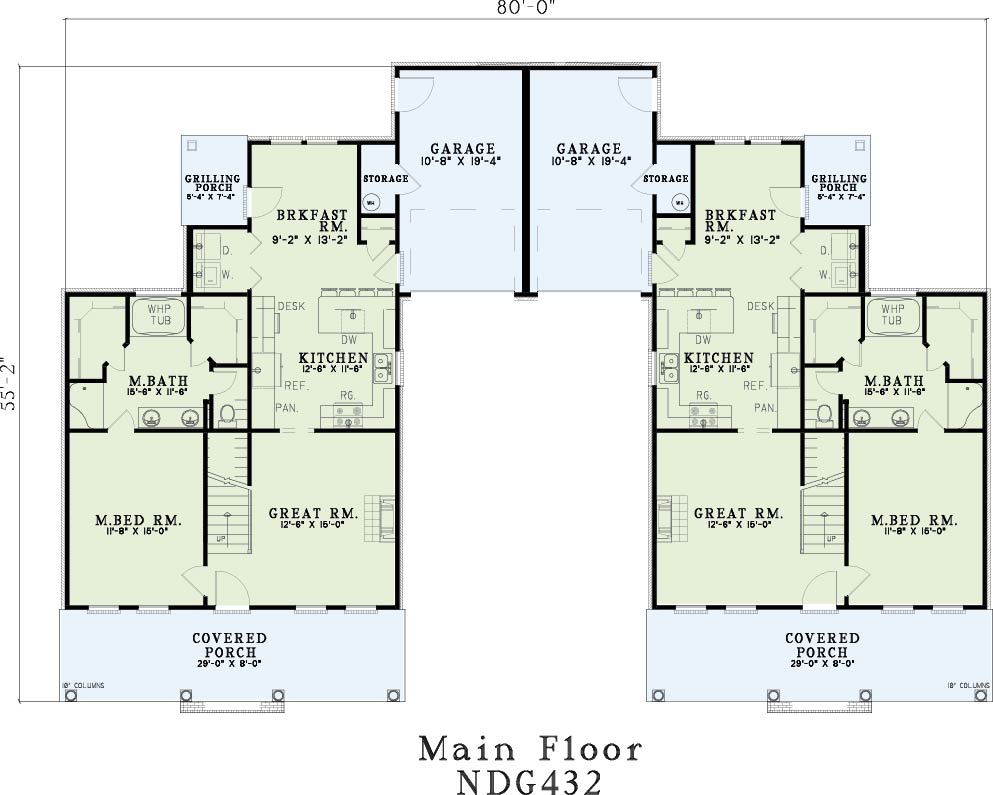

House Plan NDG 432 Main Floor

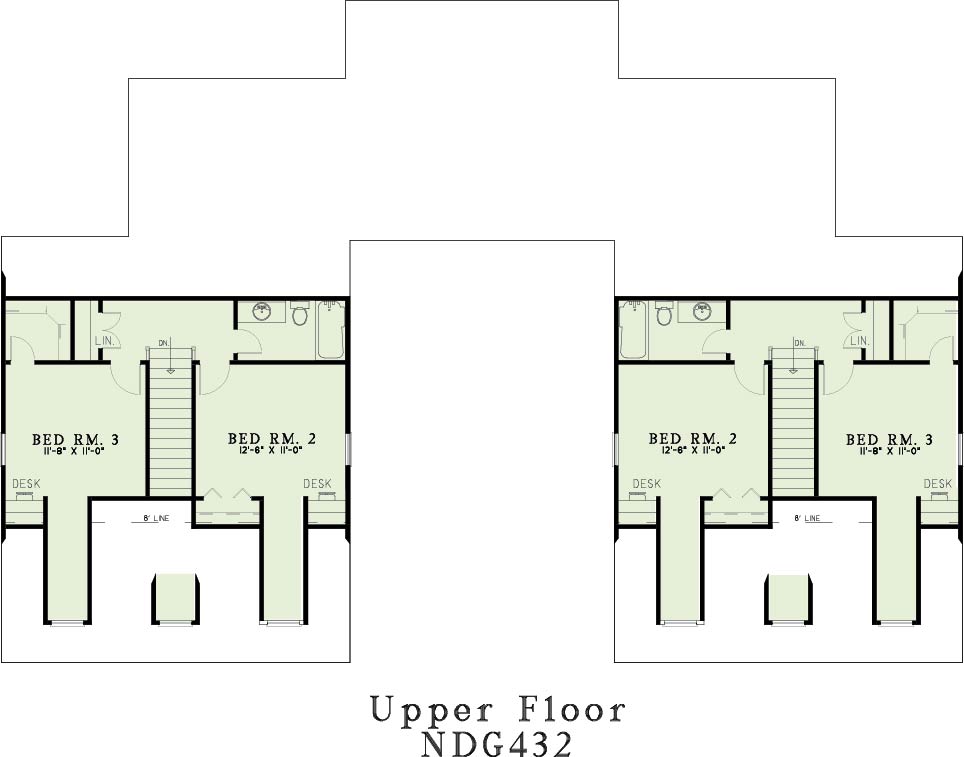

House Plan NDG 432 Upper Floor
House Plan NDG 432 Main Floor
House Plan NDG 432 Upper Floor

Floor plans

NDG 432

House Plan 432 Brookshire, Multi-Family House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 432
  • Total Living Space:1553Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 1 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 80
  • Width In.: N/A
  • Depth Ft.: 55
  • Depth In.: 2

Description

From the street this duplex appears to be two large homes sitting closely together. A large covered porch with ten-inch columns and dormers enhance this traditional design. The great room has a large fireplace and gently accesses the kitchen for ease in entertaining. A family oriented kitchen has a counter with bar seating and is totally open to the breakfast room, which leads to a grilling porch. For privacy, the Master suite is on the main floor and has double vanities, a separate shower and his and her walk-in closets surrounding a luxurious whirlpool tub. Upstairs you'll find a full bathroom and two bedrooms each with built-in desks for quiet study time. Floor Plan Specifications: Heat/Cooled Main Unit 1: 980 SQ.FT Heat/Cooled Main Unit 2: 980 SQ. FT Heat/Cooled Main Total: 1960 SQ. FT Heat/Cooled Upper Unit 1: 573 SQ. FT Heat/Cooled Upper Unit 2: 573 SQ. FT Heat/Cooled Upper Total: 1146 SQ. FT Heat/Cooled Total: 3106 Garage & Storage Unit 1: 243 SQ. FT Garage & Storage Unit 2: 243 SQ. FT Garage & Storage Total: 486 SQ. FT Porch Unit 1: 285 SQ. FT Porch Unit 2: 285 SQ. FT Porch Total: 570 SQ. FT Total: 4162 SQ. FT

Specifications

  • Total Living Space:1553Sq.Ft.
  • Main Floor: 980 Sq.Ft
  • Upper Floor (Sq.Ft.): 573 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 285 Sq.Ft.
  • Garage (Sq.Ft.): 243 Sq.Ft.
  • Total Square Feet: 2081 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
