House Plan 431 Auburn Place, Multi-Family House Plan

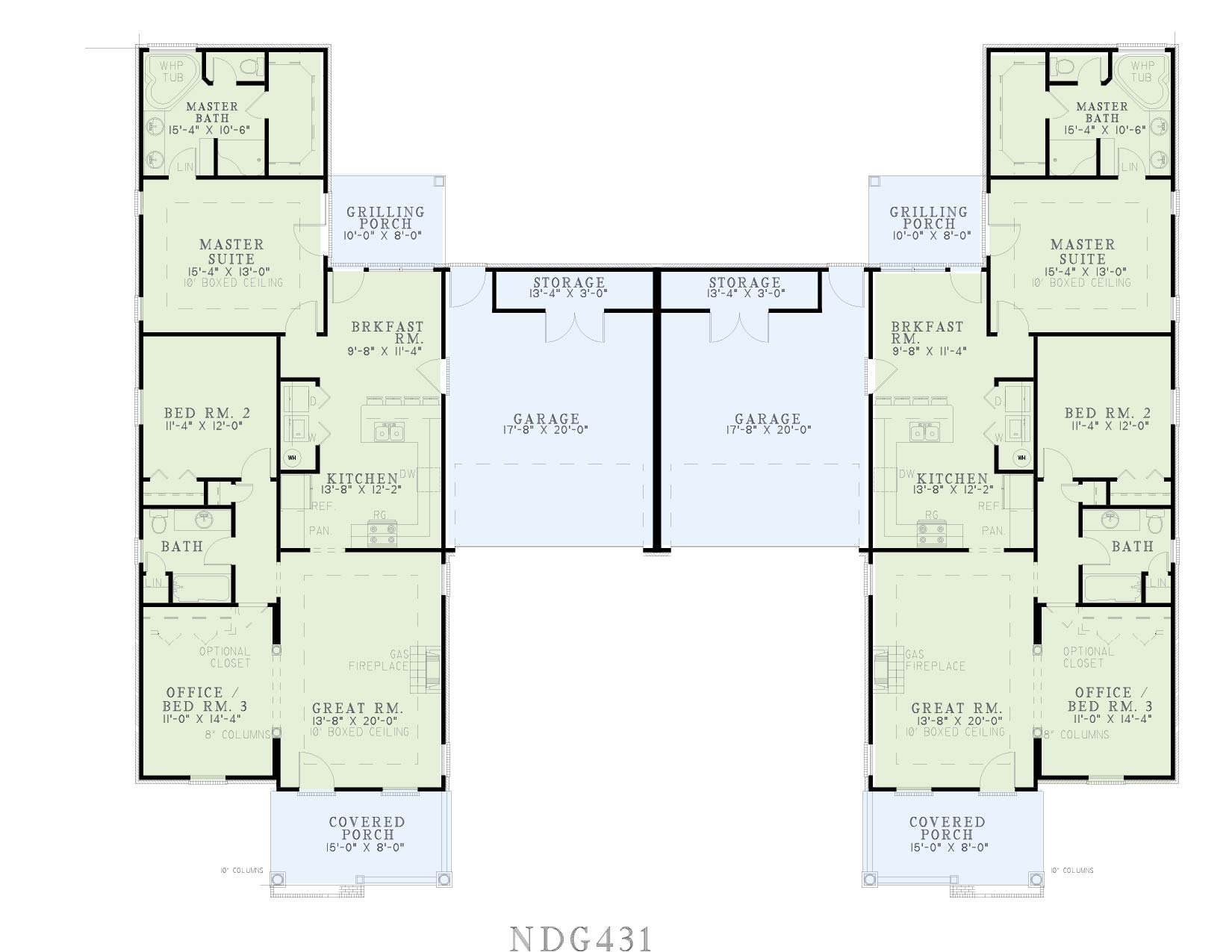

House Plan NDG 431 Main Floor
House Plan NDG 431 Main Floor

Floor plans

NDG 431

House Plan 431 Auburn Place, Multi-Family House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 431
  • Total Living Space:1444Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 88
  • Width In.: N/A
  • Depth Ft.: 71
  • Depth In.: 2

Description

We have created a duplex with a quaint covered porch delightfully leading into a family oriented floor plan. The Great room has a ten foot boxed ceiling and gas fireplace open to a large office /optional bedroom, with columns. A roomy kitchen and breakfast room combination has access to the rear-grilling porch, convenient for the family chef. Luxury can be found in the Master Suite bedroom enhanced by a ten foot boxed ceiling and private porch access. The master bath includes a corner whirlpool tub, separate shower, double vanities and huge walk-in closet. The double car garage has a large storage room as well as access to the back yard. Floor Plan Specifications: Heat/Cooled Unit 1: 1444 SQ. FT Heat/Cooled Unit 2: 1444 SQ. FT Heat/Cooled Total: 2888 SQ. FT Garage & Storage Unit 1: 435 SQ. FT Garage & Storage Unit 2: 435 SQ. FT Garage & Storage Total: 870 SQ. FT Porch Unit 1: 201 SQ. FT Porch Unit 2: 201 SQ. FT Porch Total: 402 SQ. FT Total: 4160 SQ. FT

Specifications

  • Total Living Space:1444Sq.Ft.
  • Main Floor: 1442 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 201 Sq.Ft.
  • Garage (Sq.Ft.): 435 Sq.Ft.
  • Total Square Feet: 2080 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
