House Plan 416 Hunter's Den, Riverbend House Plan
Plan Details
- Plan Number: NDG 416
- Total Living Space:1397Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: No
- Garage Type: N/A
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 39
- Width In.: 8
- Depth Ft.: 38
- Depth In.: 4
Description
After a brisk fall day, hunters gather here to reminisce over the day’s events. Each brother has his own rendition of how big the deer, that they encountered, really was. The days at Hunter’s Den are like the leaves on a breeze, floating by with such peacefulness. As the men exchange stories on the front porch, their minds recall a time of when their parents had first built their getaway. Each brother remembered the hikes in the woods and exciting hunting trips with Dad that all began here at Hunter’s Den.
Specifications
- Total Living Space:1397Sq.Ft.

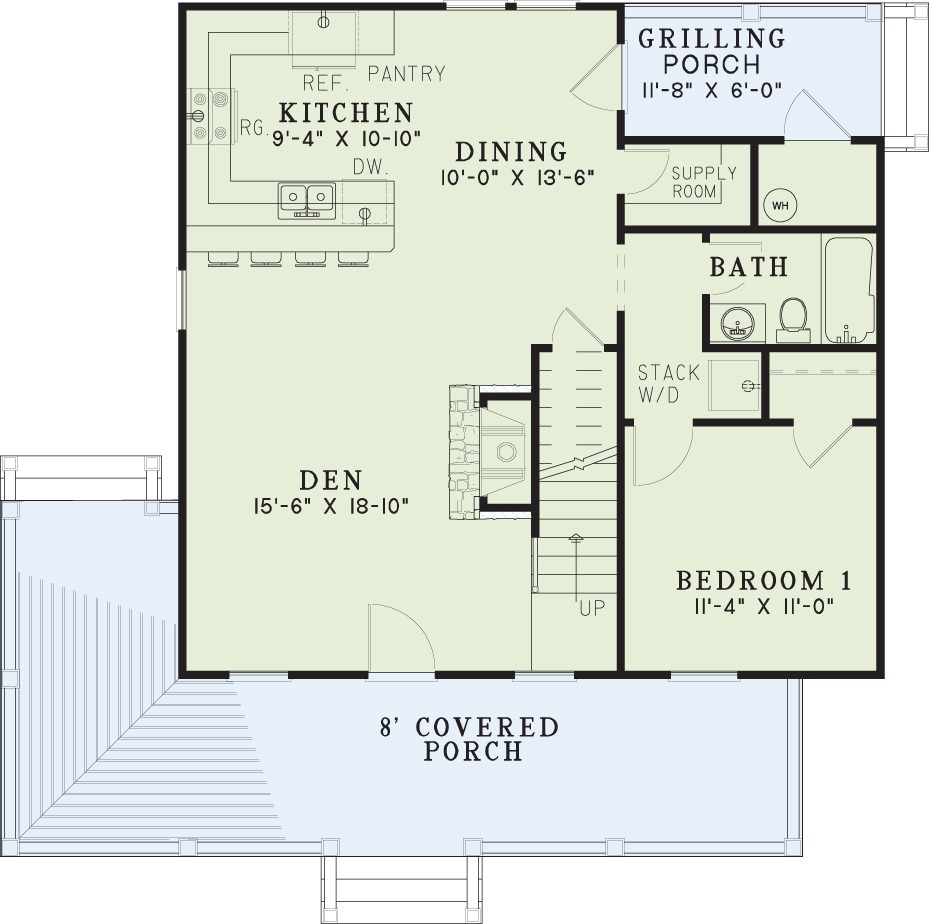

- Main Floor: 890 Sq.Ft

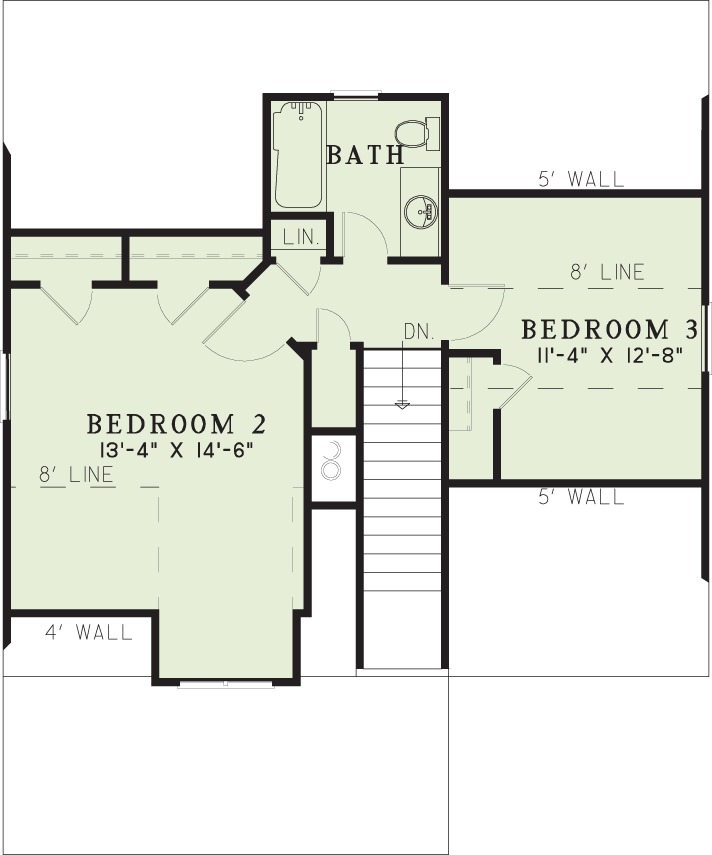

- Upper Floor (Sq.Ft.): 507 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 444 Sq.Ft.
- Garage (Sq.Ft.): N/A
- Total Square Feet: 1841 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 8
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Metal
- Main Roof Pitch: 9:12
- Porch Roof Pitch: 5:12
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 21
- Ridge Height (In.): 10
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
