House Plan 409 Auburn Place, Multi-Family House Plan

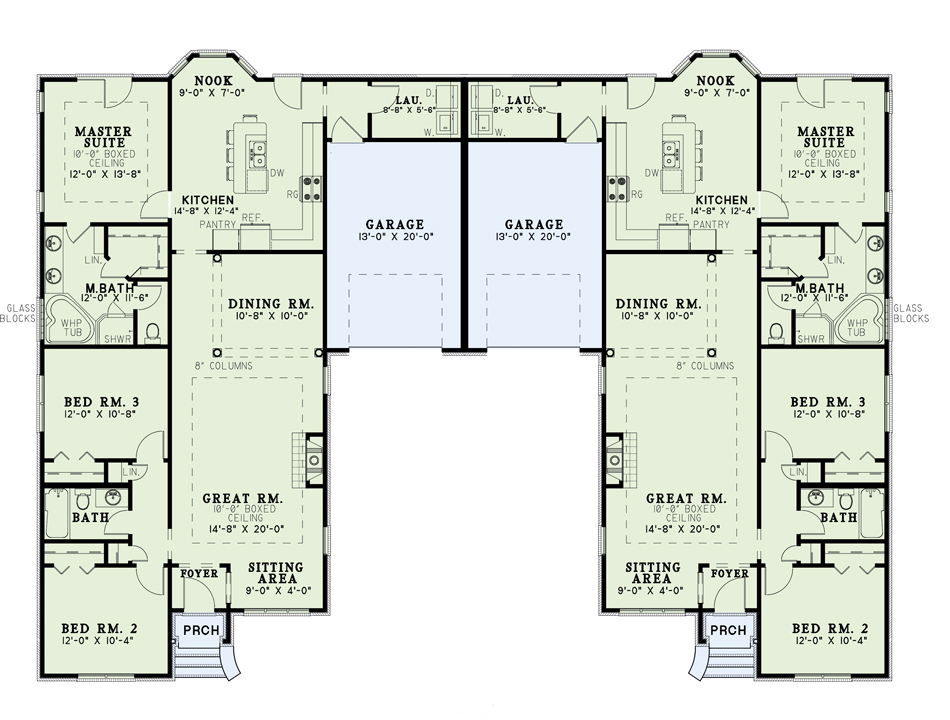

Floor plans
House Plan 409 Auburn Place, Multi-Family House Plan
PDF: $1,550.00
Plan Details
- Plan Number: NDG 409
- Total Living Space:1619Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: 1 Bay Yes
- Garage Type: Front Load
- Carport: N/A
- Carport Type: N/A
- Stories: 1
- Width Ft.: 82
- Width In.: N/A
- Depth Ft.: 60
- Depth In.: 4
Description
This duplex has a conservative exterior, but features an elegant interior layout. An open Great Room with a cozy fireplace is enhanced by a ten foot boxed ceiling and adjoins a formal dining room lined with columns. Two spacious bedrooms and a full bath are located at the front of this plan leaving convenience and privacy for the Master Suite at the rear of the home. The kitchen includes a large Island counter with bar seating and enjoys a bay window view through the breakfast nook. A single car garage is centered between the units for sound proofing and added privacy.
Floor Plan Specifications:
Heat/Cooled Unit #1: 1607 SQ. FT
Garage, Storage: 271 SQ. FT
Porches: 17 SQ. FT
Total Unit #1: 1895 SQ. FT
Heat/Cooled Unit #2: 1607 SQ. FT
Garage, Storage: 271 SQ. FT
Porches: 17 SQ. FT
Total Unit #2: 1895 SQ. FT
Heat/Cooled Total Both Units: 3214 SQ. FT
Total Both Units: 3790 SQ. FT
Specifications
- Total Living Space:1619Sq.Ft.
- Main Floor: 1619 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 54 Sq.Ft.
- Garage (Sq.Ft.): 520 Sq.Ft.
- Total Square Feet: 2193 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 21
- Ridge Height (In.): 10
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
