House Plan 407-1 Rosewood, Multi-Family House Plan

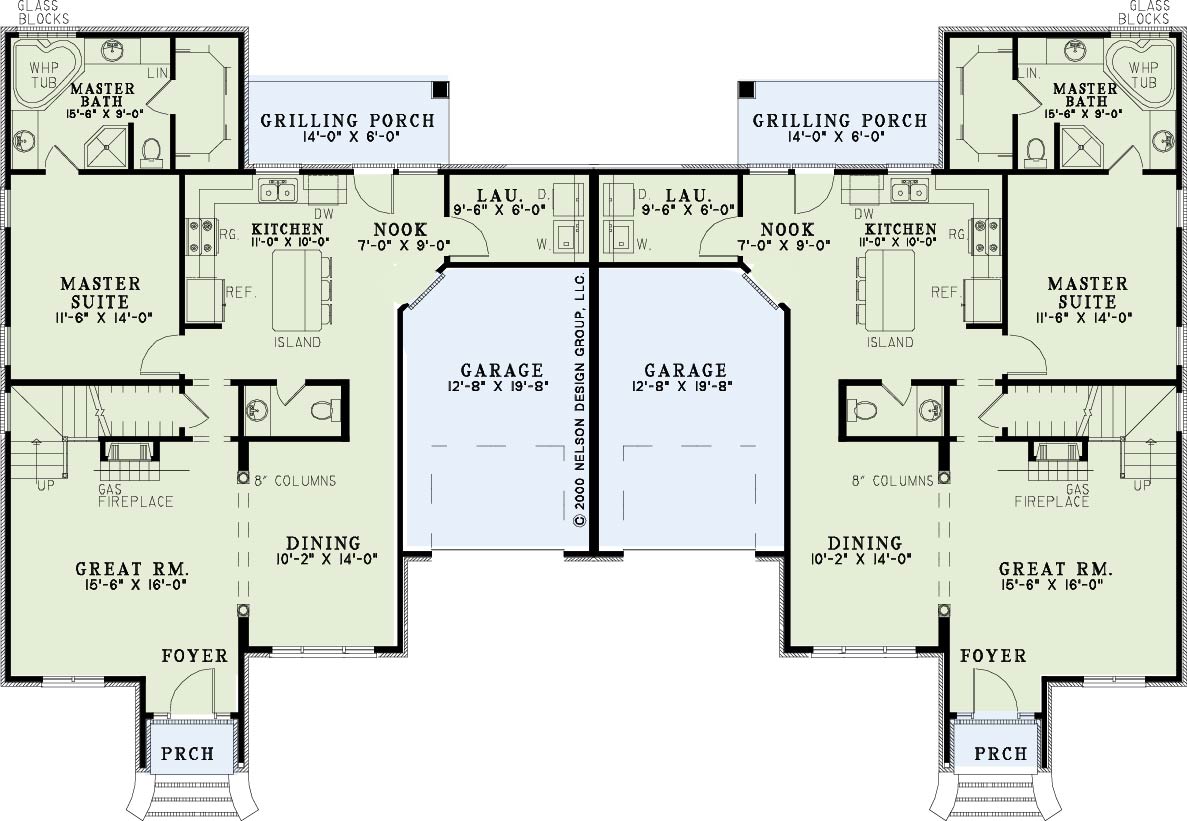

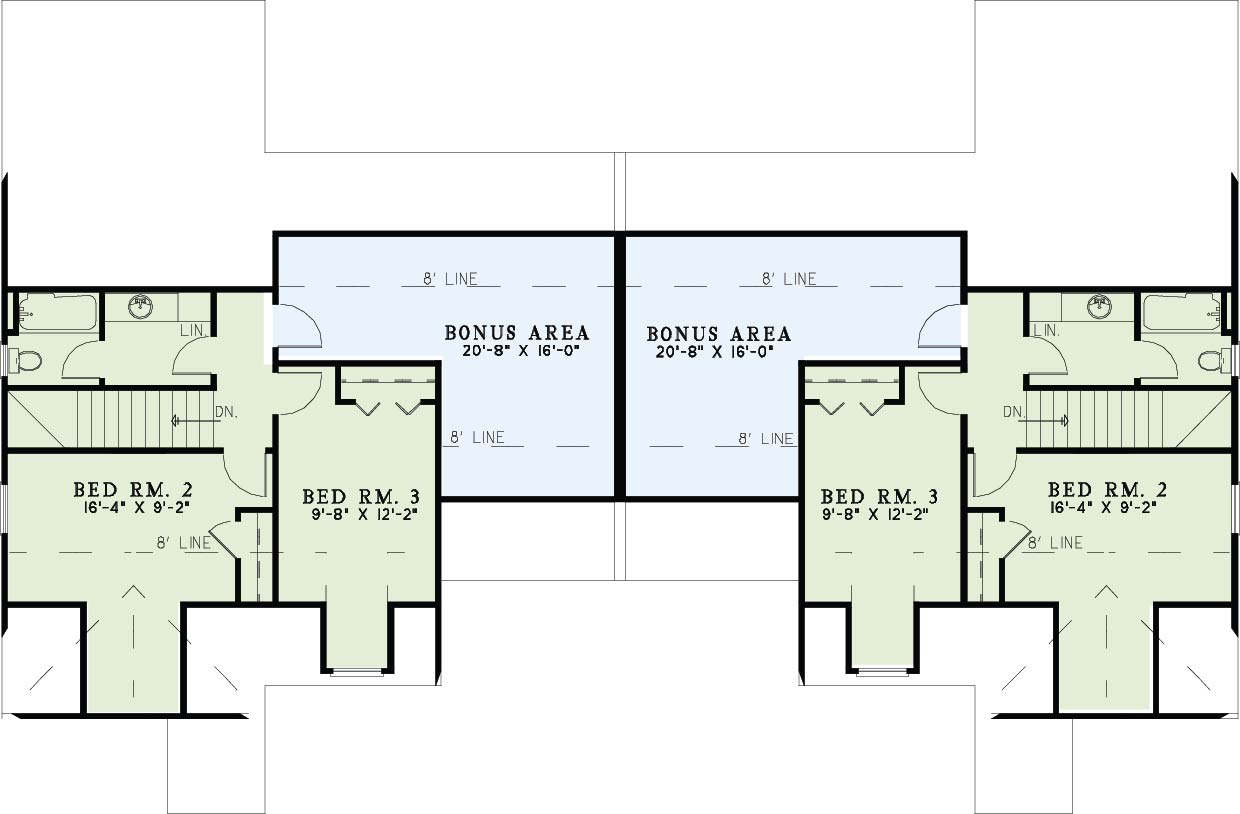

Floor plans
NDG 407-1
House Plan 407-1 Rosewood, Multi-Family House Plan
Plan Details
- Plan Number: NDG 407-1
- Total Living Space:1683Sq.Ft.
- Bedrooms: 3
- Full Baths: 3
- Half Baths: 1
- Garage: 1 Bay
- Garage Type: N/A
- Carport: N/A
- Carport Type: N/A
- Stories: 1.5
- Width Ft.: 80
- Width In.: N/A
- Depth Ft.: 50
- Depth In.: N/A
Description
Entire duplex main floor H/C is 2,356 Entire duplex upper floor H/C is 1,010 Garage and storage total is 502 porch total is 210 Total SQ.FT is 4,078 opt. bonus area is 298
Specifications
- Total Living Space:1683Sq.Ft.
- Main Floor: 1178 Sq.Ft
- Upper Floor (Sq.Ft.): 505 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): 298 Sq.Ft.
- Porch (Sq.Ft.): 105 Sq.Ft.
- Garage (Sq.Ft.): 251 Sq.Ft.
- Total Square Feet: 2039 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: N/A
- Main Ceiling Height: 9
- Upper Ceiling Height: 8
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: N/A
- Porch Roof Pitch: N/A
- Roof Framing Description: stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 27
- Ridge Height (In.): 5
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
