House Plan 404 Huntington Avenue, Classical House Plan

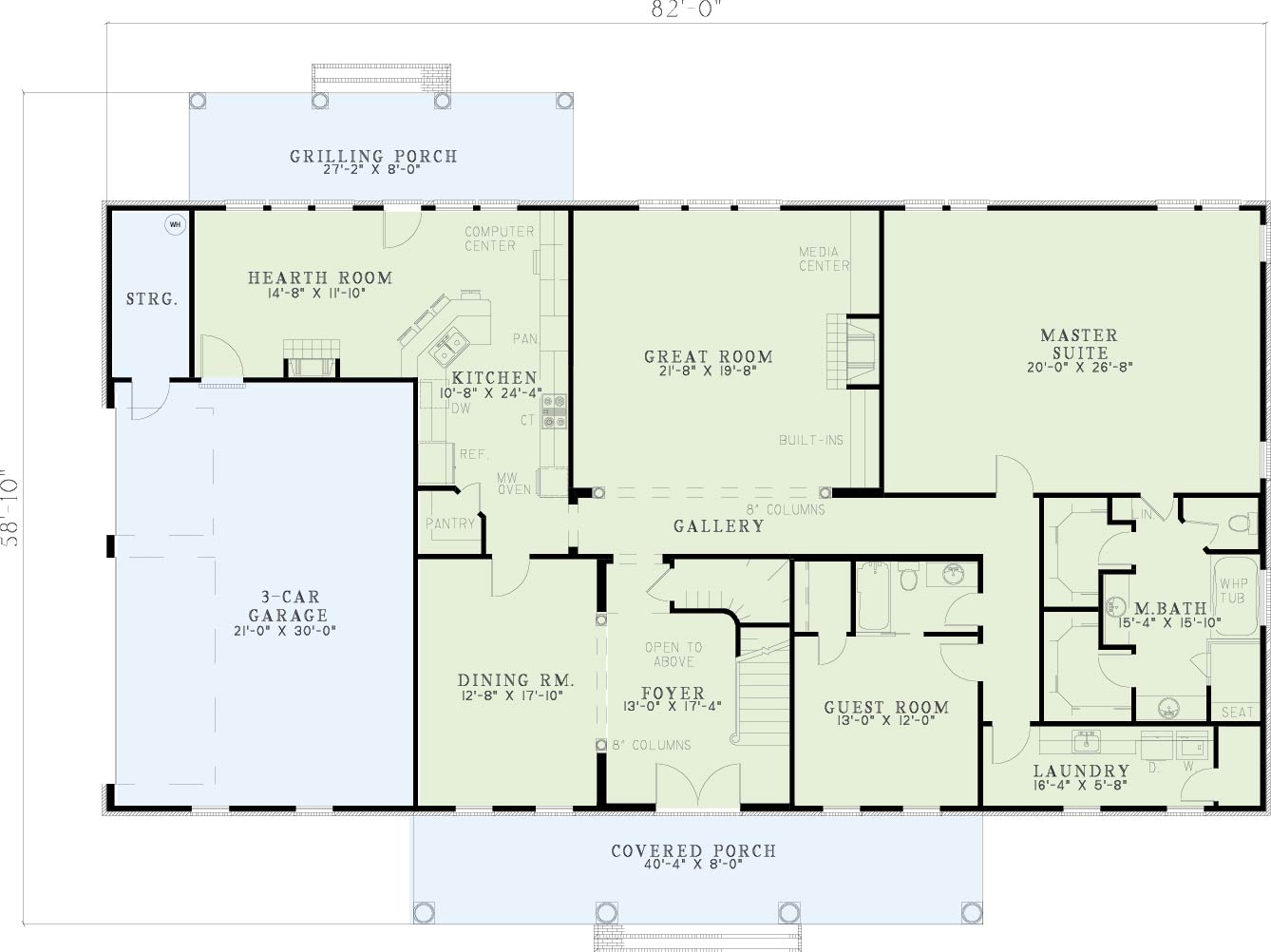

House Plan NDG 404 Main Floor

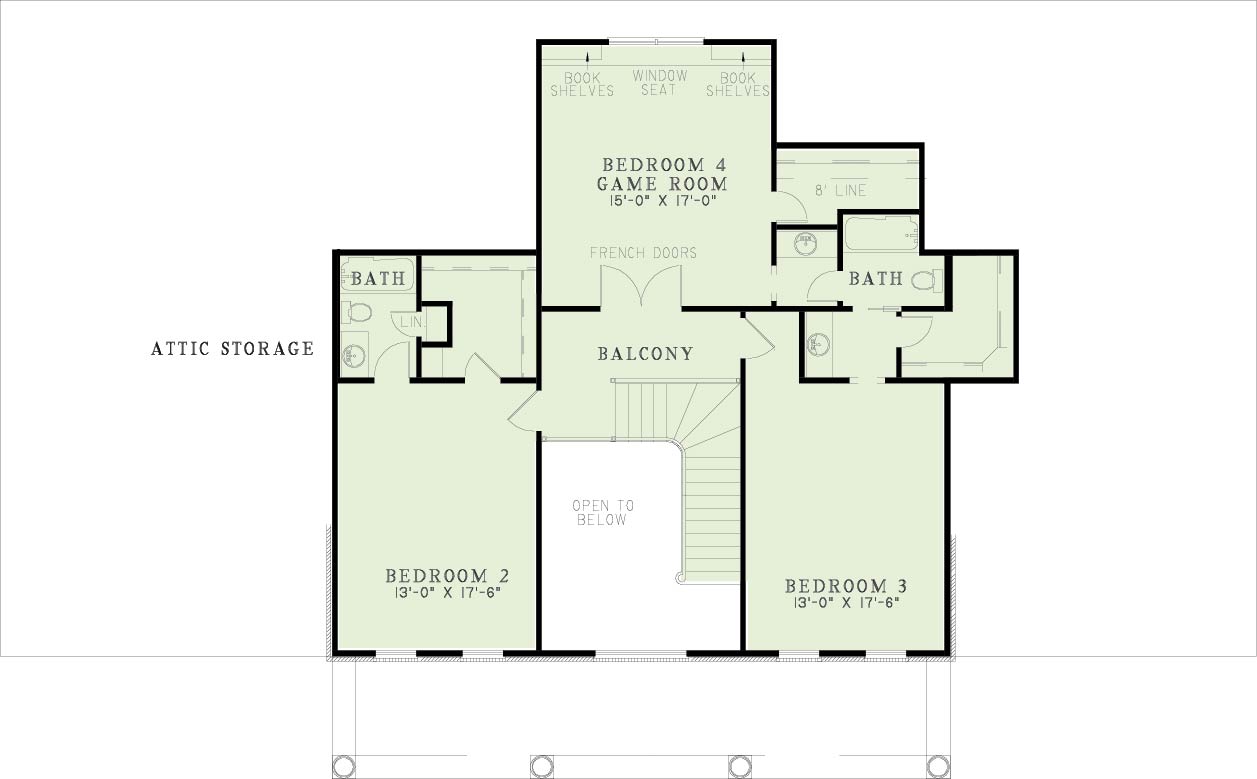

House Plan NDG 404 Upper Floor
House Plan NDG 404 Main Floor
House Plan NDG 404 Upper Floor

Floor plans

NDG 404

House Plan 404 Huntington Avenue, Classical House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 404
  • Total Living Space:3955Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 82
  • Width In.: N/A
  • Depth Ft.: 58
  • Depth In.: 10

Description

The scale of the imposing portico and fanlight front entry is carried on inside this spectacular showcase home. A graceful stairway rises from the two-story center foyer to three large bedrooms upstairs. The dining room is spacious enough for elaborate sit-down affairs, the great room ample for entertaining and the master suite is simply enormous, with its twin closets, separate vanities and whirlpool tub. The kitchen wing includes walk-in pantry, computer center, snack bar and cozy hearth room with grilling porch access.

Specifications

  • Total Living Space:3955Sq.Ft.
  • Main Floor: 2782 Sq.Ft
  • Upper Floor (Sq.Ft.): 1173 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 448 Sq.Ft.
  • Garage (Sq.Ft.): 630 Sq.Ft.
  • Total Square Feet: 5033 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 37
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
