House Plan 391 Windstone Place, Village at Windstone III House Plan

House Plan NDG 391 Main Floor
House Plan NDG 391 Upper Floor
House Plan NDG 391 Main Floor
House Plan NDG 391 Upper Floor

Floor plans

House Plan NDG 391 Main Floor

House Plan NDG 391 Upper Floor
NDG 391

House Plan 391 Windstone Place, Village at Windstone III House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 391
  • Total Living Space:2146 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 38
  • Width In.: 10
  • Depth Ft.: 70
  • Depth In.: 4

Description

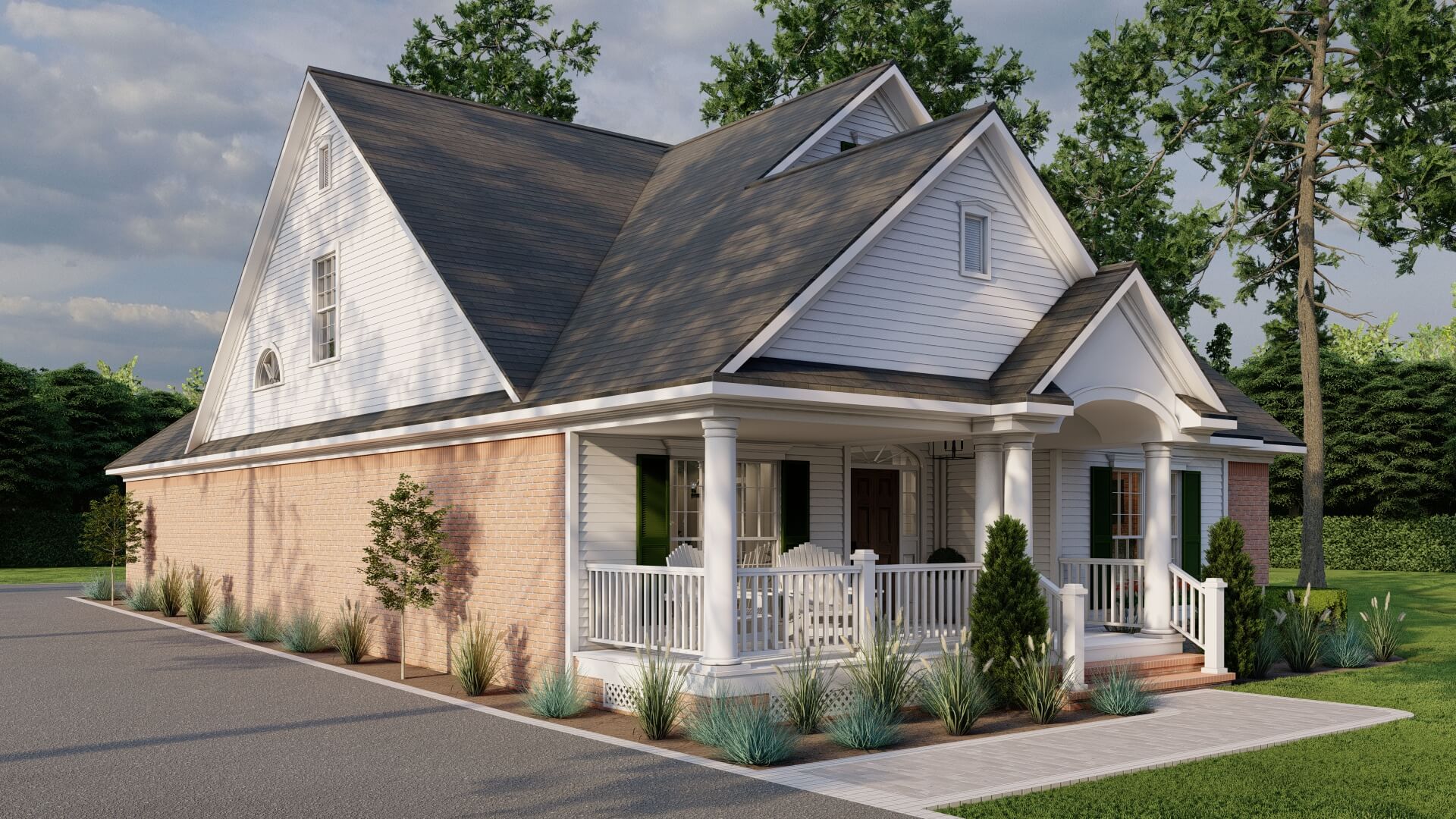

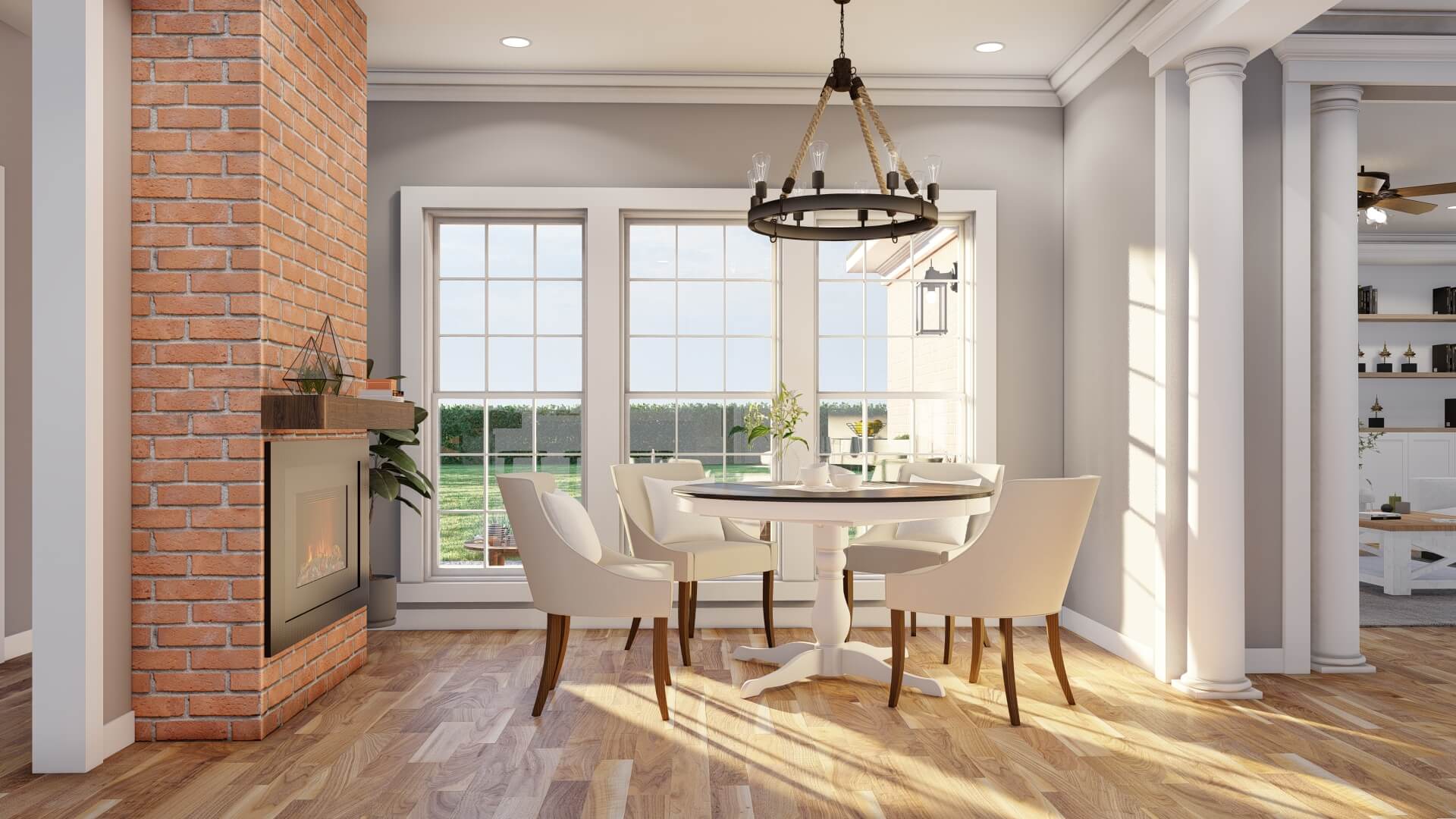

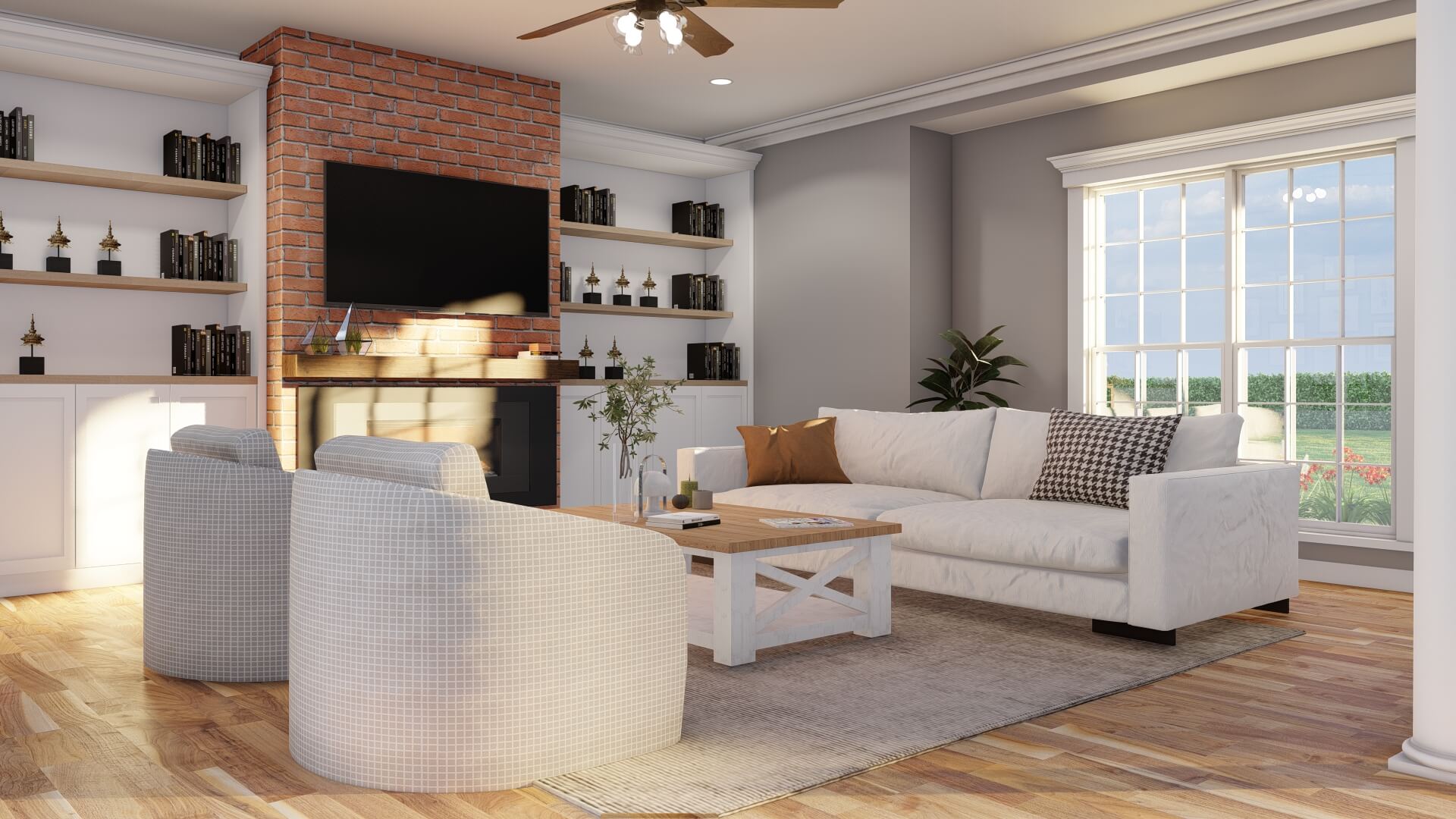

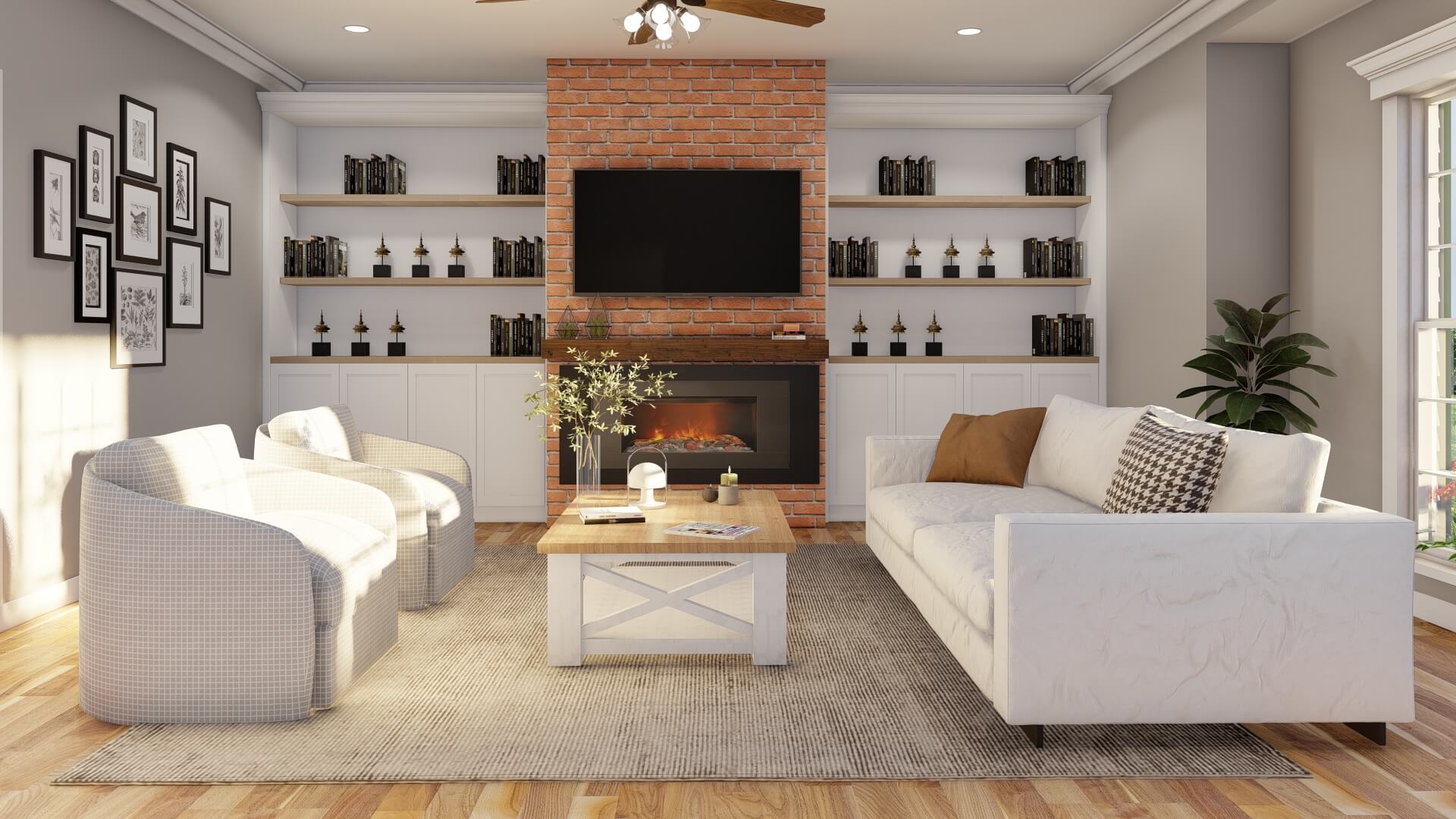

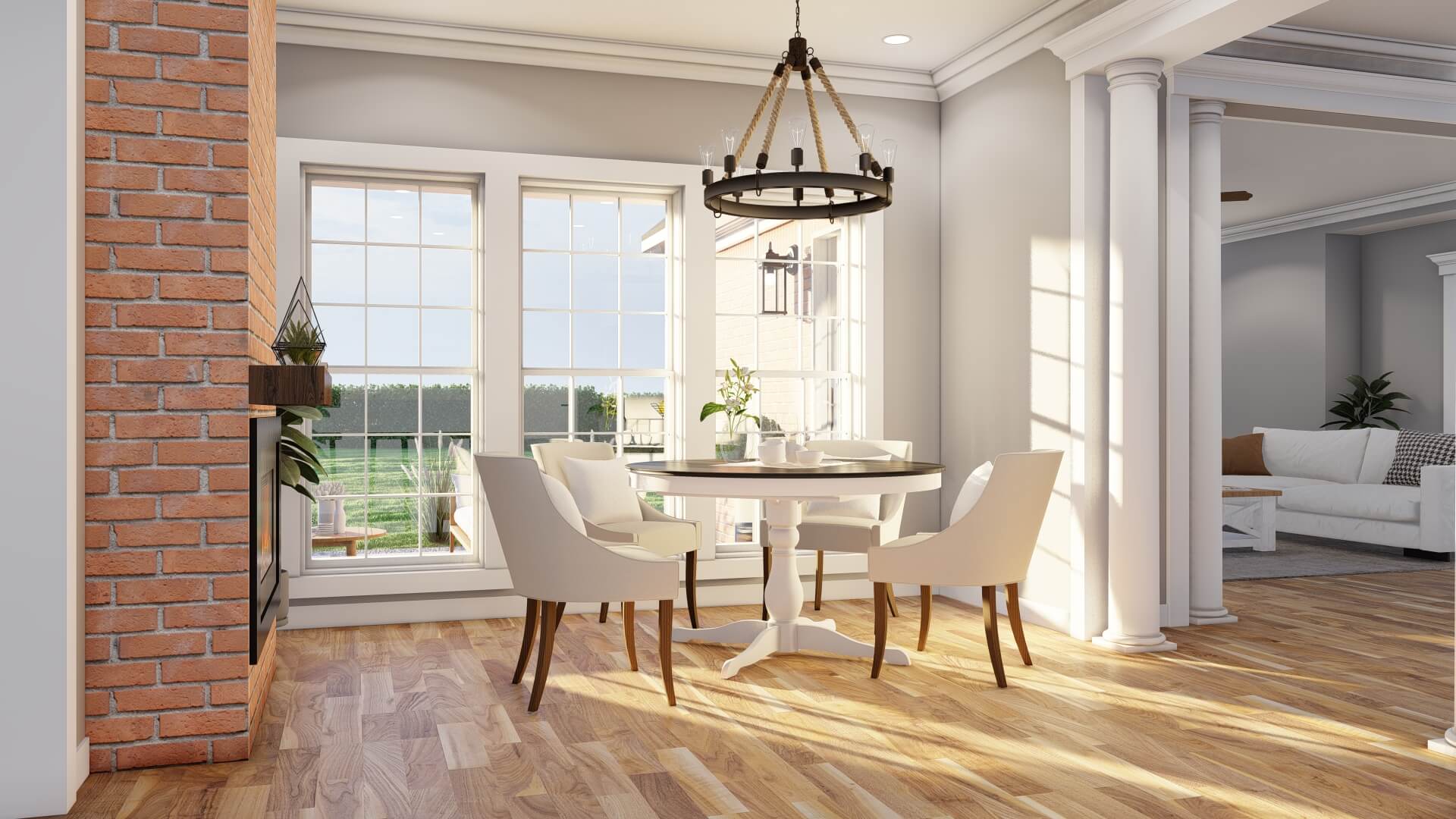

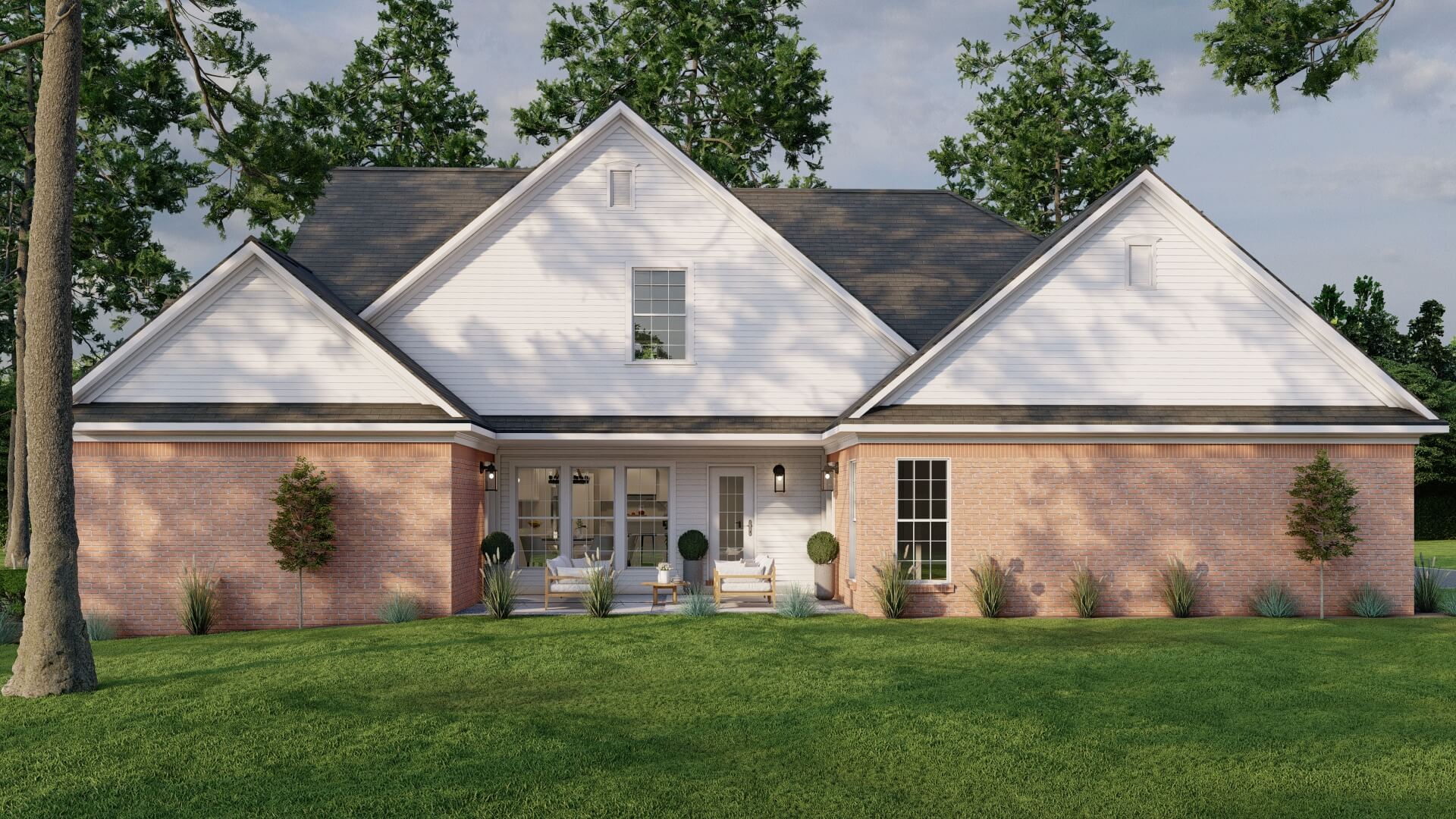

Welcome your friends and family to this traditional home. Leading your guests into the foyer, they’ll notice all the columns surrounding all entrances from the foyer to the adjoining rooms. Your spacious great room has a warm fireplace for those cold mornings. The gorgeous courtyard can be viewed by accessing the side covered patio from either the great room or master suite. The optional fireplace in the breakfast room will create a cozy environment for family breakfasts. Upstairs, you’ll find two more bedrooms with walk-through access to the bath.

Specifications

  • Total Living Space:2146 Sq.Ft.
  • Main Floor: 1654 Sq.Ft
  • Upper Floor (Sq.Ft.): 492 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 324 Sq.Ft.
  • Garage (Sq.Ft.): 464 Sq.Ft.
  • Total Square Feet: 2934 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): N/A
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
