House Plan 389 Quail Drive, Farmhouse House Plan

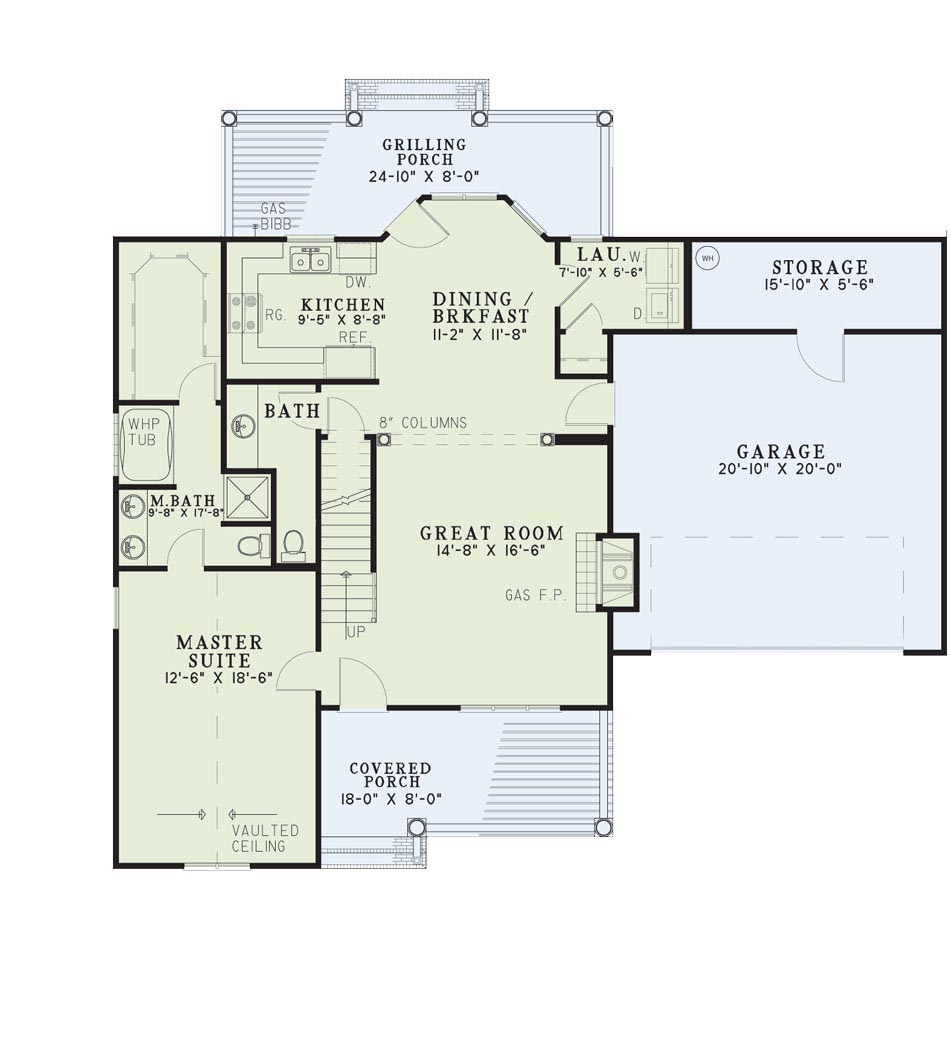

House Plan NDG 389 Main Floor

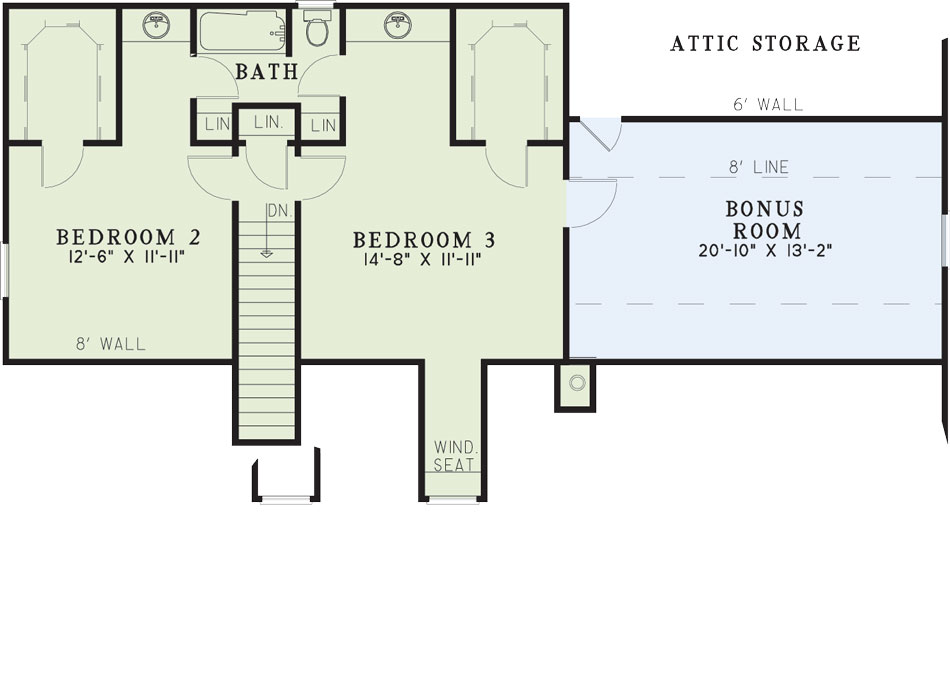

House Plan NDG 389 Upper Floor
House Plan NDG 389 Main Floor
House Plan NDG 389 Upper Floor

Floor plans

NDG 389

House Plan 389 Quail Drive, Farmhouse House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 389
  • Total Living Space:1777Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 52
  • Width In.: 10
  • Depth Ft.: 48
  • Depth In.: N/A

Description

Two exterior options and a practical floor plan make this home a great choice. You’ll enjoy hours of family fun in the large great room with cozy gas fireplace. The centralized dining area shows off a bay window with instant access to the kitchen, friendly grilling porch, utility room and garage. Upstairs the kids’ bedrooms each have walk-in closets and their own vanity sinks to minimize bathroom disputes.

Specifications

  • Total Living Space:1777Sq.Ft.
  • Main Floor: 1142 Sq.Ft
  • Upper Floor (Sq.Ft.): 635 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 293 Sq.Ft.
  • Porch (Sq.Ft.): 325 Sq.Ft.
  • Garage (Sq.Ft.): 530 Sq.Ft.
  • Total Square Feet: 2925 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
