House Plan 385B Brandon Circle, Farmhouse House Plan

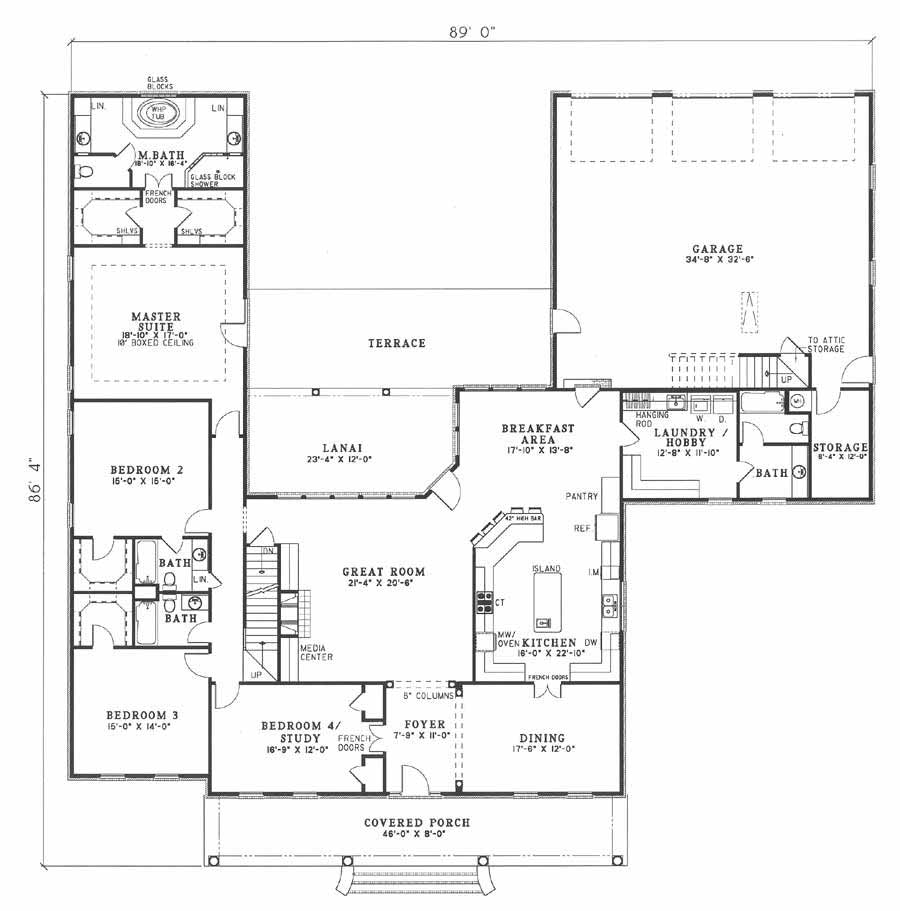

House Plan NDG 385B Main Floor

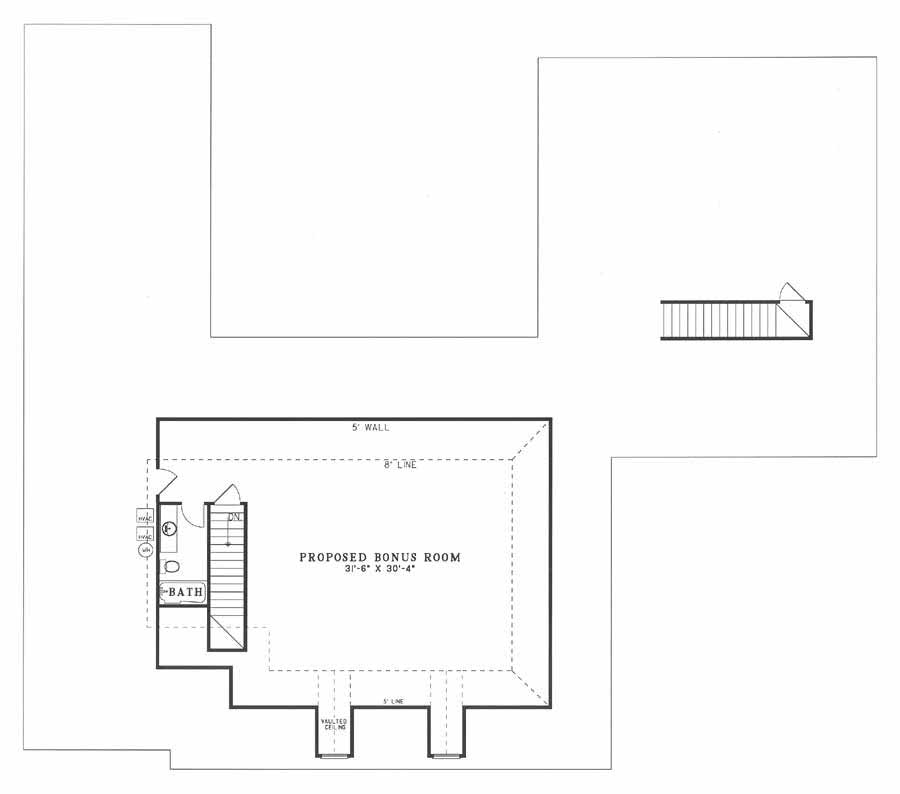

House Plan NDG 385B Upper Floor

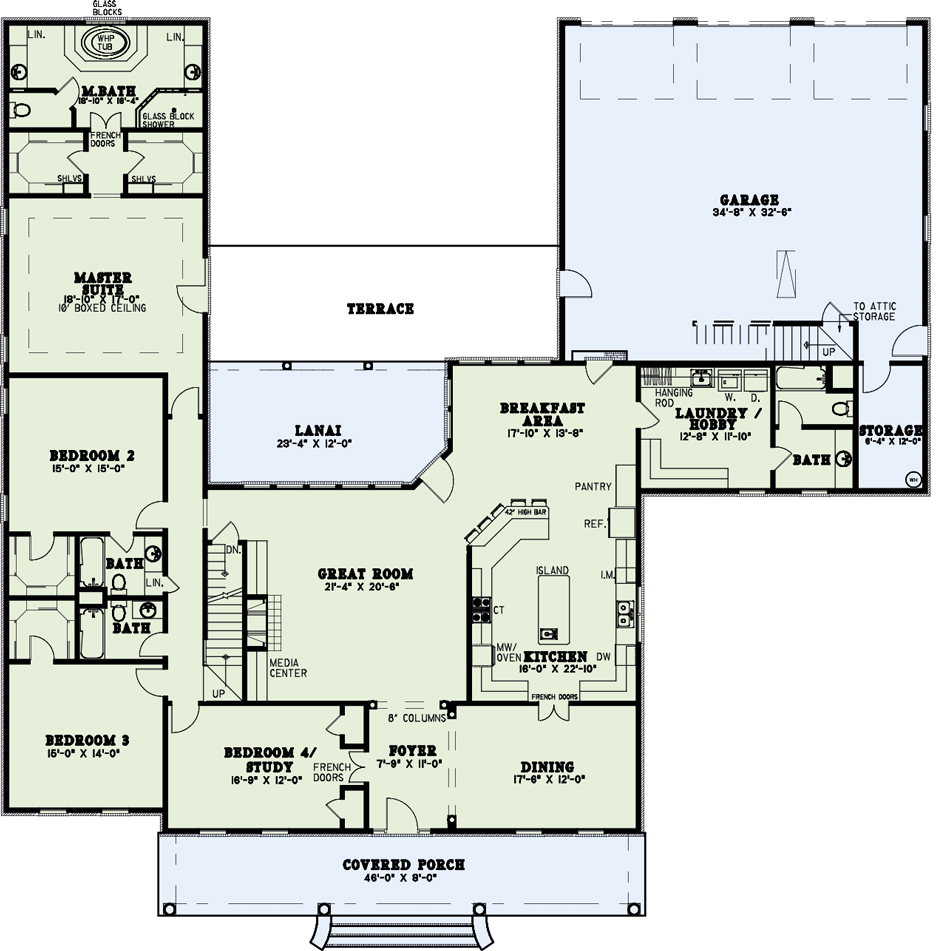

House Plan NDG 385B Main Floor

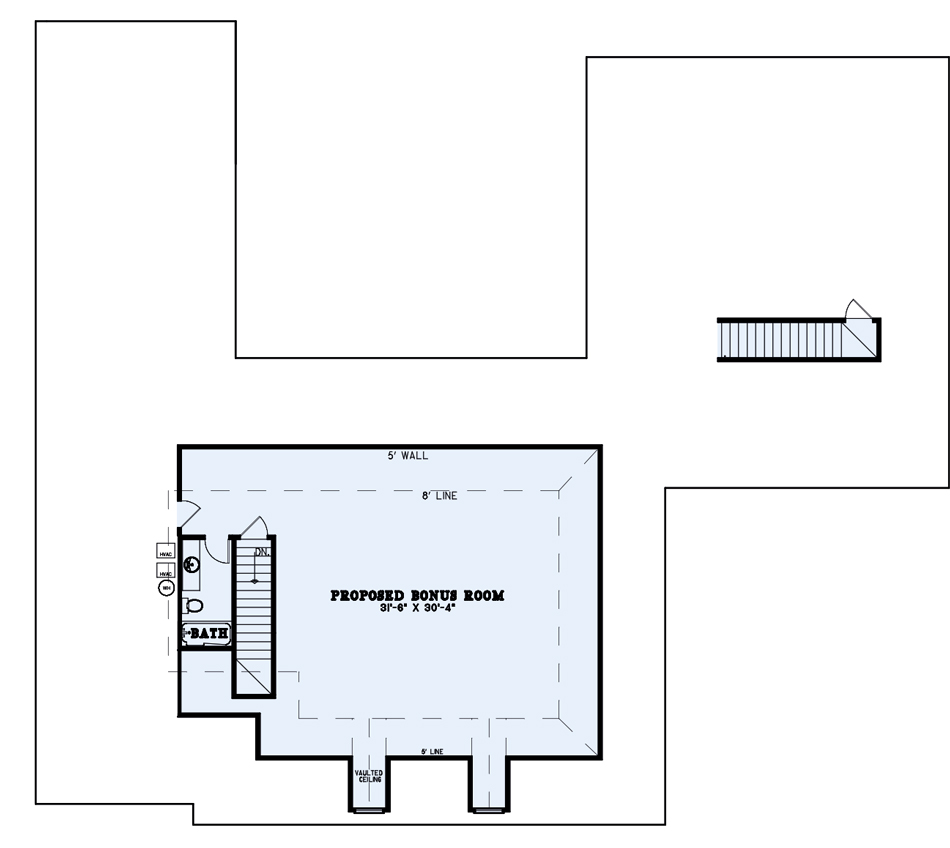

House Plan NDG 385B Upper Floor

Floor plans

NDG 385B

House Plan 385B Brandon Circle, Farmhouse House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 385B
  • Total Living Space:3474Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 89
  • Width In.: N/A
  • Depth Ft.: 86
  • Depth In.: 4

Description

You’re sure to enjoy the large great room featuring a built-in media center and fireplace in this home. A spacious kitchen holds a magnificent island and large, eat-at bar that easily serves the adjacent breakfast room. Relax in style on the spacious lanai and connecting terrace. The master suite accommodates a private terrace entrance, and raised whirlpool tub backed by sleek glass blocks. Upstairs, a mammoth bonus area with a full bath is capable of handling a variety of household activities.

Specifications

  • Total Living Space:3474Sq.Ft.
  • Main Floor: 3474 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 1276 Sq.Ft.
  • Porch (Sq.Ft.): 642 Sq.Ft.
  • Garage (Sq.Ft.): 1172 Sq.Ft.
  • Total Square Feet: 6564 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
