House Plan 357 Windstone Place, Village at Windstone II House Plan

House Plan 357 Windstone Place, Village at Windstone II House Plan

Floor plans

NDG 357

House Plan 357 Windstone Place, Village at Windstone II House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 357
  • Total Living Space:2217Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 34
  • Width In.: 2
  • Depth Ft.: 84
  • Depth In.: 2

Description

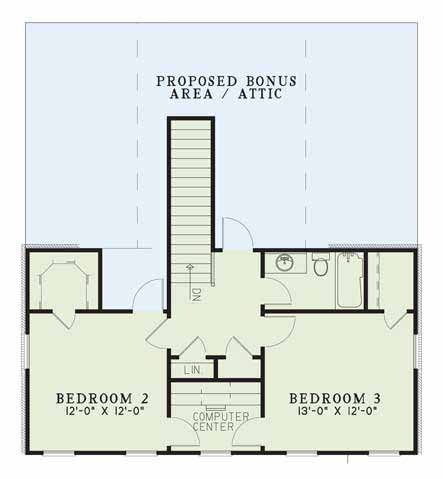

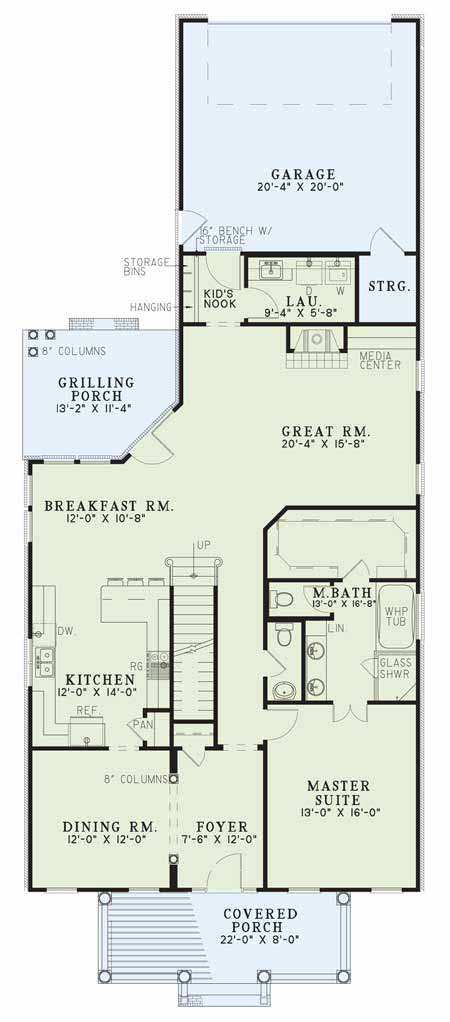

Images of traditional values come to mind with this quaint southern Nelson Design Group home. A delightful covered porch connects to a foyer leading you to a spacious dining area. The modern and efficient kitchen opens to a breakfast room, adjoined to a great room with fireplace and built-in media center. Accessible to both areas is a grilling porch providing the perfect atmosphere for entertaining. Up the stairs, you’ll find two bedrooms with eight foot ceilings that shares a computer center. This home also features a proposed bonus room designed as a convenient future recreation room.

Specifications

  • Total Living Space:2217Sq.Ft.
  • Main Floor: 1644 Sq.Ft
  • Upper Floor (Sq.Ft.): 573 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 312 Sq.Ft.
  • Garage (Sq.Ft.): 465 Sq.Ft.
  • Total Square Feet: 2994 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($1,000.00)
    • CAD ($2,000.00)
    • Five Set ($1,100.00)
    • PDF ($1,000.00)
    • PDF + Unlimited Build ($1,700.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
