House Plan 356 Windstone Place, Village at Windstone II House Plan

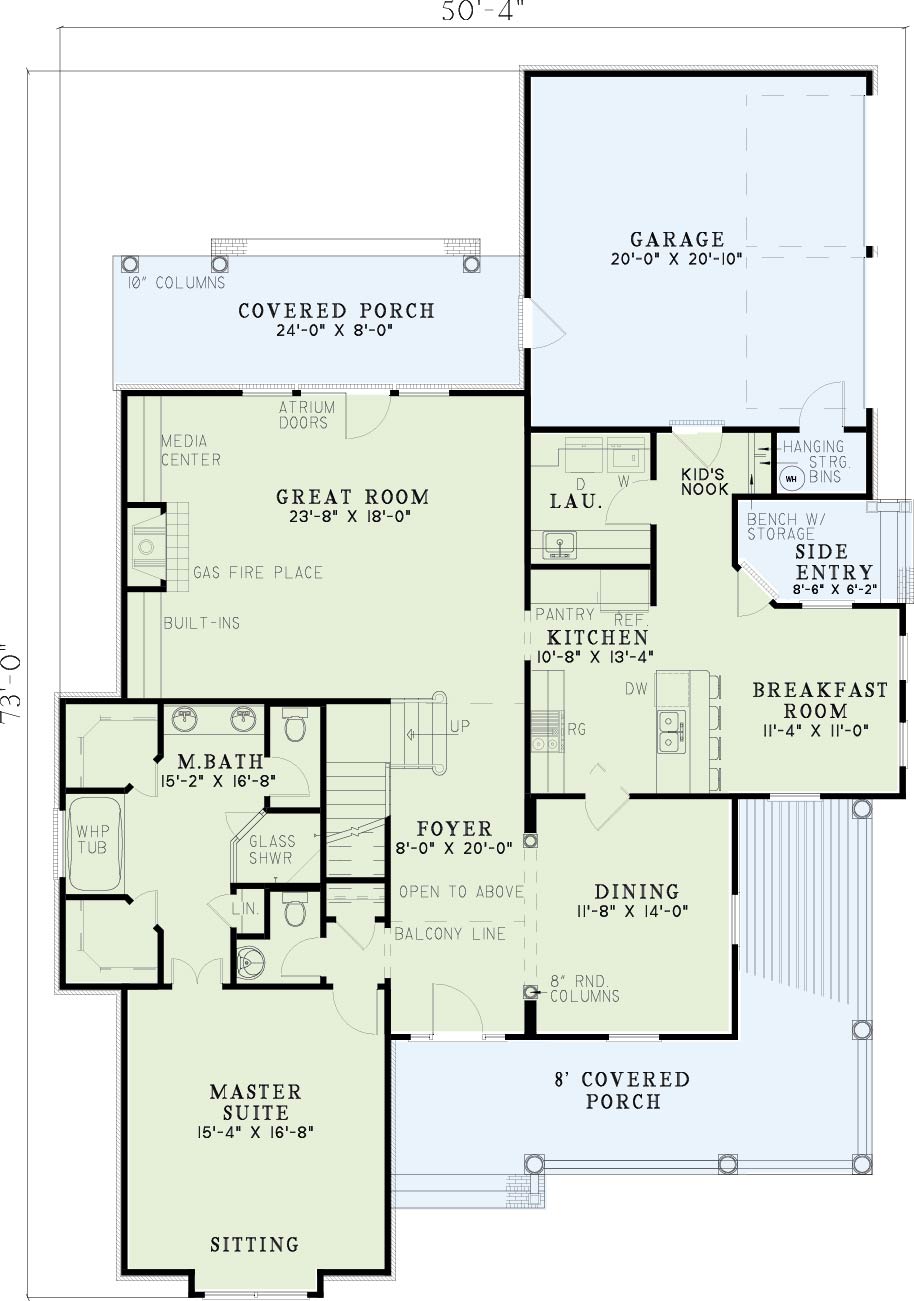

House Plan NDG 356 Main Floor

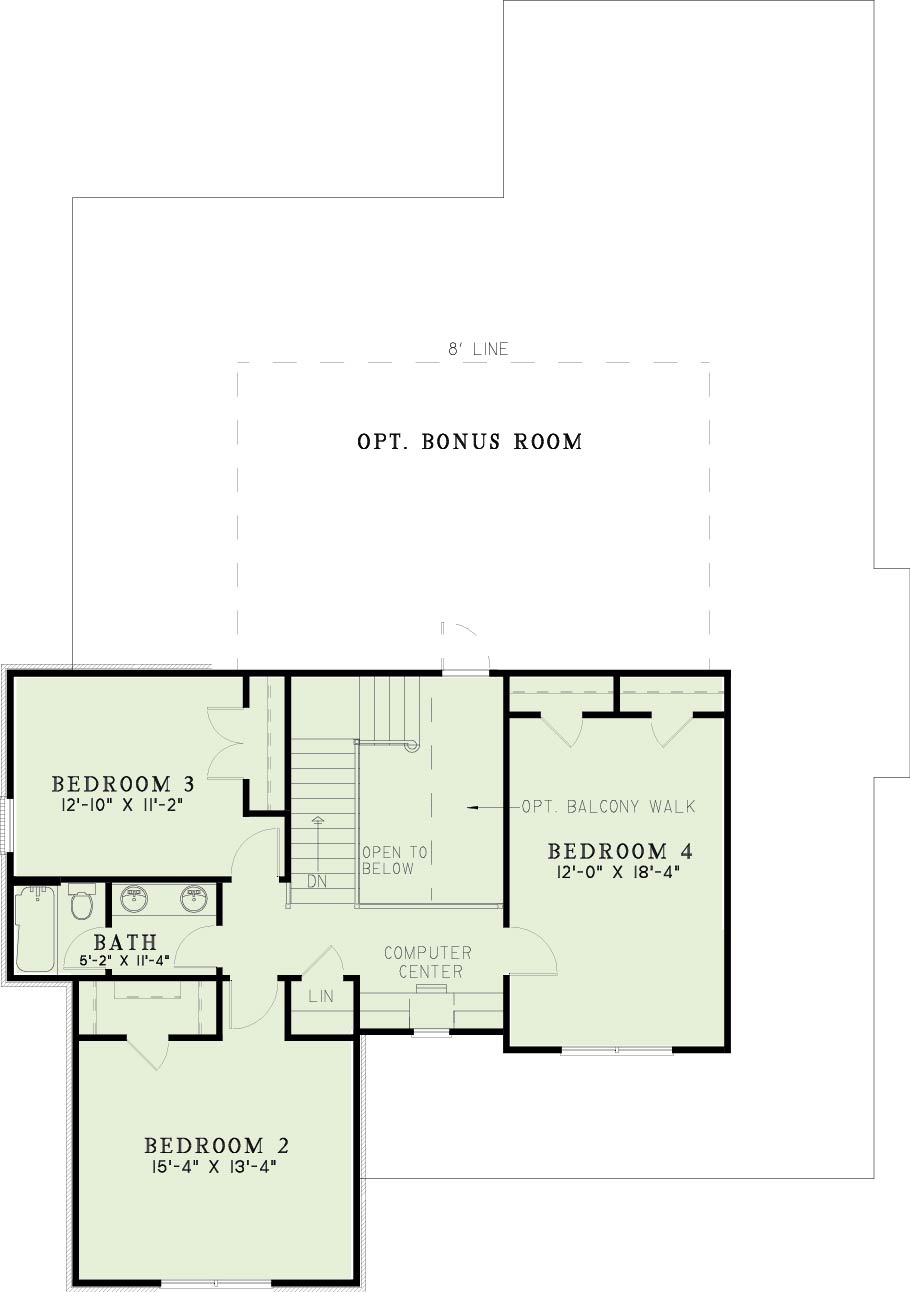

House Plan NDG 356 Upper Floor

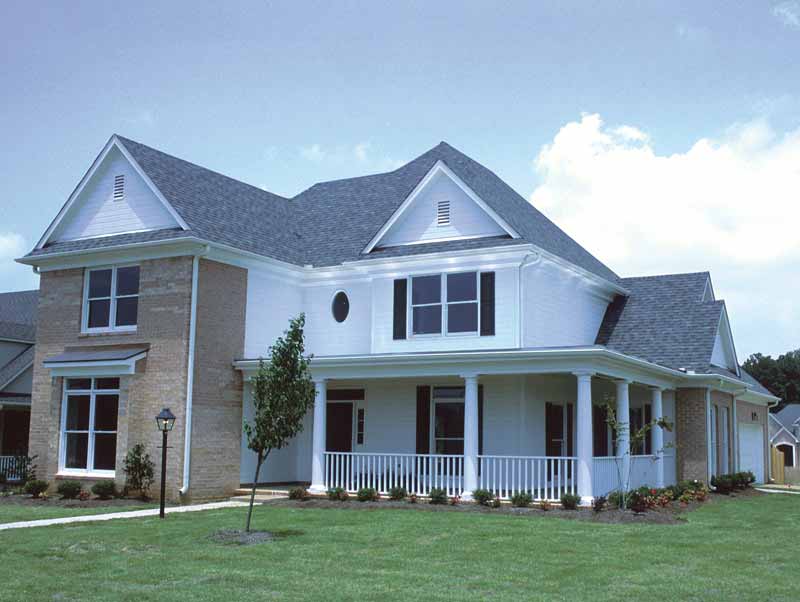

House Plan - NDG356 Front Front View>
House Plan NDG 356 Main Floor
House Plan NDG 356 Upper Floor
House Plan - NDG356 Front Front View

Floor plans

NDG 356

House Plan 356 Windstone Place, Village at Windstone II House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 356
  • Total Living Space:2676Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 50
  • Width In.: 4
  • Depth Ft.: 73
  • Depth In.: N/A

Description

This spacious, four bedroom, two and a half bath Nelson Design Group home is the definition of grand southern style. A traditional wrap-around covered porch welcomes you inside a gorgeous foyer with open ceiling to the upper floor. Continuing, you’ll enter the heart of the design- the great room. Here, enjoy countless hours of excitement and relaxation with family and friends. Convenient atrium doors open from the great room to a rear covered porch with ten inch columns for romantic nights under the stars. A secluded master suite and bath, enhanced by an elegant sitting room, provides all the privacy you need. Traveling up an open stairway you’ll find ample bedroom space for the kids, a perfect guest quarters or playroom complete with computer center and balcony walk opening over the foyer below.

Specifications

  • Total Living Space:2676Sq.Ft.
  • Main Floor: 1797 Sq.Ft
  • Upper Floor (Sq.Ft.): 879 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 581 Sq.Ft.
  • Garage (Sq.Ft.): 461 Sq.Ft.
  • Total Square Feet: 3718 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
