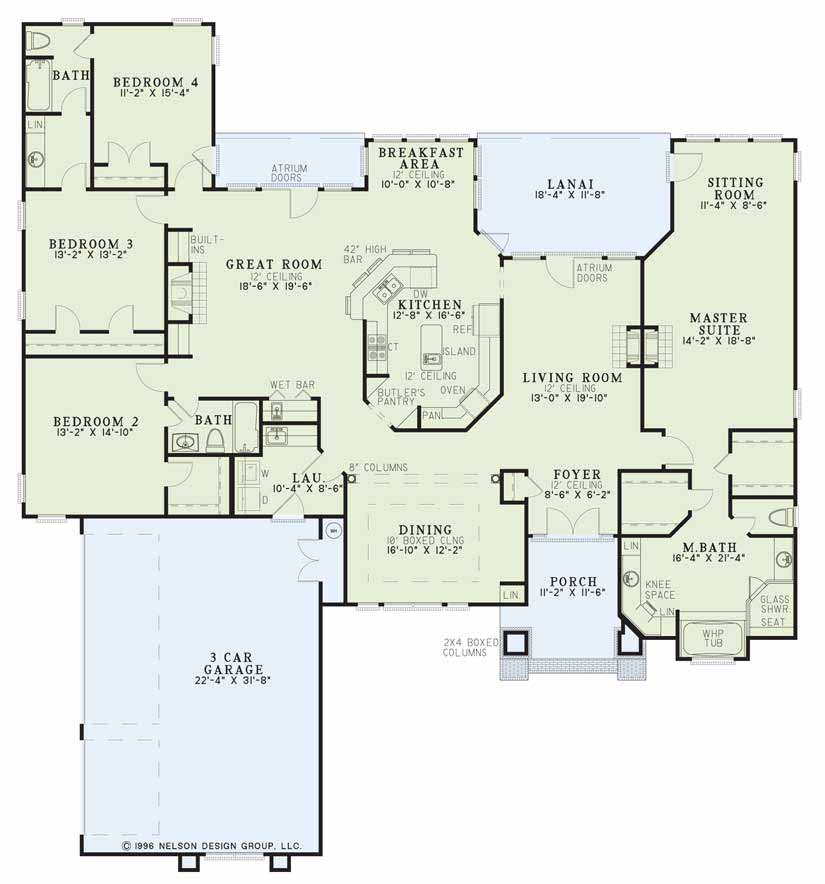

House Plan NDG 345 Main Floor

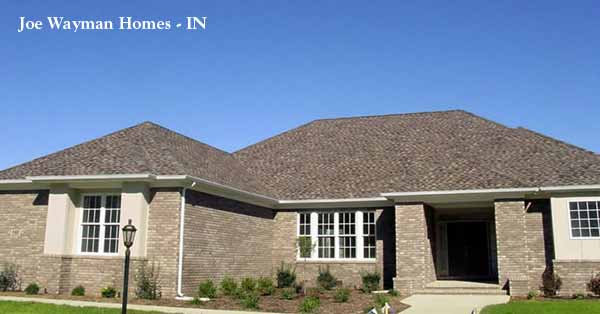

House Plan - NDG345 Front View Front View>

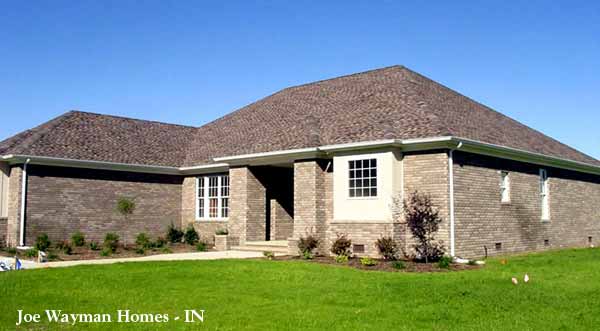

House Plan - NDG345 Front View 2 Front View>
House Plan - NDG345 Foyer Foyer>

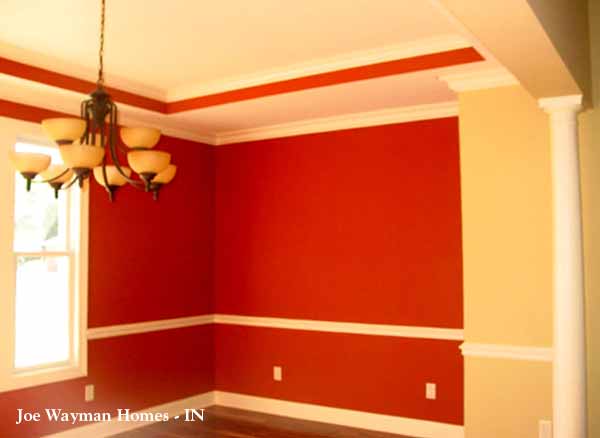

House Plan - NDG345 Dining Room Dining Room>
House Plan - NDG345 Laundry Room Laundry Room>
House Plan - NDG345 Hallway Hallway>

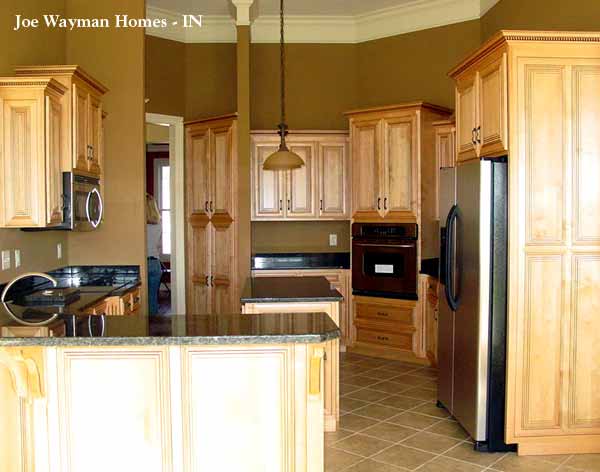

House Plan - NDG345 Kitchen Kitchen>

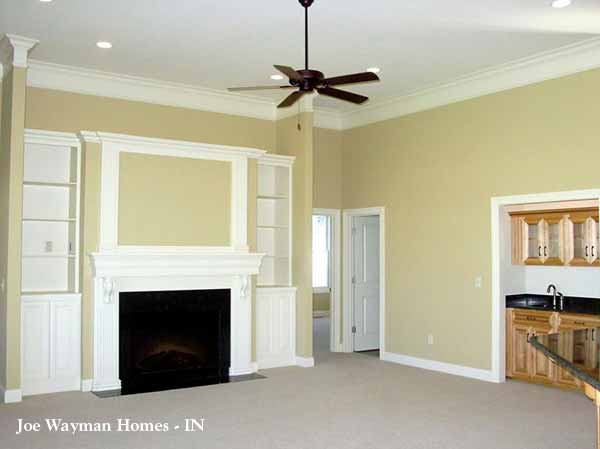

House Plan - NDG345 Great Room Great Room>
House Plan - NDG345 Master Bathroom Master Bathroom>

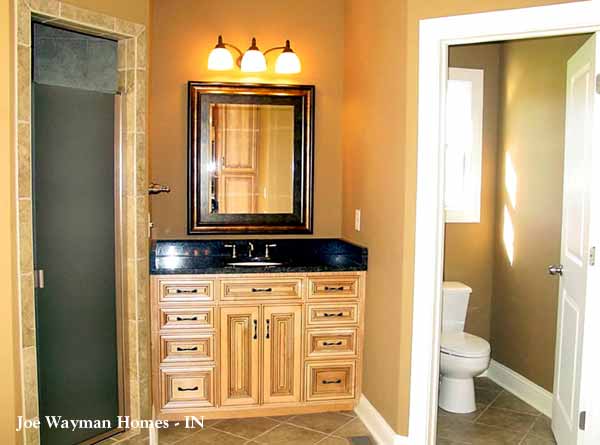

House Plan - NDG345 Bathroom Bathroom>
House Plan NDG 345 Main Floor
House Plan - NDG345 Front View Front View
House Plan - NDG345 Front View 2 Front View

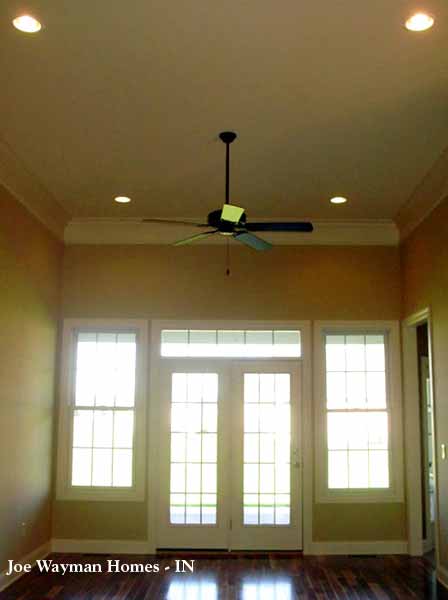

House Plan - NDG345 Foyer Foyer
House Plan - NDG345 Dining Room Dining Room

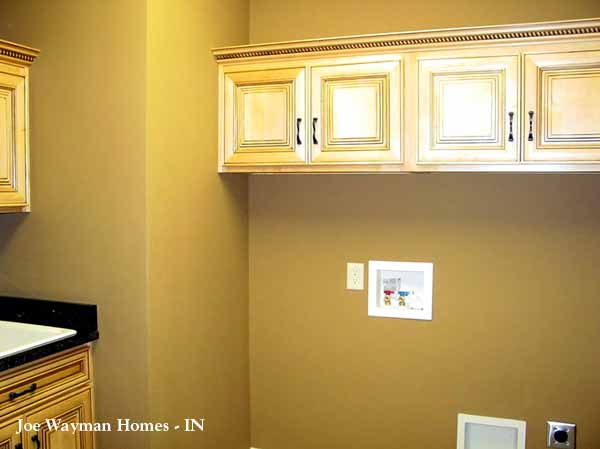

House Plan - NDG345 Laundry Room Laundry Room

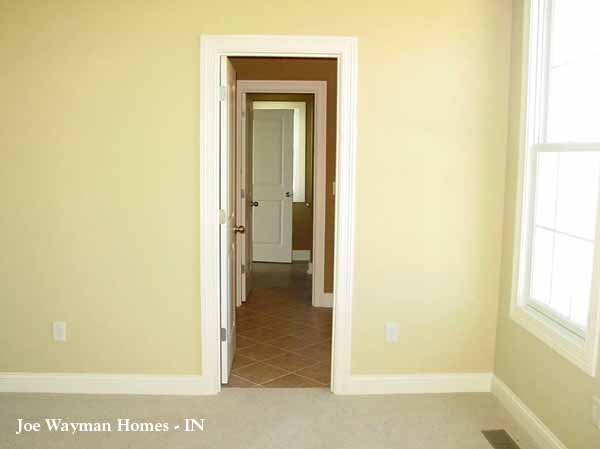

House Plan - NDG345 Hallway Hallway
House Plan - NDG345 Kitchen Kitchen
House Plan - NDG345 Great Room Great Room

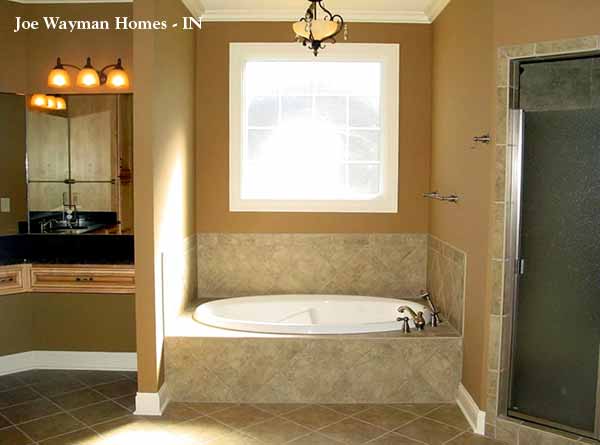

House Plan - NDG345 Master Bathroom Master Bathroom
House Plan - NDG345 Bathroom Bathroom

Floor plans

NDG 345

House Plan 345 Sunset Drive, Modern House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 345
  • Total Living Space:2951Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 73
  • Width In.: 6
  • Depth Ft.: 80
  • Depth In.: 6

Description

This sprawling four-bedroom plan centers on an ultra functional kitchen accessing all living areas with ease. A handy eat-at bar and island help make this kitchen any gourmet’s dream. Separate living and great rooms each feature gas fireplaces and lots of open space. All three secondary bedrooms feature private bath entrances. The exquisite master suite presents a radiant fireplace, large sitting area, private entrance to the lanai and a massive bath that includes his and her walk-in closets and an oversized whirlpool tub.
Photos courtesy of Joe Wayman Homes, IN; brick exterior per builder

Specifications

  • Total Living Space:2951Sq.Ft.
  • Main Floor: 2951 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 444 Sq.Ft.
  • Garage (Sq.Ft.): 707 Sq.Ft.
  • Total Square Feet: 4102 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
