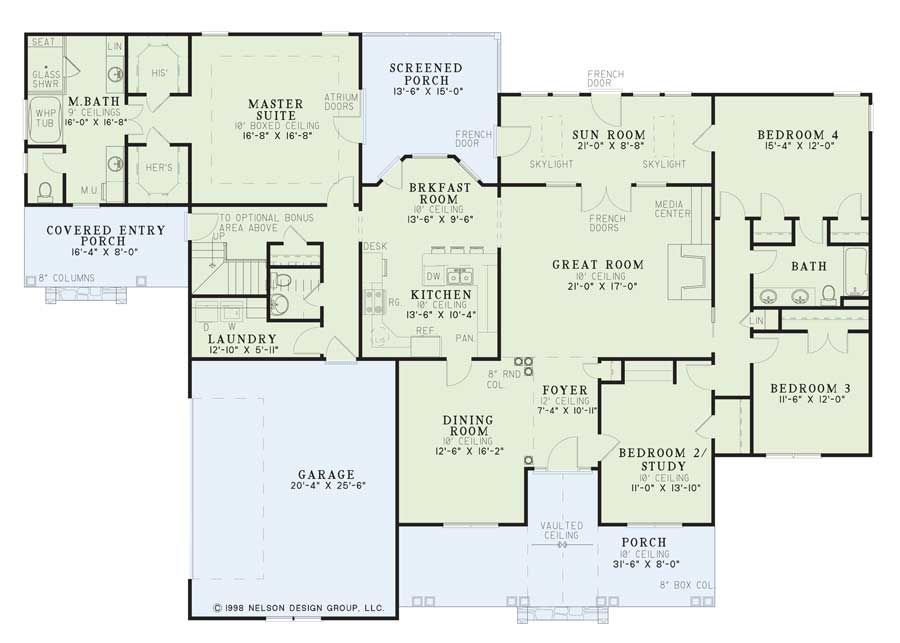

House Plan NDG 327 Main Floor

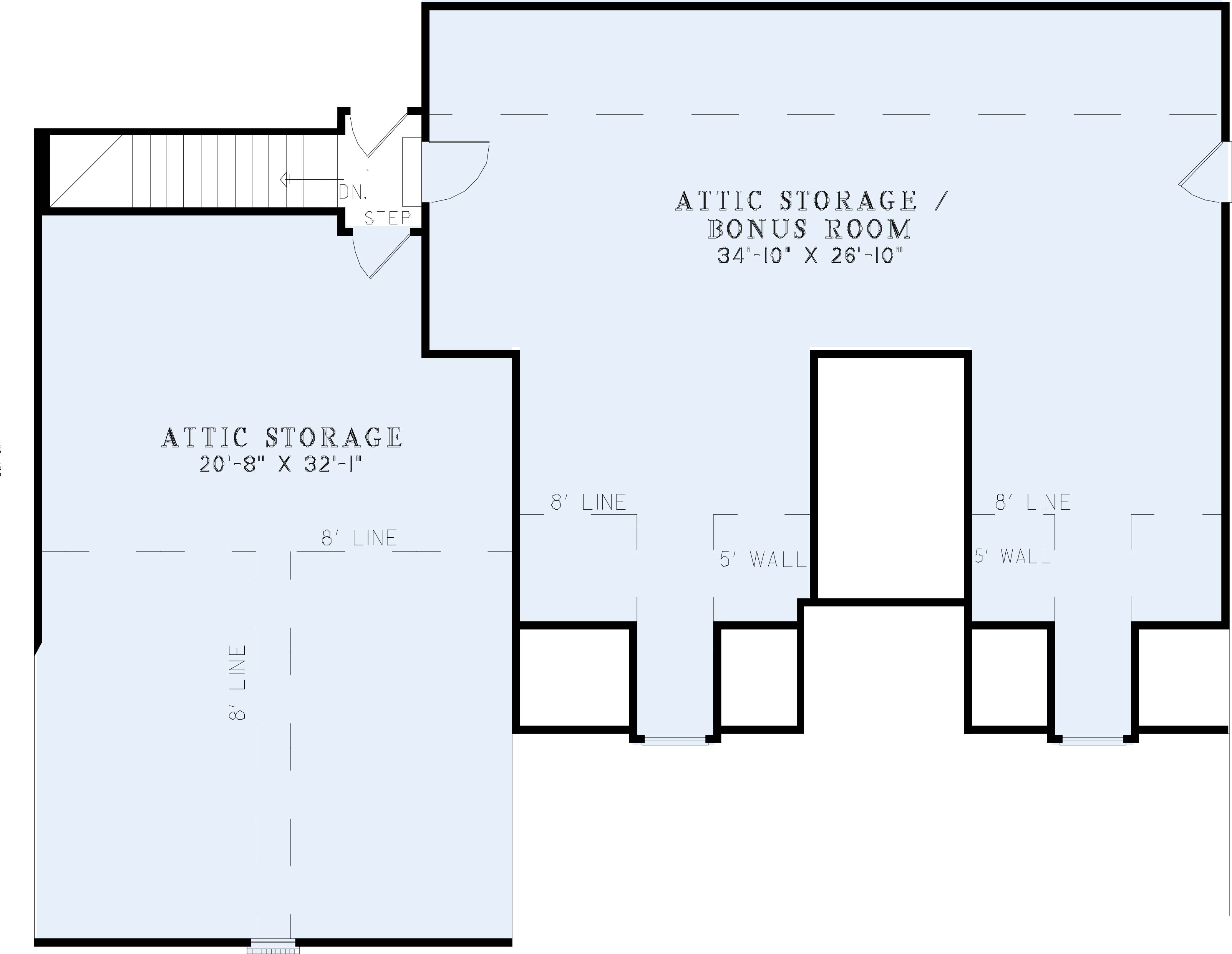

House Plan NDG 327 Upper Floor

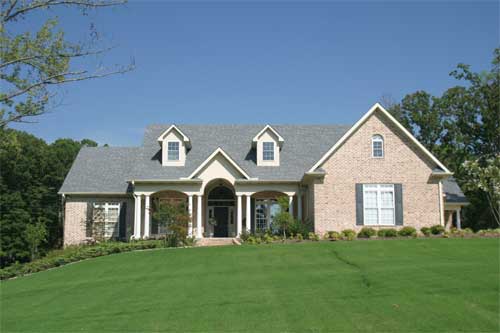

House Plan - 327p Front View

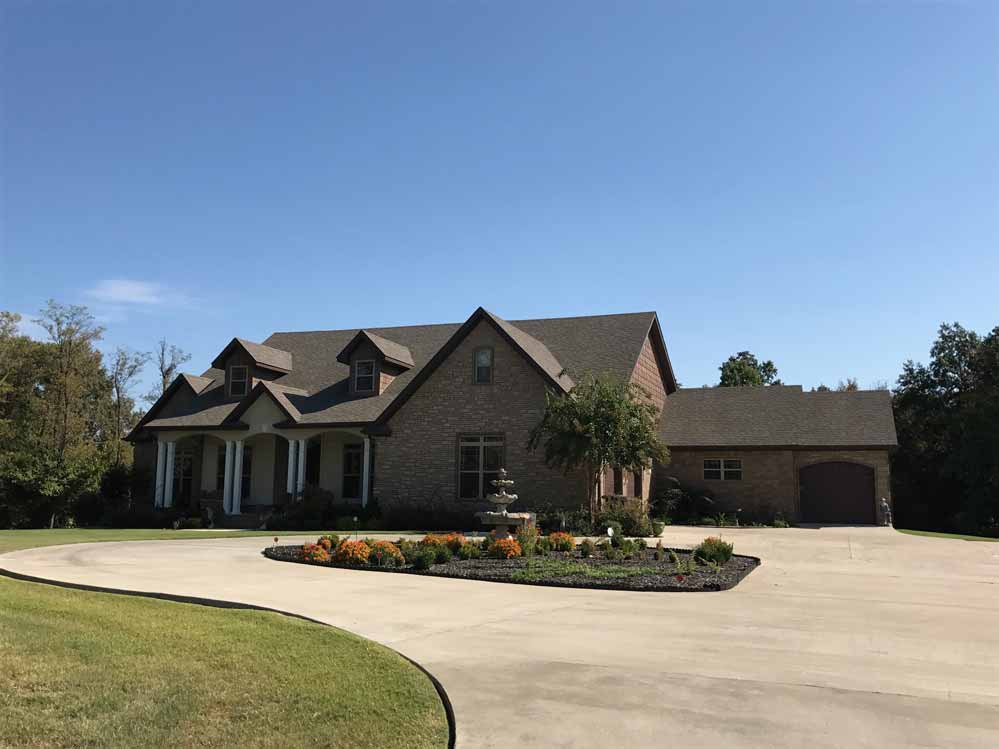

House Plan - 1150(NDG327) Front View
House Plan NDG 327 Main Floor
House Plan NDG 327 Upper Floor
House Plan - 327p Front View
House Plan - 1150(NDG327) Front View

Floor plans

House Plan NDG 327 Main Floor

House Plan NDG 327 Upper Floor
NDG 327

House Plan 327 Willow Lane, Traditional House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 327
  • Total Living Space:2742Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 84
  • Width In.: 6
  • Depth Ft.: 58
  • Depth In.: 6

Description

A splendid arched entry accented with elegant dual columns and flanked by charming dormers meshes cleanly with the smooth stucco and rock exterior of this offering. The sun room demands attention with its elegant French door entries, twin sky lights and quick access to three distinct areas of the home and the back yard. The screened porch is sure to be a hit with the atrium doors leading to the master suite and adjacent placement next to the kitchen.

Specifications

  • Total Living Space:2742Sq.Ft.
  • Main Floor: 2742 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 916 Sq.Ft.
  • Porch (Sq.Ft.): 602 Sq.Ft.
  • Garage (Sq.Ft.): 537 Sq.Ft.
  • Total Square Feet: 4797 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 5:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
