House Plan 317 Windstone Place, Village at Windstone I House Plan

House Plan 317 Windstone Place, Village at Windstone I House Plan

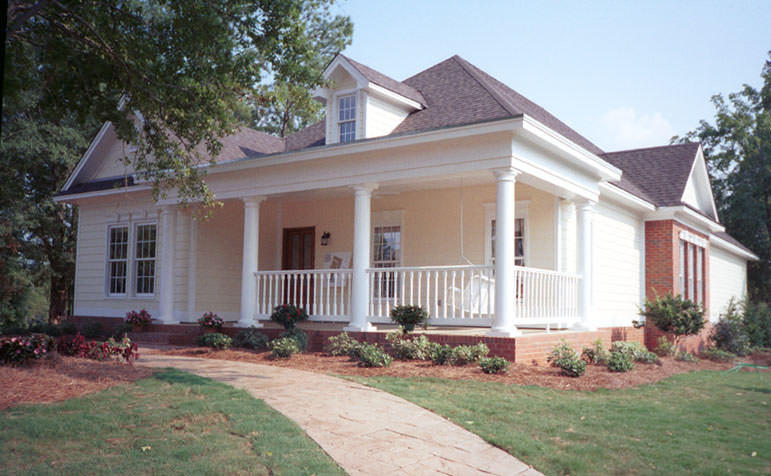

House Plan - ndg317 Front Front View

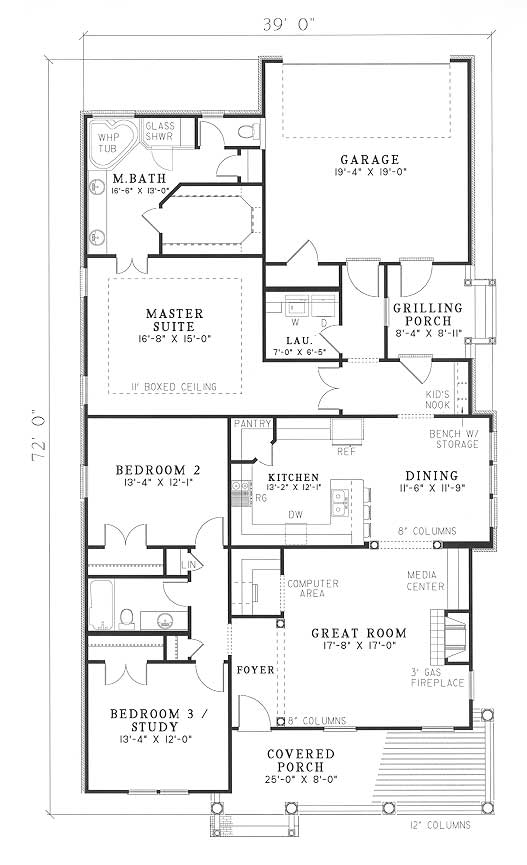

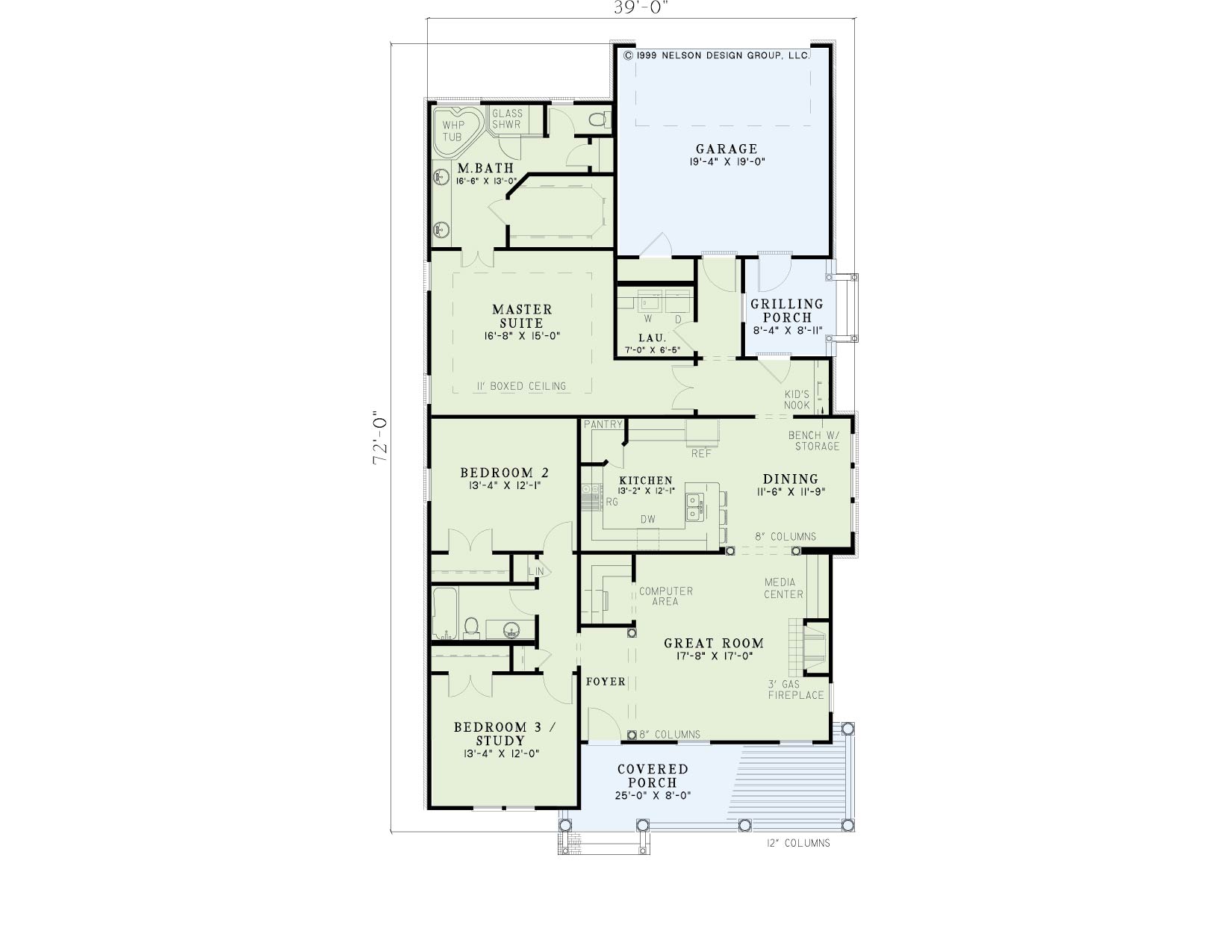

Floor plans

NDG 317

House Plan 317 Windstone Place, Village at Windstone I House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 317
  • Total Living Space:1915Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Rear Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 72
  • Depth In.: N/A

Description

This traditional neighborhood design captures the classic style and splendor of historical Southern architecture. An eight-foot covered front porch leads into an elegant foyer and marvelous great room complete with a built-in media center, computer nook and fireplace. Pass through remarkable wooden columns into a formal dining area- perfect for elegant dinner parties and conveniently located with fluid access to the kitchen. Invite friends over for a cookout using the side covered grilling porch. Intricate French doors lead to a grand master suite and adjoining full master bath with all the amenities you’ve come to expect.

Specifications

  • Total Living Space:1915Sq.Ft.
  • Main Floor: 1915 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 279 Sq.Ft.
  • Garage (Sq.Ft.): 401 Sq.Ft.
  • Total Square Feet: 2595 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($800.00)
    • CAD ($1,600.00)
    • Five Set ($900.00)
    • PDF ($800.00)
    • PDF + Unlimited Build ($1,500.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
