House Plan 311 Waterfront Cove, Waterfront House Plan

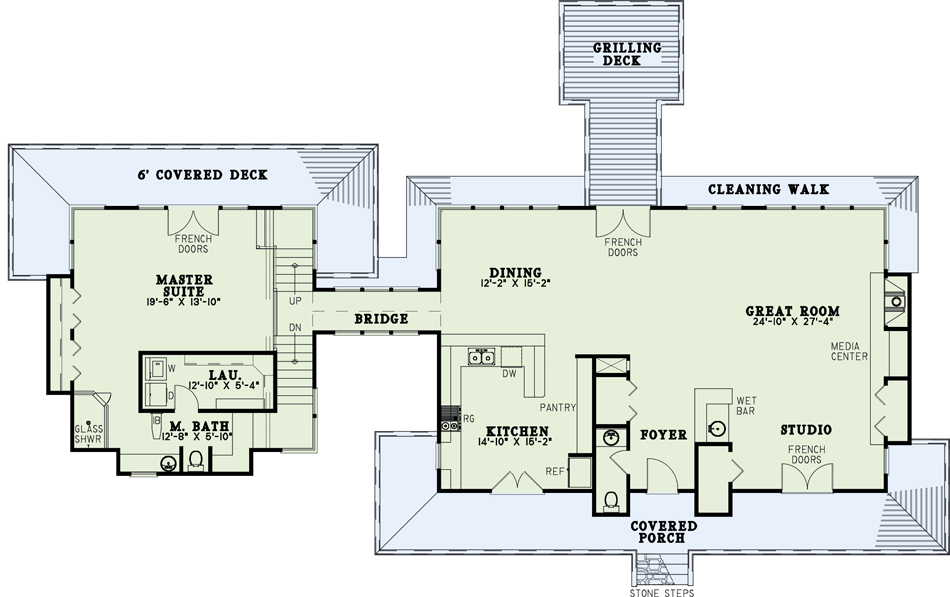

Floor plans

NDG 311

House Plan 311 Waterfront Cove, Waterfront House Plan

PDF: $1,100.00

Plan Details

  • Plan Number: NDG 311
  • Total Living Space:2610Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 91
  • Width In.: 10
  • Depth Ft.: 54
  • Depth In.: N/A

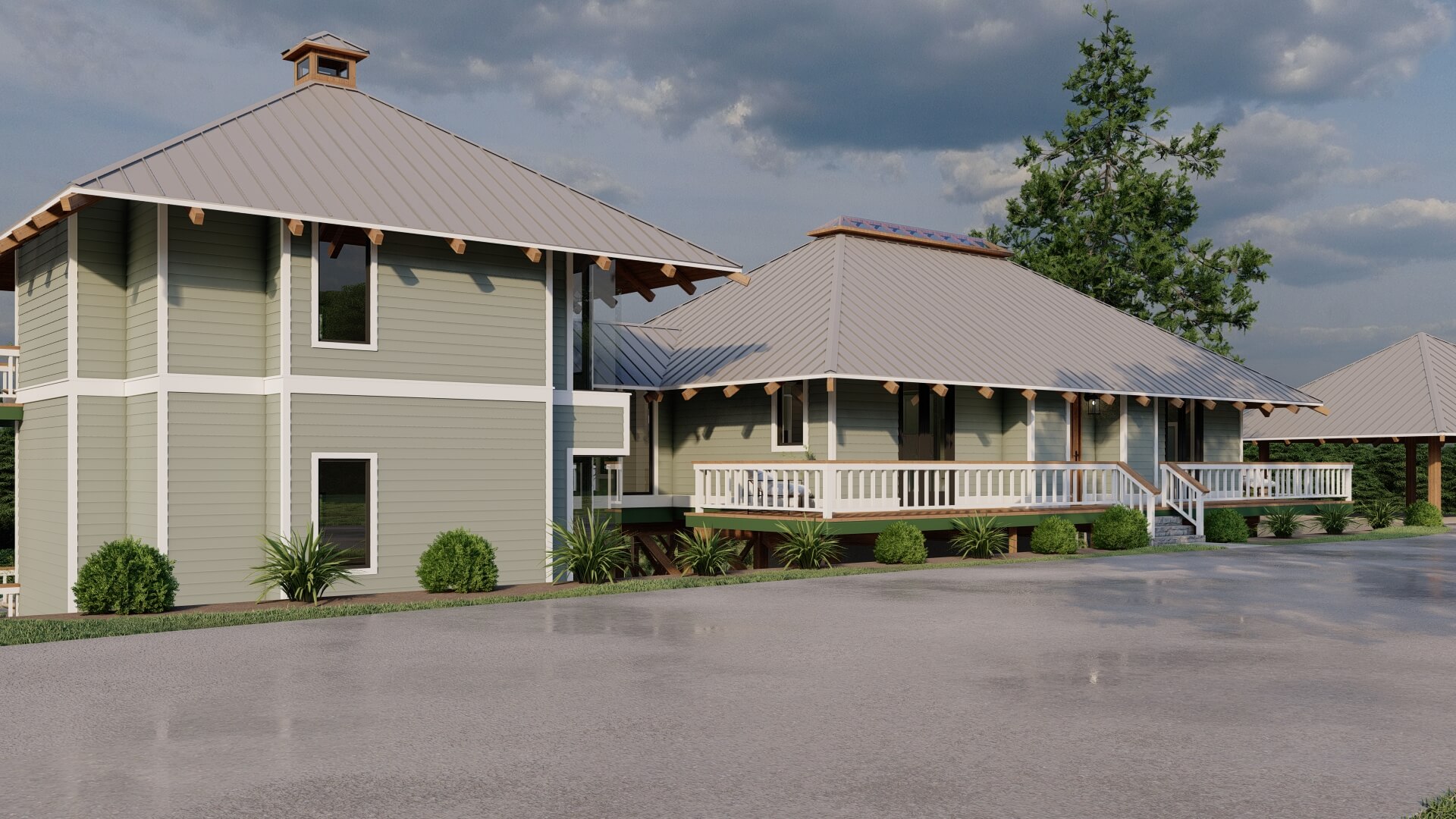

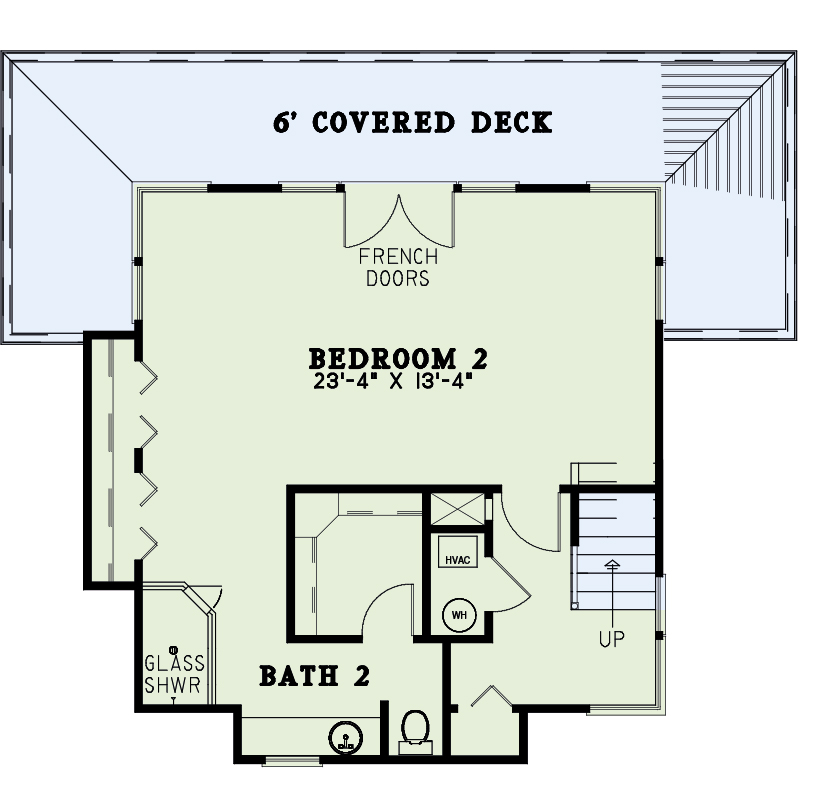

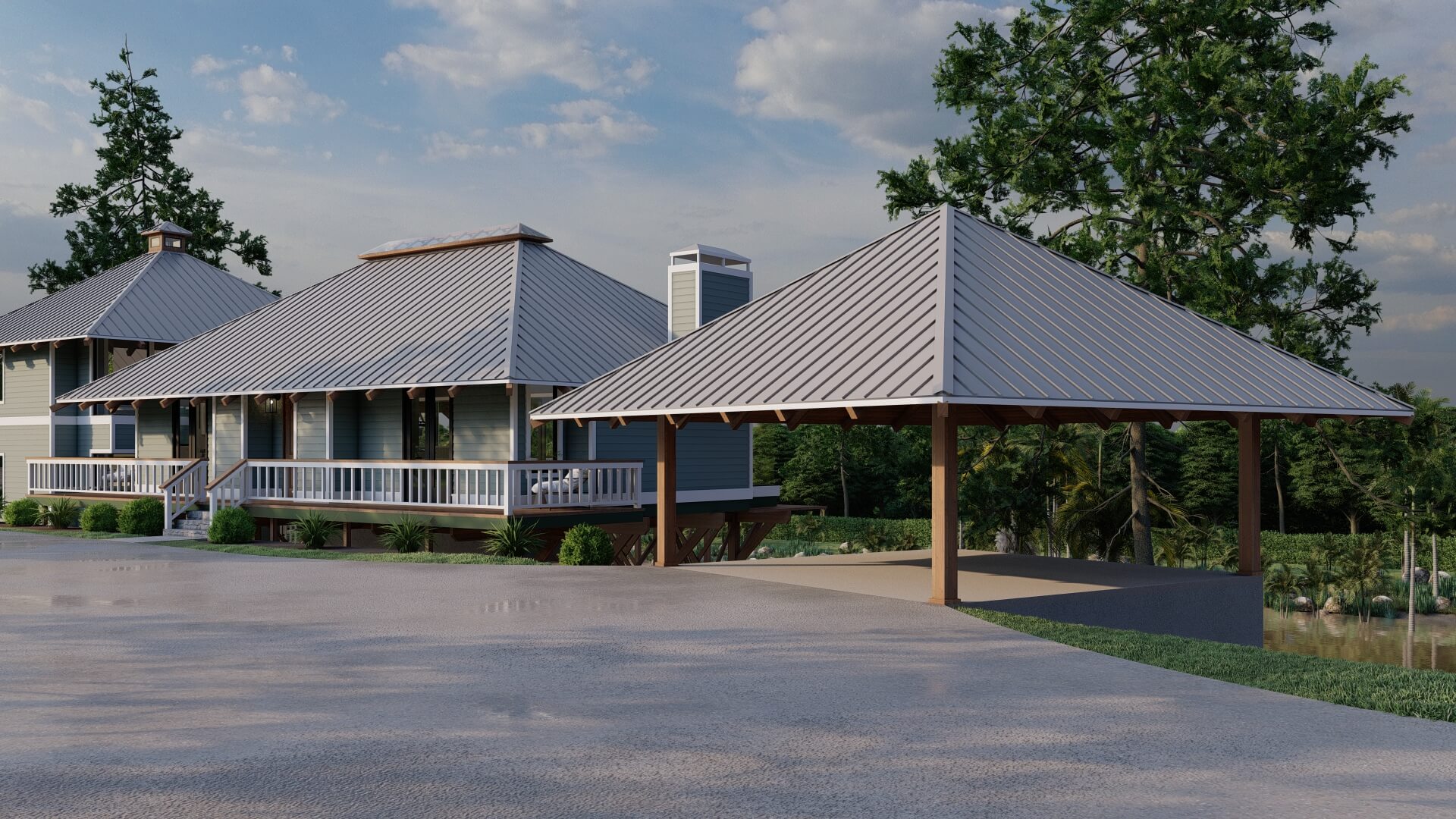

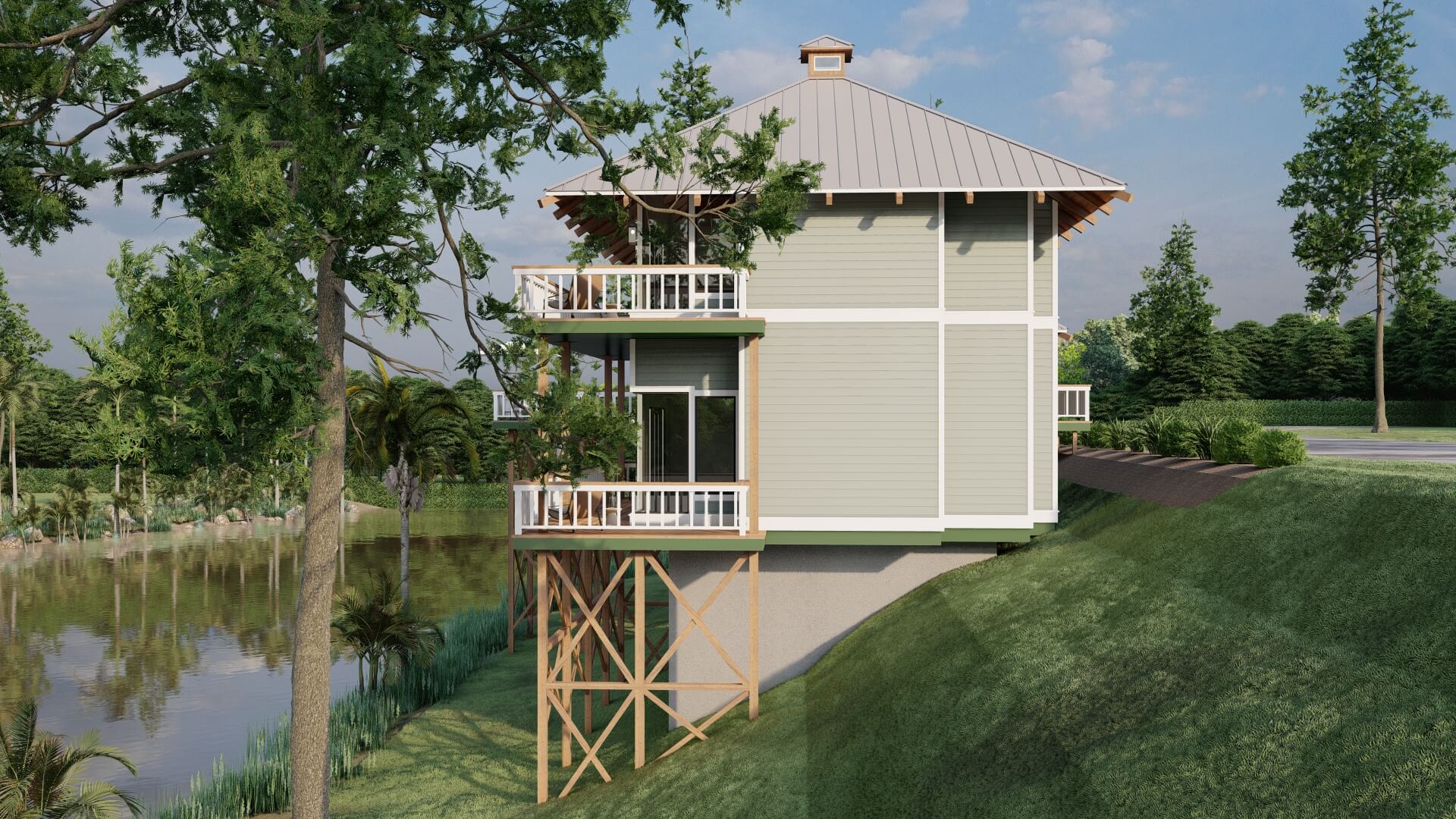

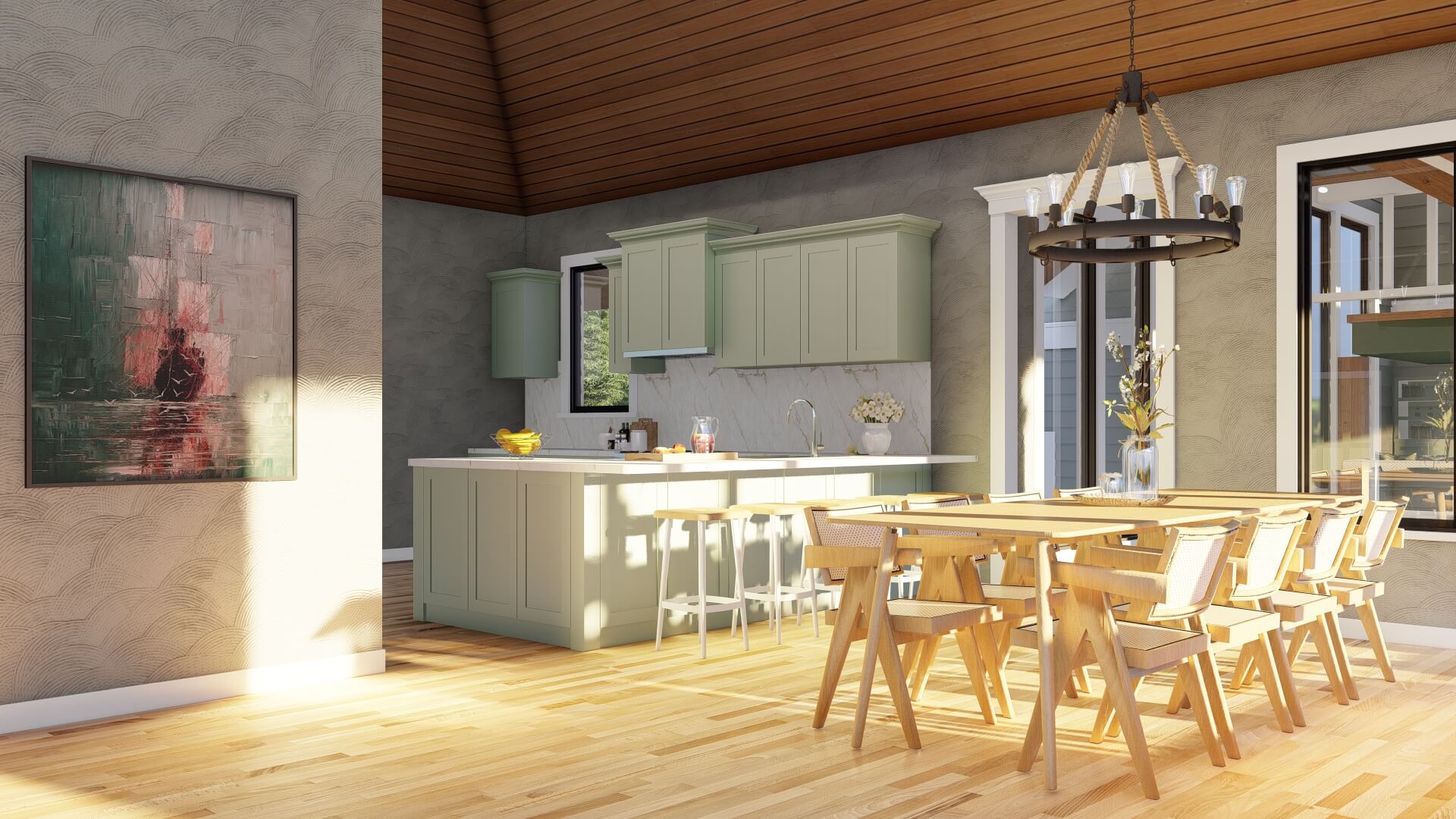

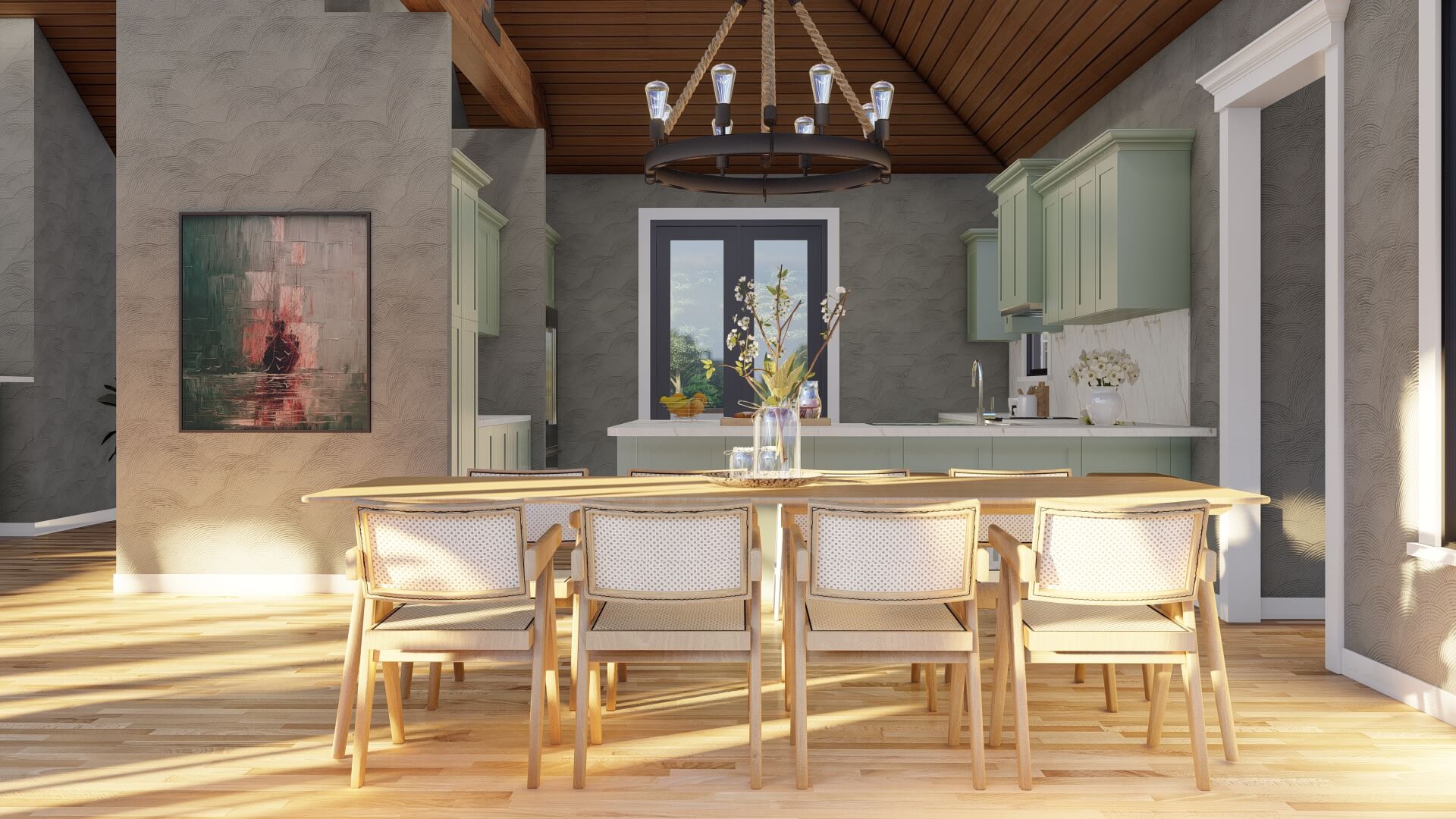

Stone steps and a covered porch welcome you to this tree house style home. French doors open to the studio with a wet bar providing relaxation while enjoying the great room fireplace. Your guests will enjoy the openness of the dining room and kitchen created by the vaulted ceilings above. A peninsula grilling deck allows you to prepare your meals with ease. Separated from the living areas by a bridge, your master suite includes corner glass shower and walk-in closet with a convenient laundry area. The lower level has an identical bedroom suite with French door access to the rear deck.


  • Total Living Space:2610Sq.Ft.
  • Main Floor: 1976 Sq.Ft
  • Upper Floor (Sq.Ft.): 634 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1360 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 4370 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: N/A
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 10
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
