House Plan 303-2B Cross Creek, Traditional House Plan

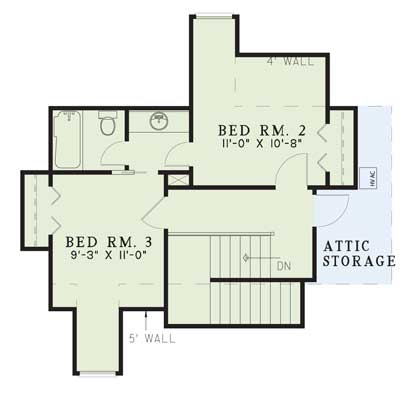

House Plan NDG 303-2B Upper Floor

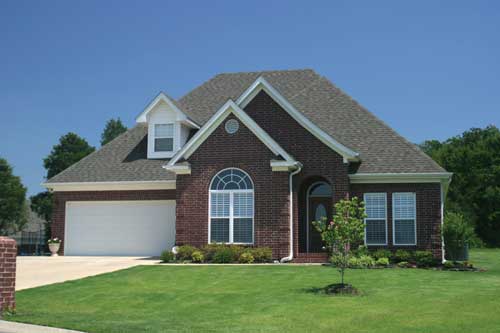

House Plan - 303p Front View>
>
House Plan NDG 303-2B Upper Floor
House Plan - 303p Front View

Floor plans

NDG 303-2B

House Plan 303-2B Cross Creek, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 303-2B
  • Total Living Space:1797Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 48
  • Width In.: N/A
  • Depth Ft.: 43
  • Depth In.: N/A

Description

The lovely covered entry porch of this Nelson Design Group home leads you into a traditional foyer- perfect for greeting guests before an elegant dinner party. Through graceful wooden columns, enter the dining room with ten foot ceiling, creating the perfect dining ambiance. Following dinner, retreat with guests to a spacious great room for conversation over coffee and dessert. After a full night of entertaining, retreat to the comfort and privacy of a secluded master suite. The children will be fast asleep on the upper level in the two bedrooms with walk-through bath.

Specifications

  • Total Living Space:1797Sq.Ft.
  • Main Floor: 1356 Sq.Ft
  • Upper Floor (Sq.Ft.): 441 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 56 Sq.Ft.
  • Garage (Sq.Ft.): 395 Sq.Ft.
  • Total Square Feet: 2248 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
