House Plan 296 Wellington Lane, Village at Wellington House Plan

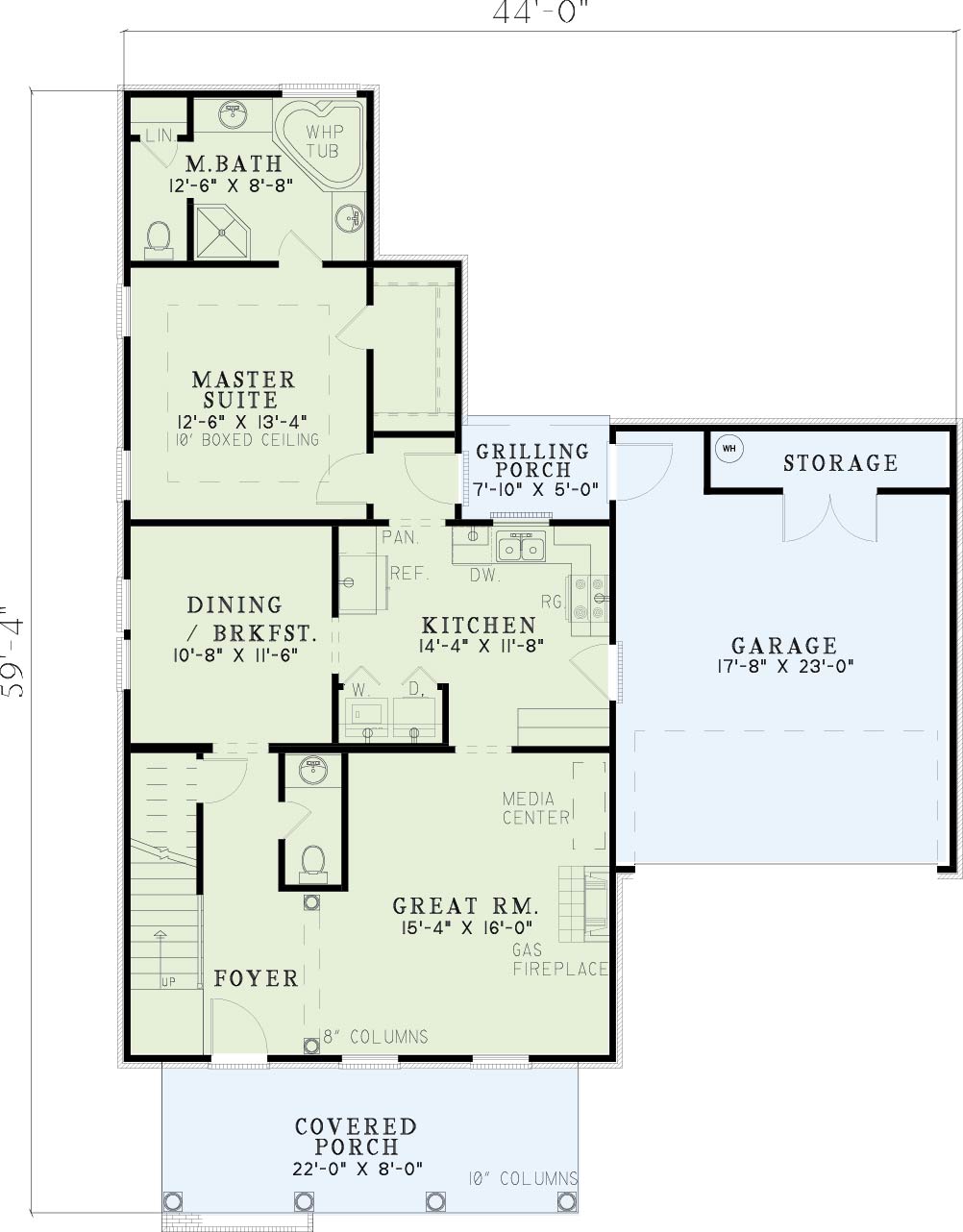

House Plan NDG 296 Main Floor

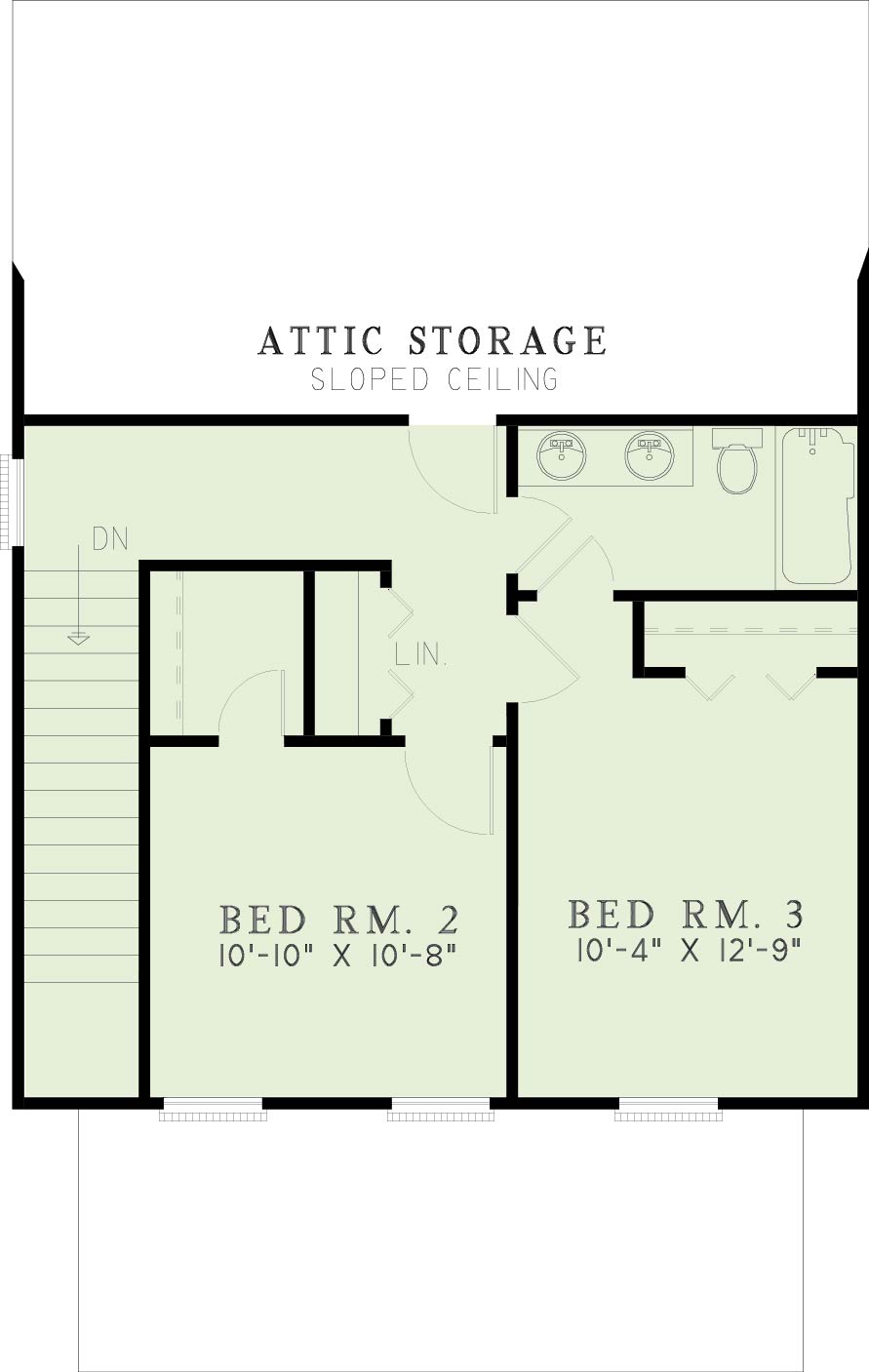

House Plan NDG 296 Upper Floor
House Plan NDG 296 Main Floor
House Plan NDG 296 Upper Floor

Floor plans

NDG 296

House Plan 296 Wellington Lane, Village at Wellington House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 296
  • Total Living Space:1595Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 44
  • Width In.: N/A
  • Depth Ft.: 59
  • Depth In.: 4

Description

This quaint home provides the traditional family all the privacy they need. Beautiful columns welcome you into the great room with a built-in media center and gas fireplace. The grill master of the family can try their luck on the rear grilling porch for those friends who tend to drop by. A spacious kitchen allows you to prepare quick meals with ease. When night falls, travel to you master suite where you’ll relax with a corner whirlpool bath, double vanities and separate corner glass shower. Upstairs you’ll find two more bedrooms, just right for the kids.

Specifications

  • Total Living Space:1595Sq.Ft.
  • Main Floor: 1112 Sq.Ft
  • Upper Floor (Sq.Ft.): 483 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 301 Sq.Ft.
  • Garage (Sq.Ft.): 342 Sq.Ft.
  • Total Square Feet: 2238 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 8
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 27
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
