House Plan 295 Waterfront Cove, Waterfront House Plan

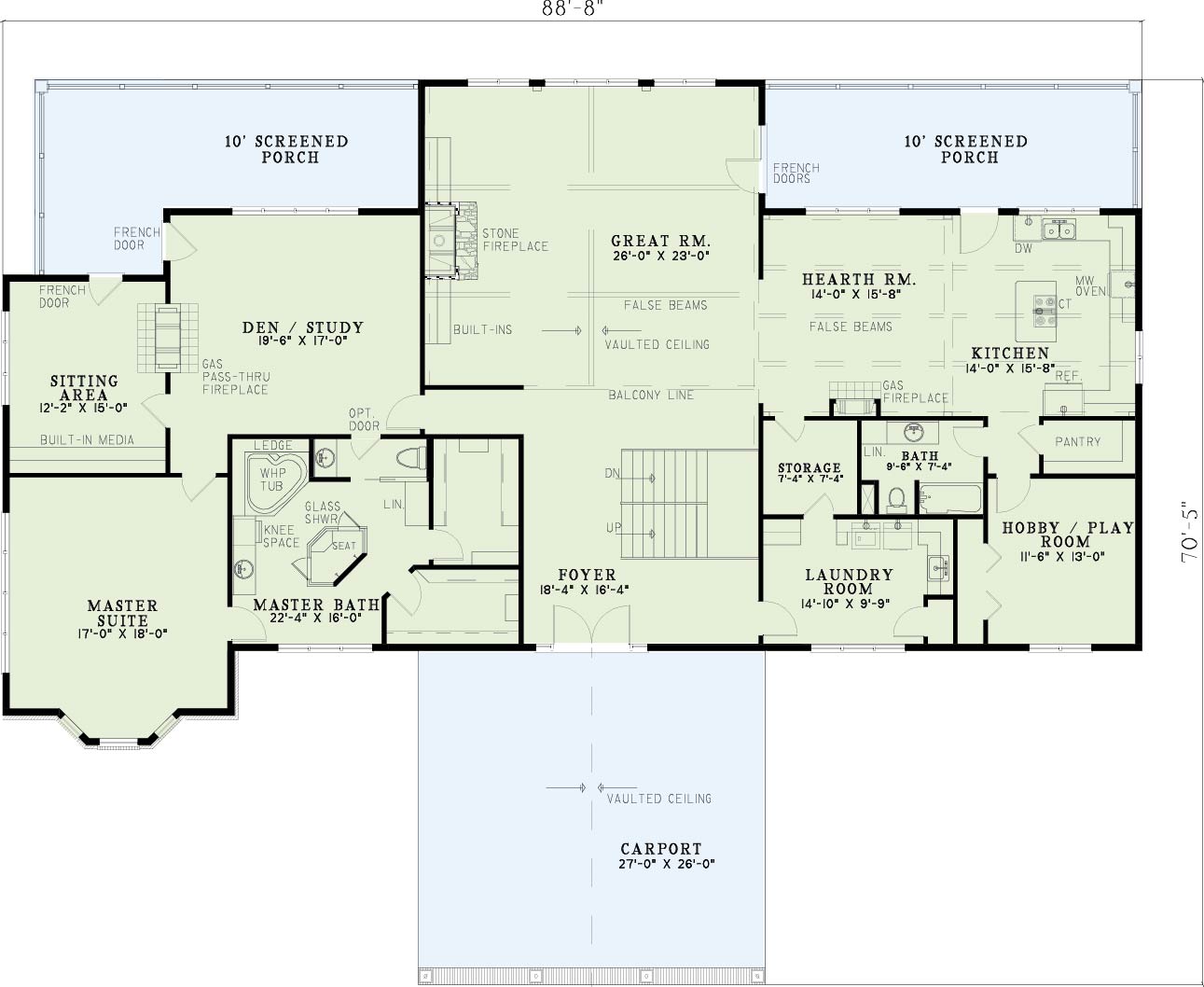

House Plan NDG 295 Main Floor

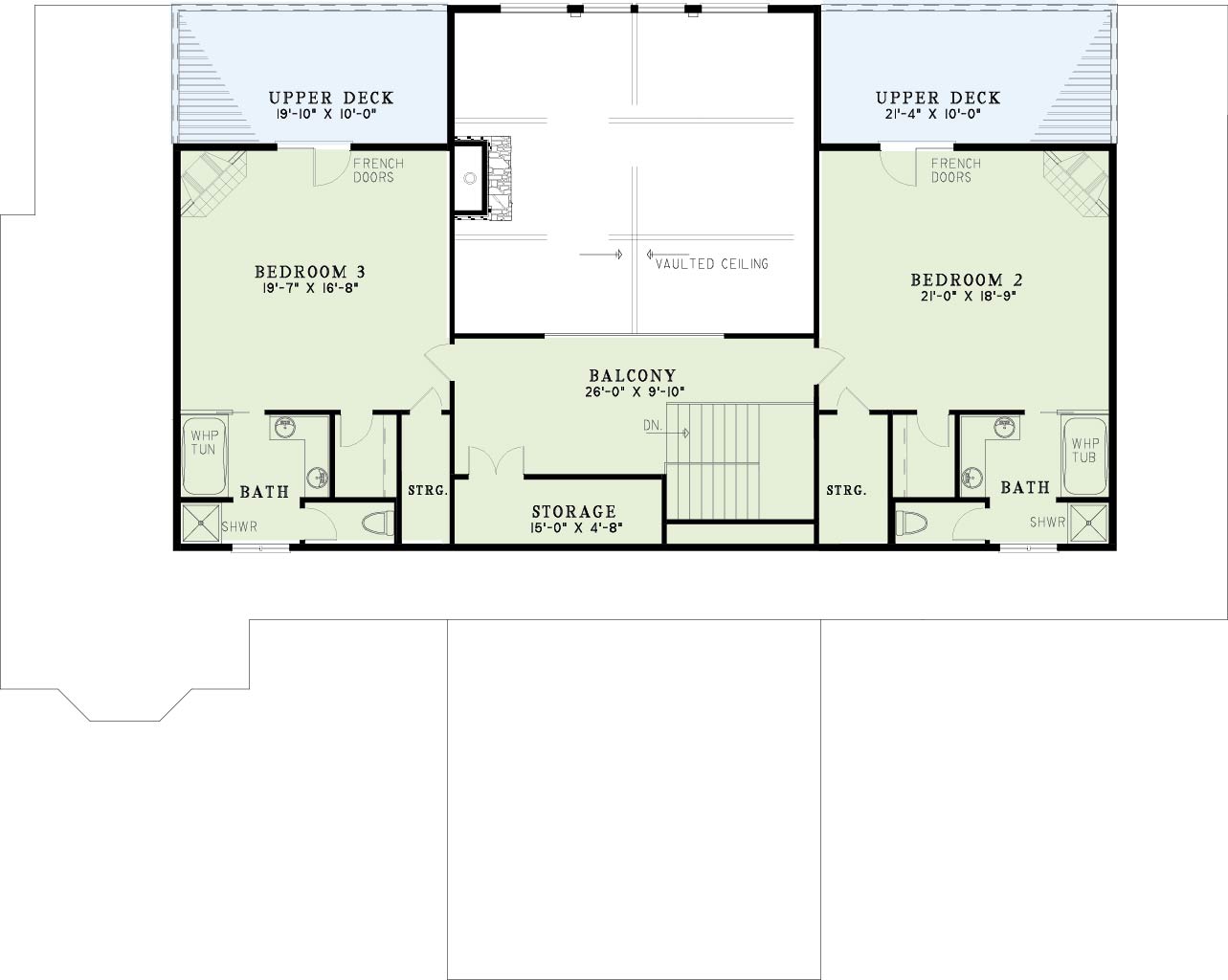

House Plan NDG 295 Upper Floor

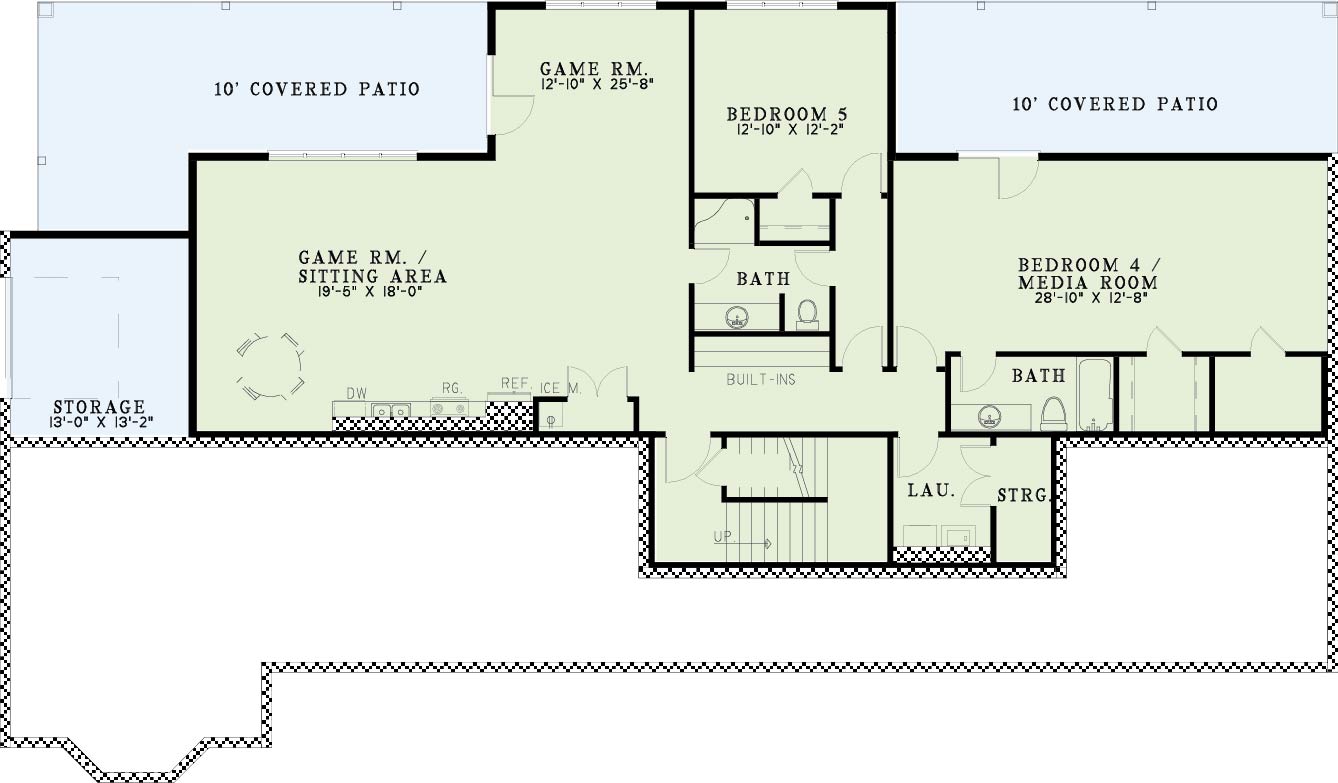

House Plan NDG 295 Basement
House Plan NDG 295 Main Floor
House Plan NDG 295 Upper Floor
House Plan NDG 295 Basement

Floor plans

NDG 295

House Plan 295 Waterfront Cove, Waterfront House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 295
  • Total Living Space:6833Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 6
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: Yes
  • Carport Type: Side Load
  • Stories: 1.5
  • Width Ft.: 88
  • Width In.: 8
  • Depth Ft.: 70
  • Depth In.: 5

Description

Upon entering this lake home, a breathtaking view of the lake can be seen through the floor length windows. A vaulted ceiling in the great room opens through to the hearth room and kitchen creating a wonderful ambiance to enjoy the stone fireplace. The private den area features a pass through fireplace to the secluded sitting area, both accessible to the screened porch with French doors. The downstairs master bedroom has a luxurious master bath including ‘his and her’ walk-in closets. The upstairs has two private suites with access to the rear deck.

Specifications

  • Total Living Space:6833Sq.Ft.
  • Main Floor: 3364 Sq.Ft
  • Upper Floor (Sq.Ft.): 1540 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 798 Sq.Ft.
  • Garage (Sq.Ft.): 702 Sq.Ft.
  • Total Square Feet: 8333 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
