House Plan 286B Sage Meadows, Southern House Plan

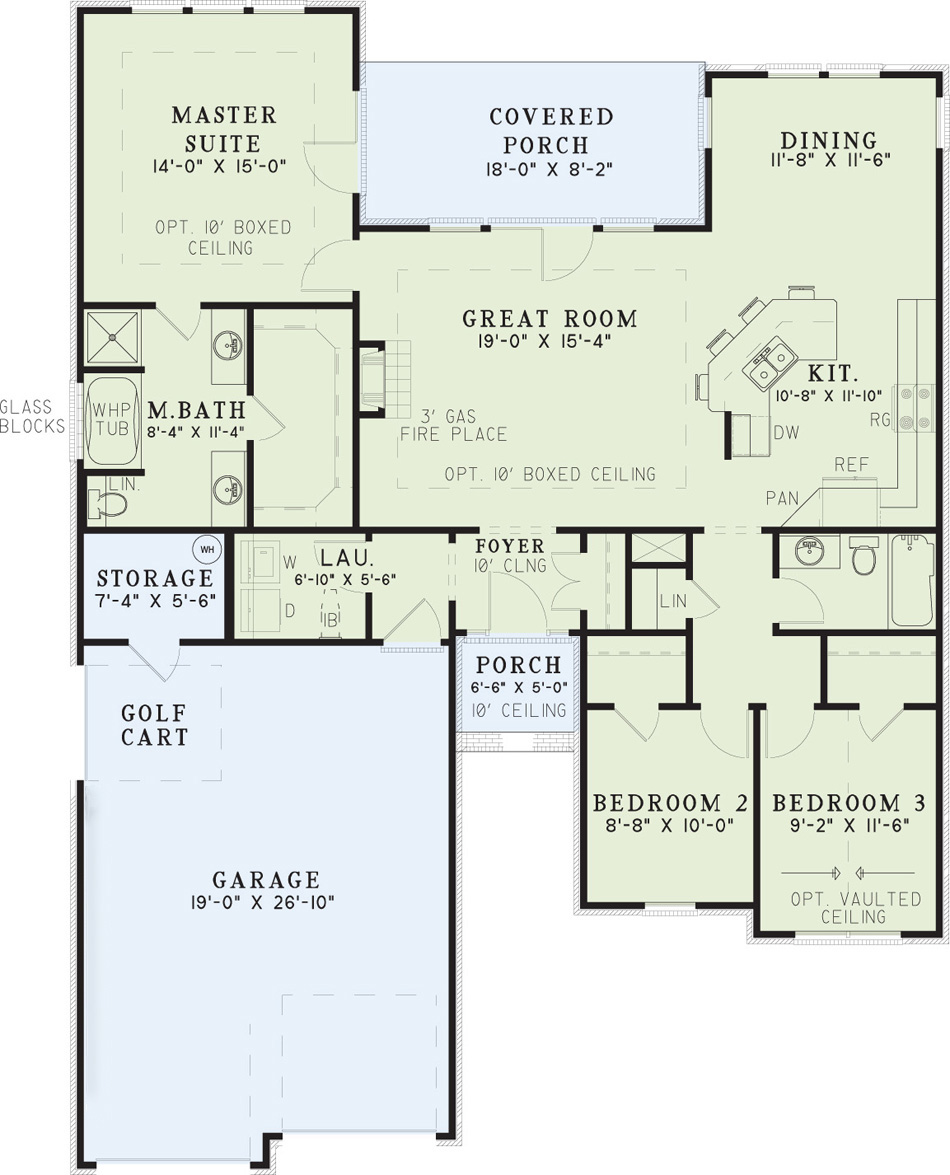

Floor plans
NDG 286B
House Plan 286B Sage Meadows, Southern House Plan
PDF: $700.00
Plan Details
- Plan Number: NDG 286B
- Total Living Space:1472Sq.Ft.
- Bedrooms: 3
- Full Baths: 2
- Half Baths: N/A
- Garage: Yes 2 Bay
- Garage Type: Front Load
- Carport: No
- Carport Type: N/A
- Stories: 1
- Width Ft.: 45
- Width In.: N/A
- Depth Ft.: 60
- Depth In.: 4
Description
Whether entering through the traditional covered porch with ten foot ceiling or the wonderful two-car garage with offset doors and side golf cart storage, this French Country home has plenty to offer. Passing through the foyer, you’ll find an expansive great room complete with a gas fireplace and atrium doors leading to a rear covered porch, the ideal setting for grilling and entertaining . Enjoy the convenience of preparing meals in a spacious kitchen with angular island and eat-at bar. After a long day of work or play, relax in your private master suite with a view and access to the rear porch.
Specifications
- Total Living Space:1472Sq.Ft.
- Main Floor: 1472 Sq.Ft
- Upper Floor (Sq.Ft.): N/A
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 231 Sq.Ft.
- Garage (Sq.Ft.): 510 Sq.Ft.
- Total Square Feet: 2213 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: Yes
- Main Ceiling Height: 9
- Upper Ceiling Height: N/A
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 10:12
- Porch Roof Pitch: N/A
- Roof Framing Description: Stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 23
- Ridge Height (In.): 9
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
