House Plan 286 Sage Meadows, Southern House Plan

House Plan 286 Sage Meadows, Southern House Plan

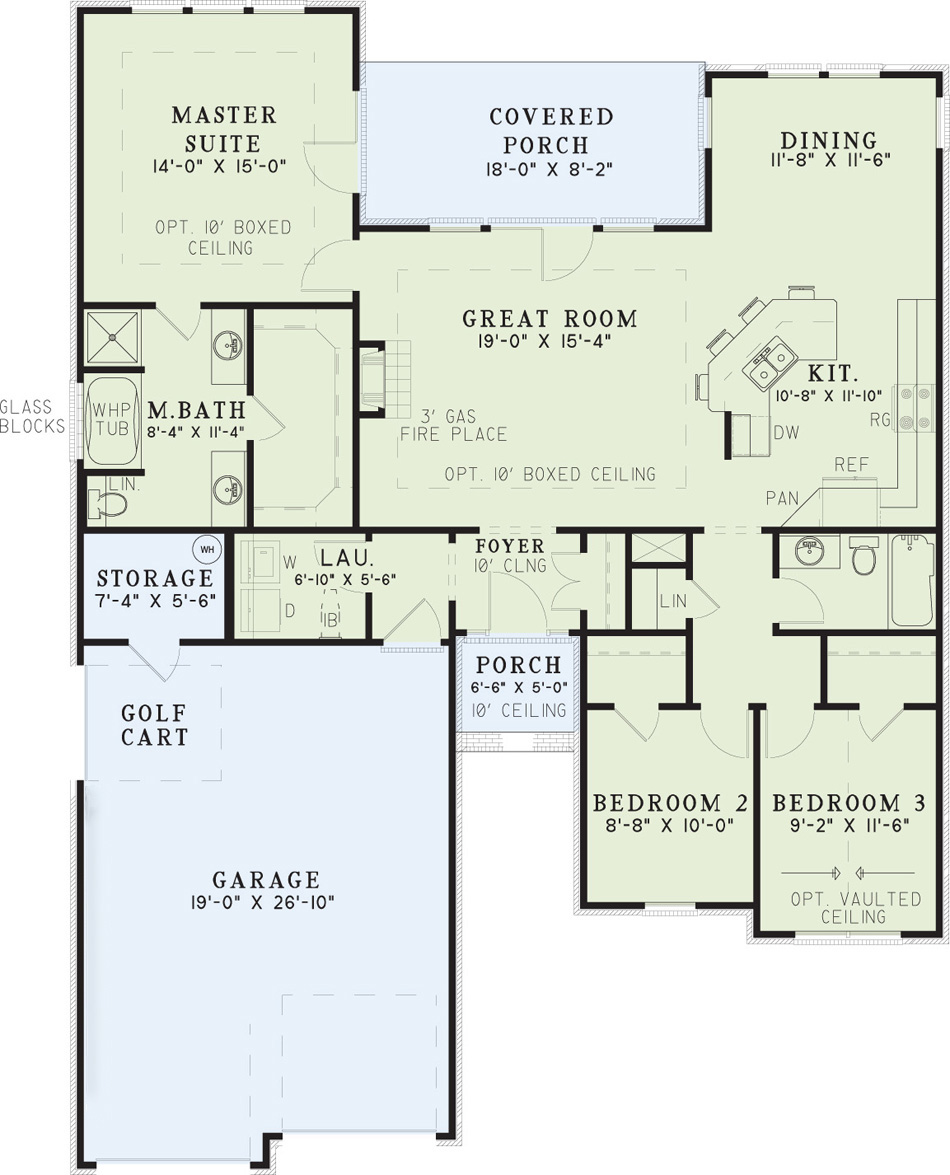

House Plan NDG 286 Main Floor

Floor plans

NDG 286

House Plan 286 Sage Meadows, Southern House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 286
  • Total Living Space:1472Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 45
  • Width In.: N/A
  • Depth Ft.: 60
  • Depth In.: 4

Description

Whether entering through the traditional covered porch with ten foot ceiling or the wonderful two-car garage with offset doors and side golf cart storage, this French Country home has plenty to offer. Passing through the foyer, you’ll find an expansive great room complete with a gas fireplace and atrium doors leading to a rear covered porch, the ideal setting for grilling and entertaining . Enjoy the convenience of preparing meals in a spacious kitchen with angular island and eat-at bar. After a long day of work or play, relax in your private master suite with a view and access to the rear porch.

Specifications

  • Total Living Space:1472Sq.Ft.
  • Main Floor: 1472 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 231 Sq.Ft.
  • Garage (Sq.Ft.): 510 Sq.Ft.
  • Total Square Feet: 2213 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 23
  • Ridge Height (In.): 9
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan

Property Attachments

Plan Package

  • PDF ($700.00)
    • CAD ($1,400.00)
    • Five Set ($800.00)
    • PDF ($700.00)
    • PDF + Unlimited Build ($1,400.00)
  • House Plan Options

    Crawl Space ($0.00)
    • Crawl Space ($0.00)
    • Optional Basement ($299.00)
    • Optional Daylight Basement ($299.00)
    • Slab ($0.00)
  • --None--
    • --None--
    • Five Sets (+$400.00)
    • Four Sets (+$320.00)
    • One Set (+$80.00)
    • Three Sets (+$240.00)
    • Two Sets (+$160.00)
