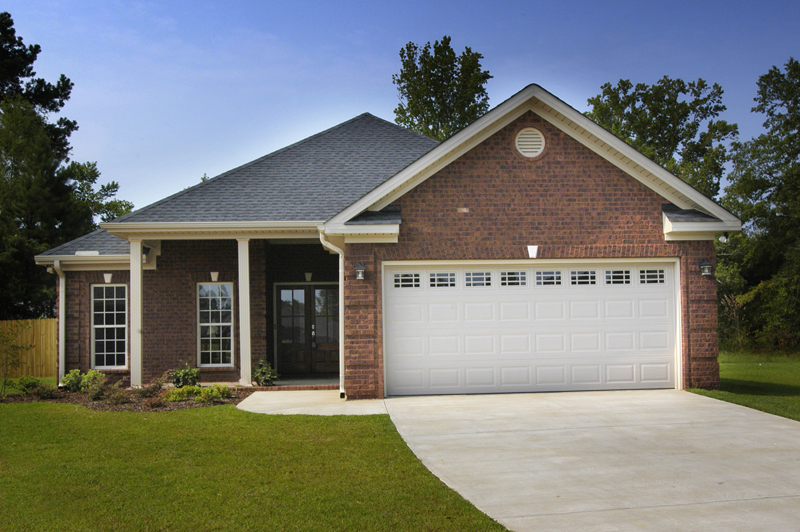

House Plan - NDG284 Front View

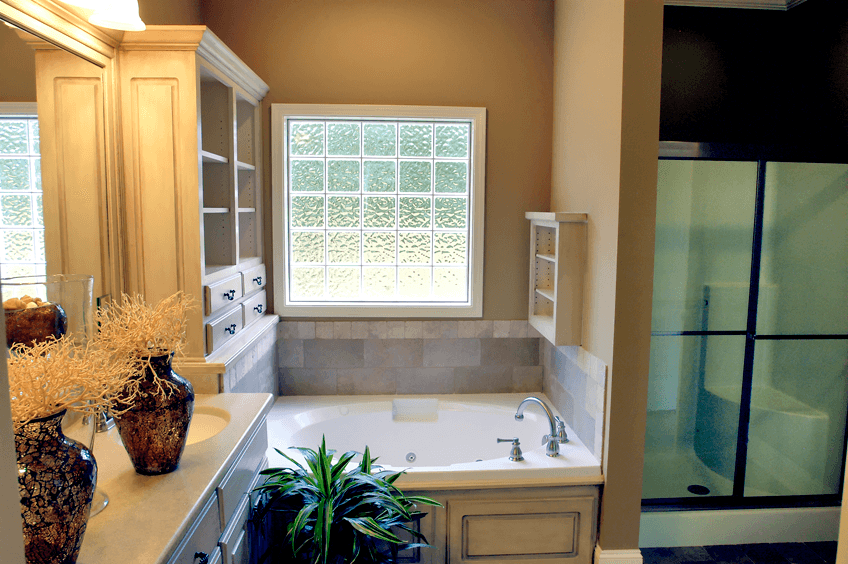

House Plan - NDG284 Bathroom

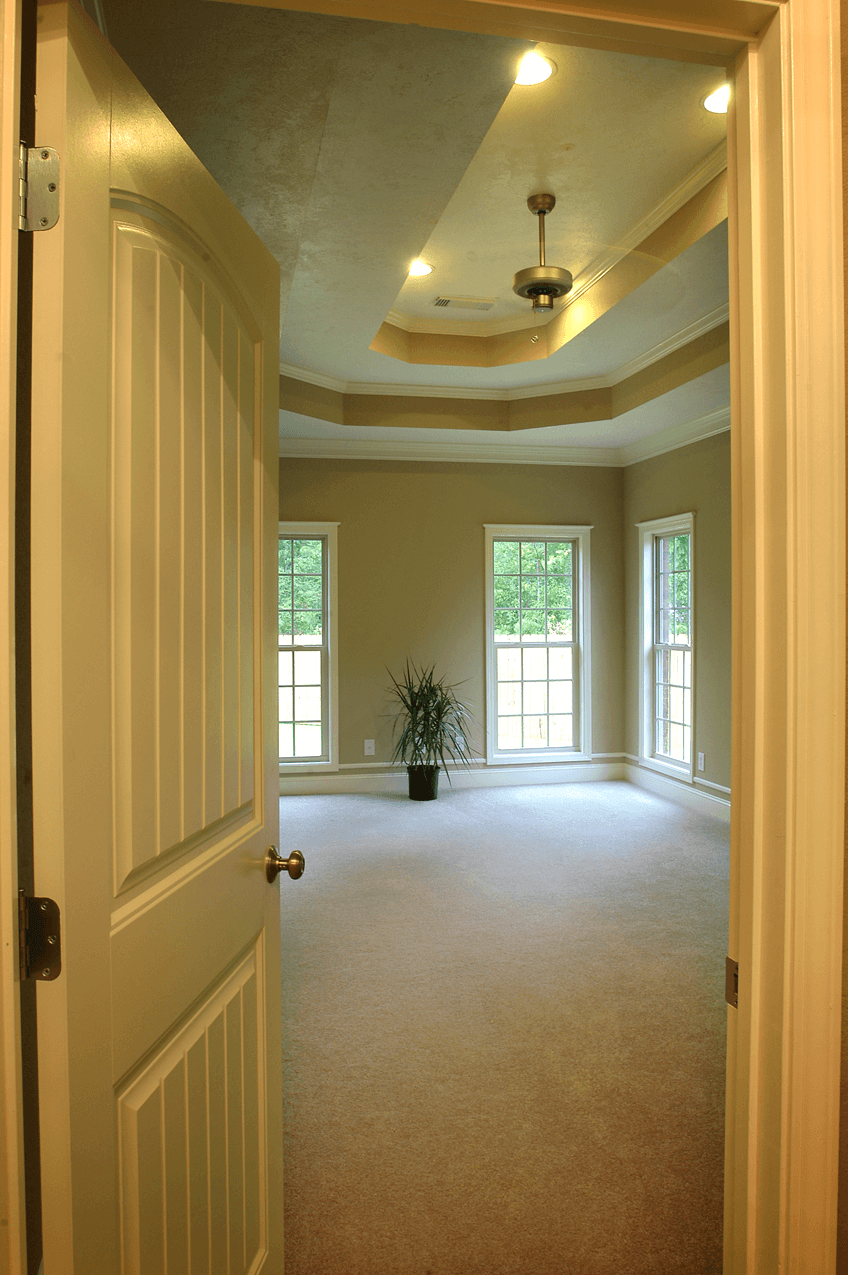

House Plan - NDG284 Bedroom

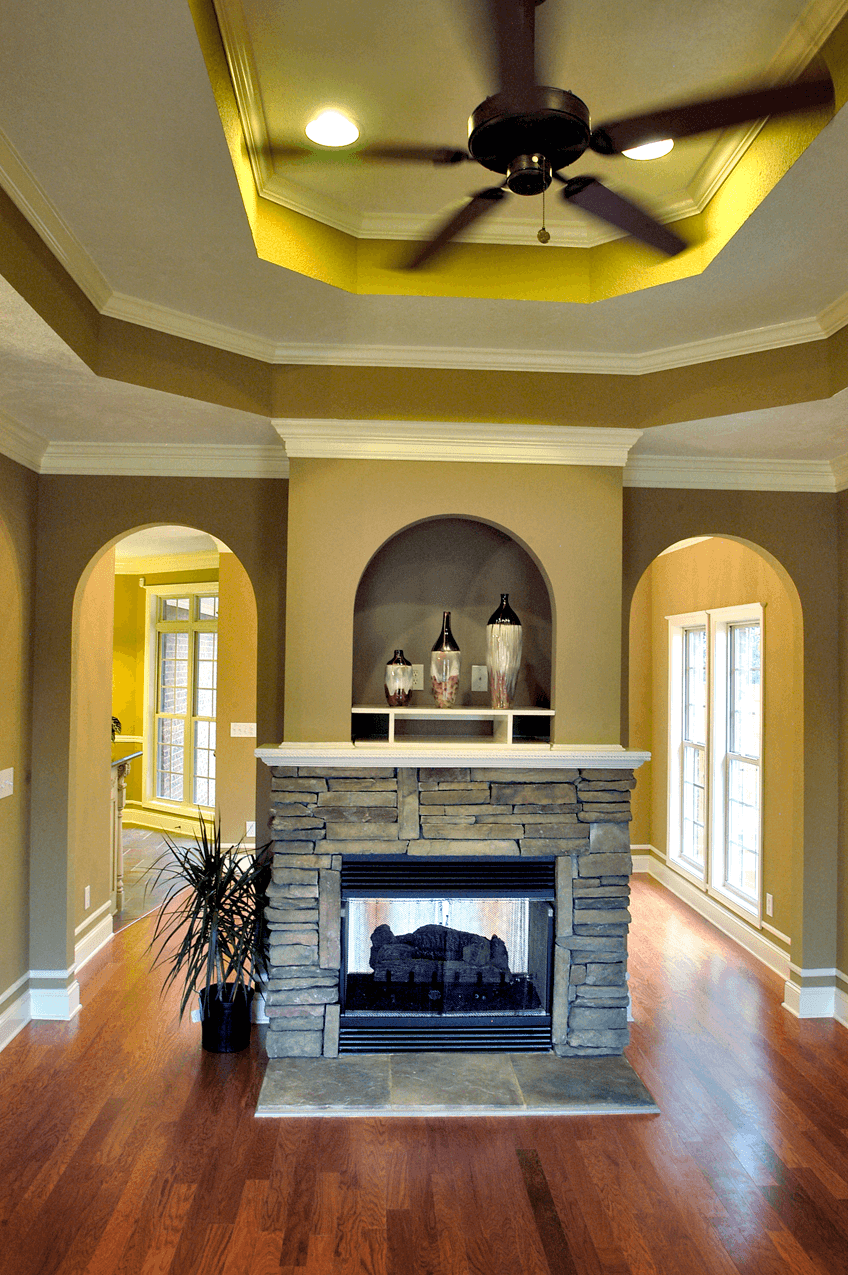

House Plan - NDg284 Fireplace

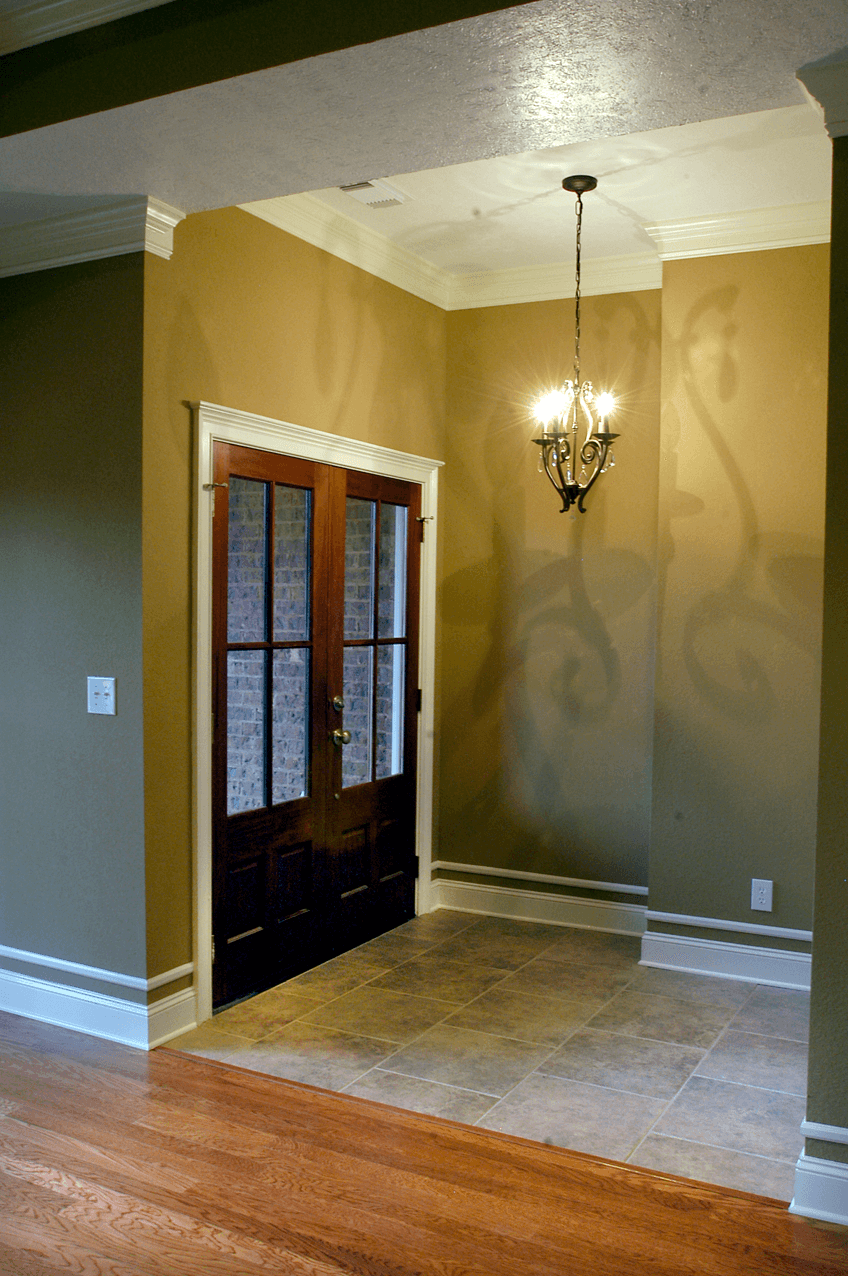

House Plan - NDG284 Foyer

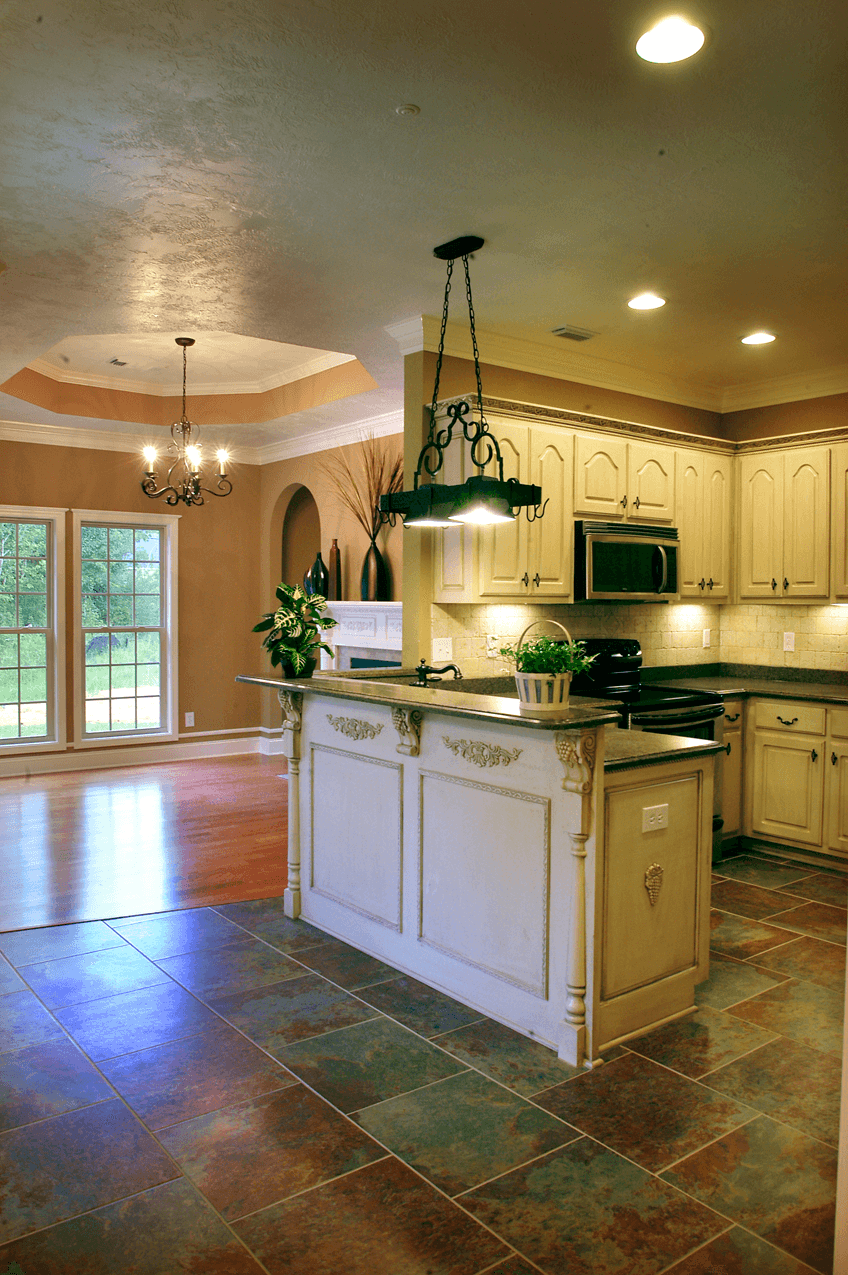

House Plan - NDG284 Kitchen

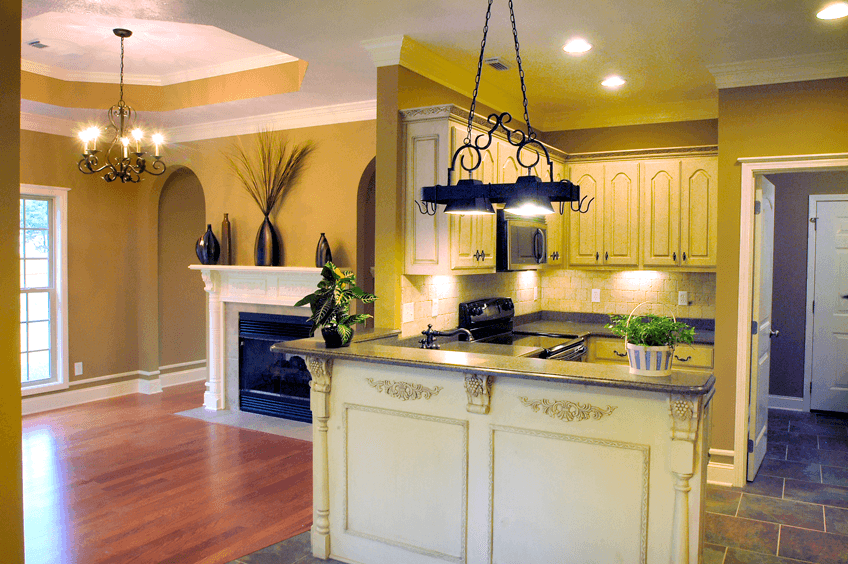

House Plan - NDG284 Kitchen 2

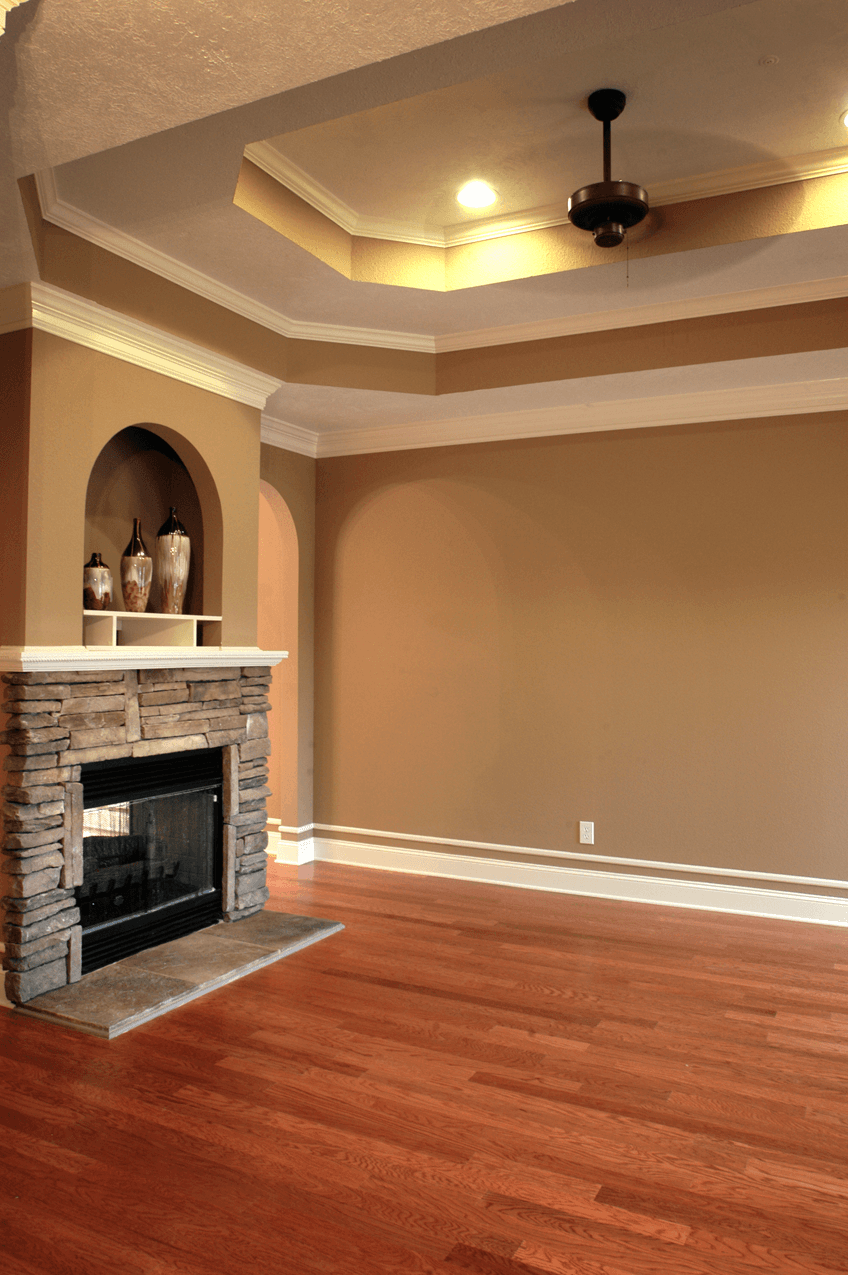

House Plan - NDG284 Living Room

Floor plans

NDG 284

House Plan 284 Sage Meadows, Southern House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 284
  • Total Living Space:1504Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: 6
  • Depth Ft.: 72
  • Depth In.: 5

Description

As you enter this home, you are welcomed onto a lovely covered porch with ten foot ceilings and led directly into the traditional foyer. From there you’ll enjoy a combination great room and dining area divided only by magnificent wooden columns. An easily accessible kitchen is accented by a breakfast nook complete with bay windows and entry to a rear covered grilling porch. Spend hours delighting friends and family with your grilling expertise.

Specifications

  • Total Living Space:1504Sq.Ft.
  • Main Floor: 1504 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 208 Sq.Ft.
  • Garage (Sq.Ft.): 512 Sq.Ft.
  • Total Square Feet: 2224 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
