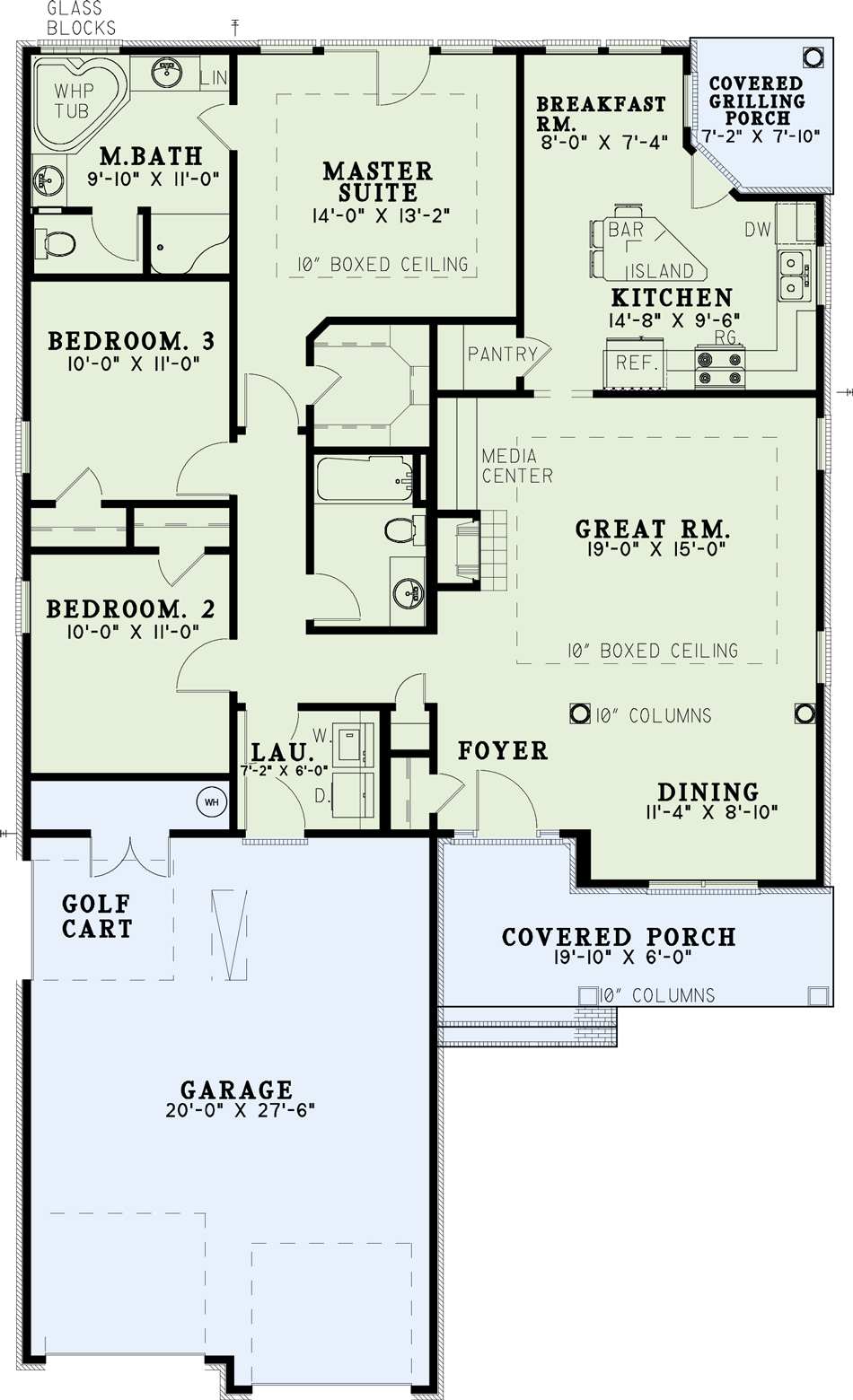

Floor plans

NDG 280

House Plan 280 Sage Meadows, Southern House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 280
  • Total Living Space:1535Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 40
  • Width In.: N/A
  • Depth Ft.: 67
  • Depth In.: 4

Description

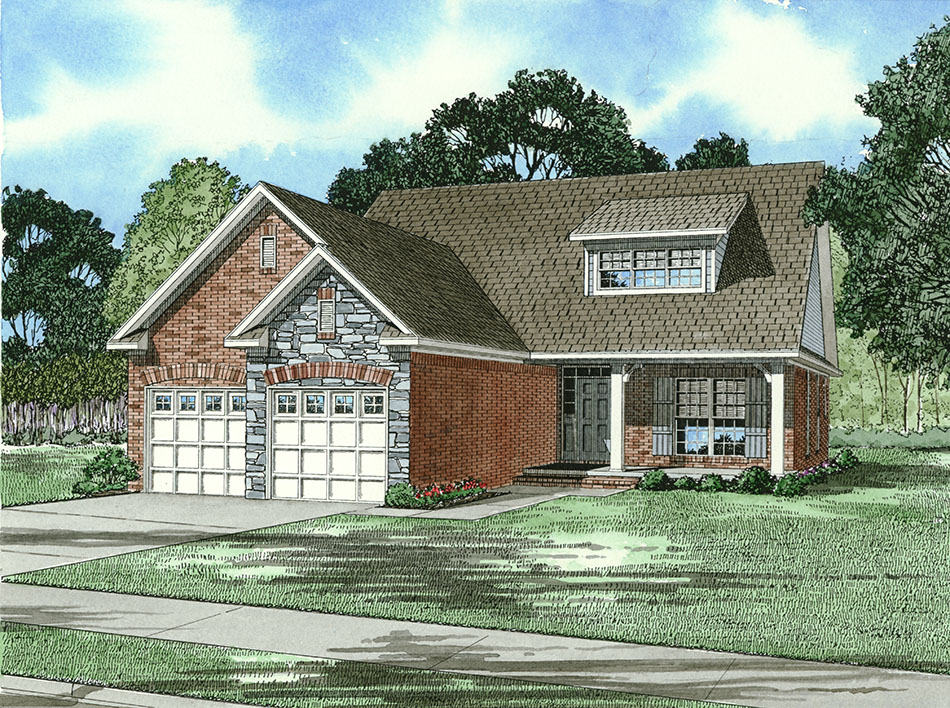

Entering this French Country home, you come upon a long covered porch enhanced by crafted columns. A quaint foyer leads you to a marvelous dining area with wooden columns and the great room with a 10 foot boxed ceiling. Enjoy many hours of food and laughter with friends and family year-round when utilizing the convenience of your covered grilling porch.

Specifications

  • Total Living Space:1535Sq.Ft.
  • Main Floor: 1535 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 215 Sq.Ft.
  • Garage (Sq.Ft.): 550 Sq.Ft.
  • Total Square Feet: 2300 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
