House Plan 278 Sage Meadows, Southern House Plan

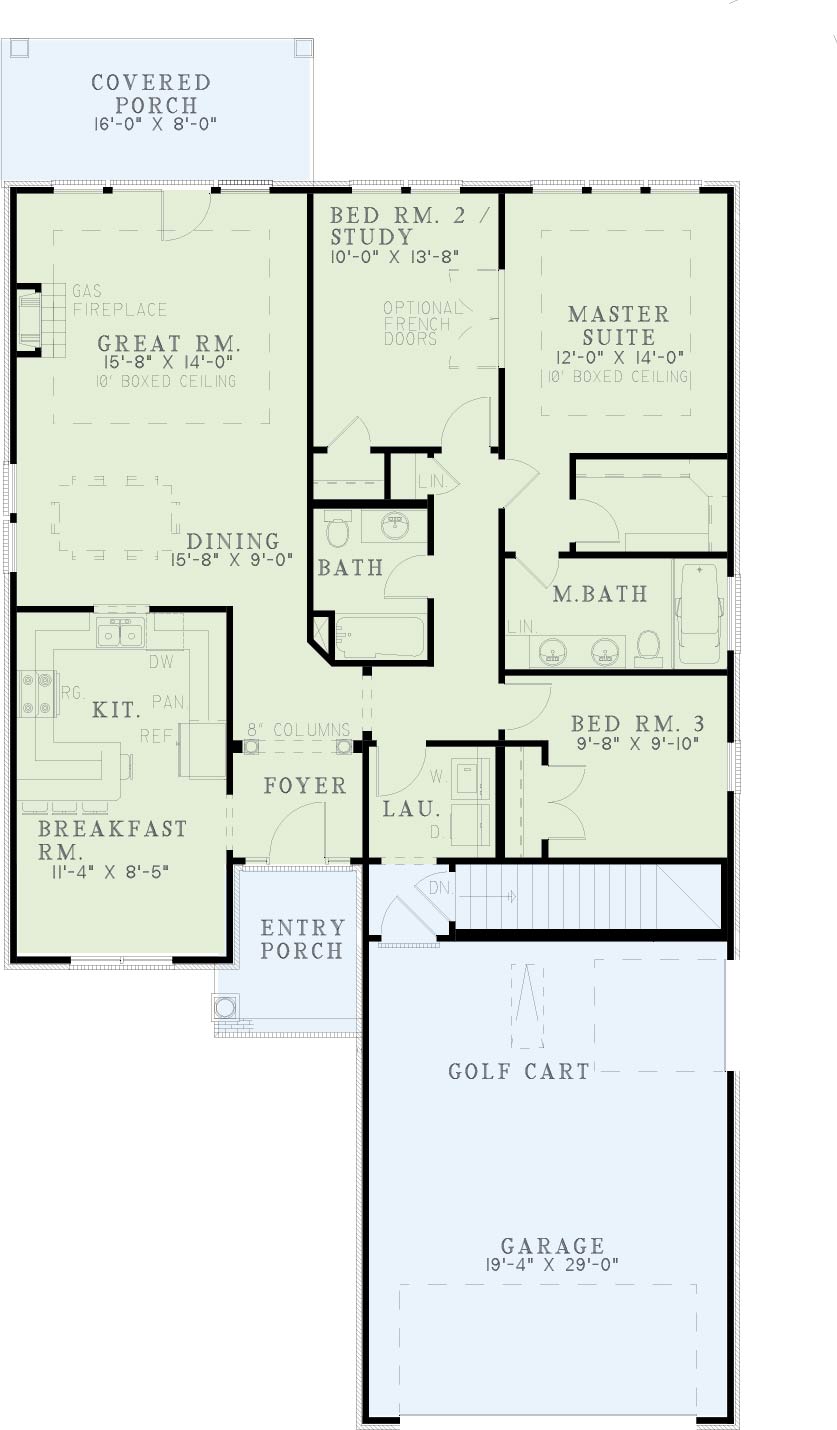

House Plan NDG 278 Main Floor
House Plan NDG 278 Main Floor

Floor plans

NDG 278

House Plan 278 Sage Meadows, Southern House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 278
  • Total Living Space:1487Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 73
  • Depth In.: 10

Description

Feel the French Country flair as you step onto the covered entry porch of this home complete with traditional columns and fluid entry into a formal foyer. Enjoy cozy nights at home in your spacious great room or entertain friends on warm summer evenings on your covered porch. Early morning breakfasts are a delight with an eat-at kitchen bar opening to a quiet breakfast nook.

Specifications

  • Total Living Space:1487Sq.Ft.
  • Main Floor: 1487 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 358 Sq.Ft.
  • Garage (Sq.Ft.): 420 Sq.Ft.
  • Total Square Feet: 2265 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
