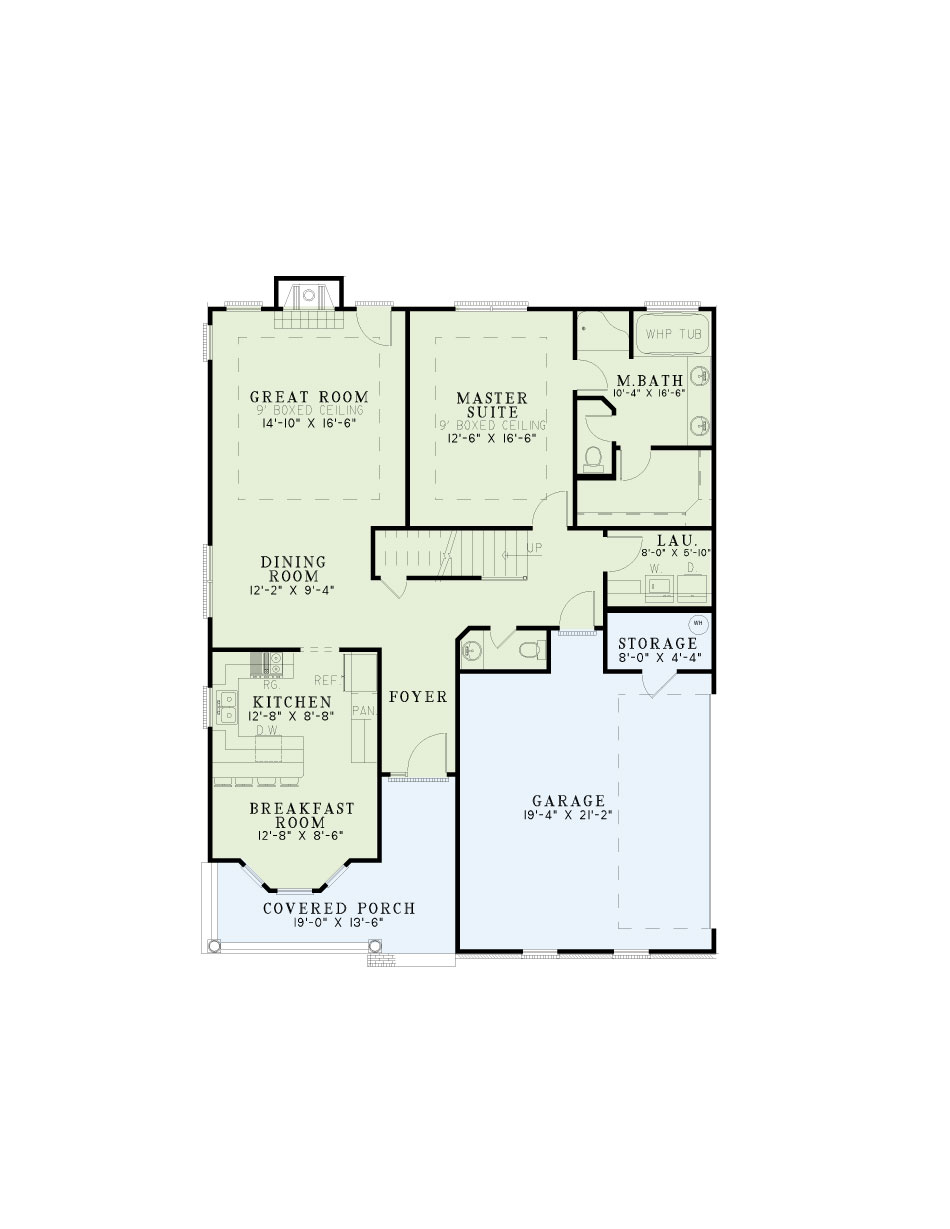

House Plan NDG 274 Main Floor

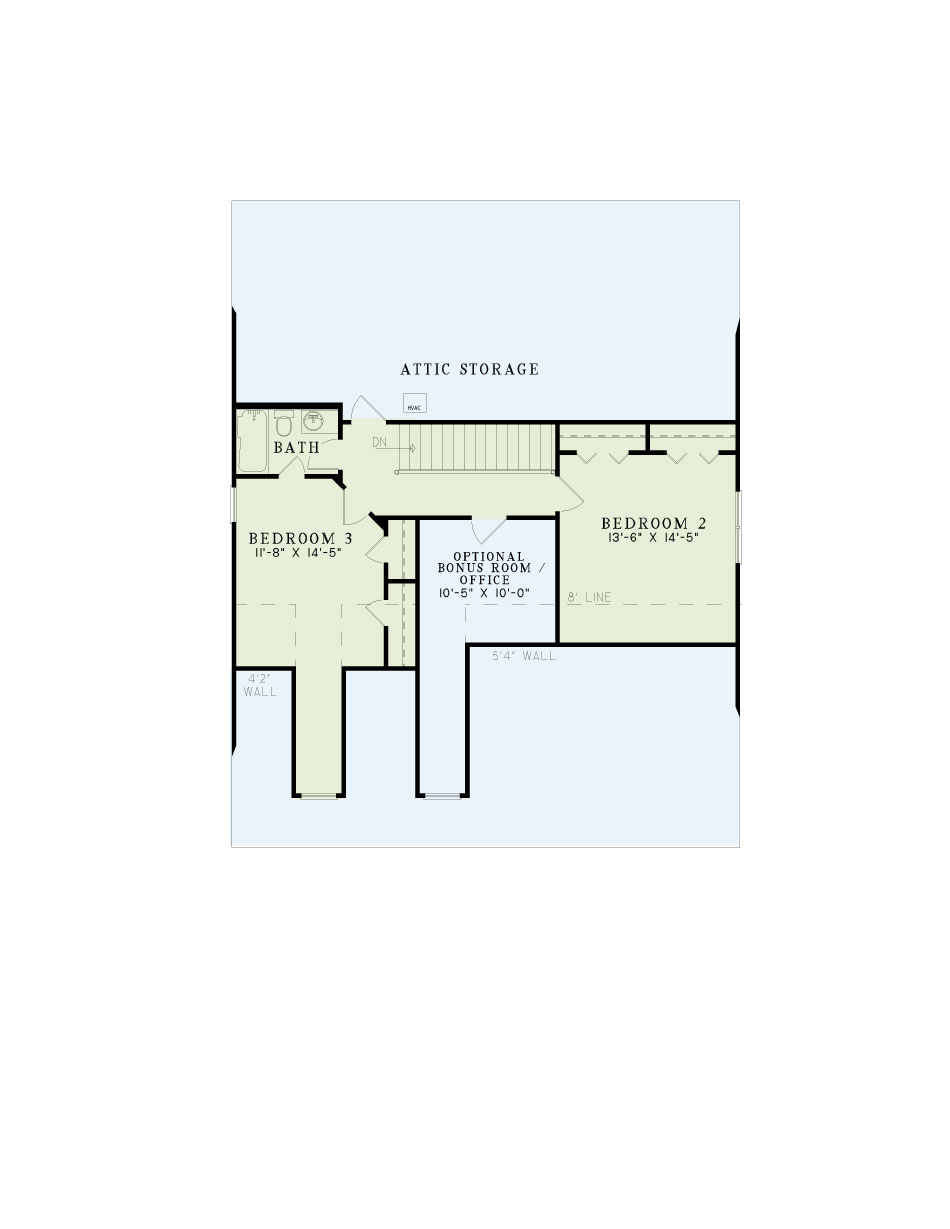

House Plan NDG 274 Upper Floor
House Plan NDG 274 Main Floor
House Plan NDG 274 Upper Floor

Floor plans

NDG 274

House Plan 274 Maple Street, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 274
  • Total Living Space:1897Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 39
  • Width In.: N/A
  • Depth Ft.: 52
  • Depth In.: N/A

Description

This southern traditional home is designated with a split bedroom plan. Visit with family and friends on the front porch as the children play in the front yard. Walking through the foyer, you’ll notice the dining room, opening to the expansive great room. Preparing the family’s dinner is simple with fluid access to the dining room and a handy breakfast room. Evenings can be spent in your master suite cuddled up reading a book or in the master bath soaking in the whirlpool bath. Upstairs provides children with privacy while the optional bonus room can function as an office.

Specifications

  • Total Living Space:1897Sq.Ft.
  • Main Floor: 1299 Sq.Ft
  • Upper Floor (Sq.Ft.): 598 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 145 Sq.Ft.
  • Porch (Sq.Ft.): 155 Sq.Ft.
  • Garage (Sq.Ft.): 480 Sq.Ft.
  • Total Square Feet: 2532 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
