House Plan 258 Cherry Street, French Traditional House Plan

Floor plans

NDG 258

House Plan 258 Cherry Street, French Traditional House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 258
  • Total Living Space:4022Sq.Ft.
  • Bedrooms: 5
  • Full Baths: 4
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 2.5
  • Width Ft.: 61
  • Width In.: 6
  • Depth Ft.: 78
  • Depth In.: 6

Description

This elegant two-story home by Nelson Design Group combines traditional design with a splash of contemporary flair. The main level consists of a Formal Dining room with butler’s pantry, a gourmet kitchen that opens to both a hearth room and breakfast room for enjoyable family gatherings. The elegant Master bedroom has a ten-foot boxed ceiling and private bathroom high ceiling and full of amenities. The upper level has a balcony bridge viewing both the foyer and living rooms and leads to off-season attic storage. The three additional upstairs bedrooms have walk-in closets, window seating and private bathroom access keeping the family content. The lower level with guestroom, a full bathroom and game room completes this exceptional design.

Specifications

  • Total Living Space:4022Sq.Ft.

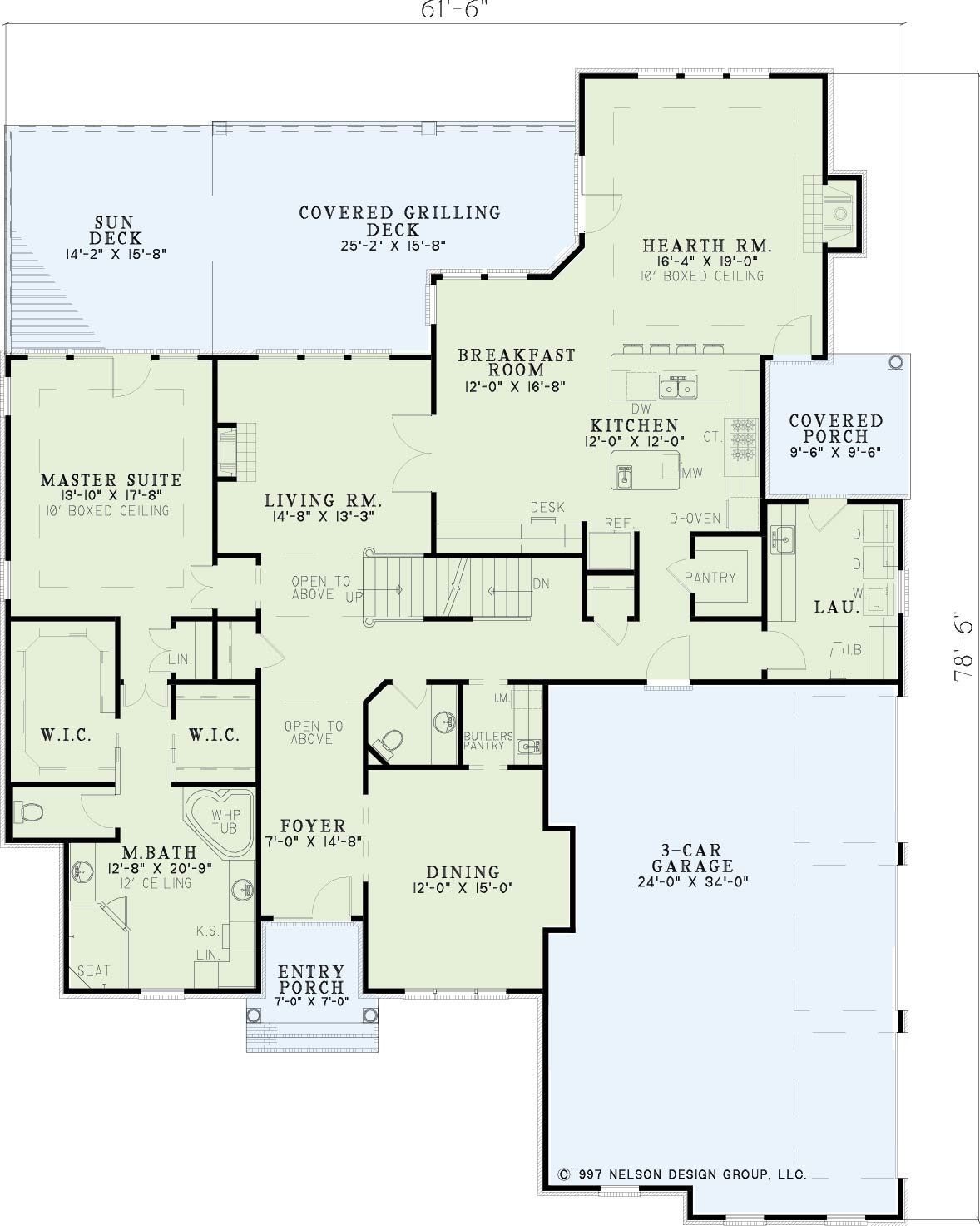

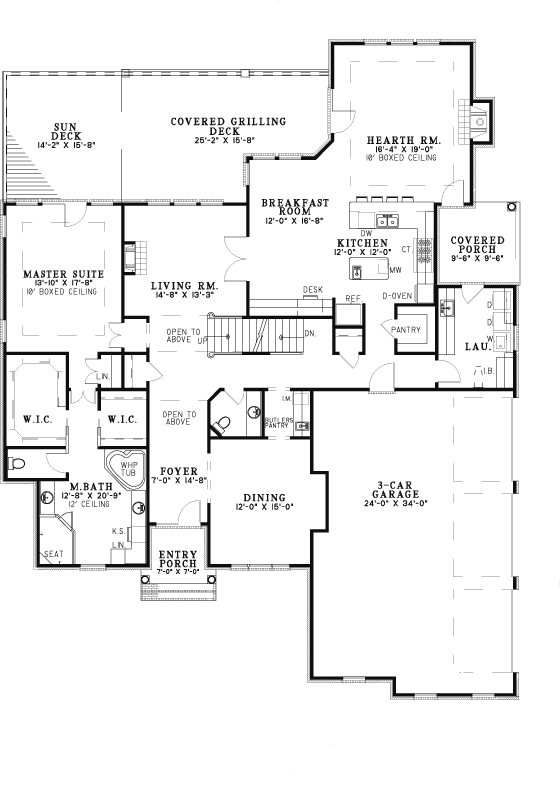

  • Main Floor: 2405 Sq.Ft

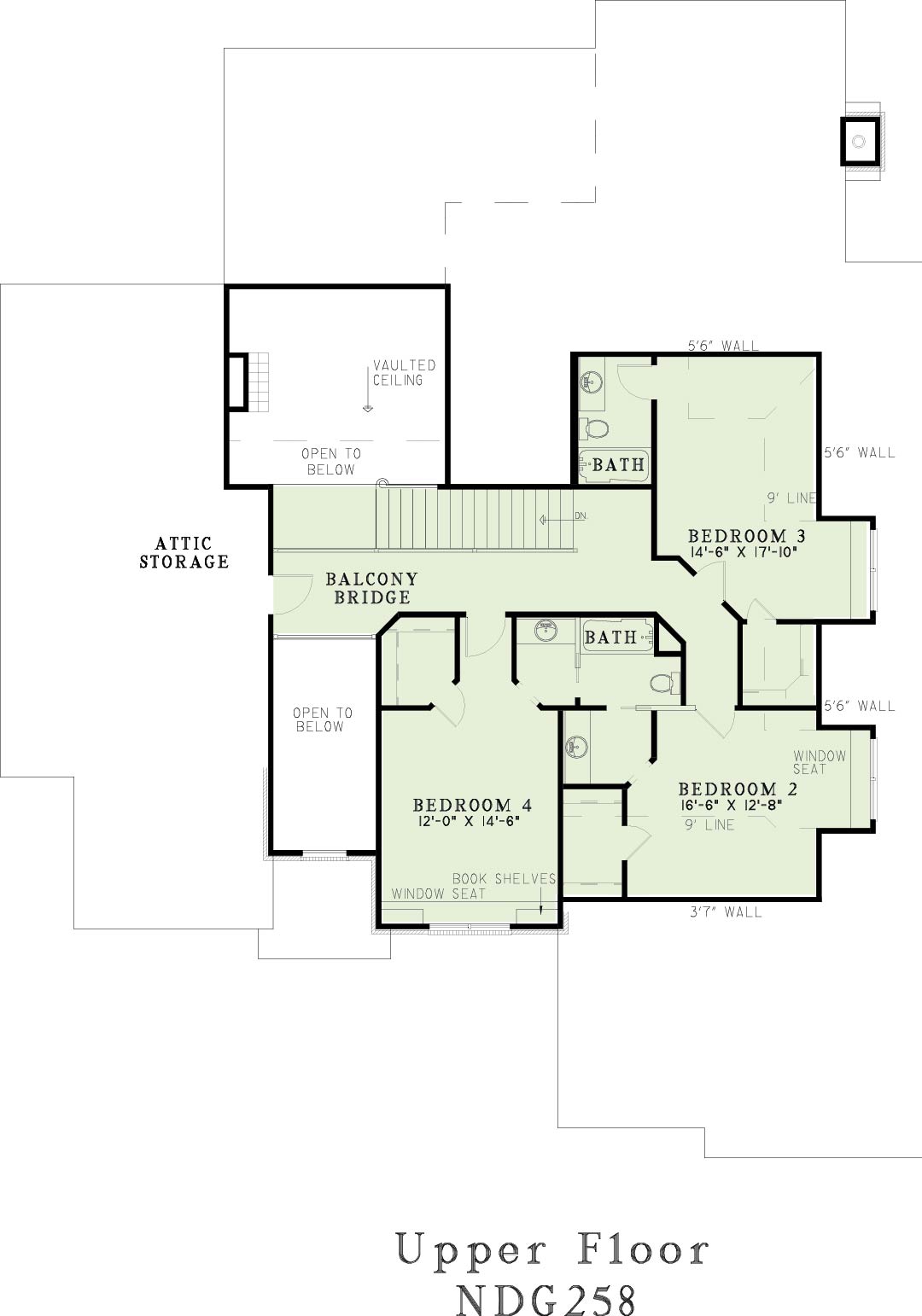

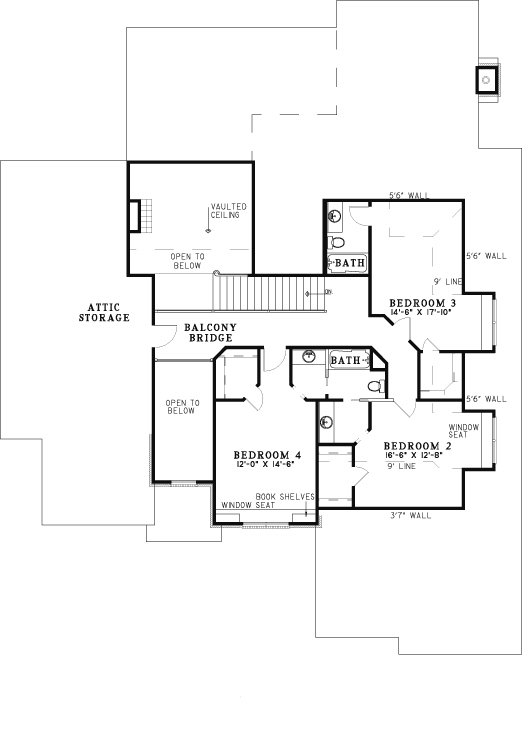

  • Upper Floor (Sq.Ft.): 1071 Sq.Ft.

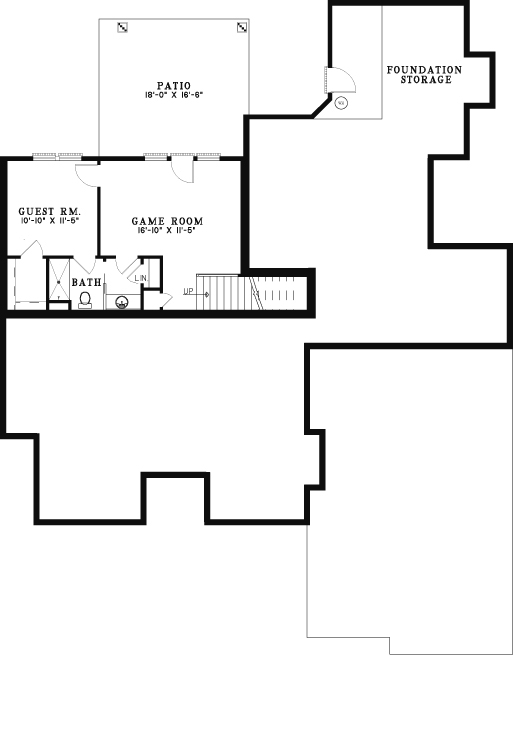

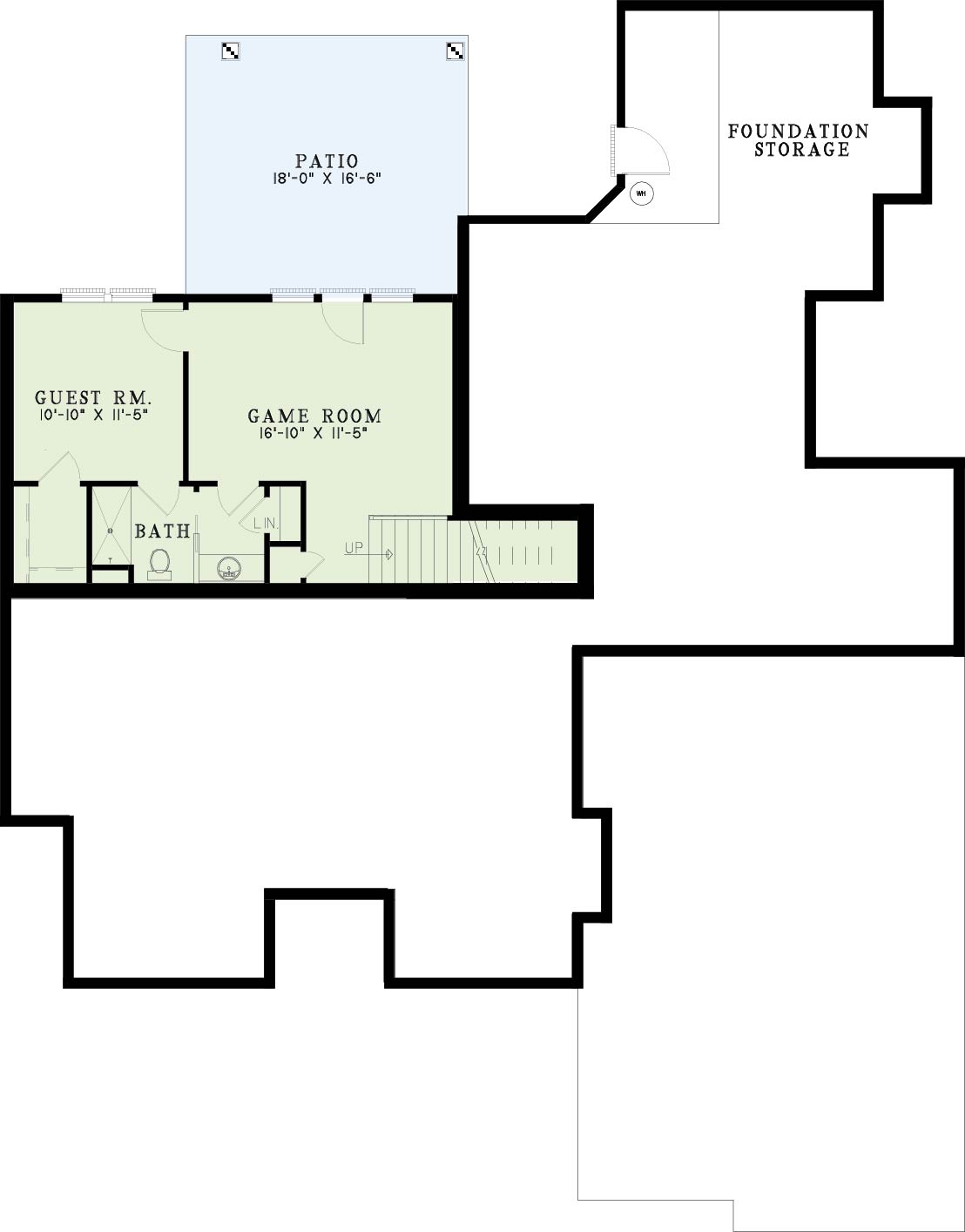

  • Lower Floor (Sq.Ft.): 546 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 490 Sq.Ft.
  • Garage (Sq.Ft.): 863 Sq.Ft.
  • Total Square Feet: 5375 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 35
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
