House Plan 240 Linden Avenue, Luxury House Plan

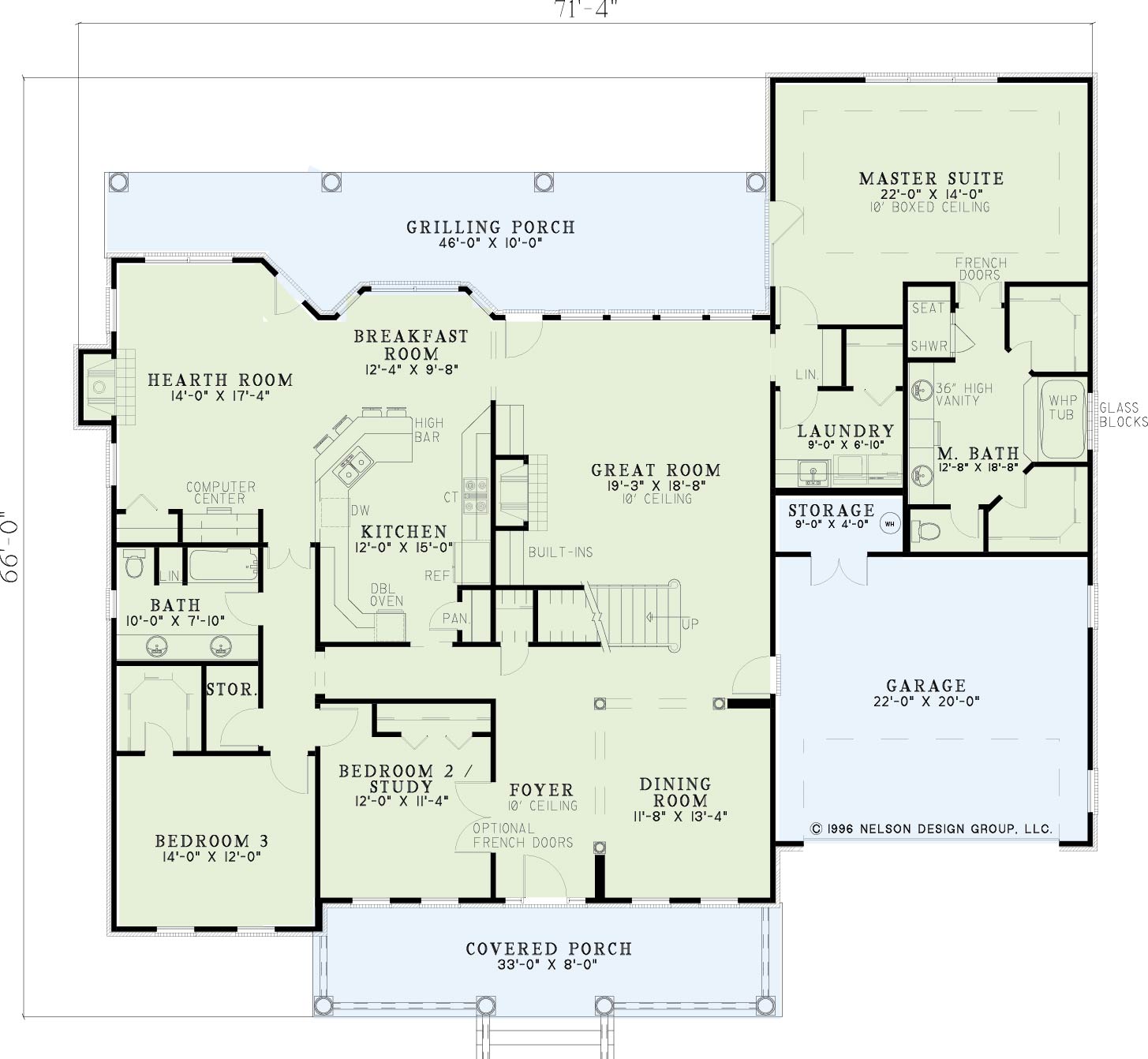

House Plan NDG 240 Main Floor

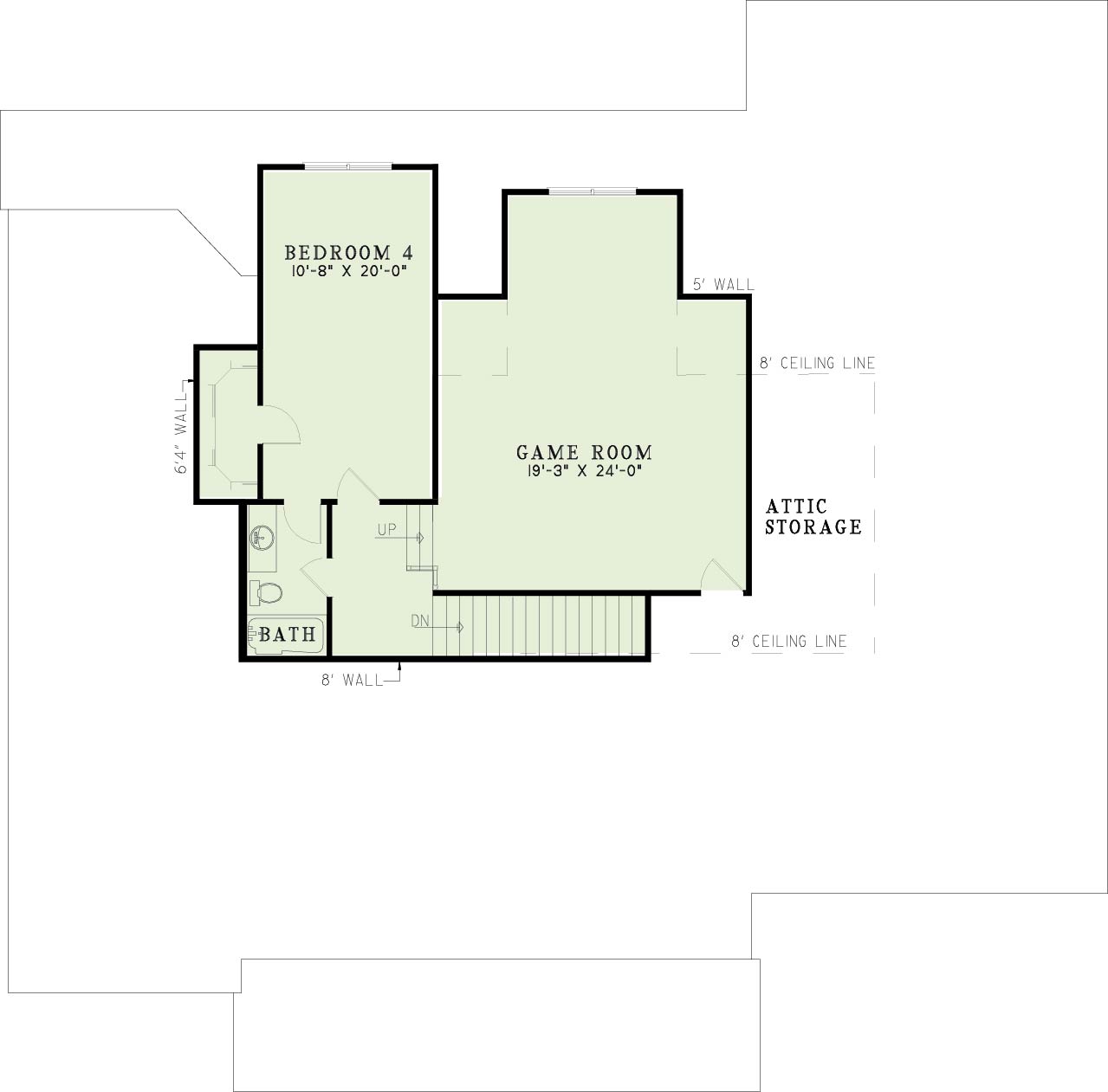

House Plan NDG 240 Upper Floor
House Plan NDG 240 Main Floor
House Plan NDG 240 Upper Floor

Floor plans

NDG 240

House Plan 240 Linden Avenue, Luxury House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 240
  • Total Living Space:3566Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 2 Bay
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 71
  • Width In.: 4
  • Depth Ft.: 66
  • Depth In.: N/A

Description

This home is extremely practical to build because of its simple box design and spacious interior. For added luxury ten-foot ceilings are used in the Foyer, Great room and Master suite allowing natural light to flow throughout. The Great room features a fireplace nestled between built-ins and an abundance of windows to enjoy a lovely rear view. Nearby is a breakfast bay area open to the kitchen and cozy hearth room including a convenient computer center with nearby storage closet. The opposite side of this home includes a private master suite with boxed ceiling and French door entry to a bathroom full of amenities. An impressive staircase in the great room leads up to a full bath, extra large bedroom and spacious game room with options galore.

Specifications

  • Total Living Space:3566Sq.Ft.
  • Main Floor: 2746 Sq.Ft
  • Upper Floor (Sq.Ft.): 820 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 653 Sq.Ft.
  • Garage (Sq.Ft.): 492 Sq.Ft.
  • Total Square Feet: 4711 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
