House Plan 236 Dogwood Avenue, Traditional House Plan

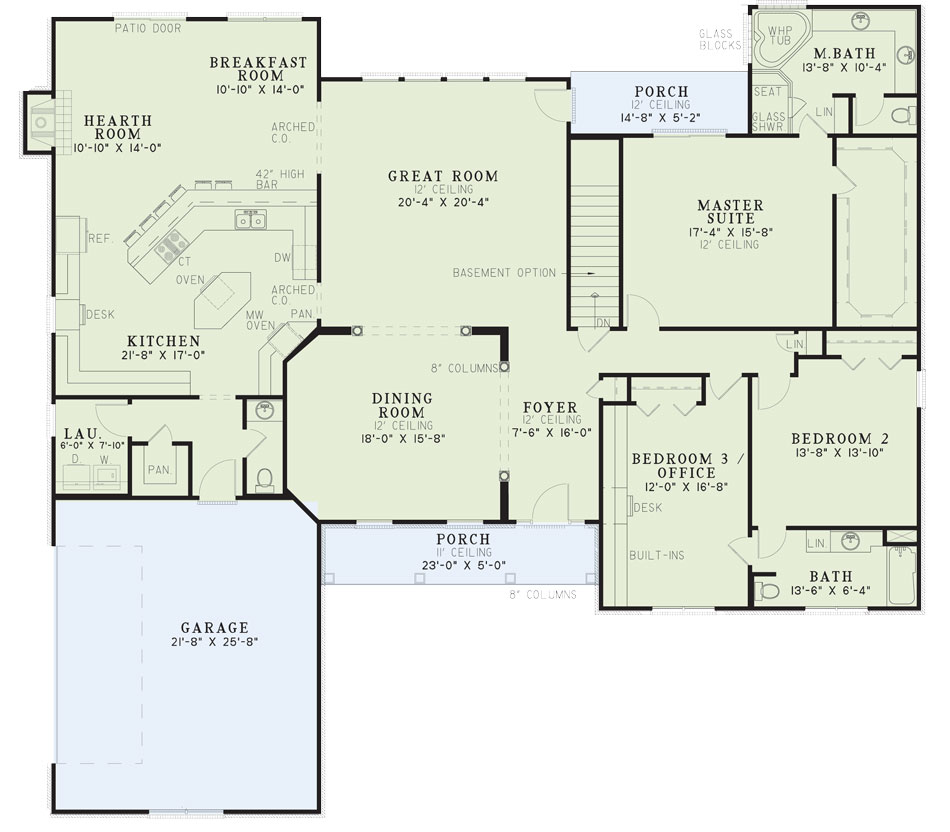

House Plan NDG 236 Main Floor
House Plan NDG 236 Main Floor

Floor plans

NDG 236

House Plan 236 Dogwood Avenue, Traditional House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 236
  • Total Living Space:3034Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 2 Bay
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 74
  • Width In.: 4
  • Depth Ft.: 67
  • Depth In.: N/A


Imagine hosting a dinner party in this marvelous home. An expansive dining room with exquisite columns will be the perfect setting for your large gatherings. The warm hearth room can be a more appropriate room for your family to enjoy each other’s company. You will have plenty of counter space and a unique island to prepare large meals. The office features a built-in desk and other built-ins to provide ample shelf space. At the end of the day, you can relax in your master suit with enormous walk-in closet and a fully appointed master bath. An optional basement will make the perfect home theatre!


  • Total Living Space:3034Sq.Ft.
  • Main Floor: 3034 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 205 Sq.Ft.
  • Garage (Sq.Ft.): 556 Sq.Ft.
  • Total Square Feet: 3795 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 33
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
