House Plan 231 Waterfront Cove, Waterfront House Plan

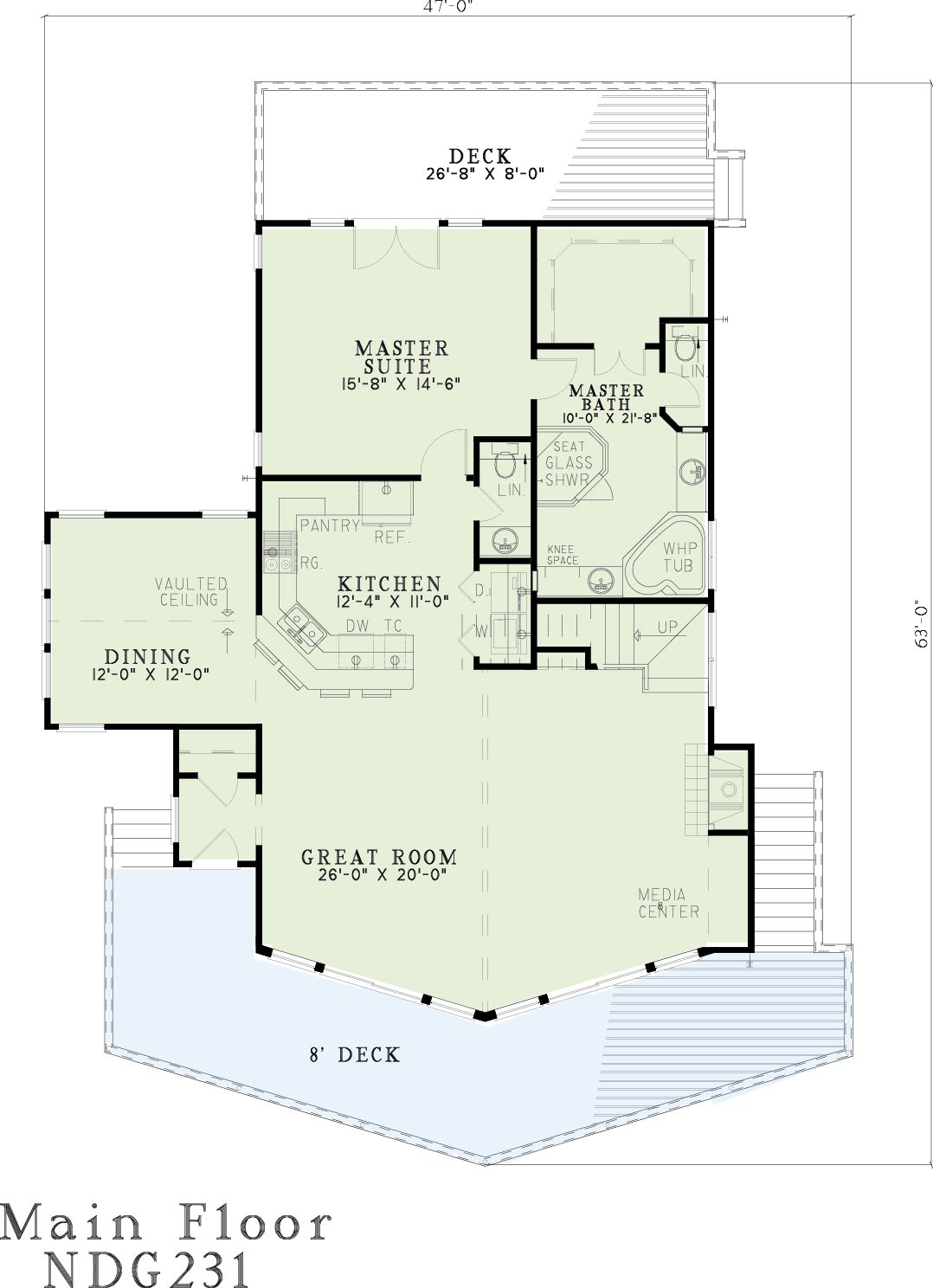

House Plan NDG 231 Main Floor

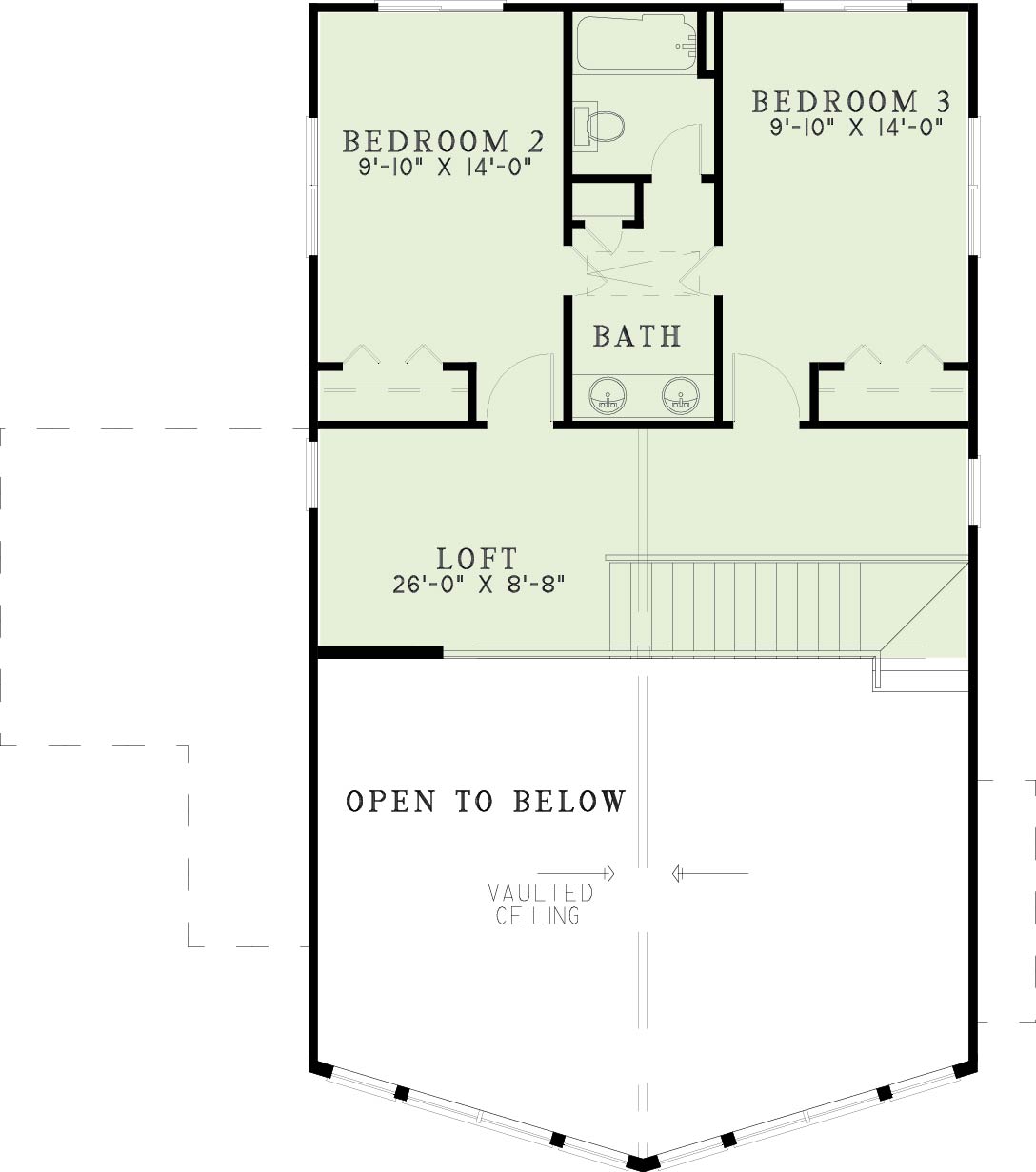

House Plan NDG 231 Upper Floor
House Plan NDG 231 Main Floor
House Plan NDG 231 Upper Floor

Floor plans

NDG 231

House Plan 231 Waterfront Cove, Waterfront House Plan

PDF: $1,000.00

Plan Details

  • Plan Number: NDG 231
  • Total Living Space:2054Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: No
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 47
  • Width In.: N/A
  • Depth Ft.: 63
  • Depth In.: N/A

Description

Indulge in this vacation style home with an open great room with vaulted ceiling and a glorious view of your surroundings. A media center and fireplace add entertaining enjoyment and the secluded master suite with all the amenities will be the perfect haven. The upstairs loft area features two bedrooms and full bathroom for plenty of space for guests.

Specifications

  • Total Living Space:2054Sq.Ft.
  • Main Floor: 1413 Sq.Ft
  • Upper Floor (Sq.Ft.): 641 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2054 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
