House Plan 222 Westwood Lane, Traditional House plan

>

Floor plans

NDG 222

House Plan 222 Westwood Lane, Traditional House plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 222
  • Total Living Space:3385Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 4
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 75
  • Width In.: 2
  • Depth Ft.: 89
  • Depth In.: 6

Description

Delight in the extravagant brick archways of this neo-traditional offering from Nelson Design Group. The remarkable great room is brightly lit from the bank of the windows on the far wall, highlighting the fireplace between the built-in media center and bookshelves. The breakfast room provides access to the covered porch and offers a smooth transition to the roomy kitchen featuring a large eat-at island. The main suite features a boxed ceiling with a romantic fireplace. Upstairs, an icemaker and refrigerator make entertaining in the game room a snap.

Specifications

  • Total Living Space:3385Sq.Ft.
  • Main Floor: 2633 Sq.Ft

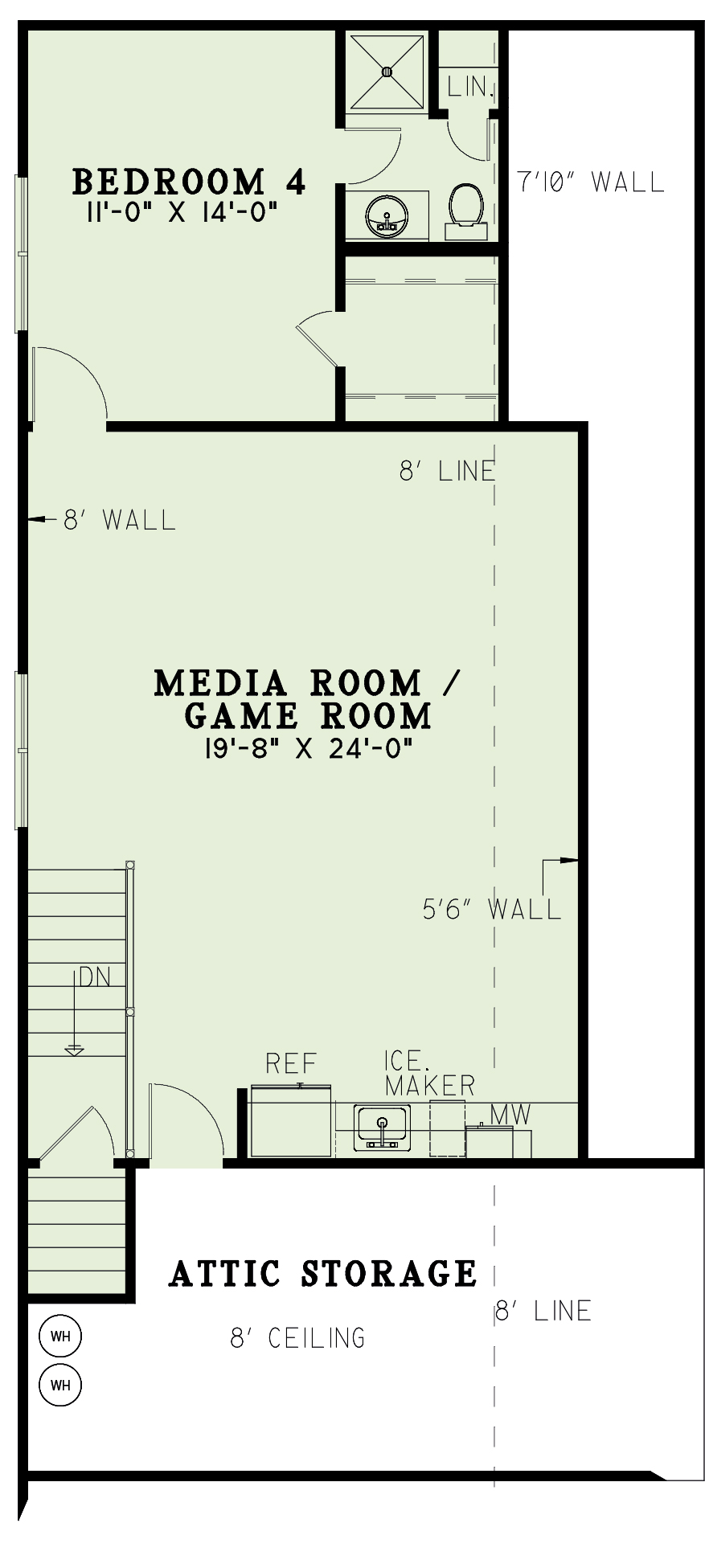

  • Upper Floor (Sq.Ft.): 752 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 536 Sq.Ft.
  • Garage (Sq.Ft.): 802 Sq.Ft.
  • Total Square Feet: 4723 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 26
  • Ridge Height (In.): 5
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
