House Plan 219 Tyler Street, Traditional House Plan

>

Floor plans

NDG 219

House Plan 219 Tyler Street, Traditional House Plan

PDF: $800.00

Plan Details

  • Plan Number: NDG 219
  • Total Living Space:1679Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 49
  • Width In.: 2
  • Depth Ft.: 67
  • Depth In.: 2

Description

We have created a lovely home accented with angled walls, columns and boxed ceilings.

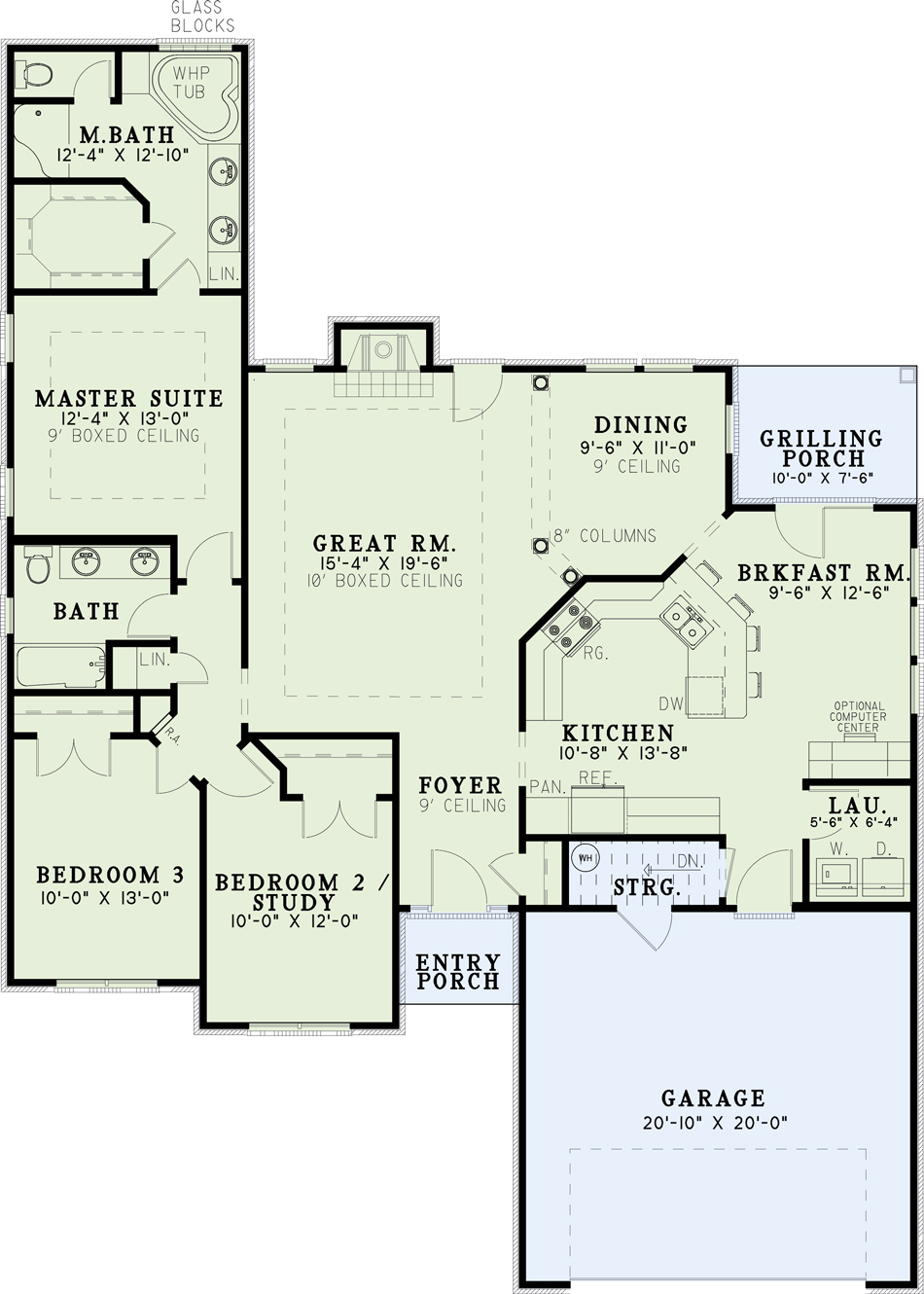

The foyer has a nine-foot ceiling and leads to an open great room/dining room combo separated by eight-inch columns. Nearby is a step saver kitchen and breakfast room with bar counter seating and plenty of windows for natural lighting. On the opposite side of this well planned home are the bedrooms including a private master suite enhanced by a nine foot boxed ceiling. The private bathroom includes a large walk-in closet, double vanity and a corner whirlpool tub with obscure glass blocks above.

Specifications

  • Total Living Space:1679Sq.Ft.
  • Main Floor: 1679 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 105 Sq.Ft.
  • Garage (Sq.Ft.): 470 Sq.Ft.
  • Total Square Feet: 2254 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: 8:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 21
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
