House Plan 2023 Franklin Heights, Contemporary Modern House Plan

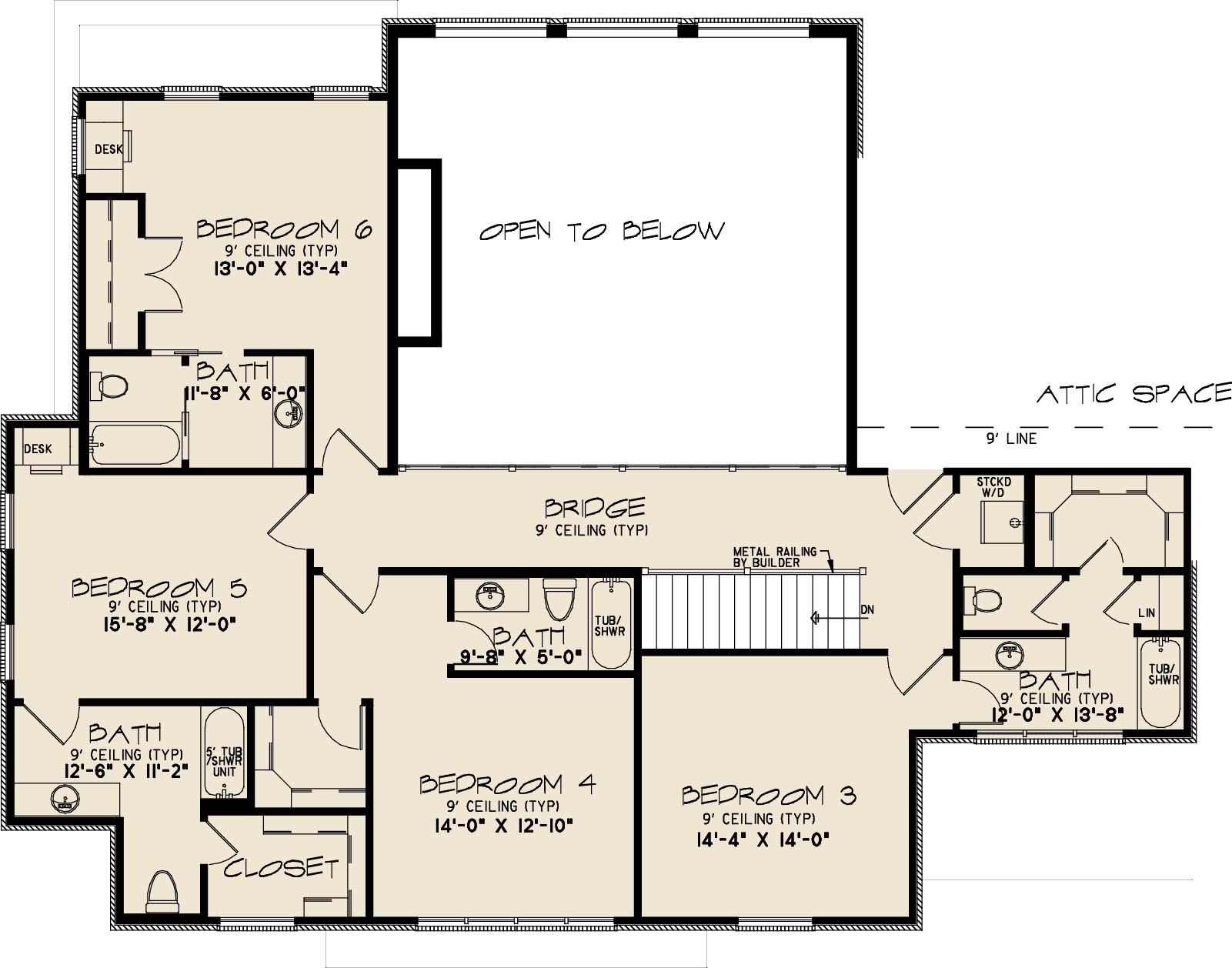

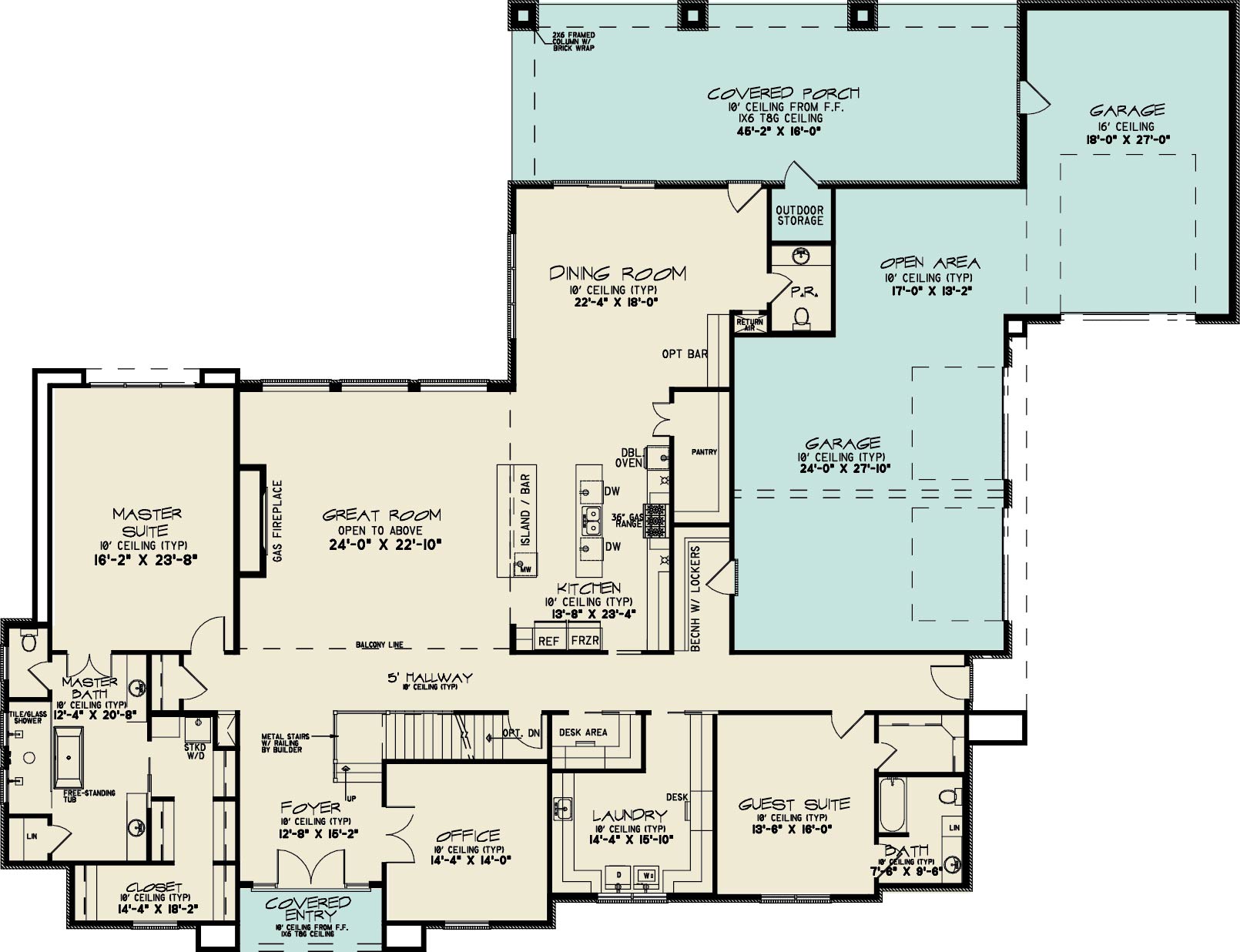

Floor plans
SMN 2023
House Plan 2023 Franklin Heights, Contemporary Modern House Plan
PDF: $4,000.00
Plan Details
- Plan Number: SMN 2023
- Total Living Space:5470Sq.Ft.
- Bedrooms: 6
- Full Baths: 6
- Half Baths: 2
- Garage: Yes 3 Bay
- Garage Type: Side Load
- Carport: N/A
- Carport Type: N/A
- Stories: 2
- Width Ft.: 109
- Width In.: 2
- Depth Ft.: 84
- Depth In.: N/A
Description
Specifications
- Total Living Space:5470Sq.Ft.
- Main Floor: 3803 Sq.Ft
- Upper Floor (Sq.Ft.): 1667 Sq.Ft.
- Lower Floor (Sq.Ft.): N/A
- Bonus Room (Sq.Ft.): N/A
- Porch (Sq.Ft.): 821 Sq.Ft.
- Garage (Sq.Ft.): 1493 Sq.Ft.
- Total Square Feet: 7784 Sq.Ft.
- Customizable: Yes
- Wall Construction: 2x4
- Vaulted Ceiling Height: No
- Main Ceiling Height: 10
- Upper Ceiling Height: 9
- Lower Ceiling Height: N/A
- Roof Type: Shingle
- Main Roof Pitch: 8:12
- Porch Roof Pitch: 1:12
- Roof Framing Description: stick
- Designed Roof Load: 45lbs
- Ridge Height (Ft.): 29
- Ridge Height (In.): 9
- Insulation Exterior: R13
- Insulation Floor Minimum: R19
- Insulation Ceiling Minimum: R30
- Lower Bonus Space (Sq.Ft.): N/A
Plan Styles
Customize This Plan
Need to make changes? We will get you a free price quote!
Modify This Plan
Property Attachments
Plan Package
