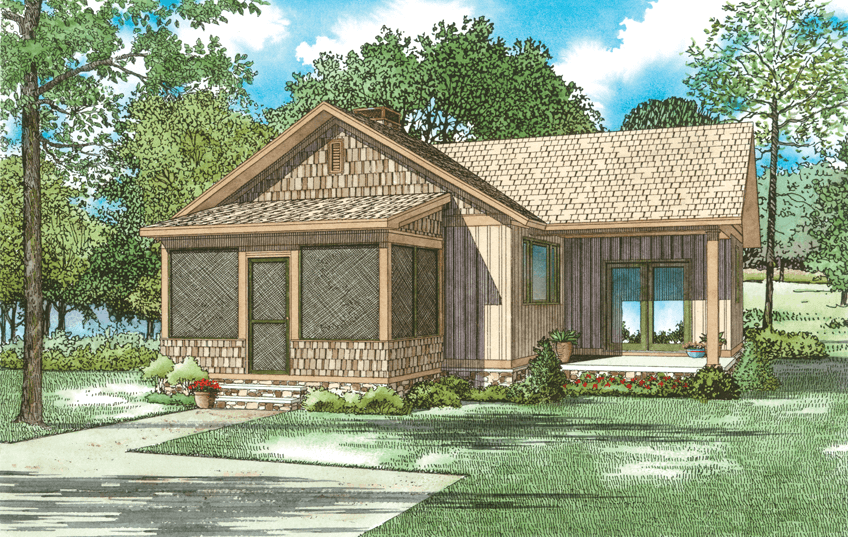

House Plan 1638B Moss Landing II, Tiny House Plan

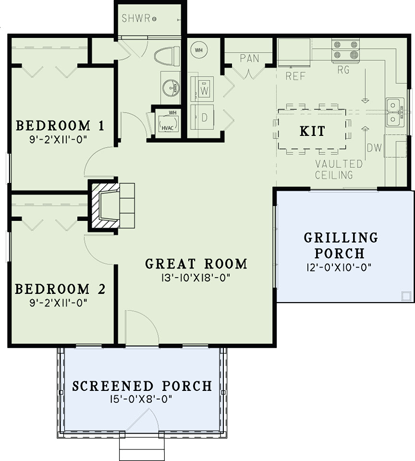

House Plan NDG 1638B Main Floor
House Plan NDG 1638B Main Floor

Floor plans

NDG 1638B

House Plan 1638B Moss Landing II, Tiny House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 1638B
  • Total Living Space:859Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 1
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 36
  • Width In.: N/A
  • Depth Ft.: 39
  • Depth In.: N/A

Description

This charming little home offers a great room with a fireplace and is open to the kitchen that features an eat-at island bar and a vaulted ceiling. 2 bedrooms and 1 bath are on the left side of the home with a grilling porch off of the kitchen and a screened front porch, perfect for enjoying the evenings.

Specifications

  • Total Living Space:859Sq.Ft.
  • Main Floor: 859 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 239 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1098 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 7:12
  • Porch Roof Pitch: 3:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 16
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
