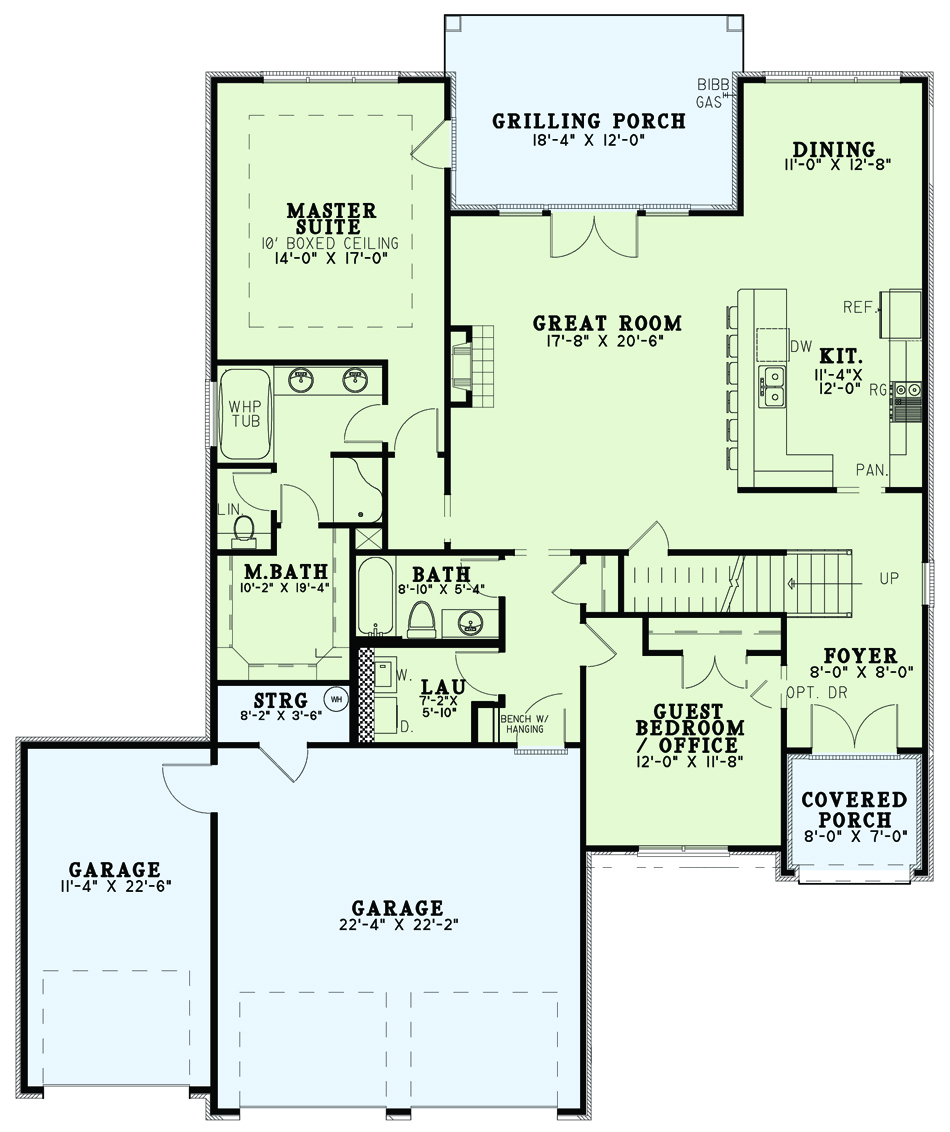

House Plan NDG 1632 Main Floor

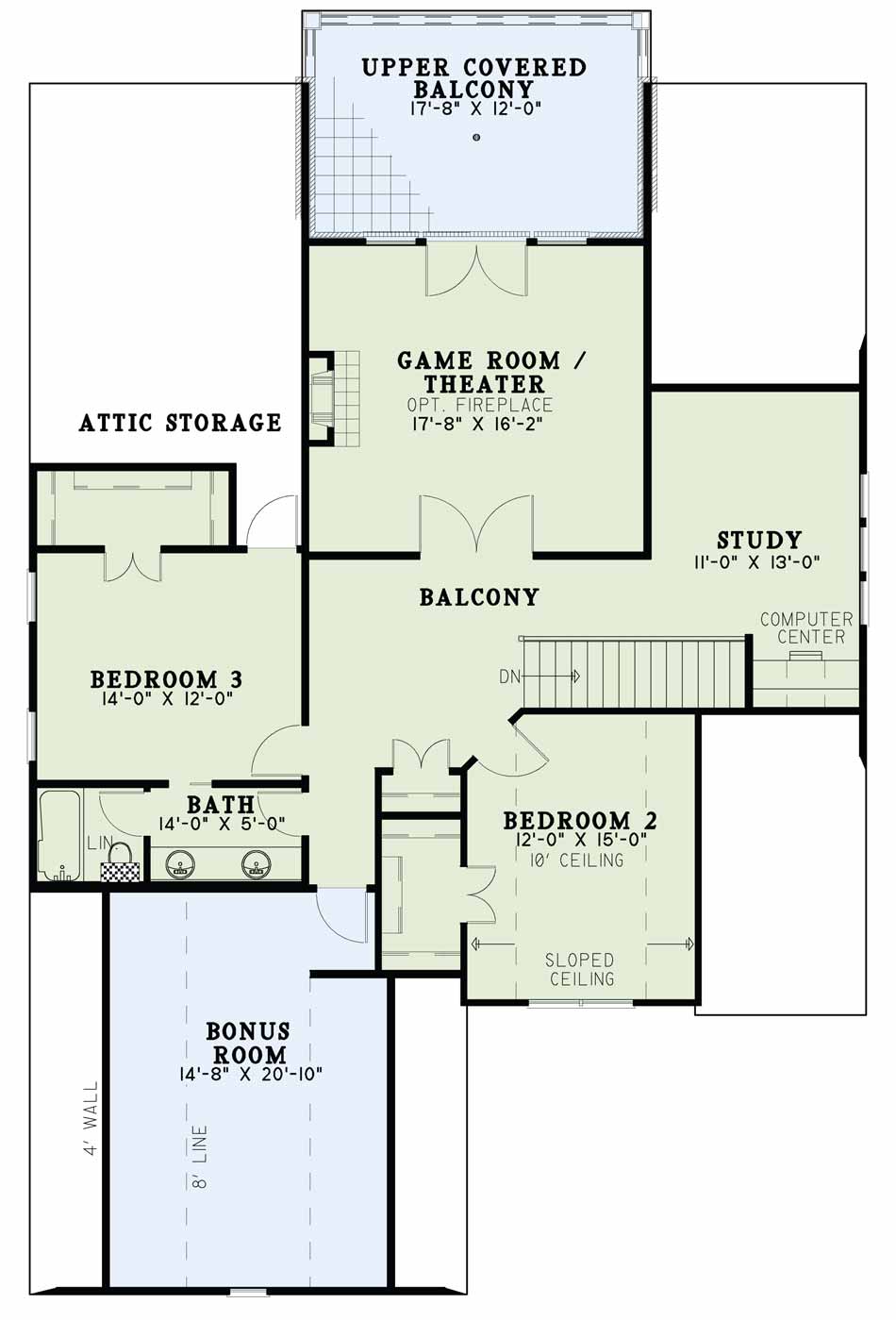

House Plan NDG 1632 Upper Floor
House Plan NDG 1632 Main Floor
House Plan NDG 1632 Upper Floor

Floor plans

NDG 1632

House Plan 1632 Austin Cove, European House Plan

PDF: $1,650.00

Plan Details

  • Plan Number: NDG 1632
  • Total Living Space:2930Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: 3 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 55
  • Width In.: 8
  • Depth Ft.: 67
  • Depth In.: 6


In this charming European home, you’re sure to enjoy this wonderful design and living space. The Great Room features a fireplace and is open to the kitchen and dining room, perfect for entertaining guests. A bedroom located at the front is a great guest bedroom or could be made into a convenient office. The master suite has a 10′ boxed ceiling, spacious master bath and walk-in closet, and access to the Grilling Porch. The upstairs are bedrooms 2 and 3 as well as a full bath, a game room or home theater and a large bonus room with tons of possibilities. The game room leads upper covered patio which is a perfect place to spend the evening with a cup of coffee and a good friend.


  • Total Living Space:2930Sq.Ft.
  • Main Floor: 1715 Sq.Ft
  • Upper Floor (Sq.Ft.): 1215 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 318 Sq.Ft.
  • Porch (Sq.Ft.): 492 Sq.Ft.
  • Garage (Sq.Ft.): 798 Sq.Ft.
  • Total Square Feet: 4538 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
