House Plan 1621 Briarsfield Cove, Rustic House Plan

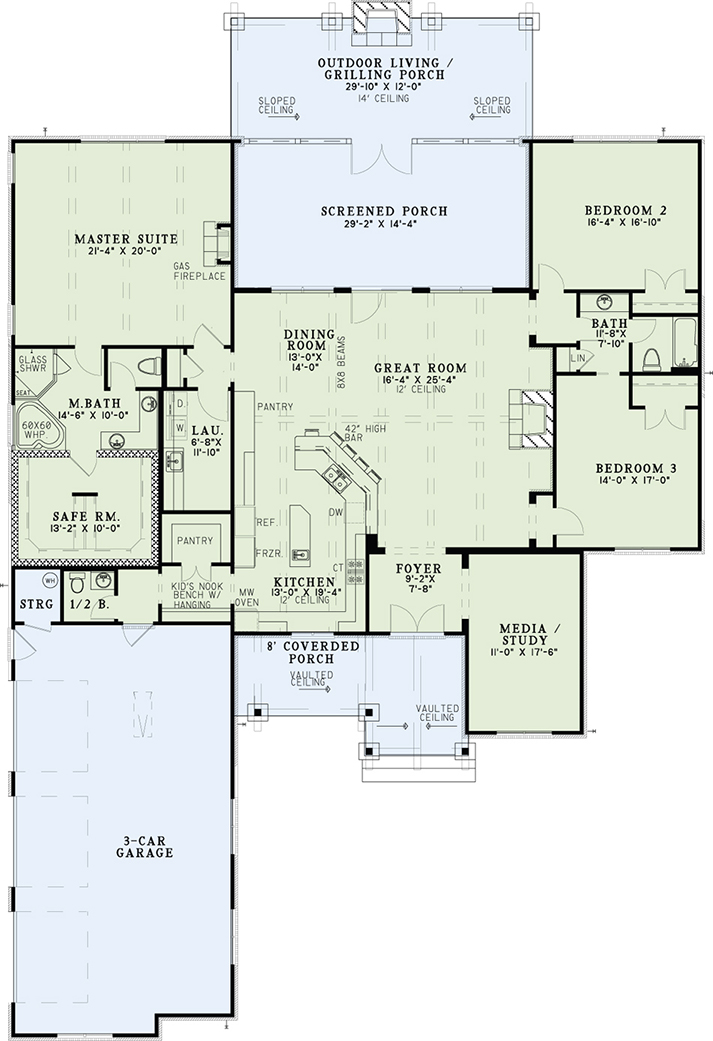

House Plan NDG 1621 Main Floor
House Plan NDG 1621 Main Floor

Floor plans

NDG 1621

House Plan 1621 Briarsfield Cove, Rustic House Plan

PDF: $1,850.00

Plan Details

  • Plan Number: NDG 1621
  • Total Living Space:2879Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 3 Bay Yes
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 68
  • Width In.: 2
  • Depth Ft.: 100
  • Depth In.: 9

Description

This brick and stone rustic home features an eye-catching timber beam gabled front porch and open floor plan. The Great Room has a 12′ ceiling and is open to the spacious kitchen and dining room and has access to a large screened porch. The kitchen offers a prep island as well as plenty of counter space and an eat-at peninsula bar. The Master Suite has a gas fireplace and multiple windows for natural lighting while the bath boasts a corner whirlpool tub, a glass shower, dual vanities and a huge walk-in closet that doubles as a Safe Room. 2 more bedrooms share a bathroom on the right side of the house. Off of the Screened Porch is an Outdoor Living/Grilling Porch with a fireplace for cool evenings.

Specifications

  • Total Living Space:2879Sq.Ft.
  • Main Floor: 2879 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 1006 Sq.Ft.
  • Garage (Sq.Ft.): 911 Sq.Ft.
  • Total Square Feet: 4796 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 8
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
