House Plan 150 Spruce Street, Affordable House Plan

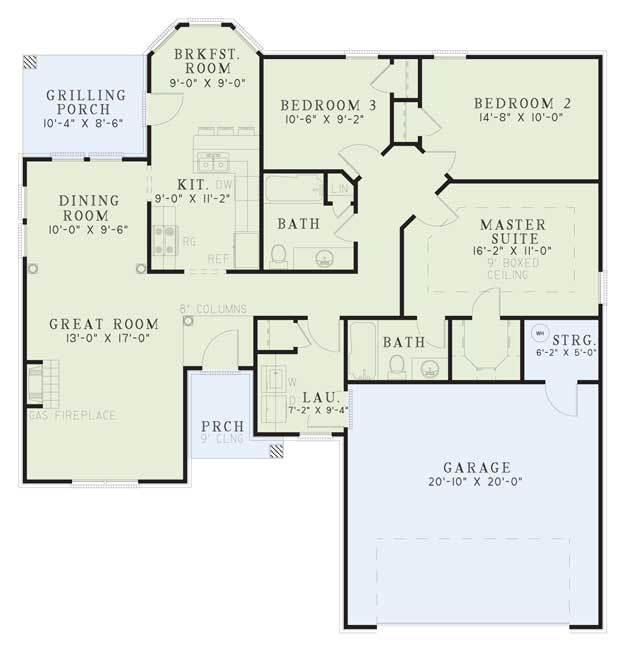

House Plan NDG 150 Main Floor
House Plan NDG 150 Main Floor

Floor plans

NDG 150

House Plan 150 Spruce Street, Affordable House Plan

PDF: $700.00

Plan Details

  • Plan Number: NDG 150
  • Total Living Space:1353Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: 2 Bay Yes
  • Garage Type: Front Load
  • Carport: No
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 48
  • Width In.: 2
  • Depth Ft.: 50
  • Depth In.: 4

Description

If you are looking for elegance and warmth you’ll find both in this French Traditional home. Upon entering this design you’ll feel the openness created by the expansive great room with optional fireplace adjoined by the formal dining room with eight-inch columns. Meal preparation is made easy in the convenient kitchen and breakfast room with access to a lovely covered porch, perfect for morning coffee and paper. Bedrooms two could be utilized as an office for the young professional. Nine-foot boxed ceilings, full bath and large walk-in closet accent the Master Bedroom. This open floor plan design has everything suitable for the families of today.

Specifications

  • Total Living Space:1353Sq.Ft.
  • Main Floor: 1353 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 186 Sq.Ft.
  • Garage (Sq.Ft.): 417 Sq.Ft.
  • Total Square Feet: 1956 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 8
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 8:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 18
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
