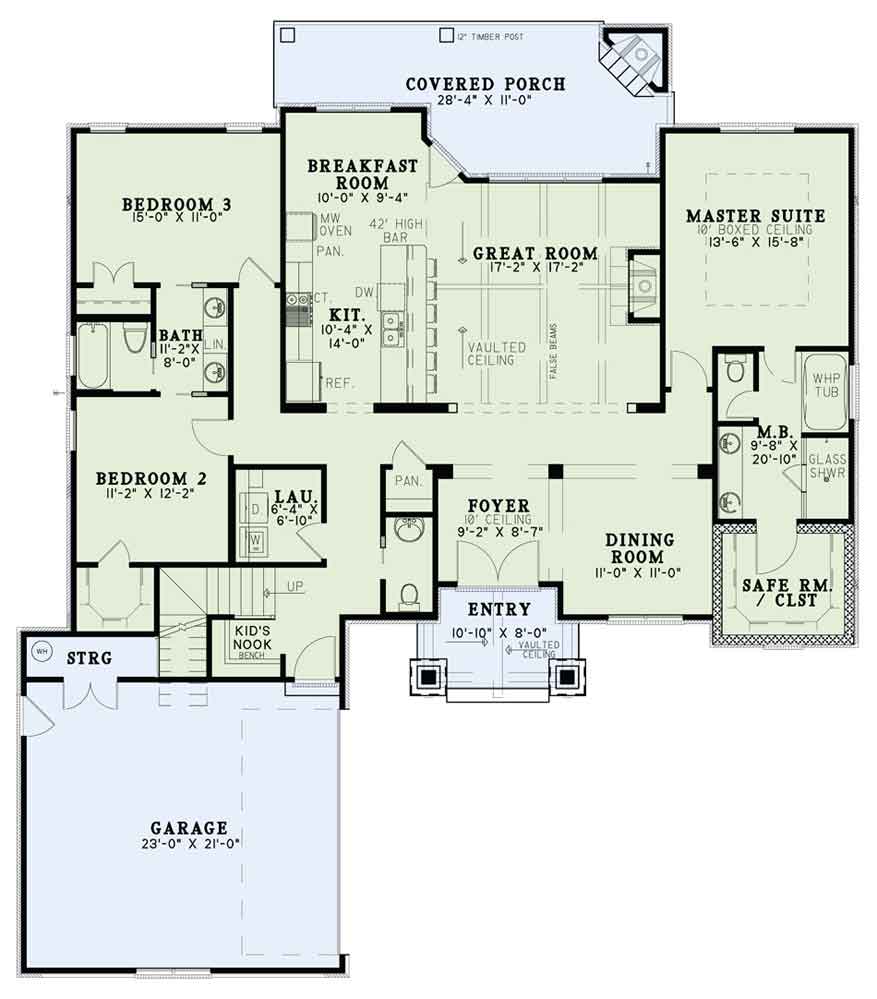

House Plan NDG 1479 Main Floor

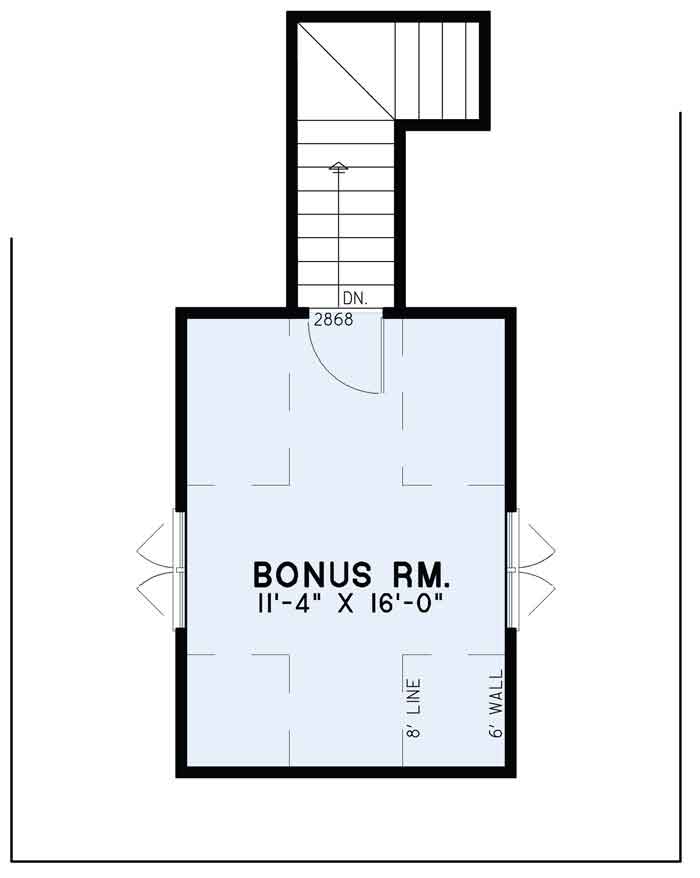

House Plan NDG 1479 Bonus Room
House Plan NDG 1479 Main Floor
House Plan NDG 1479 Bonus Room

Floor plans

NDG 1479

House Plan 1479 Keystone Lane, Rustic House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1479
  • Total Living Space:2091Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: 2 Bay Yes
  • Garage Type: Court Yard
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 61
  • Width In.: N/A
  • Depth Ft.: 69
  • Depth In.: 3

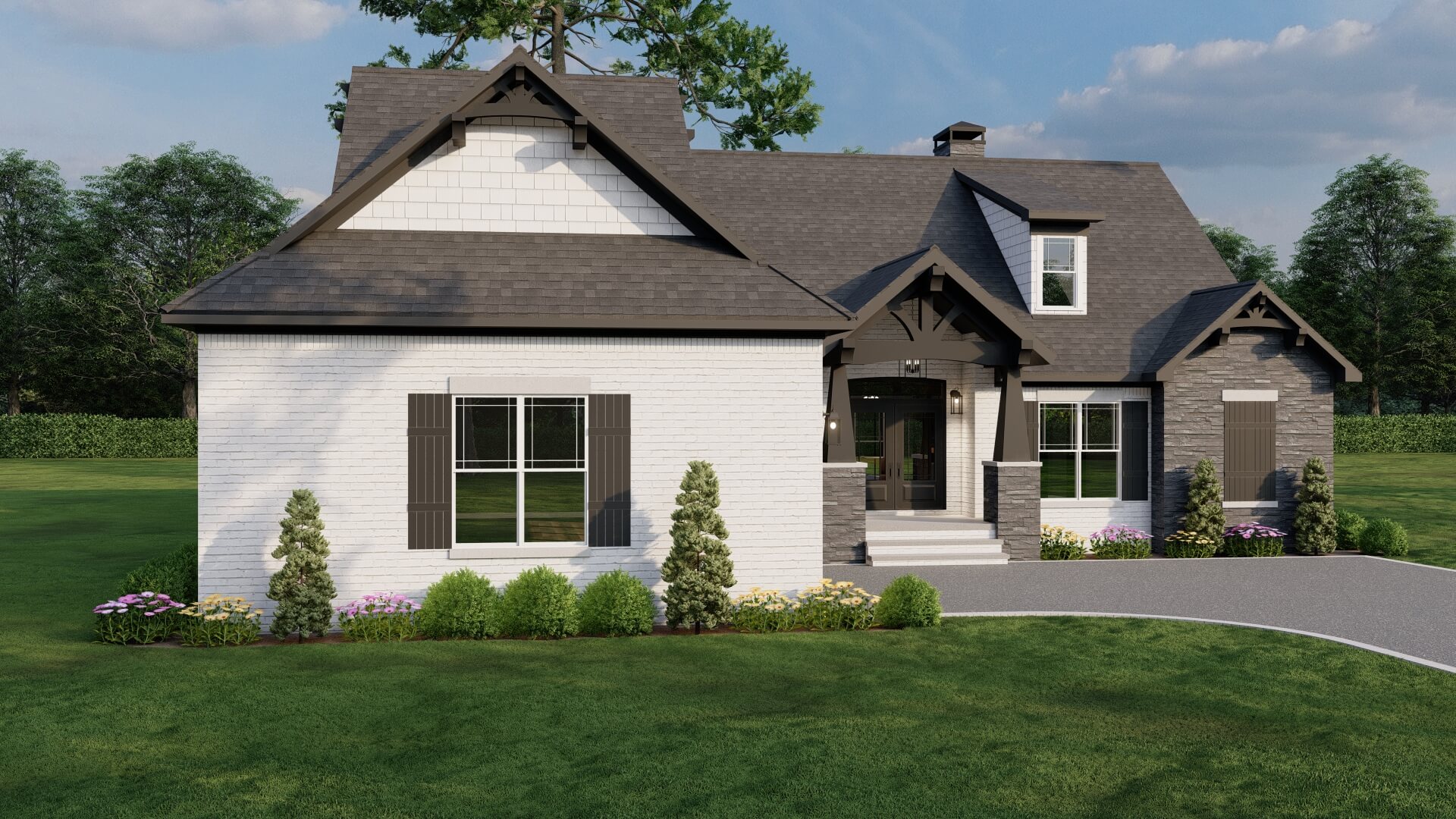

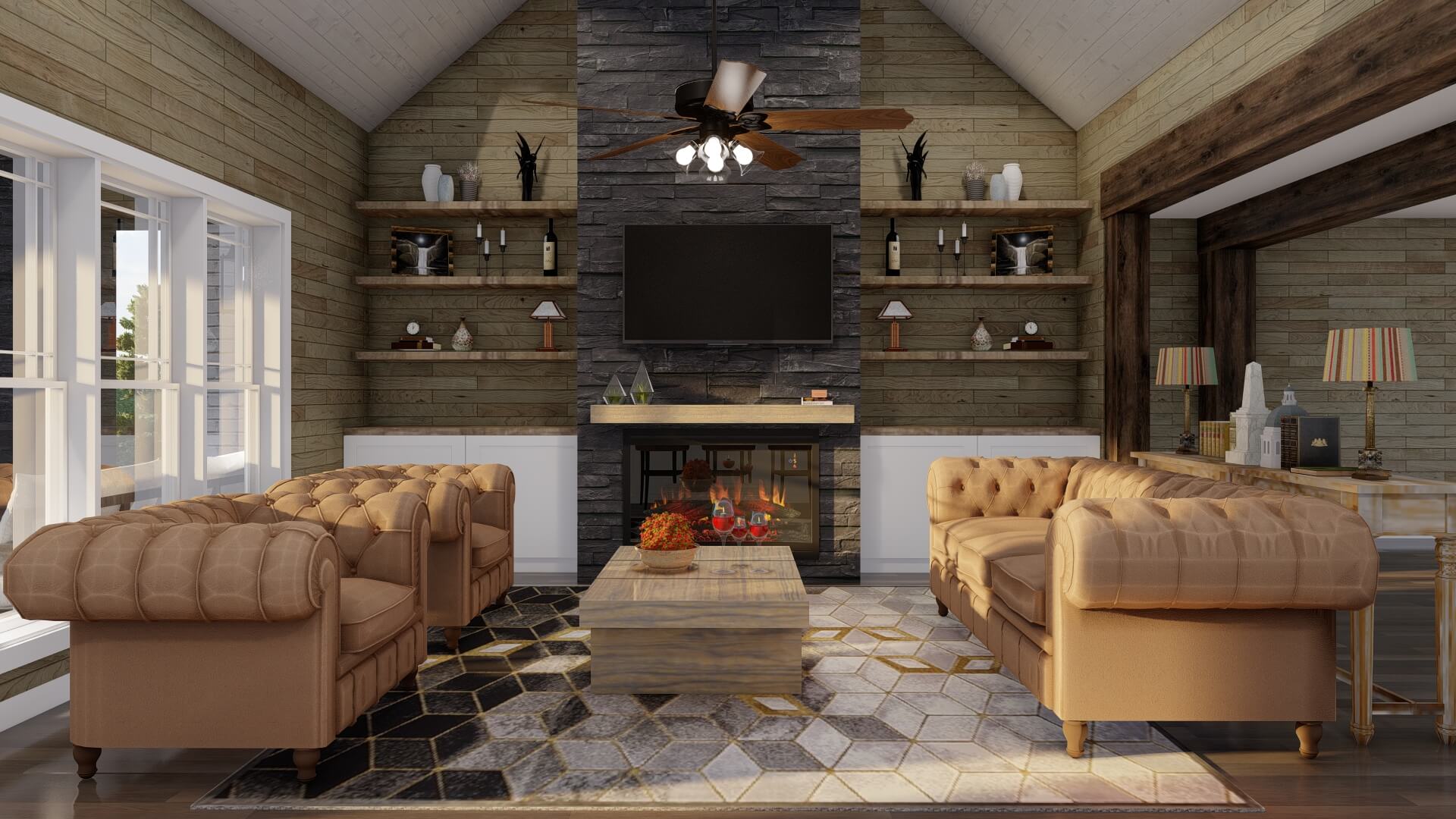

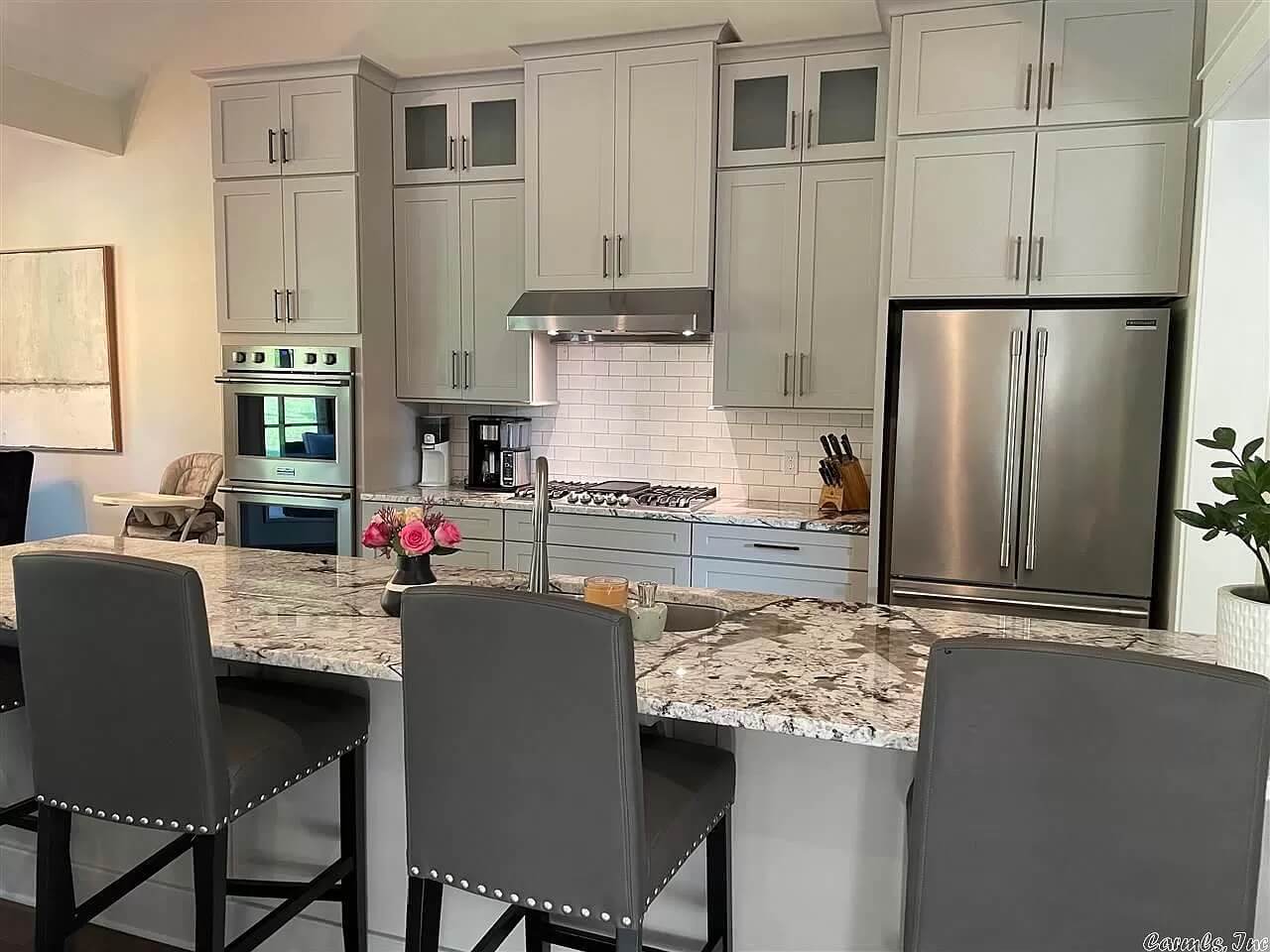

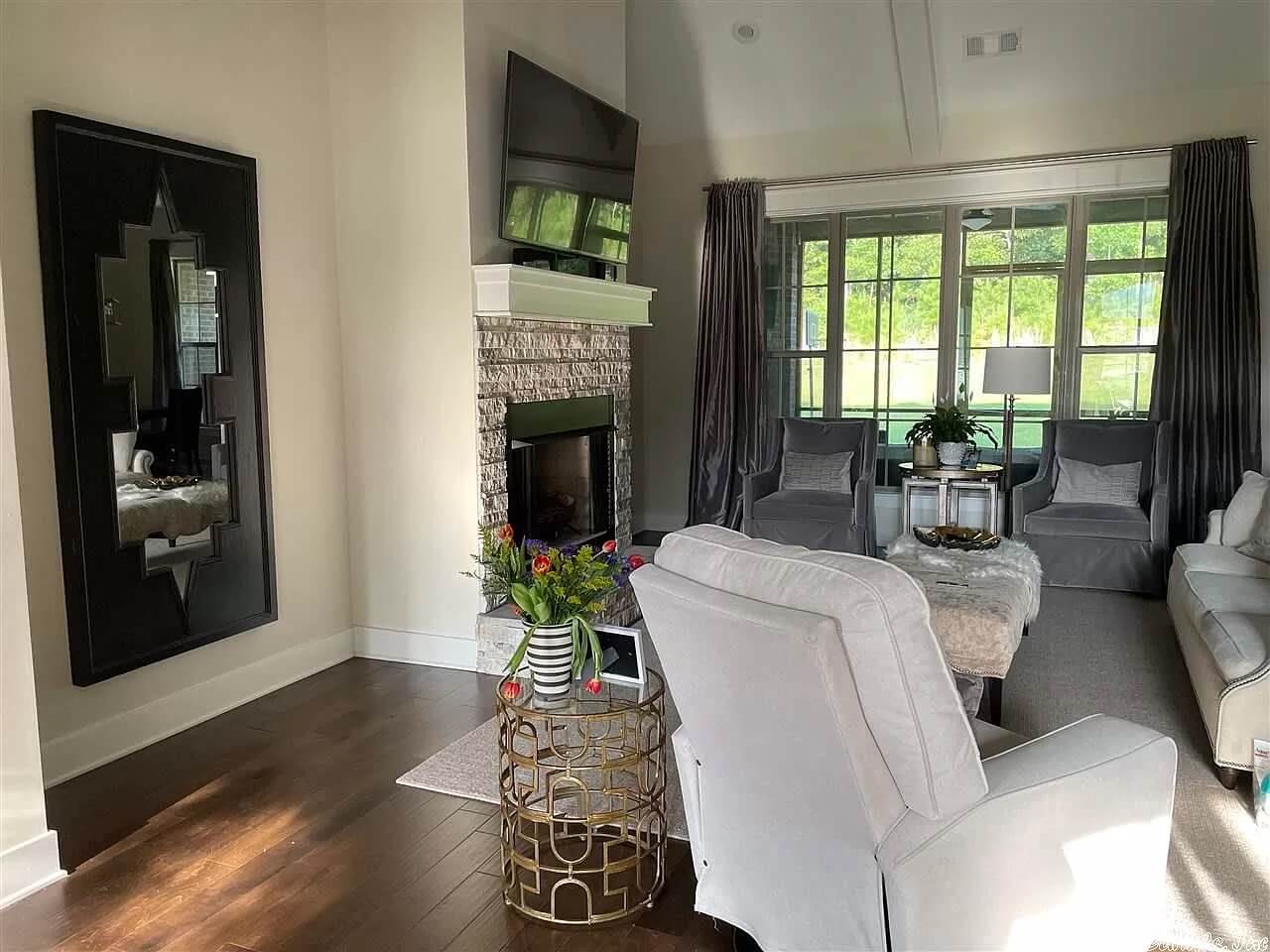

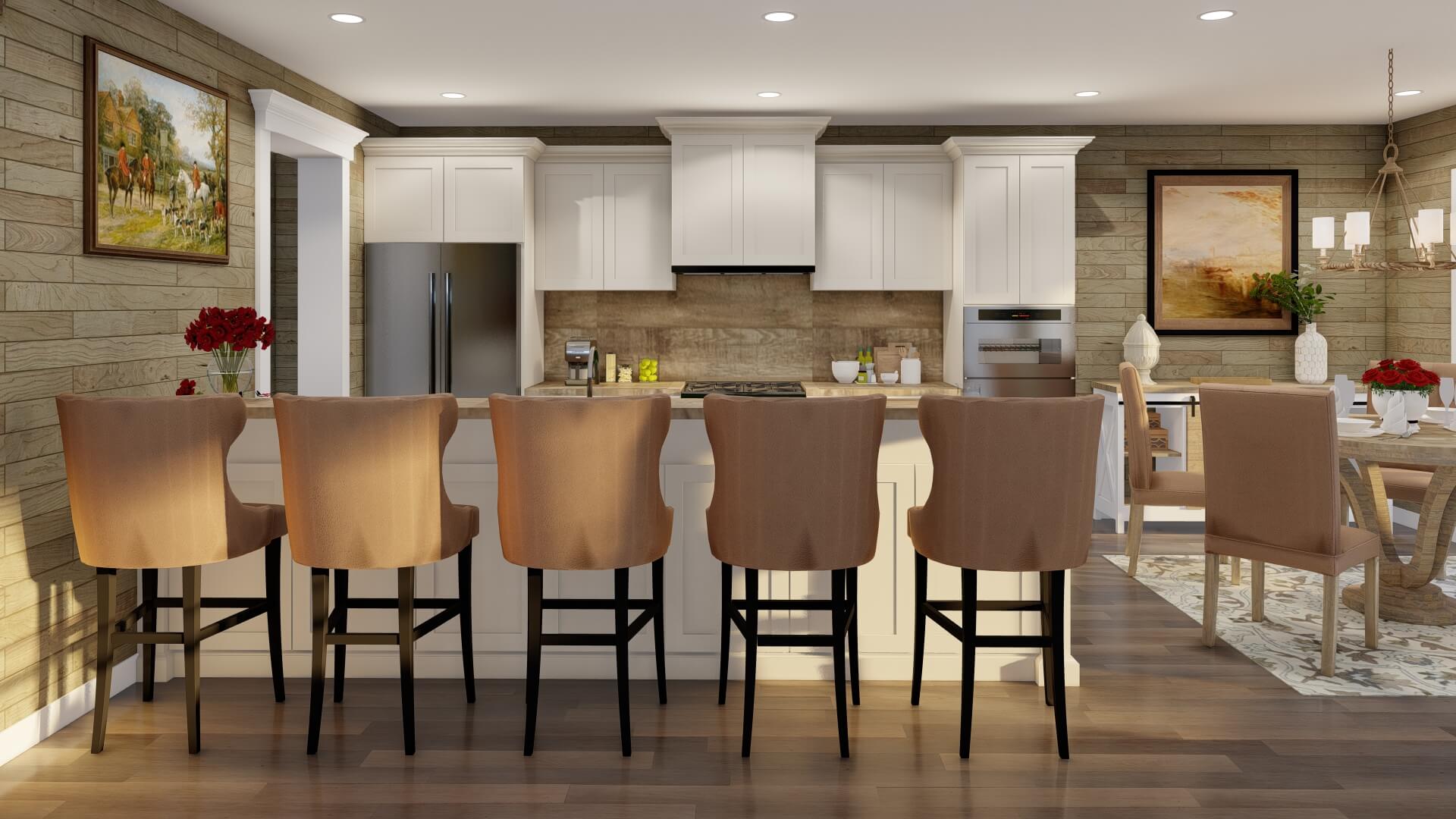

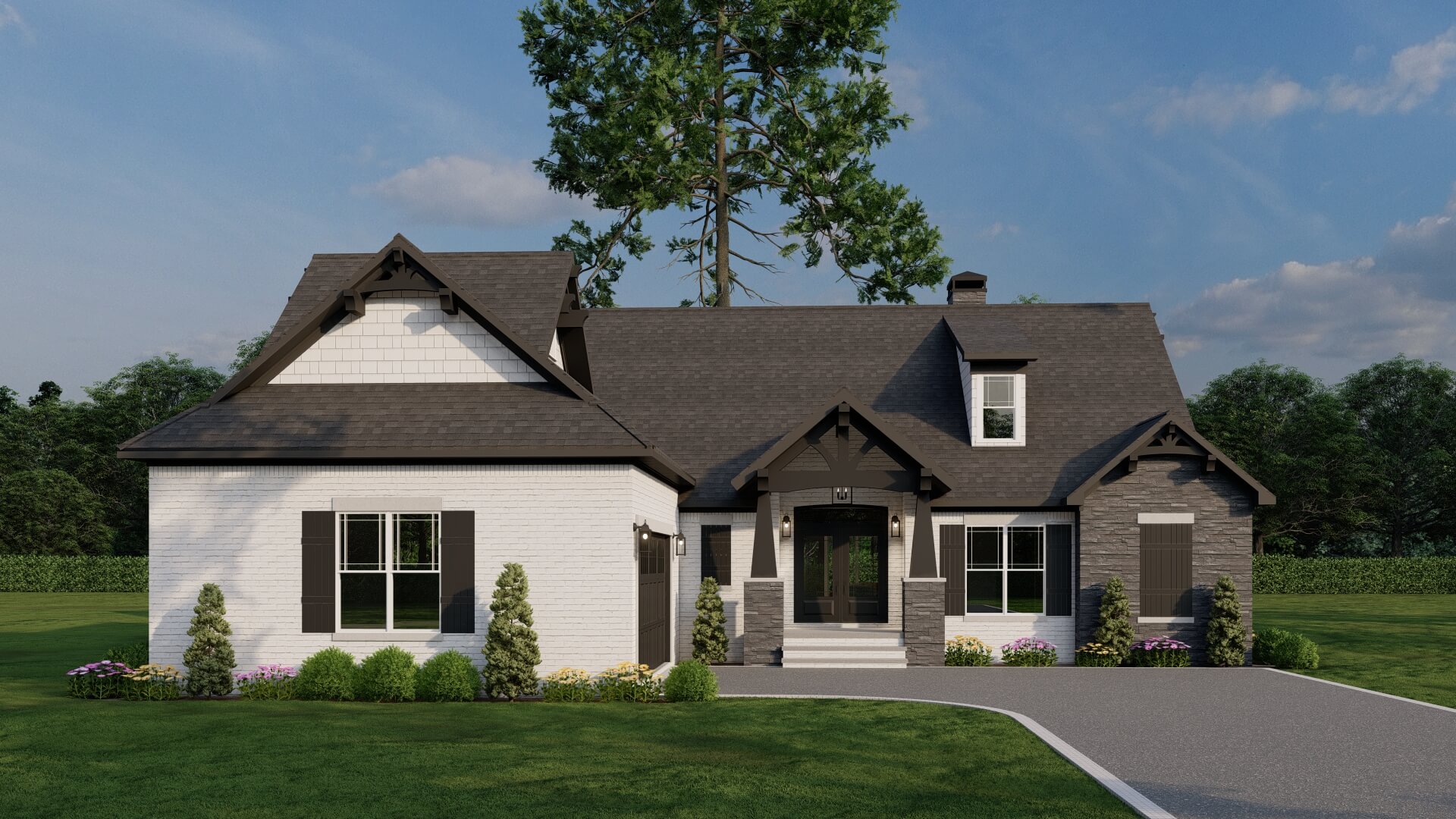

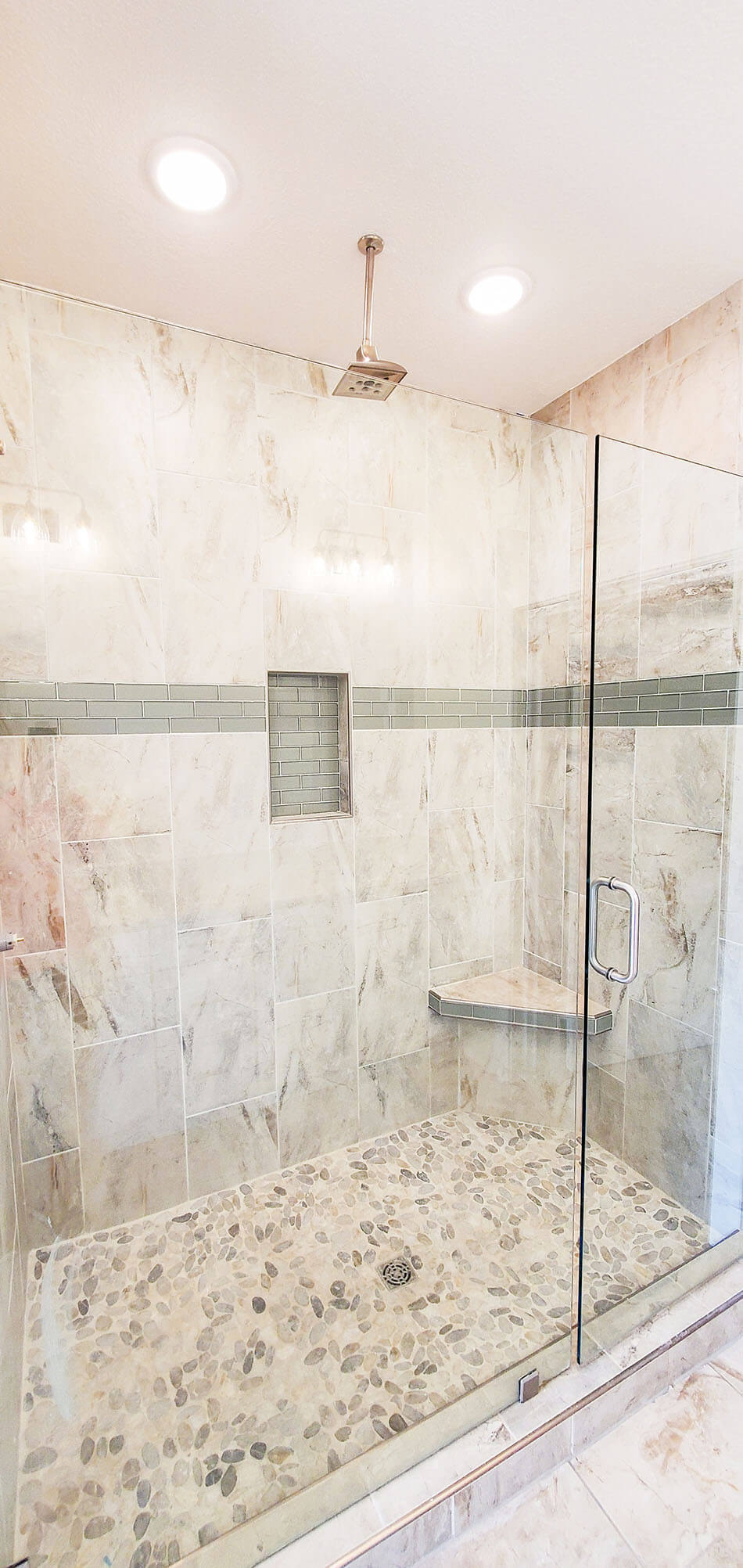

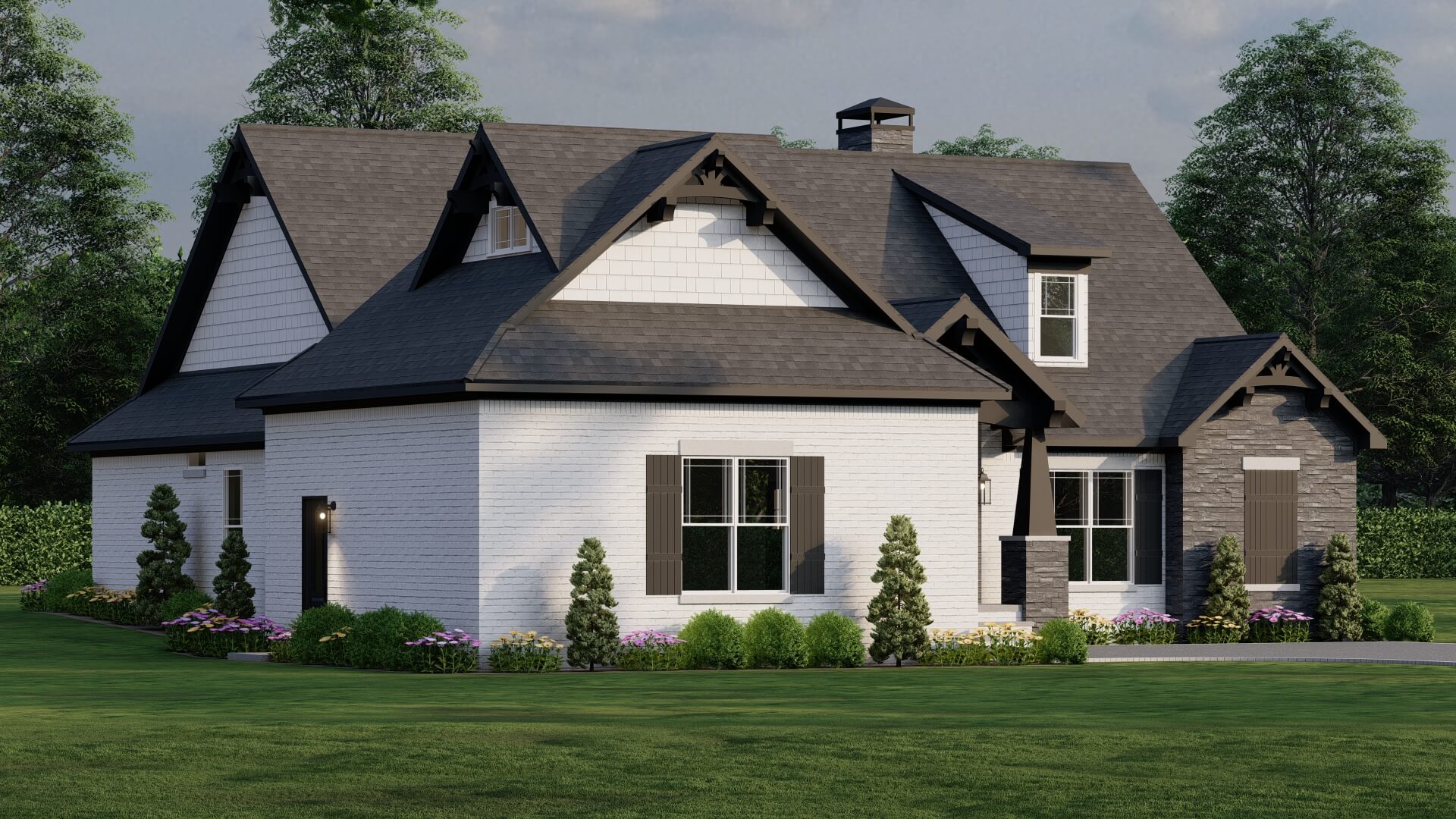

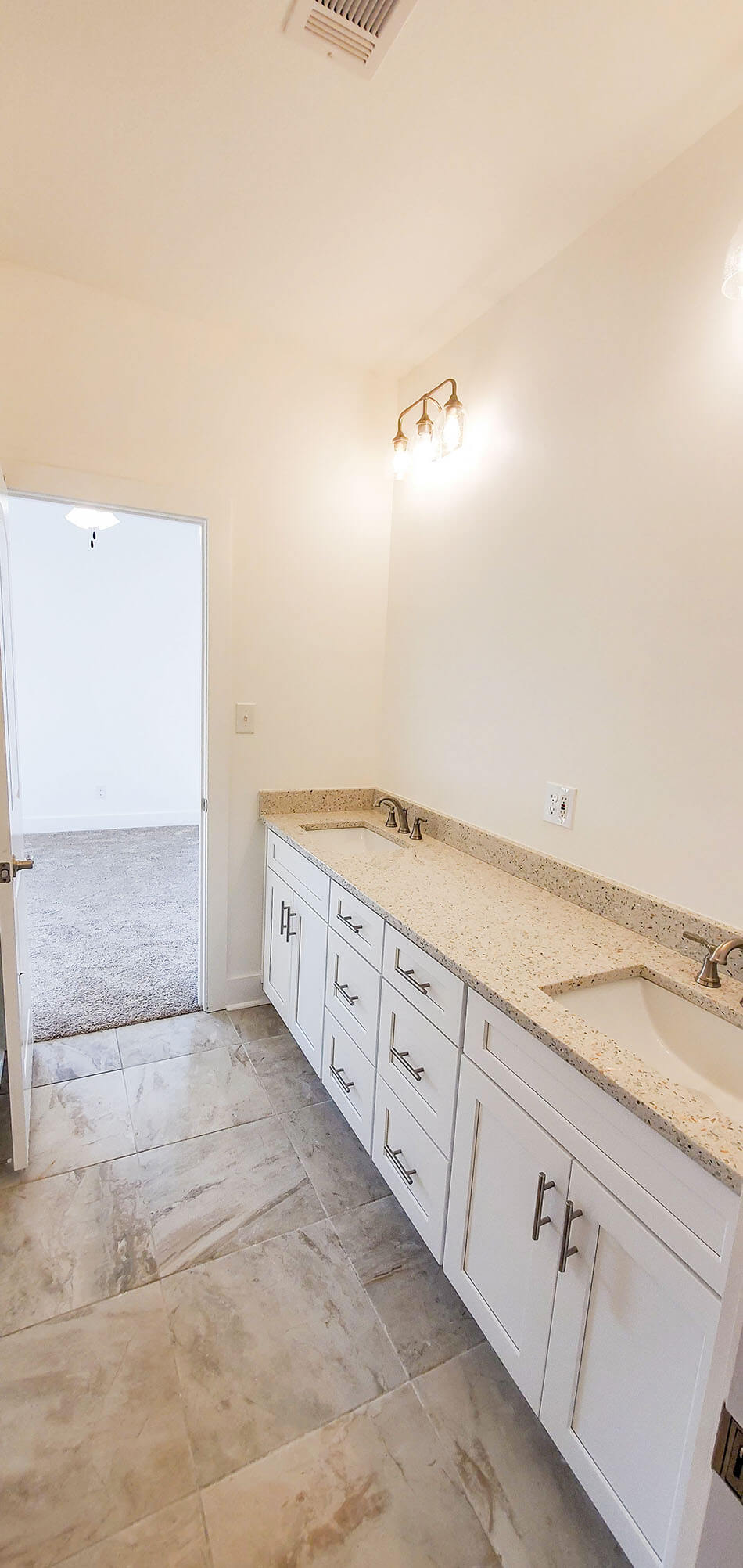

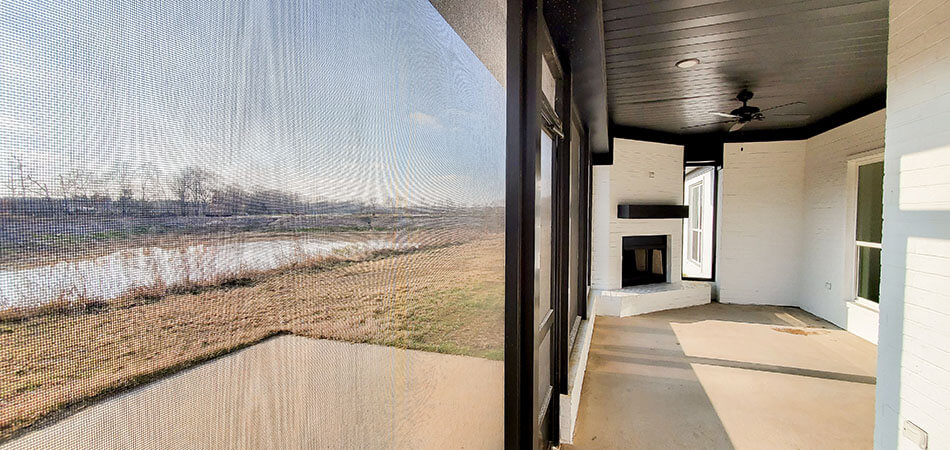

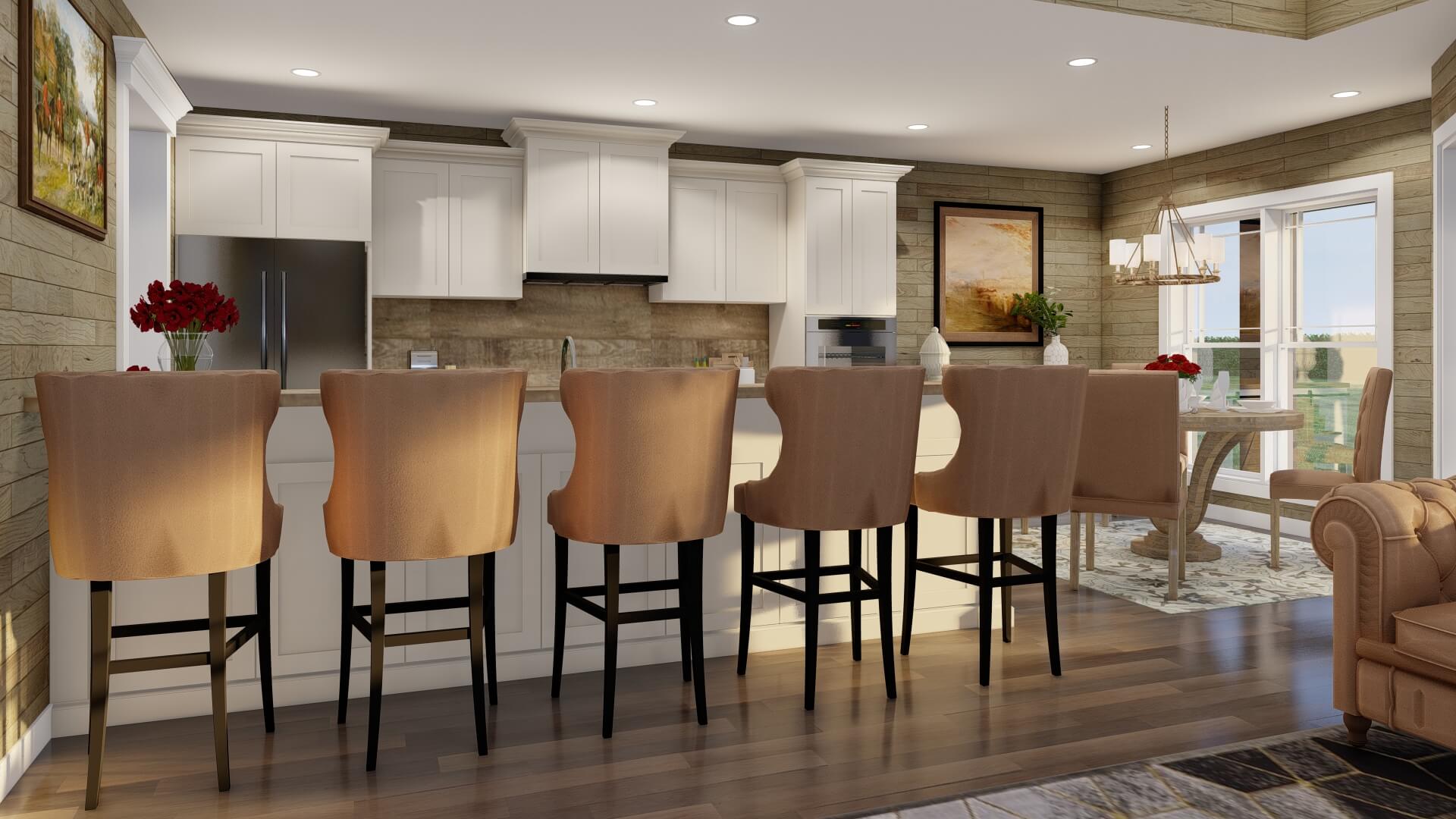

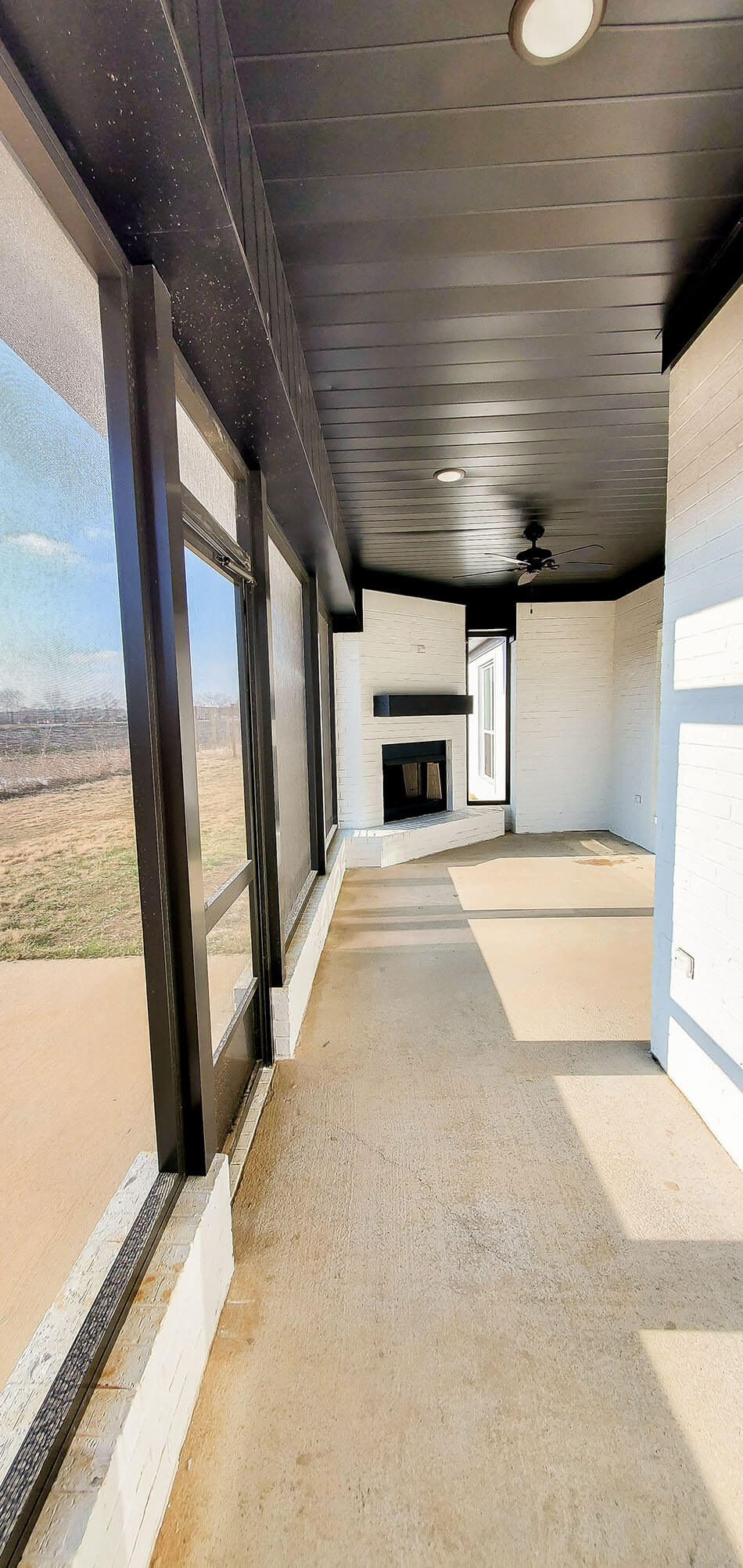

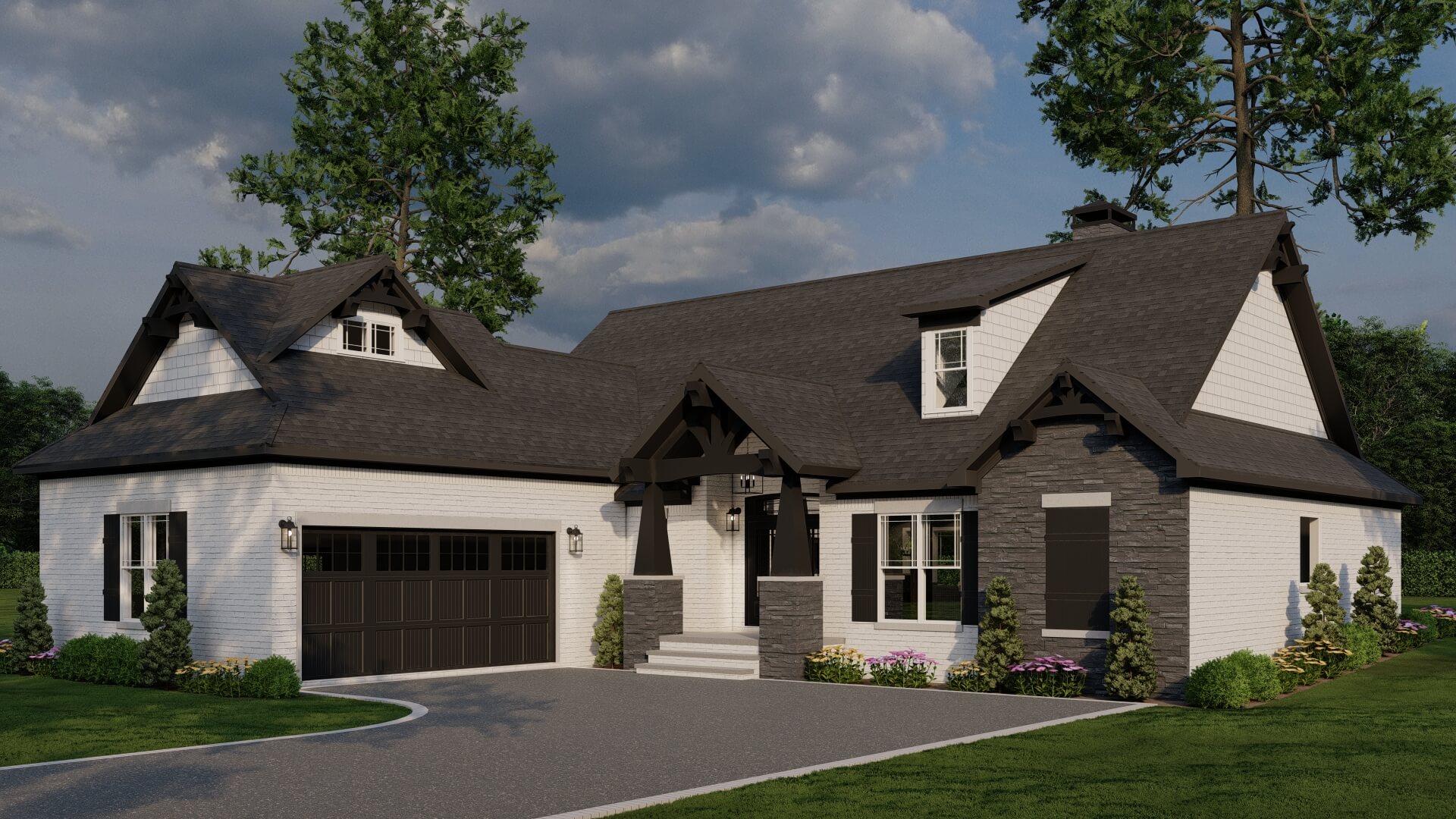

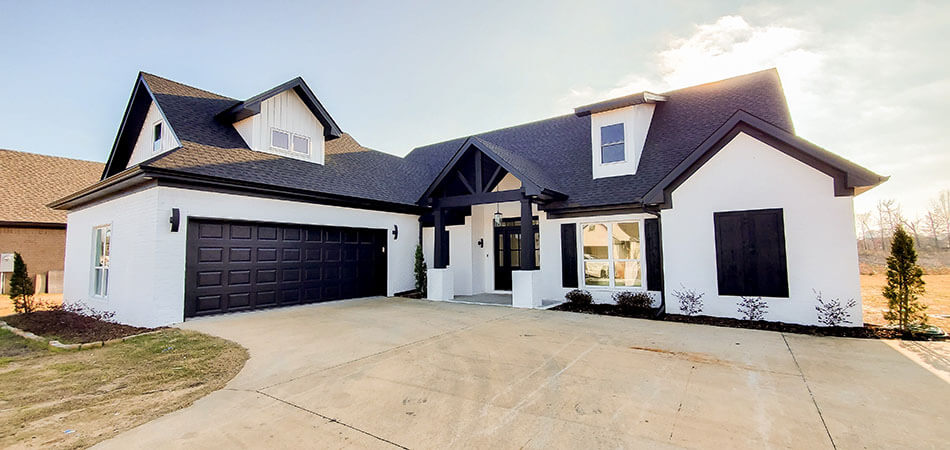

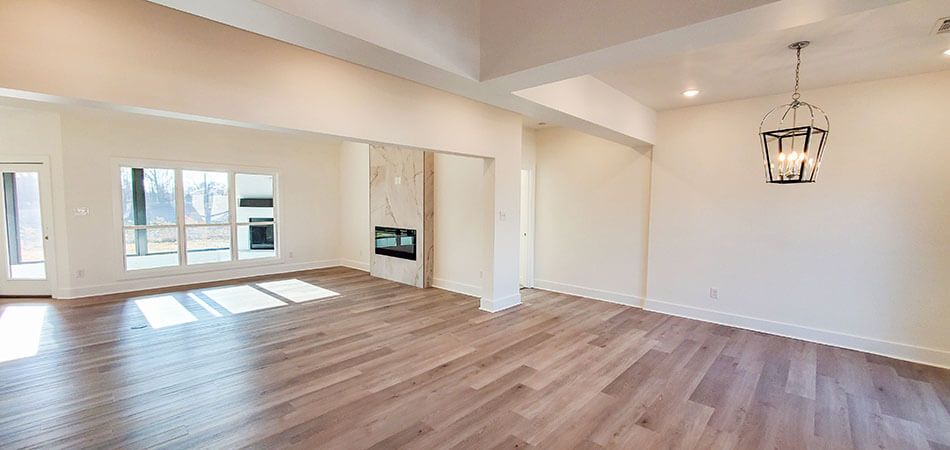

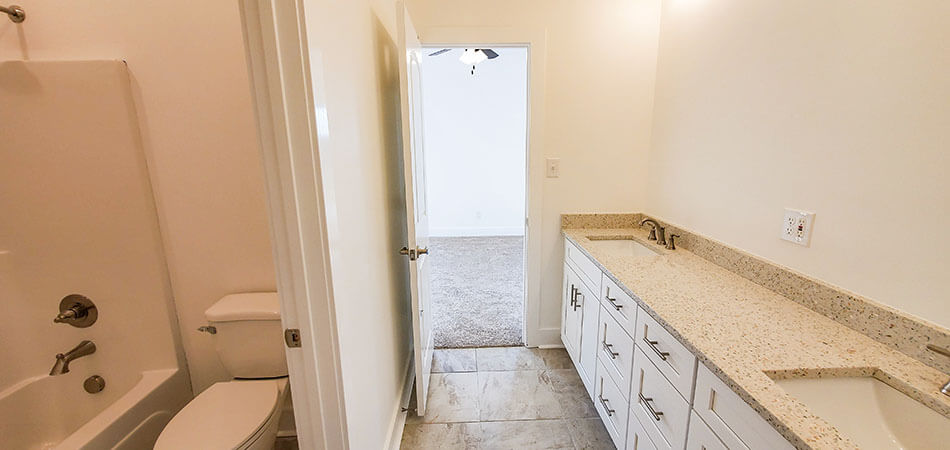

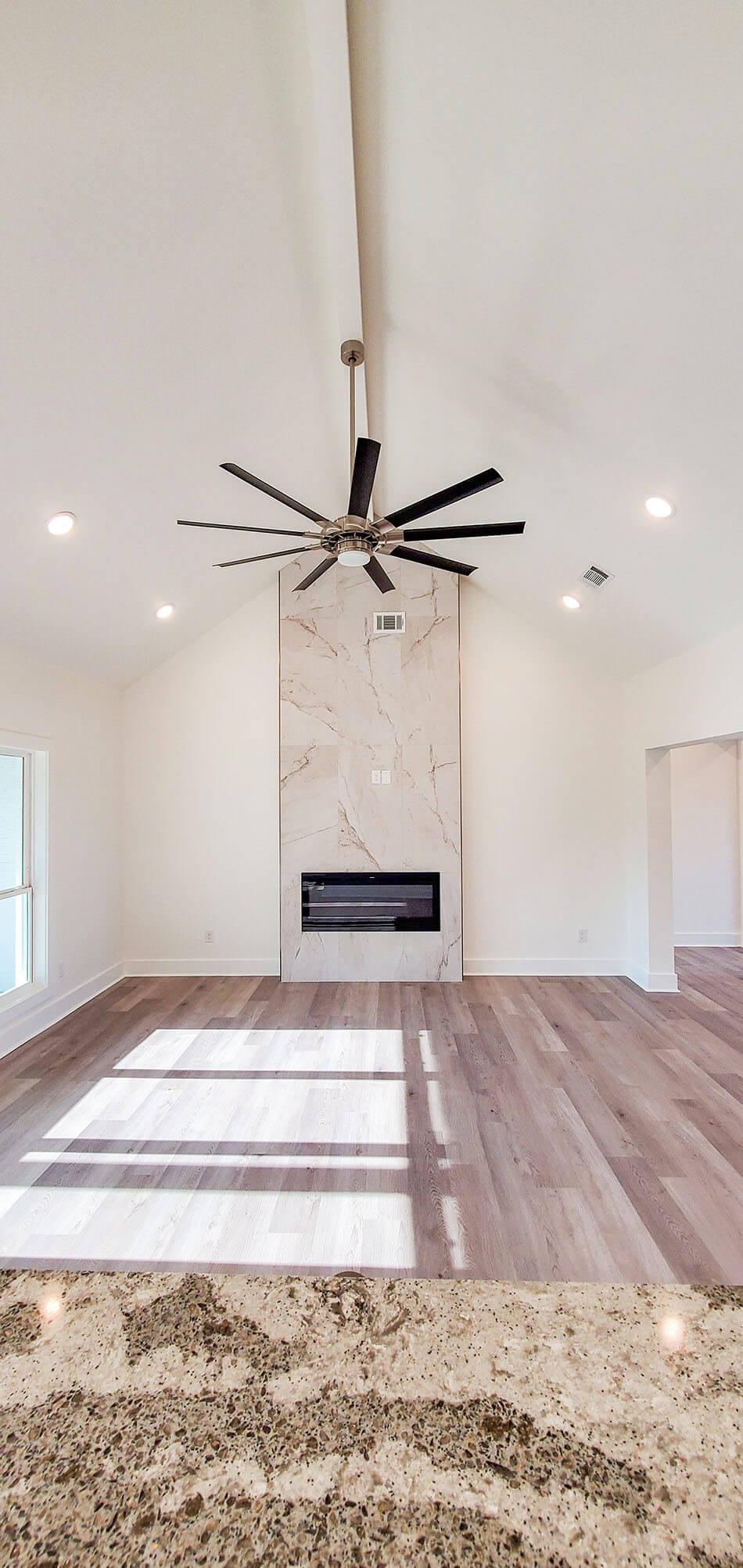

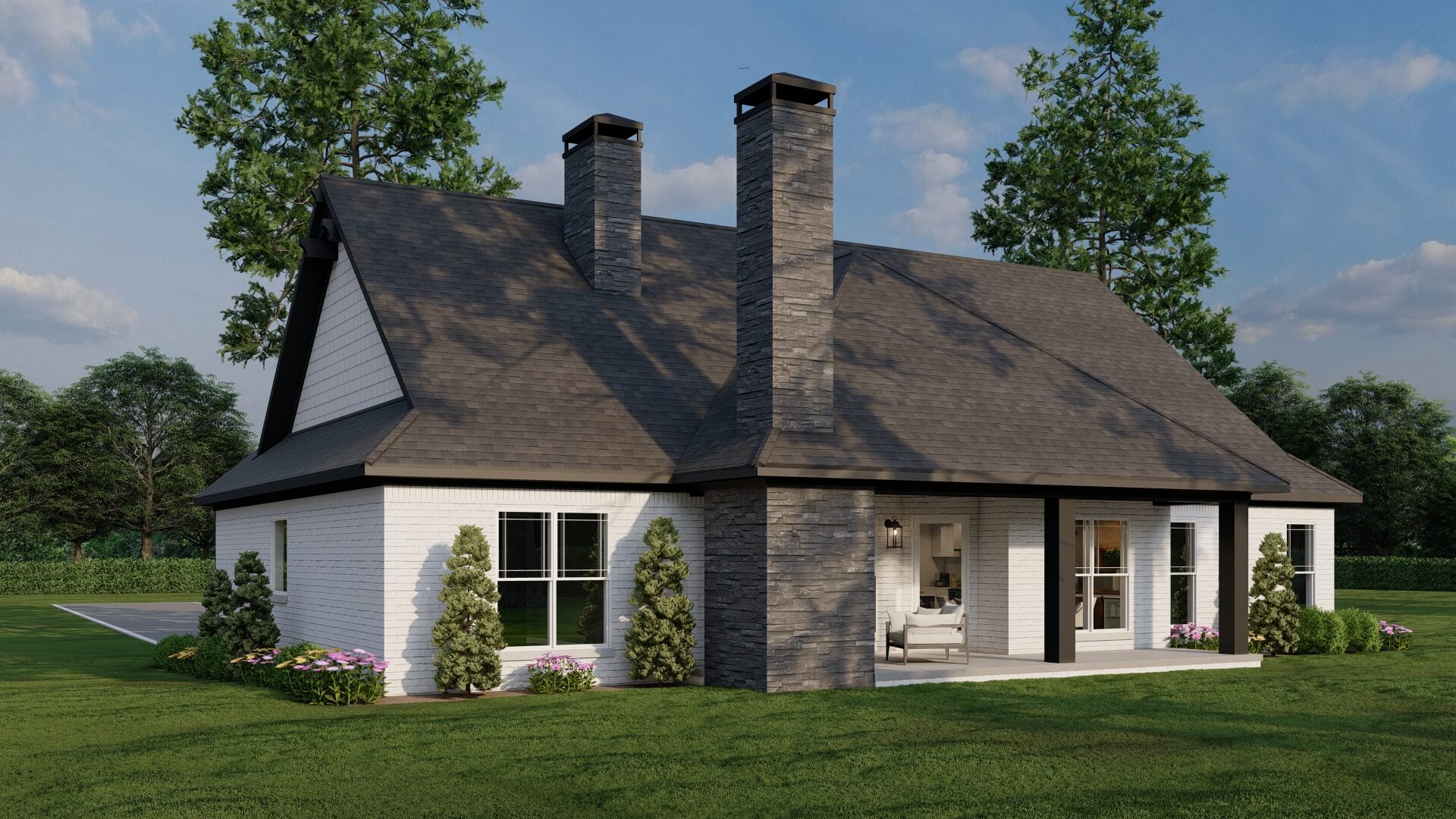

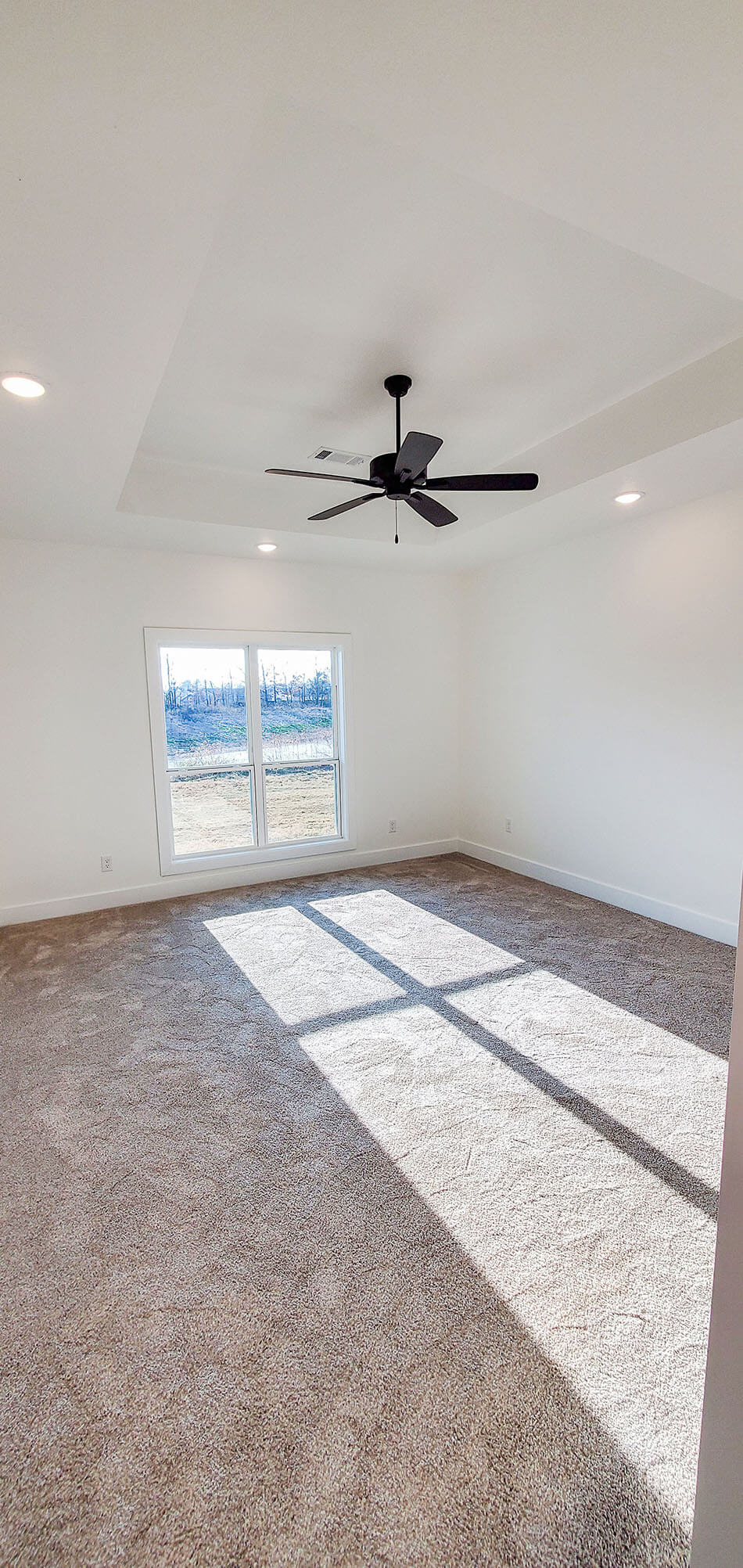

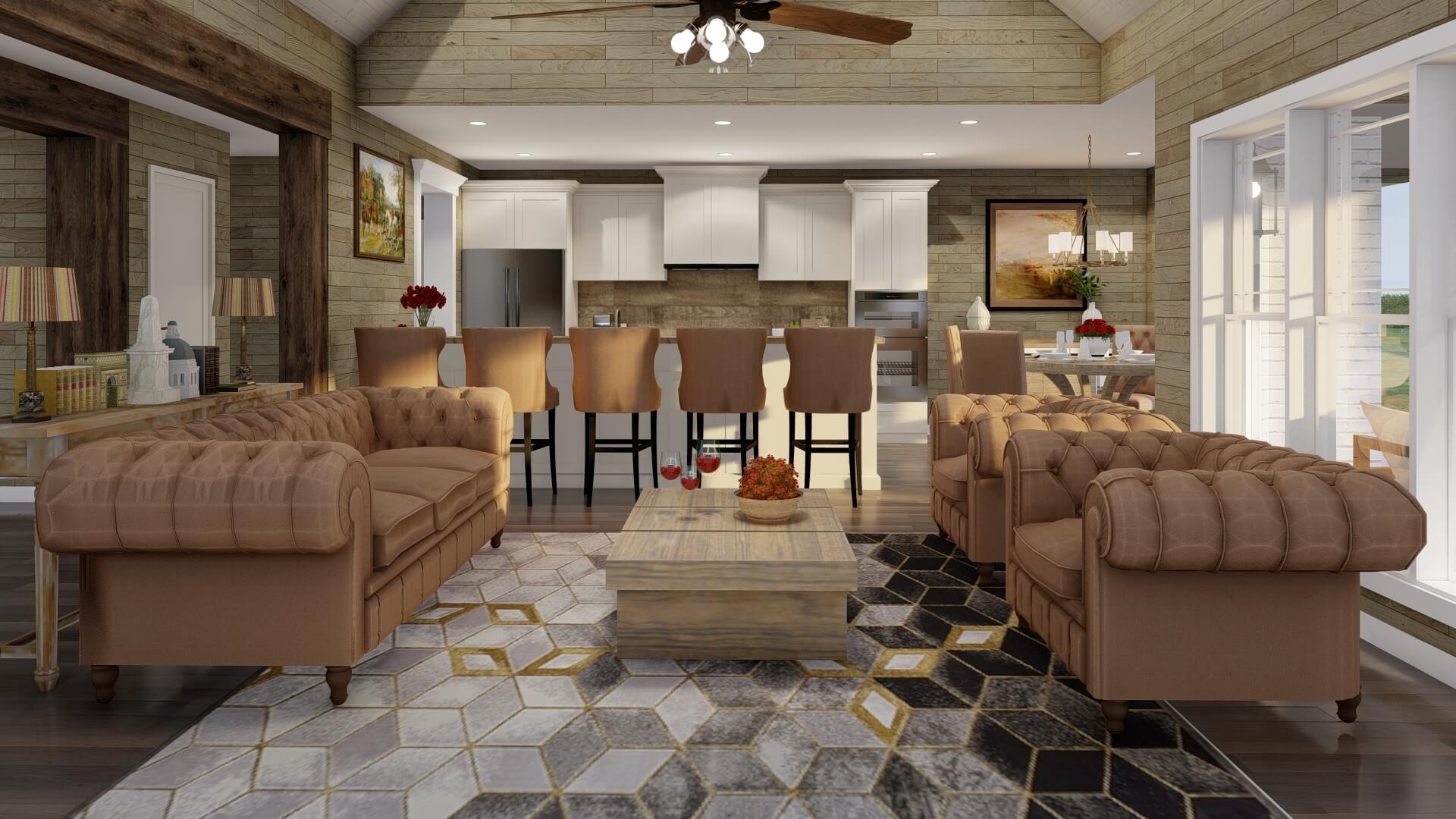

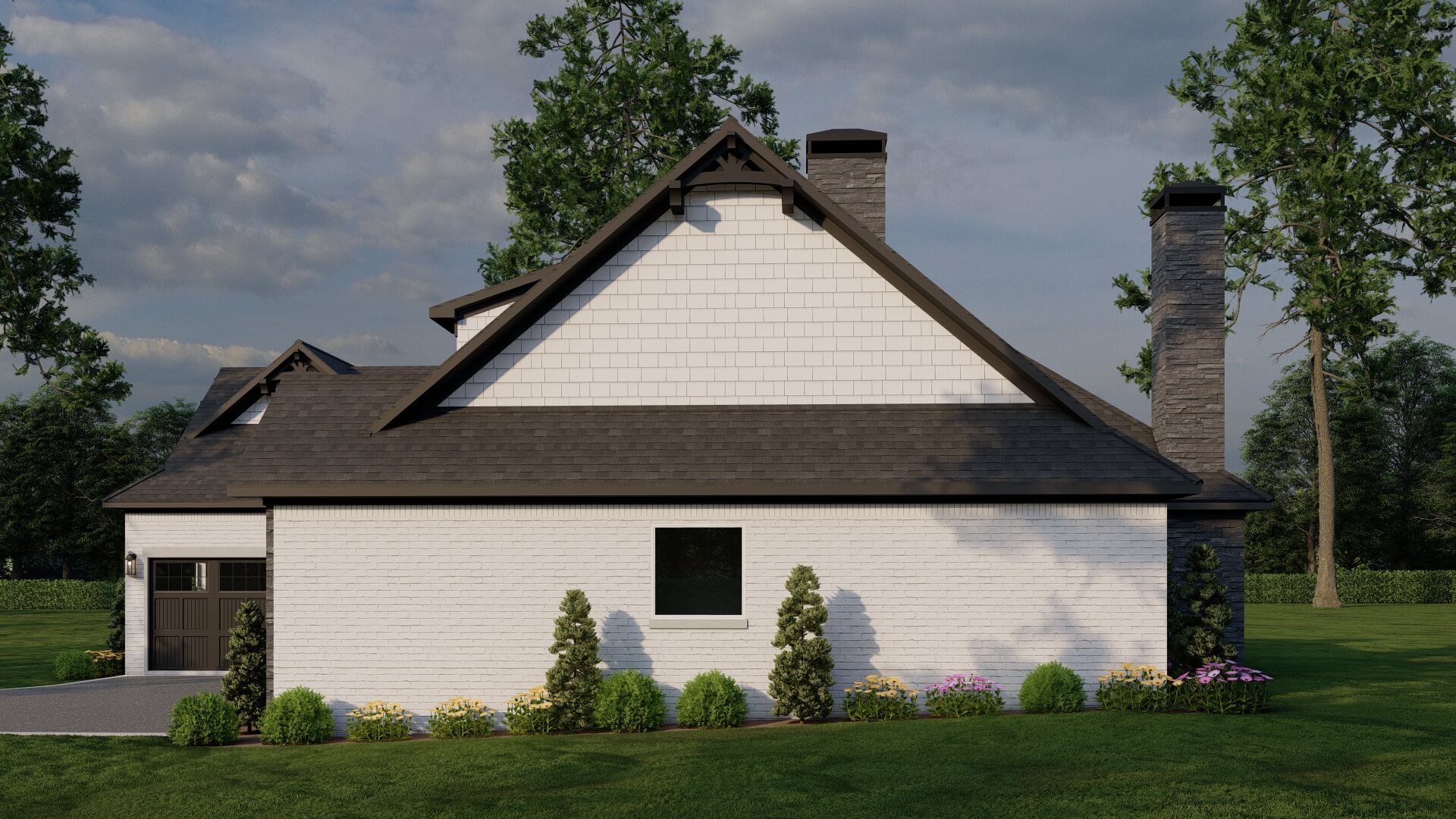

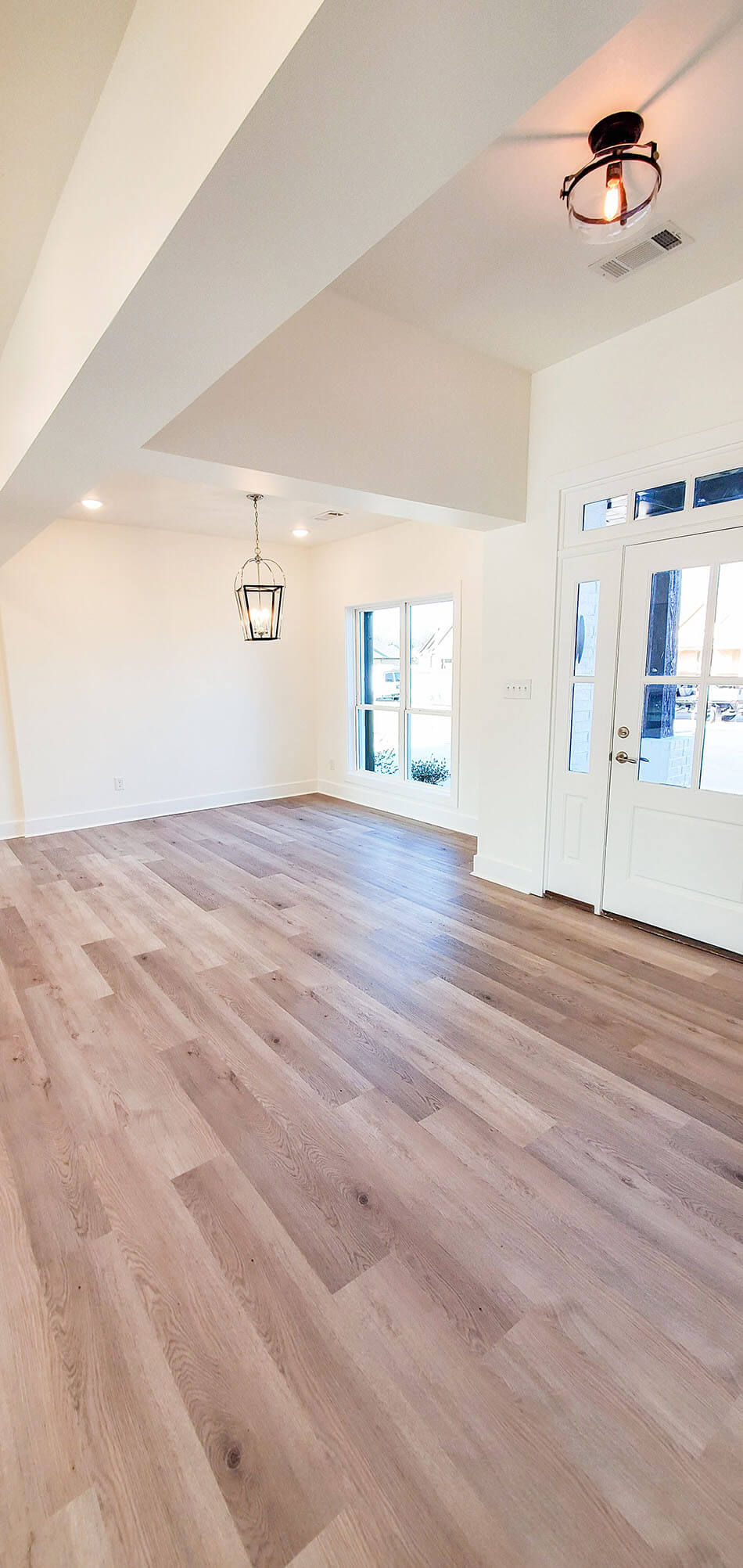

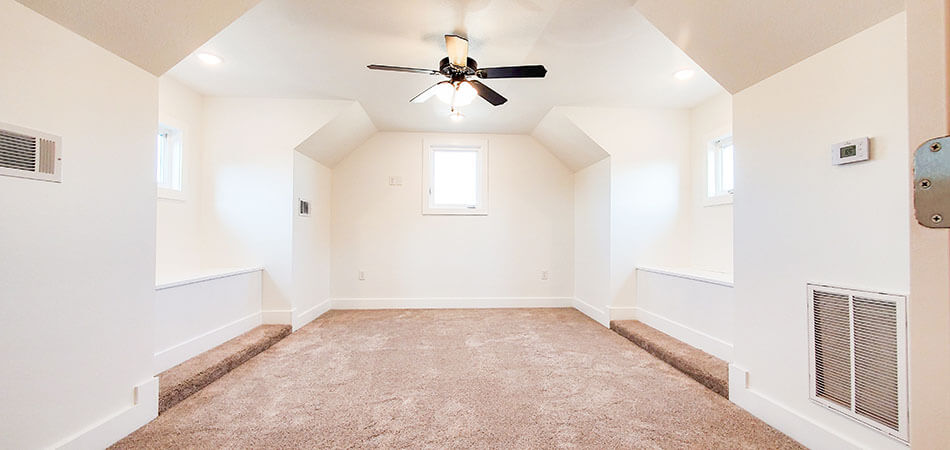

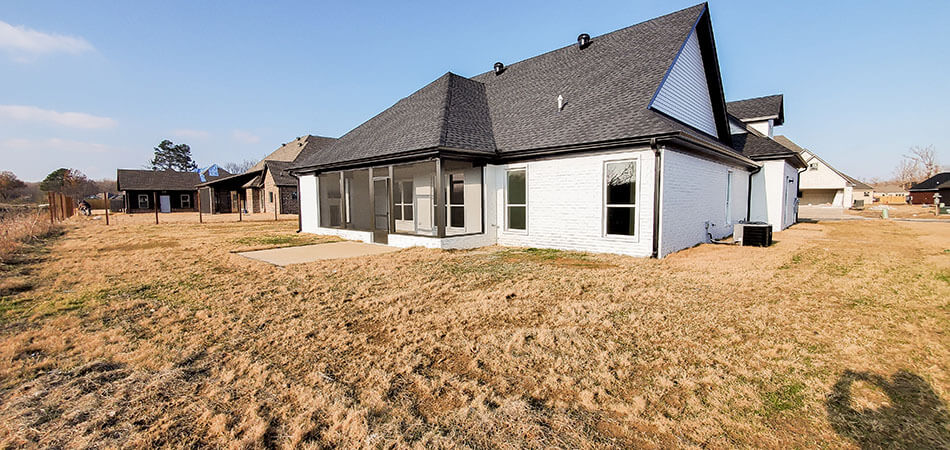

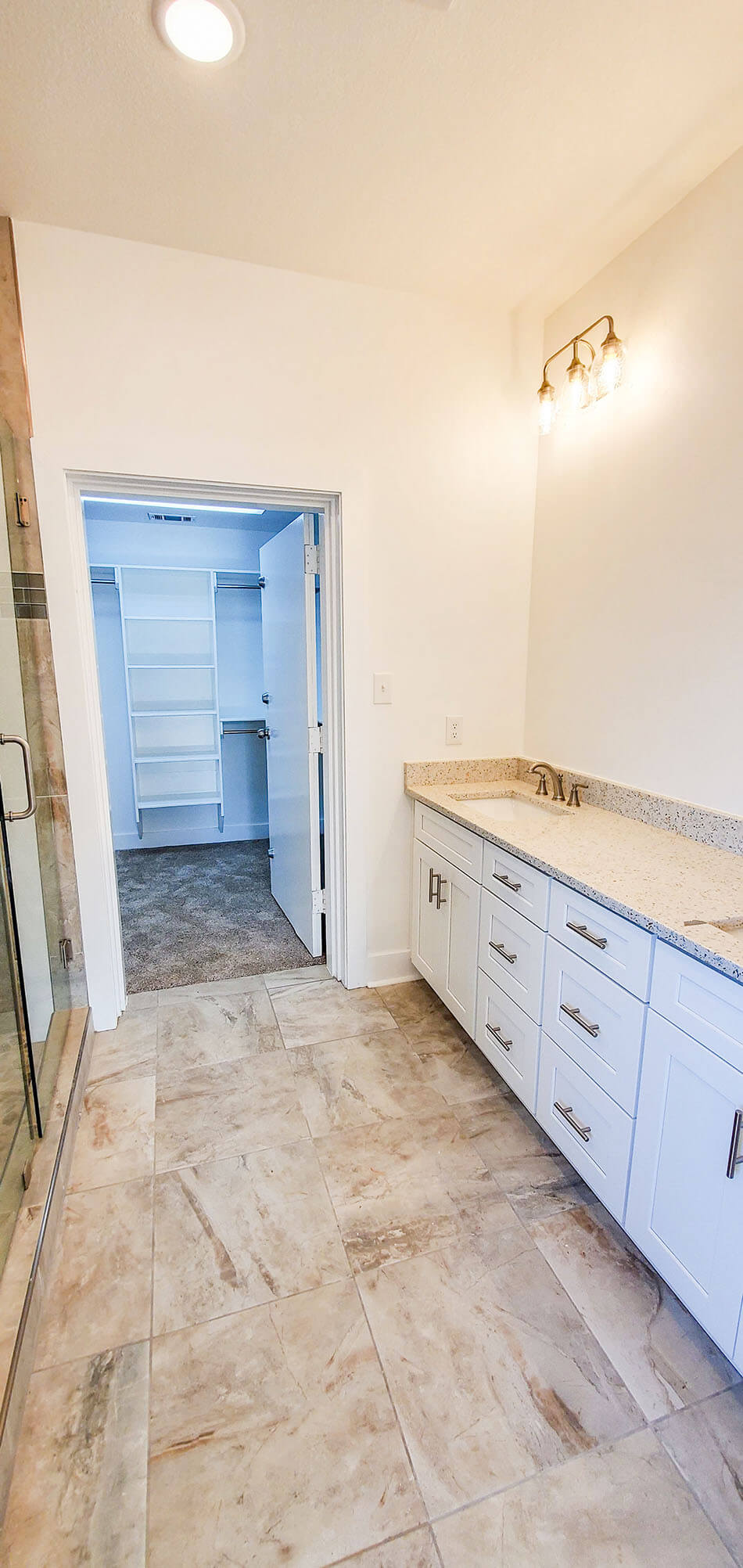

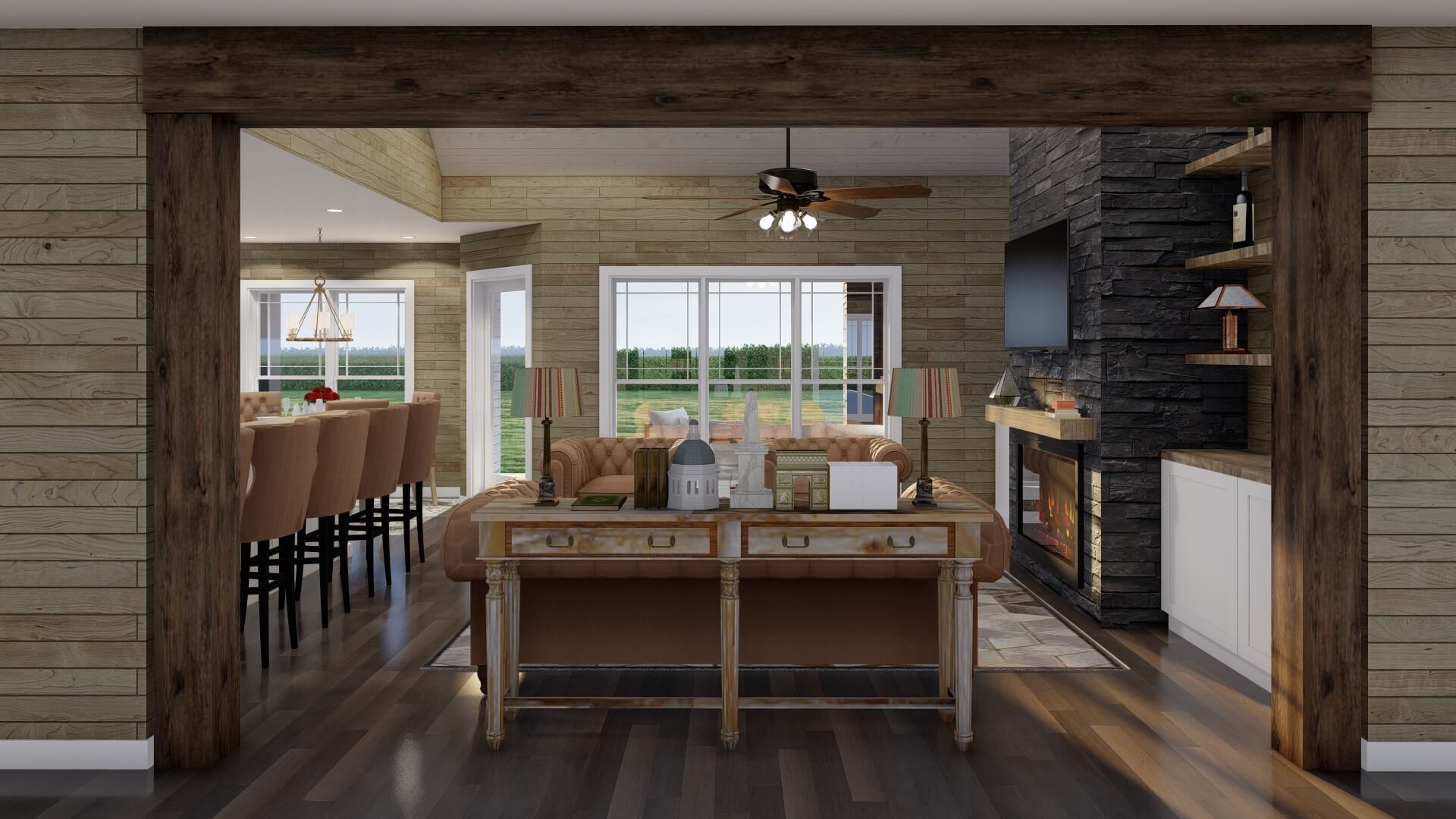

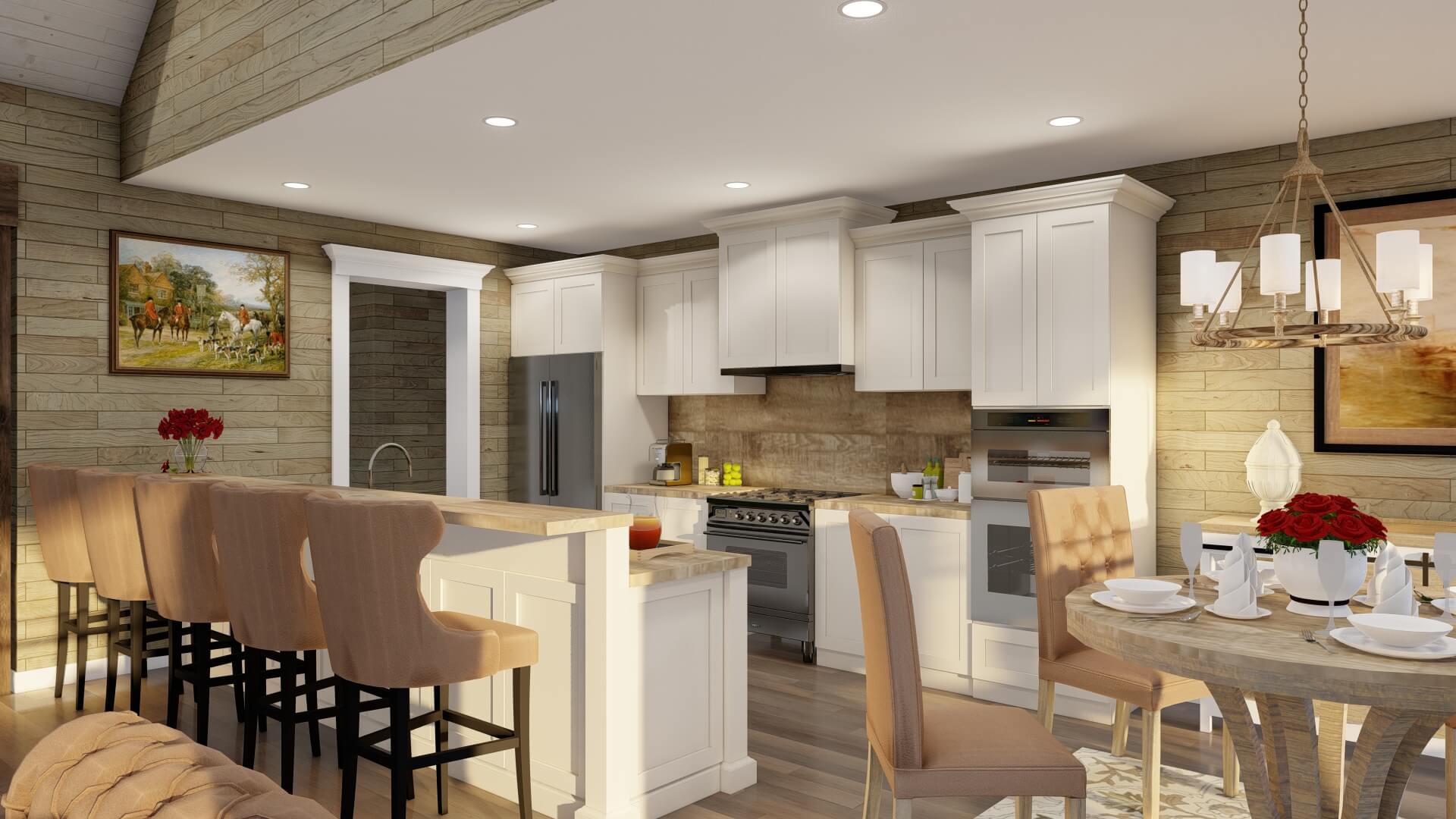

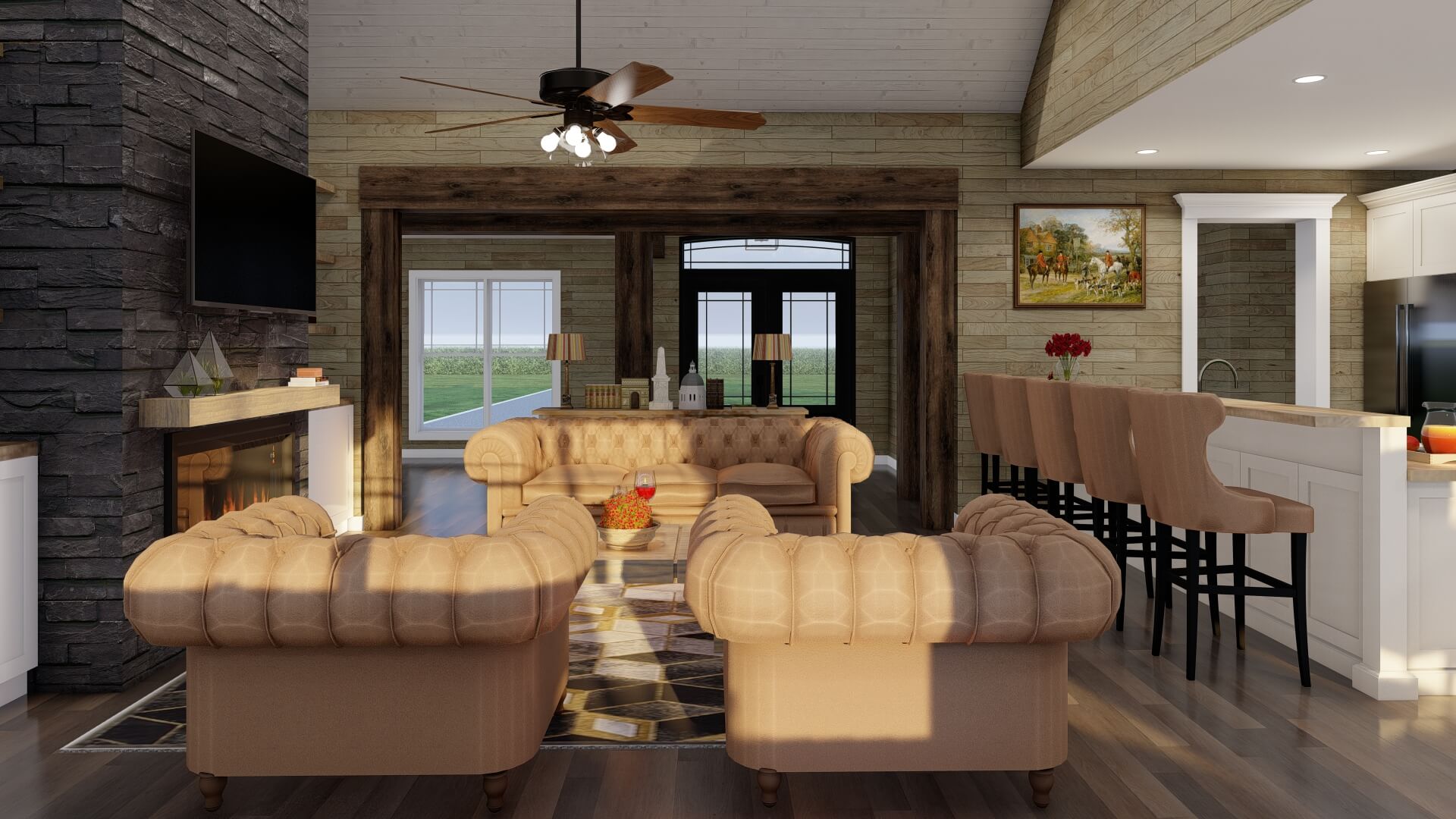

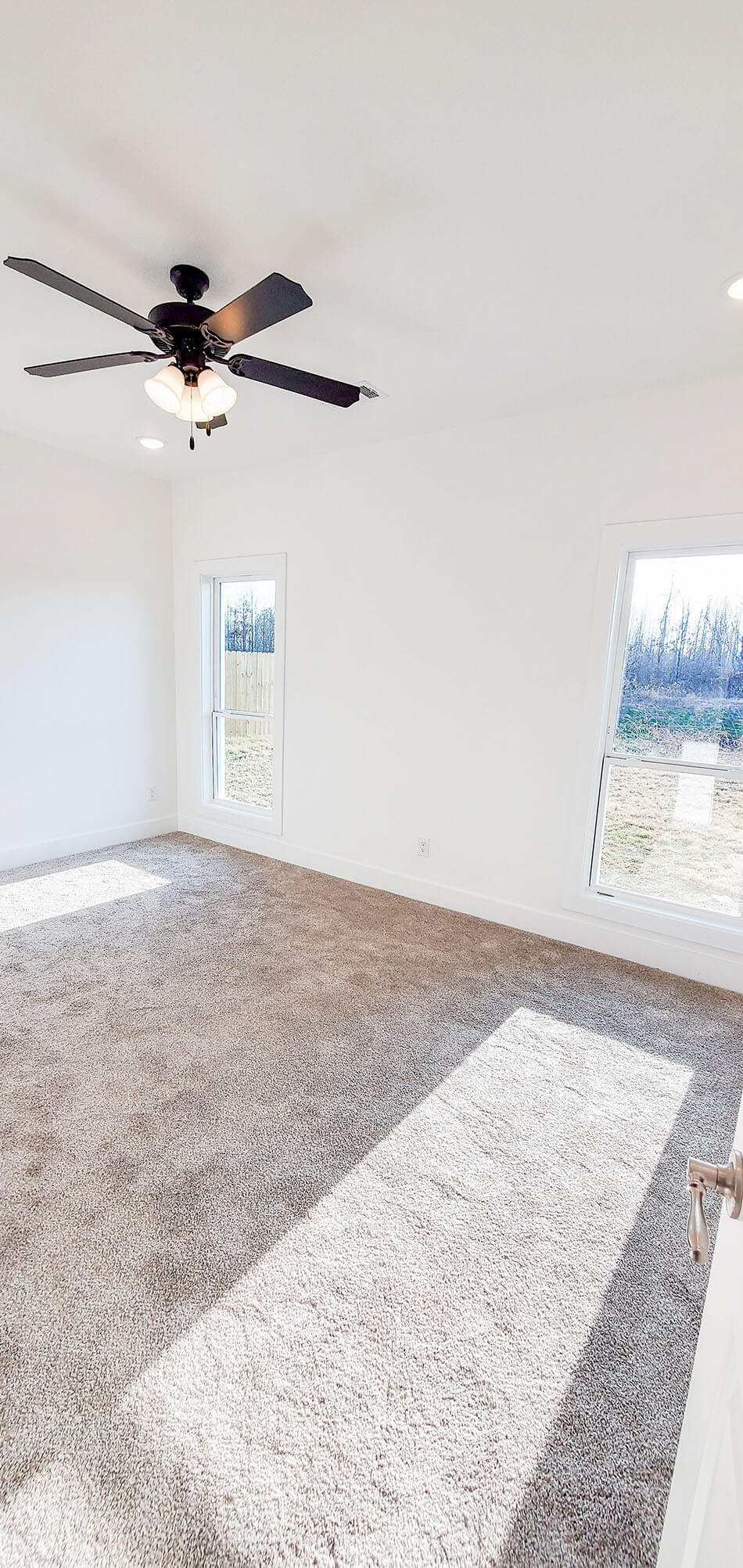

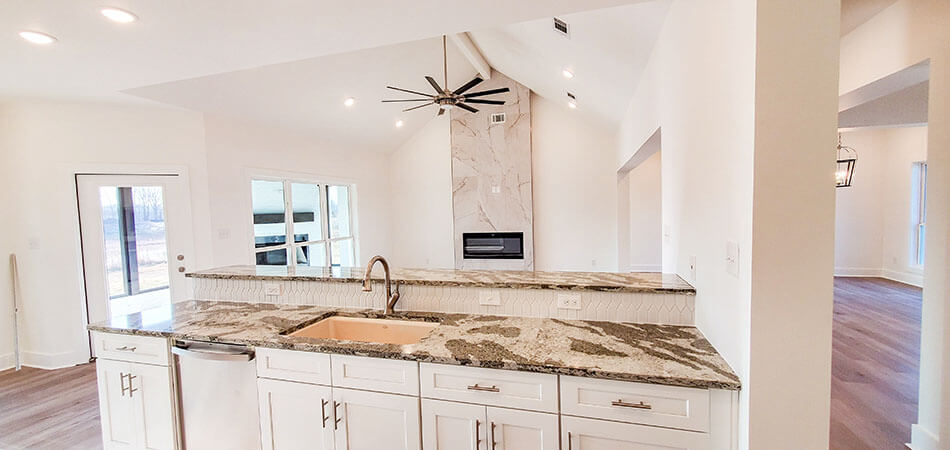

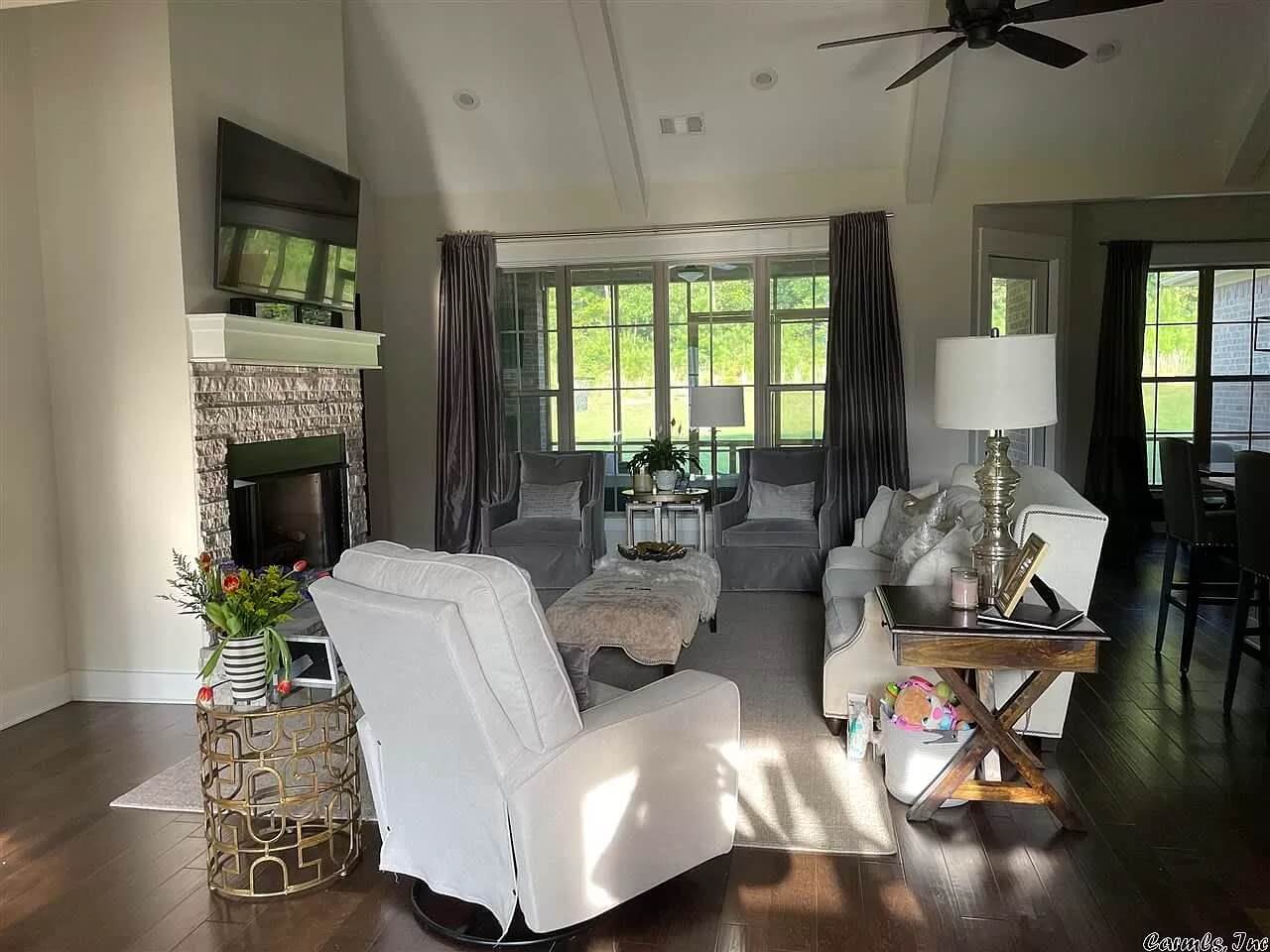

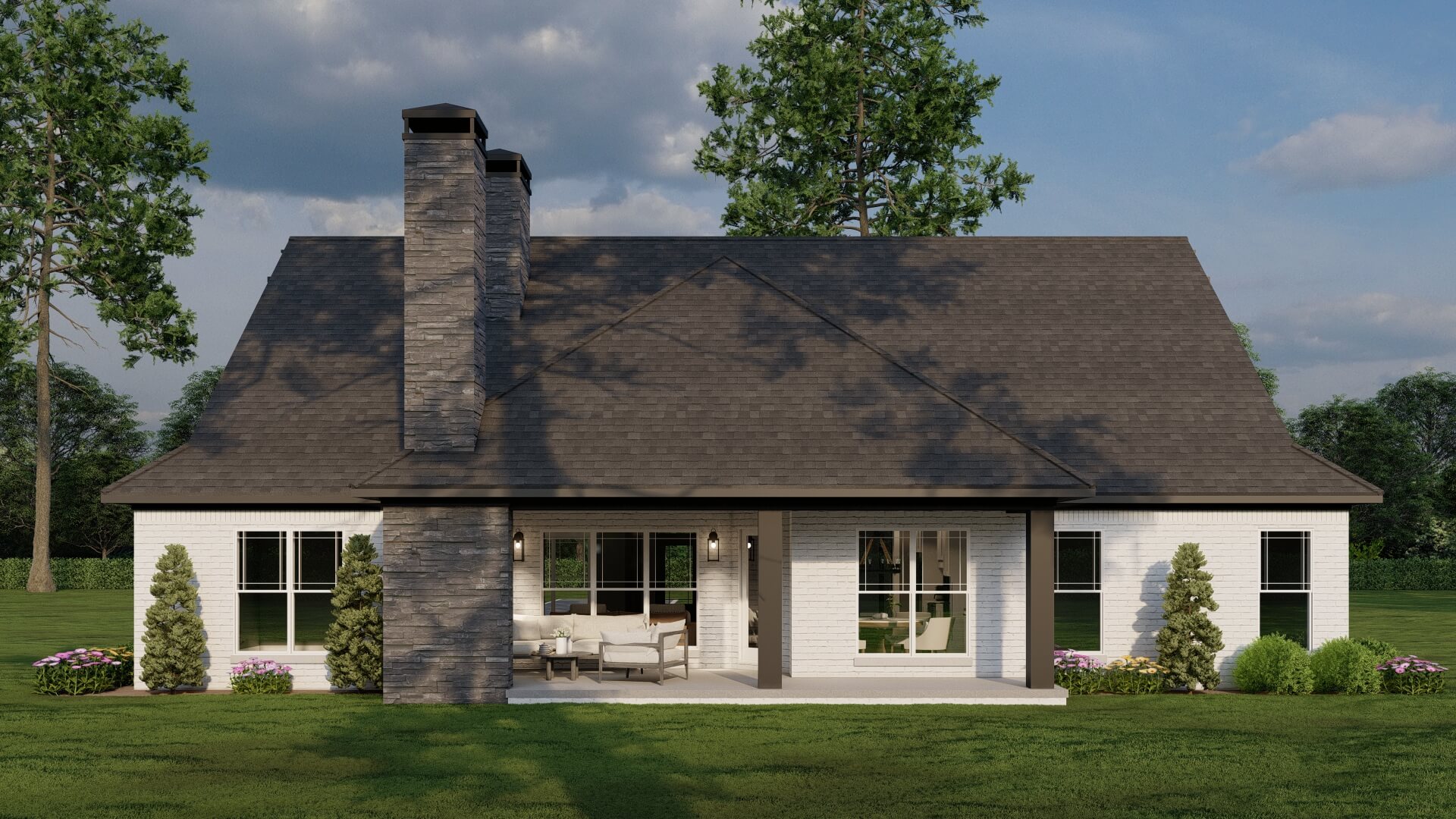

The rustic curb appeal is established throughout the details of this home, from the stone and timber columns of the covered front porch to the timber beam brackets in the gables. The foyer opens to a dining room on the right and the great room straight ahead. The great room features a fireplace and a vaulted ceiling and is open to the kitchen and breakfast room. The kitchen features a large eat-at peninsula bar and plenty of counter space. The breakfast room has access to the rear covered porch. The master suite is located on the right side of the home with a 10’ boxed ceiling while the master bath offers a whirlpool tub, a glass shower, and a walk-in closet that doubles for a safe room. Bedrooms 2 and 3 are on the left side of the home and share a Jack & Jill bath. There’s also a bonus room located above the garage.


  • Total Living Space:2091Sq.Ft.
  • Main Floor: 2091 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 199 Sq.Ft.
  • Porch (Sq.Ft.): 332 Sq.Ft.
  • Garage (Sq.Ft.): 539 Sq.Ft.
  • Total Square Feet: 3161 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 25
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
