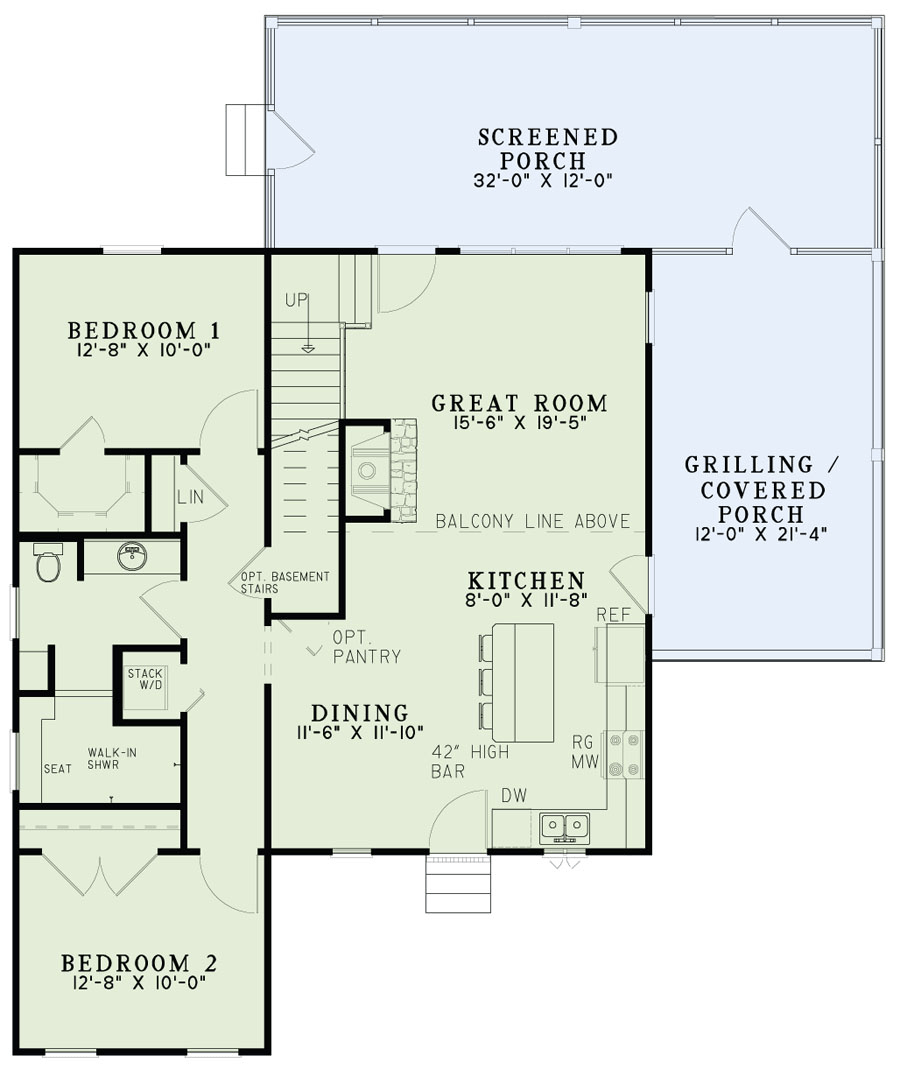

House Plan NDG 1477 Main Floor

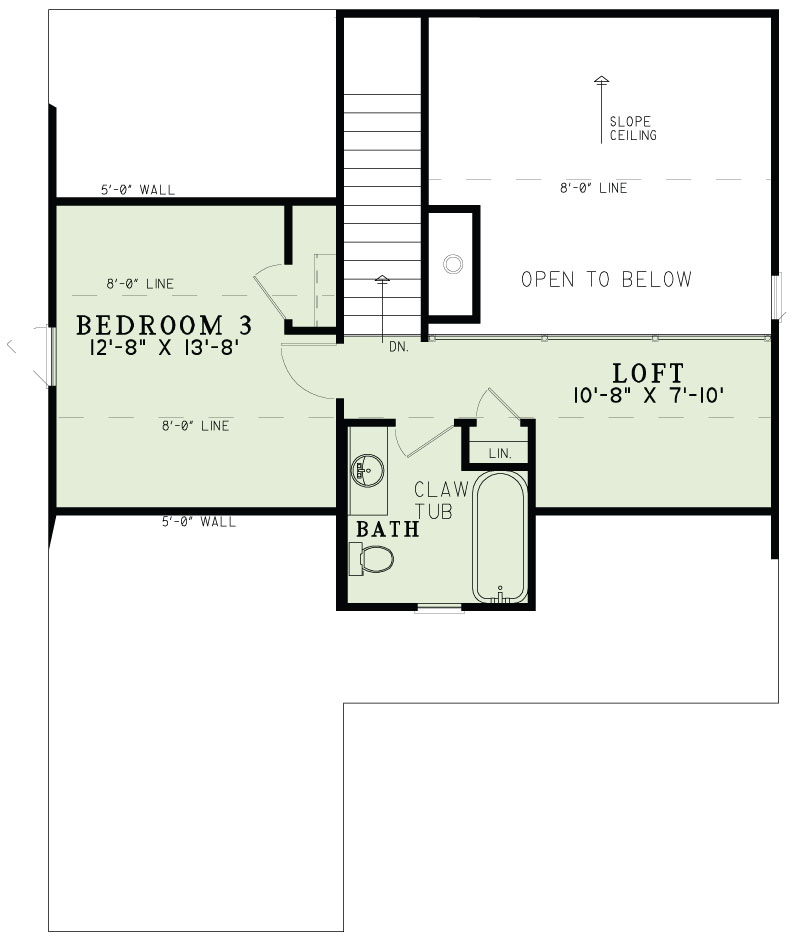

House Plan NDG 1477 Upper Floor
House Plan NDG 1477 Main Floor
House Plan NDG 1477 Upper Floor

Floor plans

NDG 1477

House Plan 1477 Overcup Landing, Riverbend House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1477
  • Total Living Space:1560Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 45
  • Width In.: N/A
  • Depth Ft.: 53
  • Depth In.: 8

Description

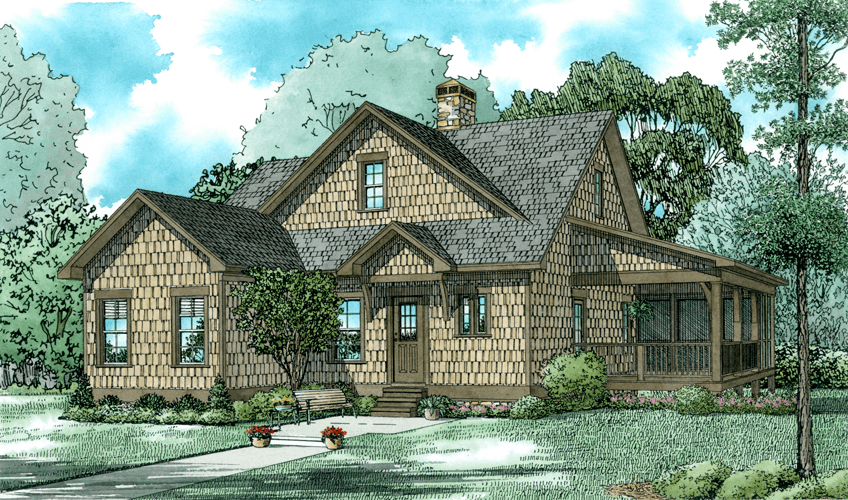

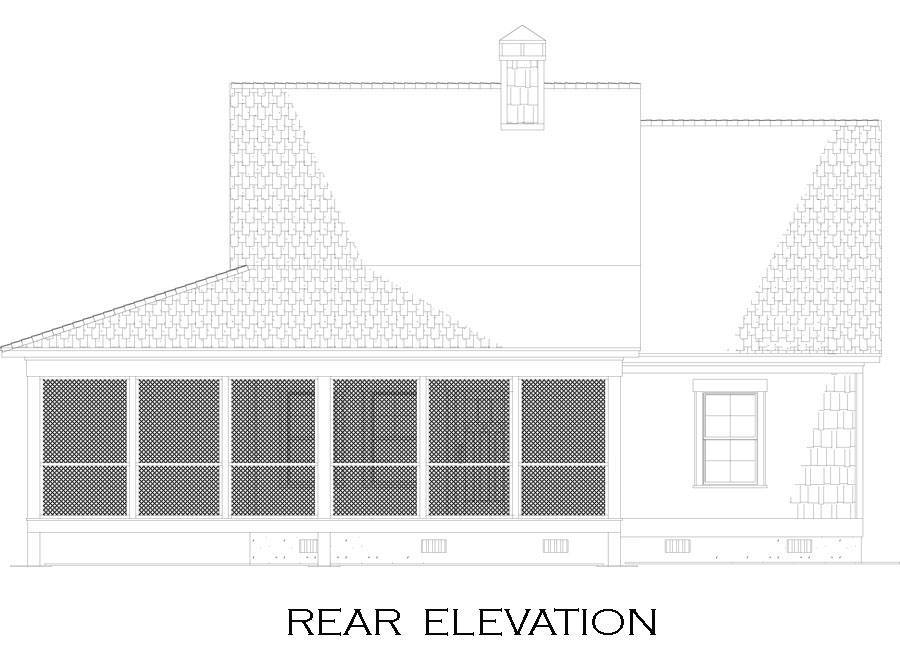

This rustic home features shake siding and an open floor plan and offers a wonderful covered Grilling Porch on the side as well as a large screened porch in the rear. The kitchen features an eat-at island bar and is open to the dining area and the Great Room. The Great Room has access to both porches and features a fireplace. Bedrooms 1 and 2 are down the hall from one another with a bathroom between them. Upstairs is a loft overlooking the Great Room as well as another bedroom and a full bathroom.

Specifications

  • Total Living Space:1560Sq.Ft.
  • Main Floor: 1172 Sq.Ft
  • Upper Floor (Sq.Ft.): 388 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 640 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 2200 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 9:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 0
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
