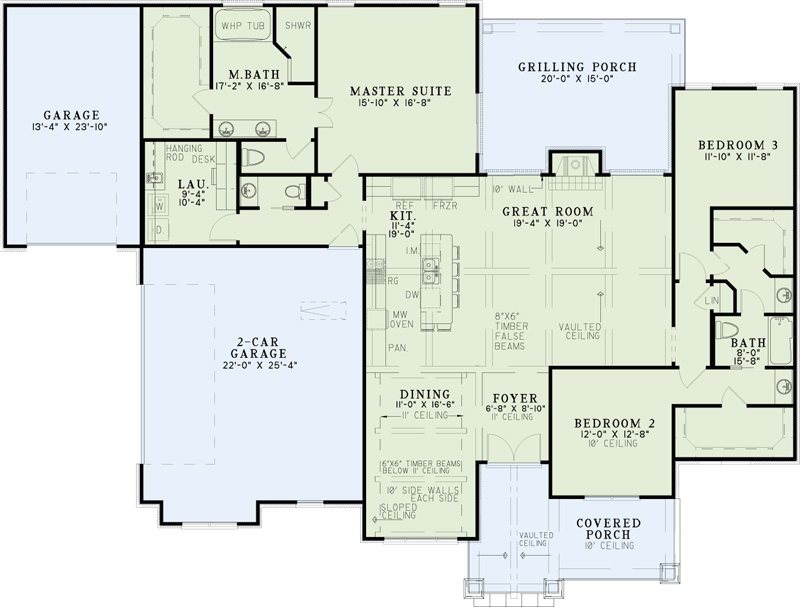

House Plan NDG 1468 Main Floor

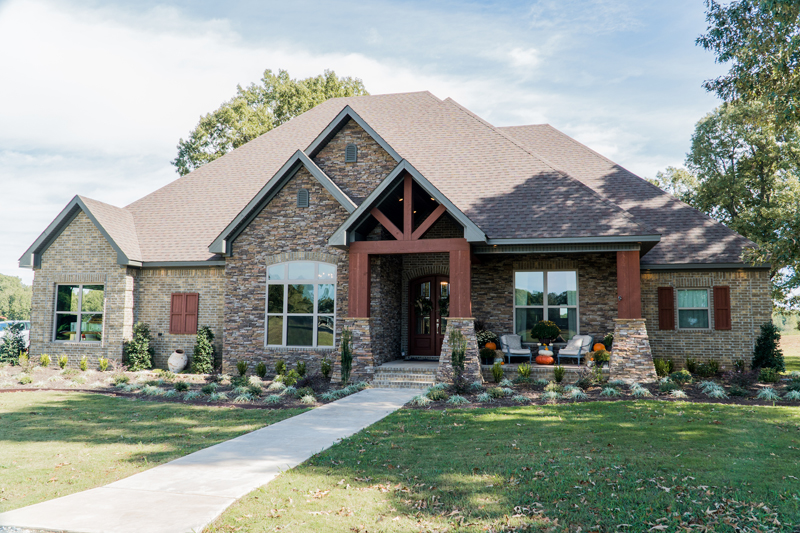

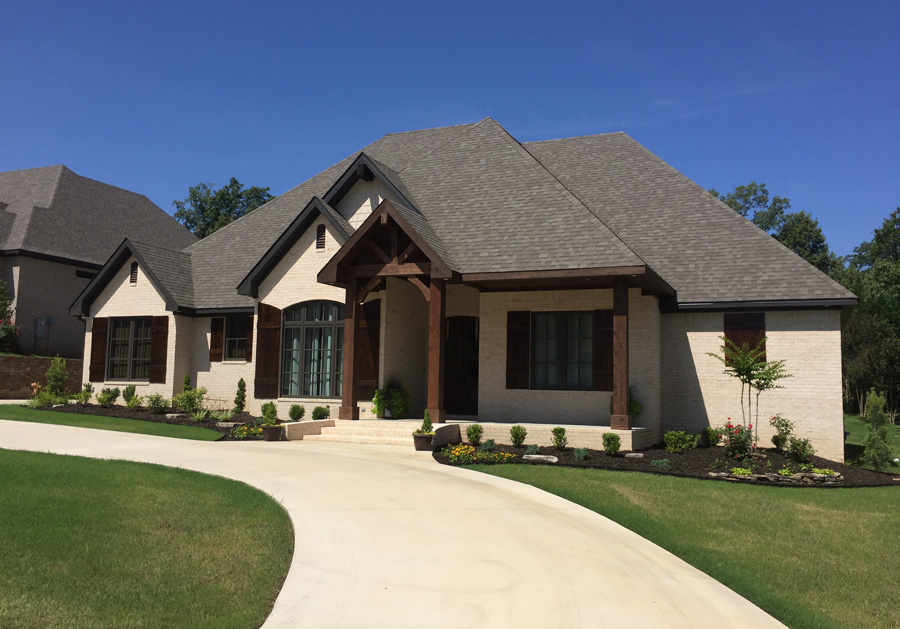

House Plan - NDG 1468-Front Exterior

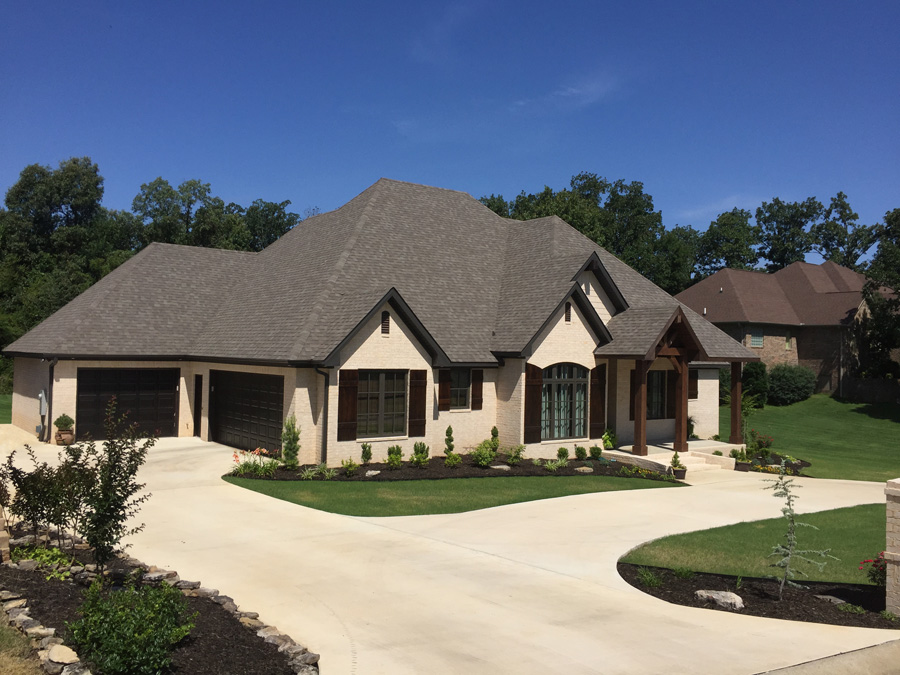

House Plan - NDG1468-Front Exterior-2

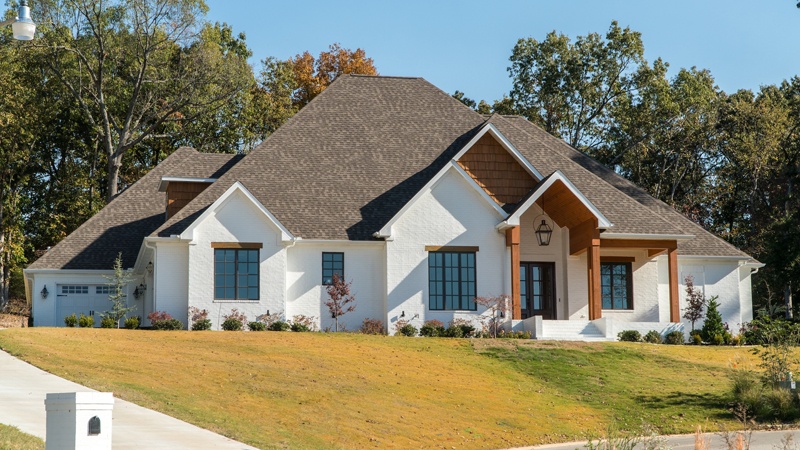

House Plan - NDG 1468-Front Exterior-3
House Plan - NDG 1468-Front Exterior-4

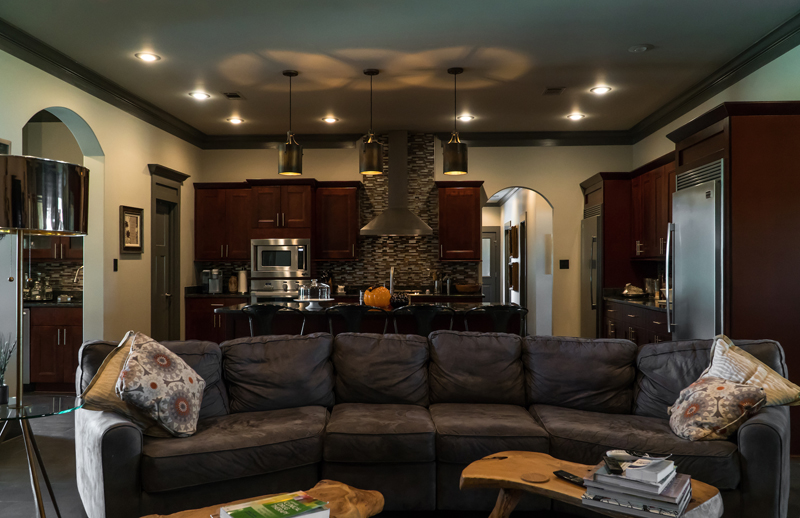

House Plan - NDG 1468-Great Room

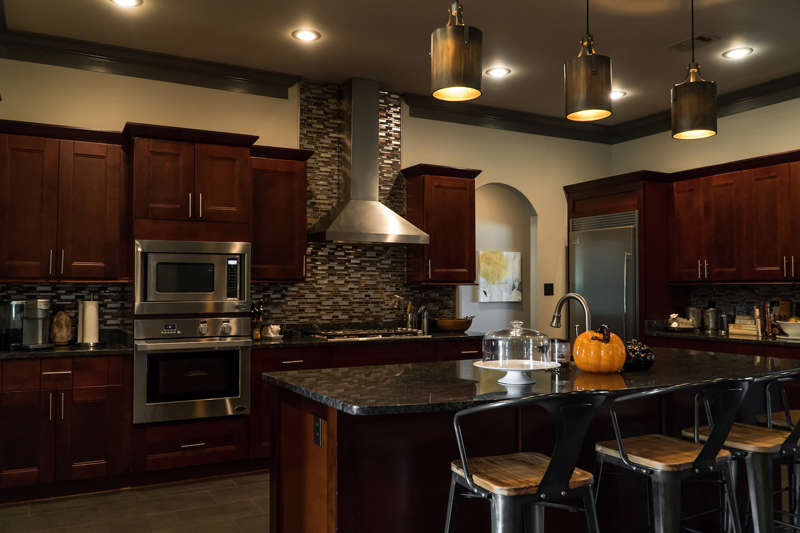

House Plan - NDG 1468-Kitchen
House Plan - NDG 1468-Butler's Pantry

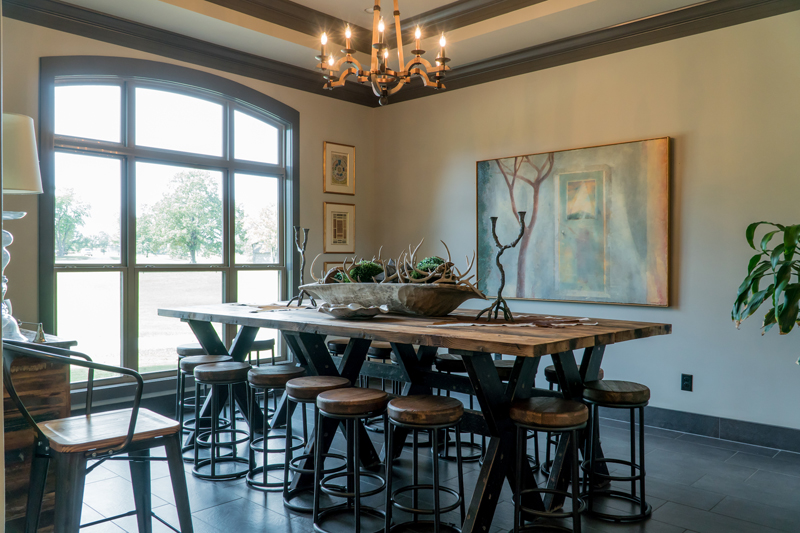

House Plan - NDG 1468-Dinning Room

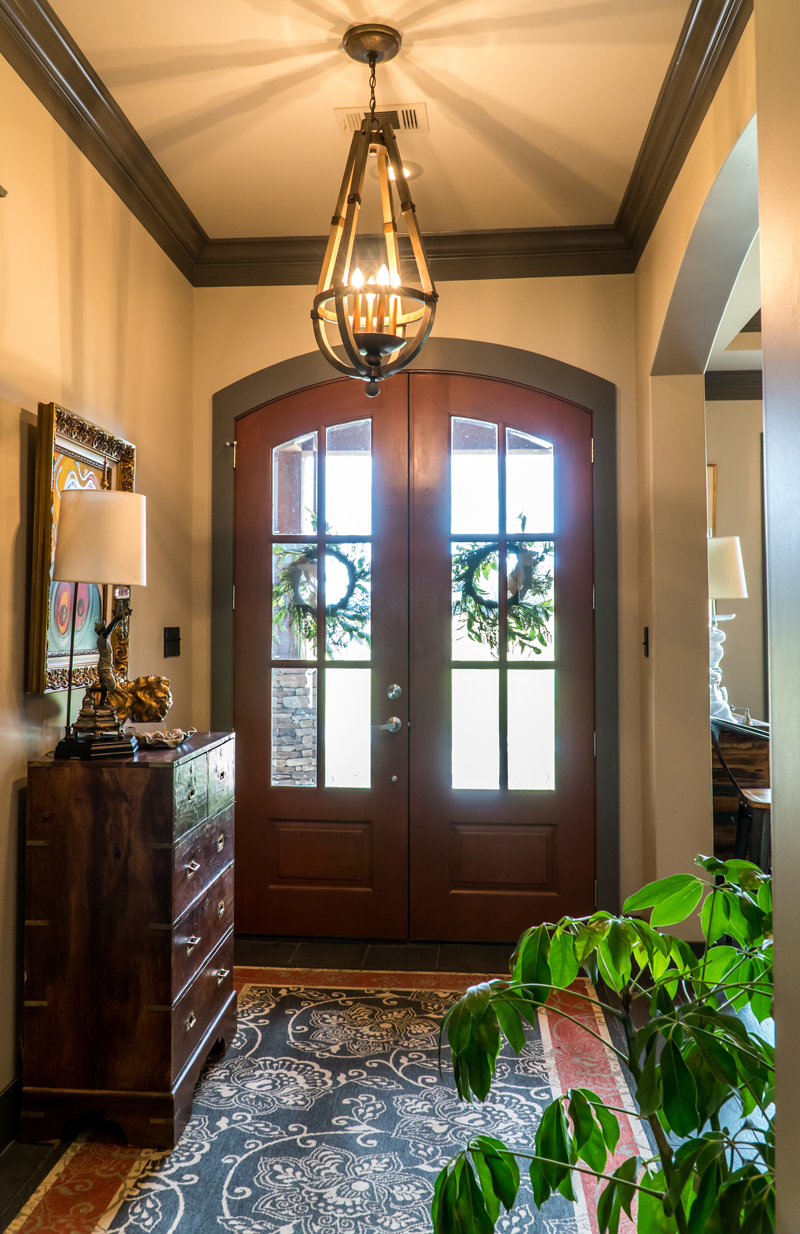

House Plan - NDG 1468-Foyer

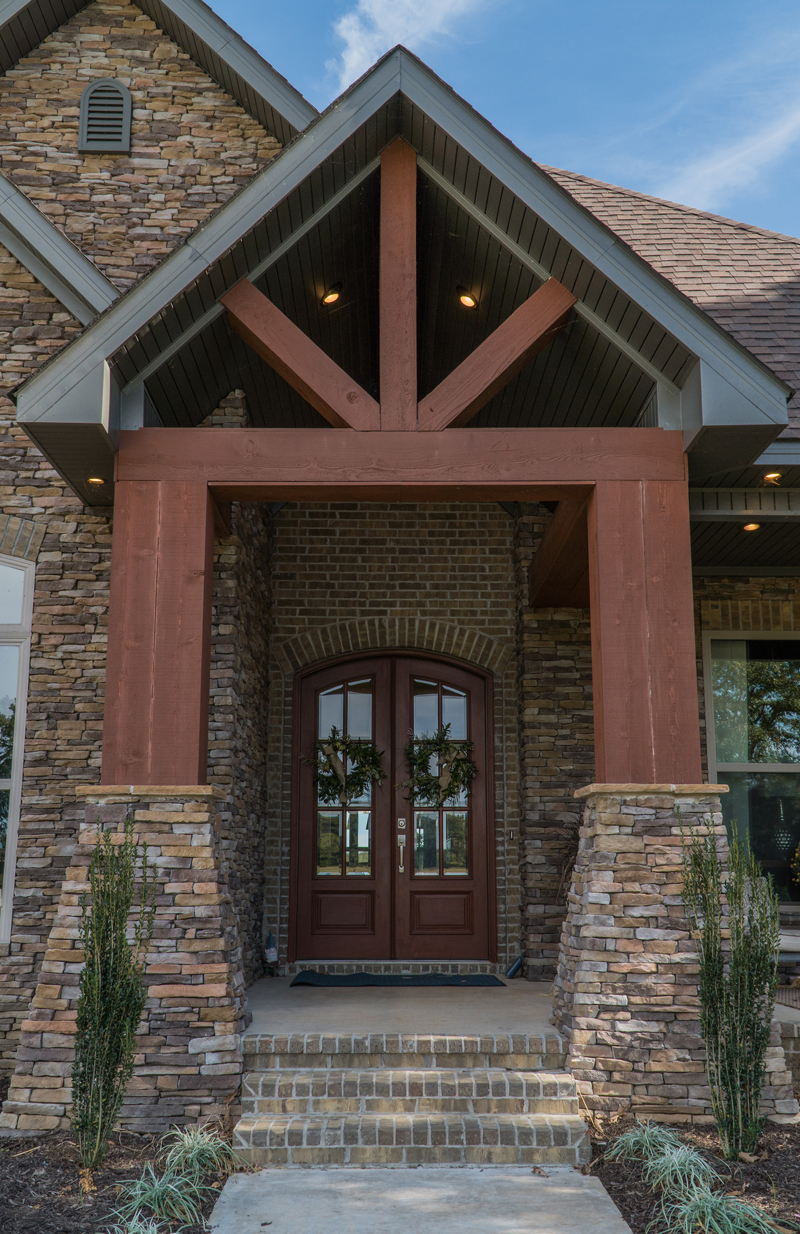

House Plan - NDG 1468-Front Porch

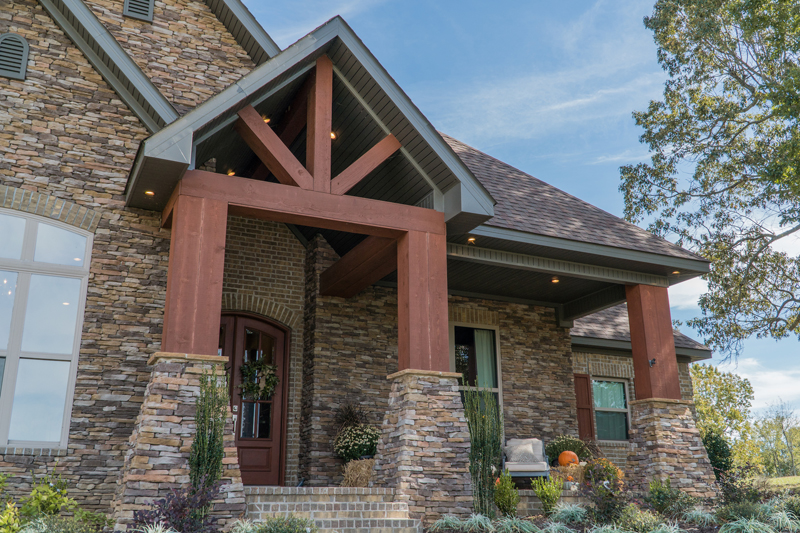

House Plan - NDG 1468-Front Porch 2
House Plan - NDG 1468-Great Room-2

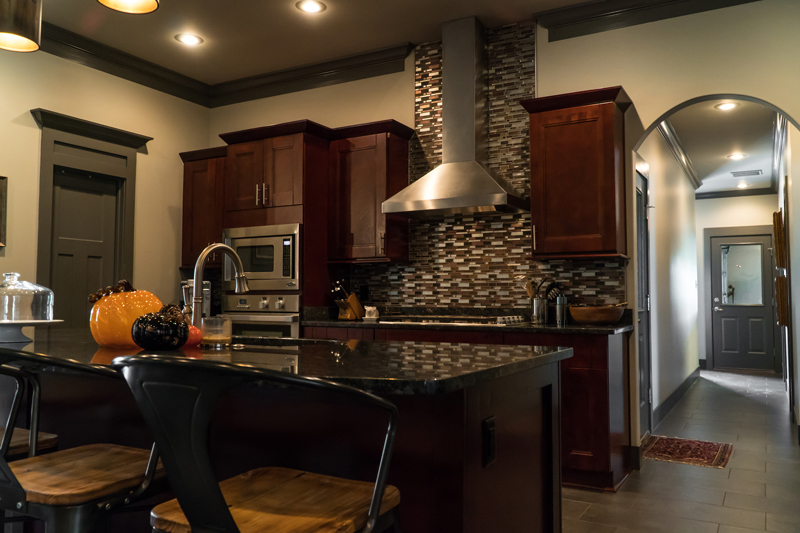

House Plan - NDG 1468-Kitchen 2

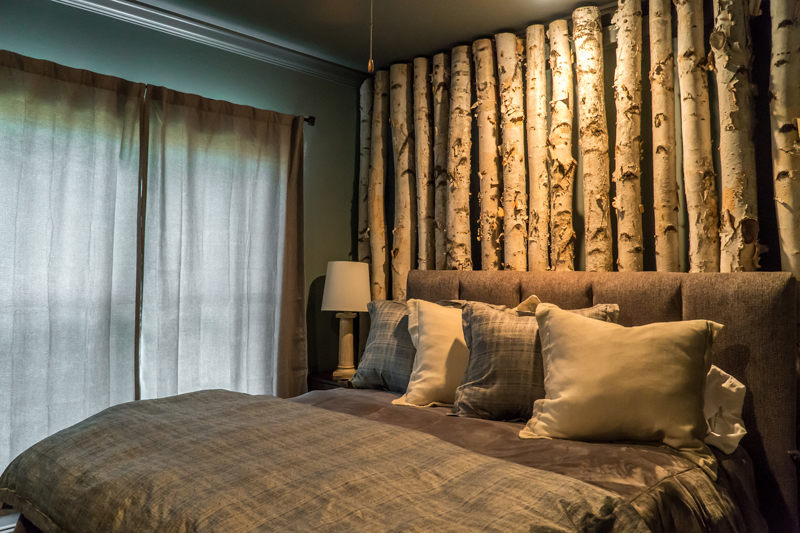

House Plan - NDG 1468-Bedroom 4
House Plan - NDG 1468-Master Bedroom

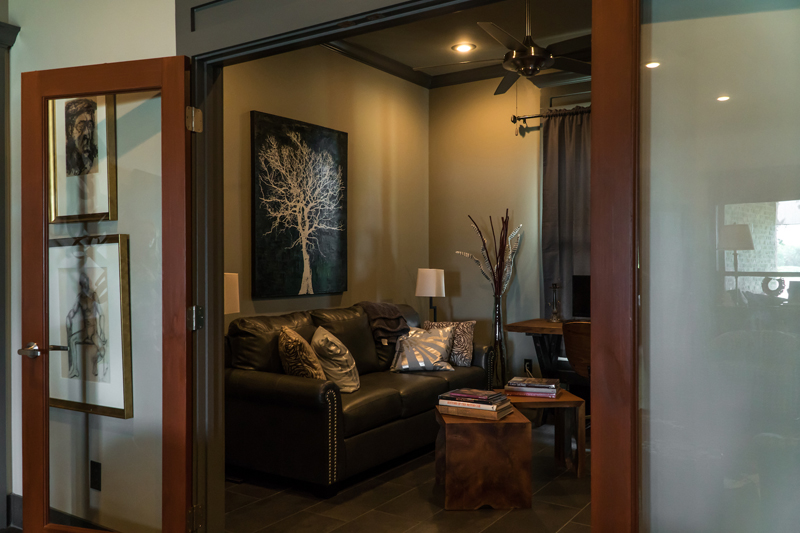

House Plan - NDG 1468-Office
House Plan NDG 1468 Main Floor
House Plan - NDG 1468-Front Exterior
House Plan - NDG1468-Front Exterior-2
House Plan - NDG 1468-Front Exterior-3
House Plan - NDG 1468-Front Exterior-4
House Plan - NDG 1468-Great Room
House Plan - NDG 1468-Kitchen
House Plan - NDG 1468-Butler's Pantry
House Plan - NDG 1468-Dinning Room
House Plan - NDG 1468-Foyer
House Plan - NDG 1468-Front Porch
House Plan - NDG 1468-Front Porch 2
House Plan - NDG 1468-Great Room-2
House Plan - NDG 1468-Kitchen 2
House Plan - NDG 1468-Bedroom 4
House Plan - NDG 1468-Master Bedroom
House Plan - NDG 1468-Office

Floor plans

House Plan NDG 1468 Main Floor
NDG 1468

House Plan 1468 Huntington Cove, Rustic House Plan

PDF: $1,350.00

Plan Details

  • Plan Number: NDG 1468
  • Total Living Space:2252 Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 1
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 79
  • Width In.: 6
  • Depth Ft.: 59
  • Depth In.: 2

Description

The mix of materials of this rustic home, including brick, stone, and shake siding, give it massive curb appeal. With timber columns on stone bases, the covered front porch invites you in through its arched entry. From the foyer, with its 11’ ceiling, a sight is truly to be held by the dining room on the left being open to the kitchen and Great Room. The kitchen features a large eat-at island bar while the Great Room offers plenty of space, a fireplace, and access to the rear grilling porch. Around the corner from the kitchen is the grand Master Suite. Also having access to the grilling porch, the bedroom has tons of space, with double vanities in the bathroom, a large corner shower, a whirlpool tub, and a huge walk-in closet. And down the hall is the spacious laundry room with convenient desk space. On the other side of the house are 2 more bedrooms with large walk-in closets and a Jack and Jill bathroom. On the left side of the house is the large 2-car garage and a separate single car garage as well.

Specifications

  • Total Living Space:2252 Sq.Ft.
  • Main Floor: 2252 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 481 Sq.Ft.
  • Garage (Sq.Ft.): 926 Sq.Ft.
  • Total Square Feet: 3659 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 31
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
