House Plan 1466 Eagle View Trail, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1466
  • Total Living Space:1458Sq.Ft.
  • Bedrooms: 4
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 86
  • Width In.: N/A
  • Depth Ft.: 41
  • Depth In.: 6

Description

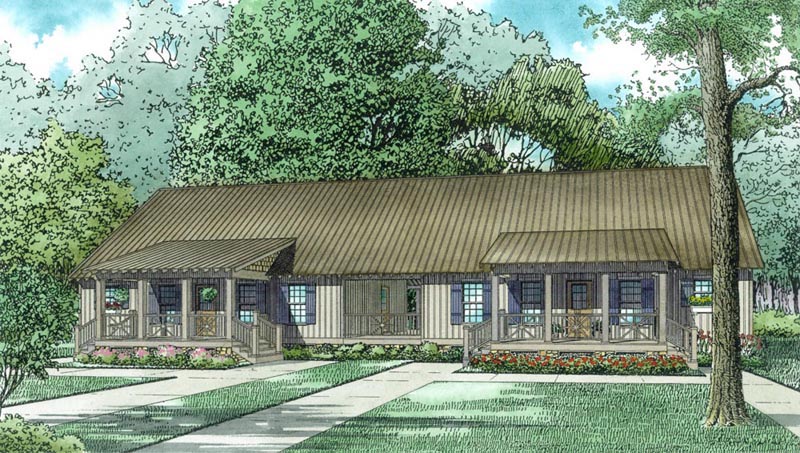

This multi-family plan is a perfect get away or vacation home. The large front covered porch leads into the Great Room with a fireplace in the corner and a high vaulted ceiling and the room opens to the dining area and kitchen. The kitchen offers a wrap-around, eat-at island bar and has access to the Breezeway. The Great Room also has access to a rear grilling porch. Two bedrooms and a full bathroom are also located downstairs, while upstairs is the Master Suite and a loft that overlooks the Great Room. Another room upstairs could either be a smaller bedroom or used for storage.

Specifications

  • Total Living Space:1458Sq.Ft.

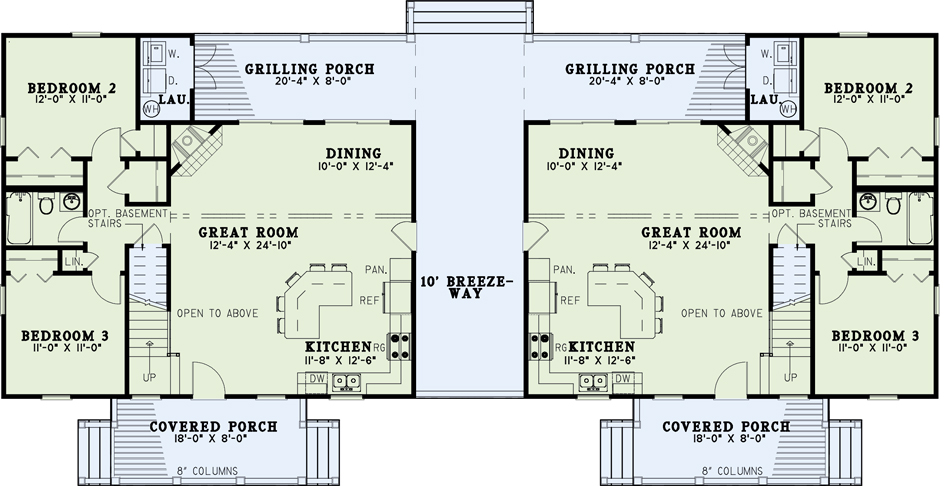

  • Main Floor: 1070 Sq.Ft

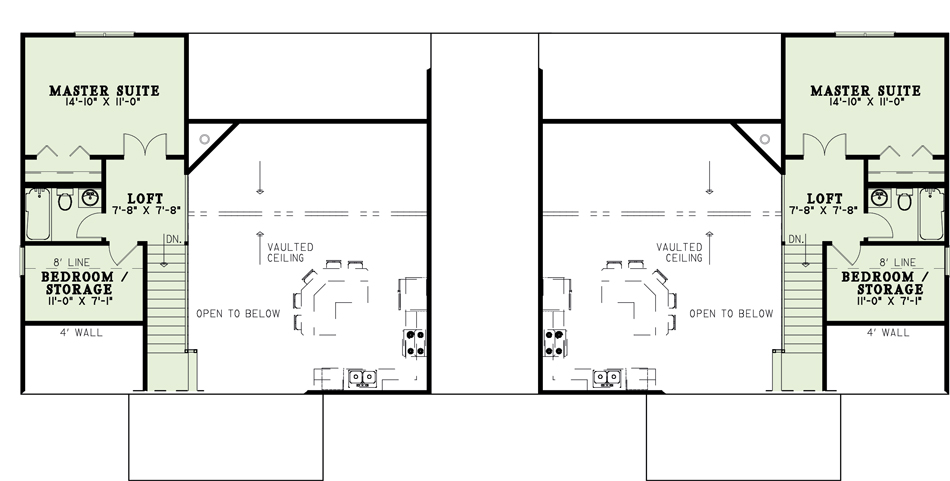

  • Upper Floor (Sq.Ft.): 388 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 347 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1805 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: 4:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 7
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
