House Plan 1460 Aspen Ridge, Riverbend House Plan

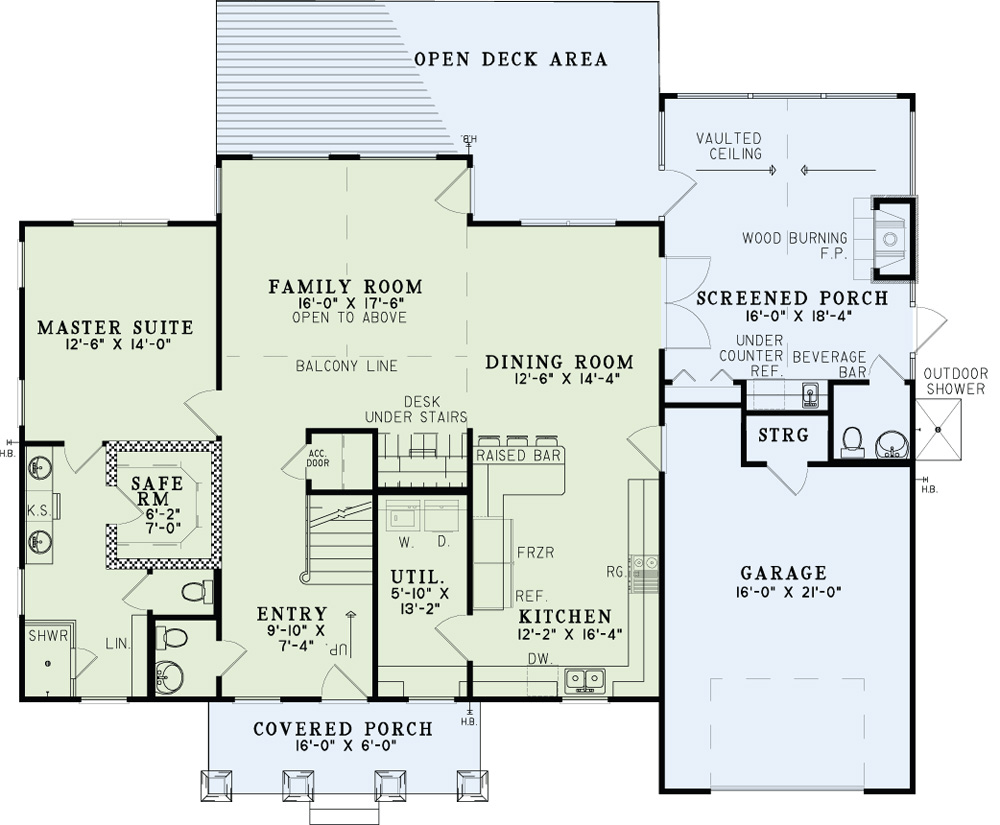

House Plan NDG 1460 Main Floor

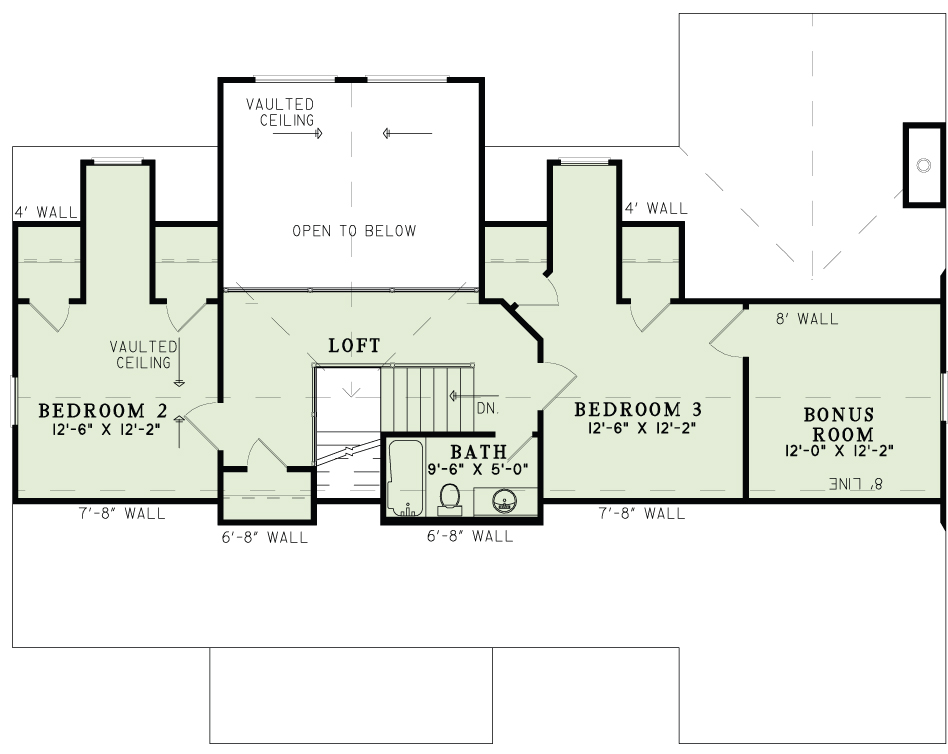

House Plan NDG 1460 Upper Floor
House Plan NDG 1460 Main Floor
House Plan NDG 1460 Upper Floor

Floor plans

NDG 1460

House Plan 1460 Aspen Ridge, Riverbend House Plan

PDF: $1,200.00

Plan Details

  • Plan Number: NDG 1460
  • Total Living Space:2145Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: 2
  • Garage: 1 Bay Yes
  • Garage Type: Front Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 58
  • Width In.: 4
  • Depth Ft.: 52
  • Depth In.: 1

Description

This rustic home that features a rear exterior perfectly suited for a lake or river. With a single car front garage, the home offers an open floor plan with 3 bedrooms and a bonus room. The master suite has a walk-in closet that doubles as a safe room. Off of the dining room is a large screened porch with a fireplace and a very convenient half bath. And the screened porch has access to the back open deck for outdoor enjoyment of the view. Upstairs, the loft overlooks the family room while benefitting from the view out back as well. Bedrooms 2 and 3 flank the loft and each has 2 walk-in closets and a bonus room is off of bedroom 3.

Specifications

  • Total Living Space:2145Sq.Ft.
  • Main Floor: 1418 Sq.Ft
  • Upper Floor (Sq.Ft.): 727 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): 158 Sq.Ft.
  • Porch (Sq.Ft.): 423 Sq.Ft.
  • Garage (Sq.Ft.): 393 Sq.Ft.
  • Total Square Feet: 3119 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 8
  • Upper Ceiling Height: 8
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 10:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 24
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A

Customize This Plan

Need to make changes? We will get you a free price quote!

Modify This Plan
