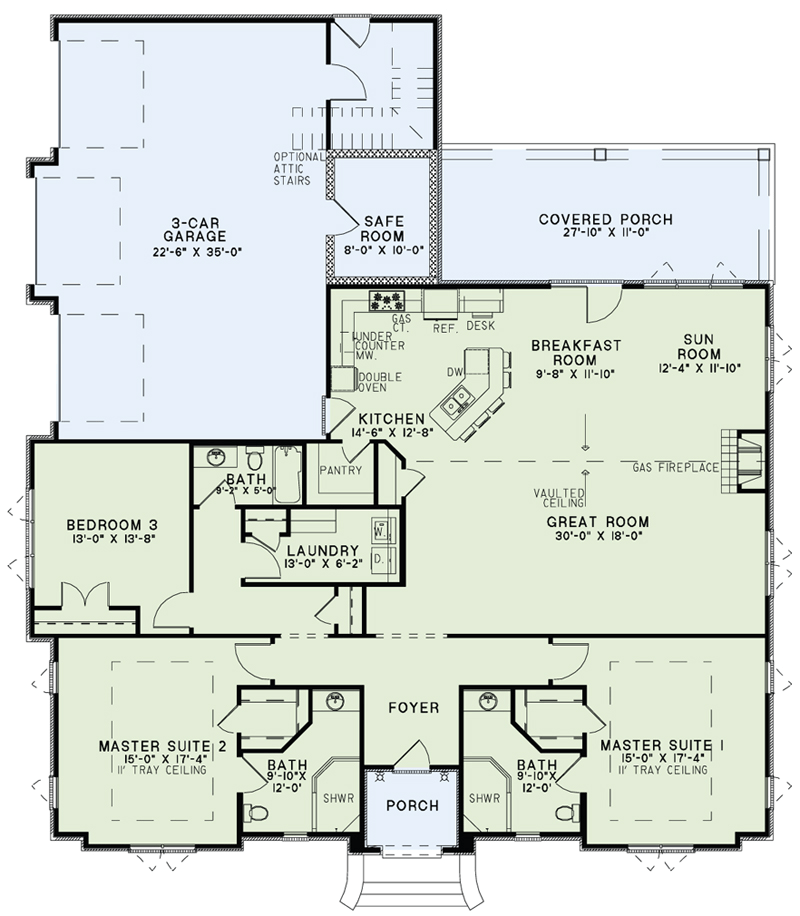

House Plan NDG 1453 Main Floor
House Plan NDG 1453 Front Exterior
House Plan NDG 1453 Main Floor
House Plan NDG 1453 Front Exterior

Floor plans

House Plan NDG 1453 Main Floor
NDG 1453

House Plan 1453 Bishop Court, European House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1453
  • Total Living Space:2498Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: N/A
  • Garage: Yes 3 Bay
  • Garage Type: Side Load
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1
  • Width Ft.: 62
  • Width In.: N/A
  • Depth Ft.: 69
  • Depth In.: 8

Description

This European style plan offers a double Master Suite and a large open Great Room. The front stone covered entry opens to the foyer and the Great Room beyond. To the left and right are the master suites, each with an 11’ tray ceiling, full bath and walk-in closet. The Great Room has a vaulted ceiling, gas fireplace, and a space for a breakfast and sun room. The kitchen is situated in the corner with an eat-at island bar and a walk-in pantry. A third bedroom is adjacent to the left Master Suite and has a full bath and the laundry room is near by. The side 3-car garage also has a safe room.

Specifications

  • Total Living Space:2498Sq.Ft.
  • Main Floor: 2498 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 372 Sq.Ft.
  • Garage (Sq.Ft.): 1039 Sq.Ft.
  • Total Square Feet: 3909 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 10
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 14:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 30
  • Ridge Height (In.): 4
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
