House Plan 1446 Kingsley Cove, European House Plan

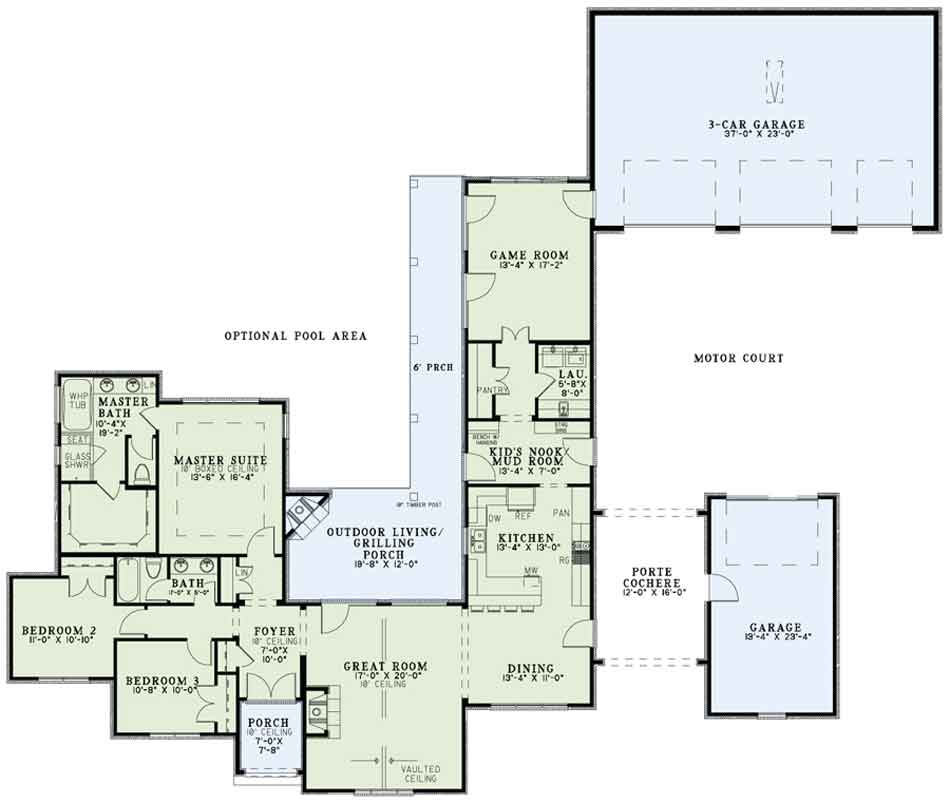

House Plan NDG 1446 Main Floor
House Plan NDG 1446 Main Floor

Floor plans

NDG 1446

House Plan 1446 Kingsley Cove, European House Plan

PDF: $1,550.00

Plan Details

  • Plan Number: NDG 1446
  • Total Living Space:2118Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 2
  • Half Baths: N/A
  • Garage: Yes 4 Bay
  • Garage Type: Rear Load
  • Carport: Yes
  • Carport Type: Porte Cochere
  • Stories: 1
  • Width Ft.: 101
  • Width In.: 4
  • Depth Ft.: 85
  • Depth In.: 4

Description

This stone and brick European home features a unique floor plan. Off of the foyer are 2 bedrooms and the Master Suite with its 10’ boxed ceiling and bath featuring a whirlpool tub, glass shower and an enormous walk-in closet. The Great Room has a vaulted ceiling and a fireplace and access to an outdoor living/grilling porch. The dining room is joined by the great room and kitchen. And at the end of the house is a game room with access to a long 6’ deep porch that stretches down the length of the house. This surrounds an area that would be perfect for a pool or a fenced-in back yard for the kids. The motor court features a 3-car garage and a porte cochere connected to a single garage.

Specifications

  • Total Living Space:2118Sq.Ft.
  • Main Floor: 2118 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 498 Sq.Ft.
  • Garage (Sq.Ft.): 1454 Sq.Ft.
  • Total Square Feet: 4070 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 22
  • Ridge Height (In.): 11
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
