House Plan 1444 Chadwick Drive, European House Plan

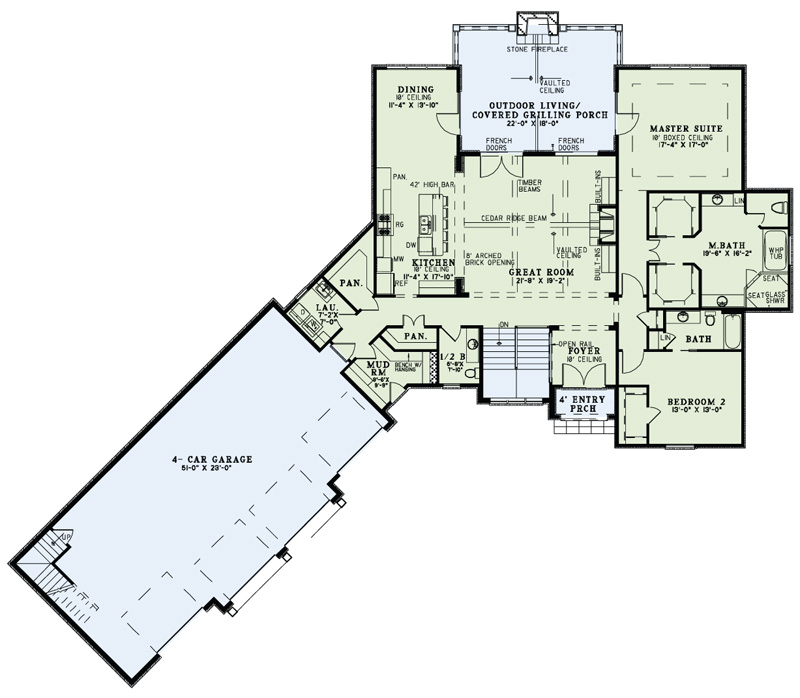

House Plan NDG 1444 Main Floor

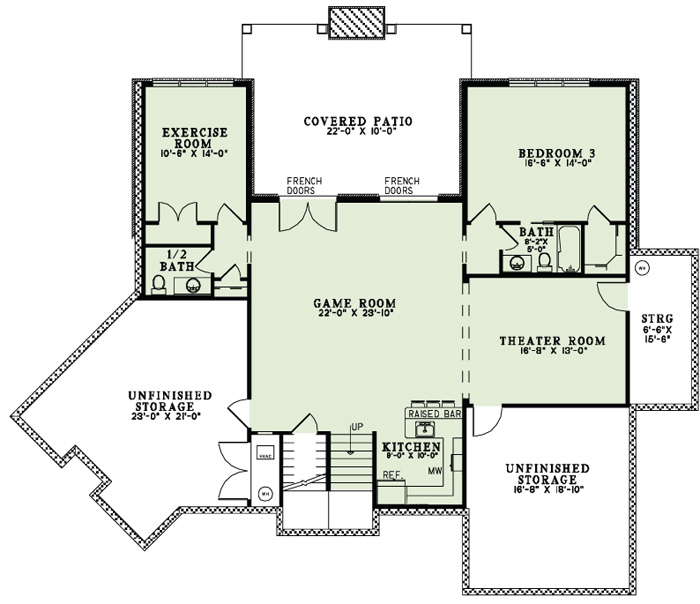

House Plan NDG 1444 Basement
House Plan NDG 1444 Main Floor
House Plan NDG 1444 Basement

Floor plans

House Plan NDG 1444 Main Floor

House Plan NDG 1444 Basement
NDG 1444

House Plan 1444 Chadwick Drive, European House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1444
  • Total Living Space:4187Sq.Ft.
  • Bedrooms: 3
  • Full Baths: 3
  • Half Baths: 2
  • Garage: Yes 4 Bay
  • Garage Type: Angled Garage
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 1.5
  • Width Ft.: 109
  • Width In.: 6
  • Depth Ft.: 92
  • Depth In.: 9

Description

This gorgeous brick and stone European style home features plenty of amenities and tons of space. A massive Great Room with vaulted ceiling and a fireplace and built-ins is open to the kitchen through an 8’ arched brick opening. The kitchen has a large eat-at bar, 2 nearby walk-in pantries and an adjacent dining room. A large Outdoor Living/Covered Grilling Porch with a stone fireplace is accessible from the dining room, great room, and the master suite. Relaxation awaits you in the huge Master Suite with a 10’ boxed ceiling and a spacious bathroom that features 2 walk-in closets, separate vanities, a whirlpool tub, and a corner glass shower with seats. Another bedroom is at the front of the home with a walk-in closet and full bath. Downstairs you’ll find a huge game room with a full kitchen in the corner and access to a covered patio. A 3rd bedroom is also downstairs with a walk-in closet and full bath. There is also a theater room, exercise room and tons of unfinished storage space.

Specifications

  • Total Living Space:4187Sq.Ft.
  • Main Floor: 2528 Sq.Ft
  • Upper Floor (Sq.Ft.): N/A
  • Lower Floor (Sq.Ft.): N/A
  • Basement (Sq.Ft.): 1659 Sq.Ft.
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 847 Sq.Ft.
  • Garage (Sq.Ft.): 1305 Sq.Ft.
  • Total Square Feet: 6339 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: Yes
  • Main Ceiling Height: 9
  • Upper Ceiling Height: N/A
  • Lower Ceiling Height: 9
  • Roof Type: Shingle
  • Main Roof Pitch: 12:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 28
  • Ridge Height (In.): 2
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
