House Plan 1439 Wilshire Village, Multi-Family House Plan

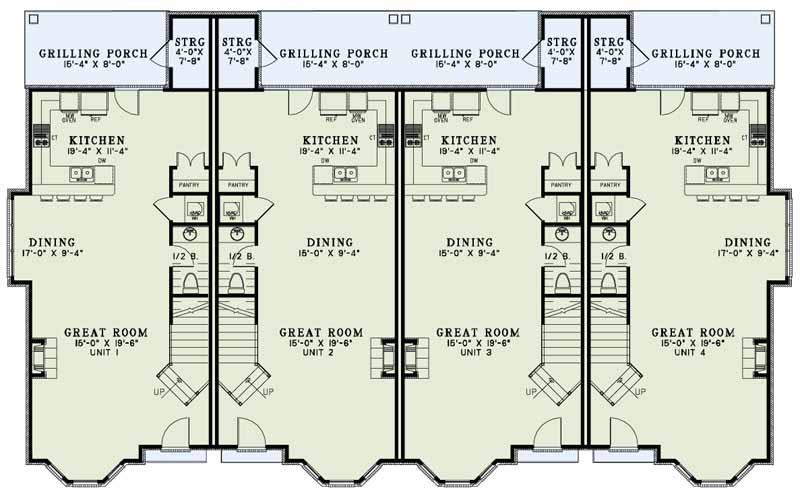

House Plan NDG 1439 Main Floor

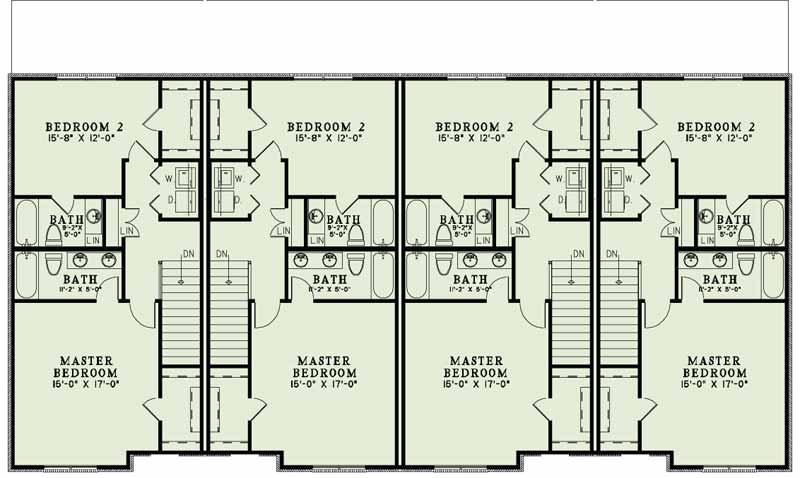

House Plan NDG 1439 Upper Floor
House Plan NDG 1439 Main Floor
House Plan NDG 1439 Upper Floor

Floor plans

NDG 1439

House Plan 1439 Wilshire Village, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1439
  • Total Living Space:1602Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 85
  • Width In.: N/A
  • Depth Ft.: 51
  • Depth In.: 2

Description

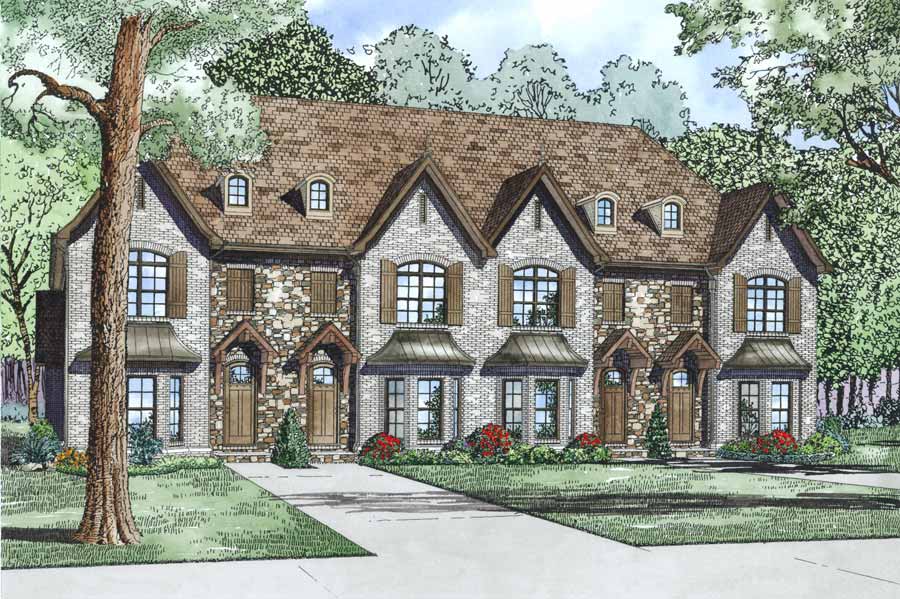

This 4-plex is full of charm and European style. An open floor plan with a Great Room and fireplace. The kitchen is open to the dining room and a grilling porch is located off of the kitchen. The master bedroom and a second bedroom are upstairs with walk-in closets and 2 full bathrooms. Units 1 and 4 have 840 sq. ft. of heat/cooled main floor with a total of 1,764 sq. ft. Units 2 and 3 have 820 sq. ft. of heat/cooled main floor and have a total of 1,744 sq. ft.

Specifications

  • Total Living Space:1602Sq.Ft.
  • Main Floor: 840 Sq.Ft
  • Upper Floor (Sq.Ft.): 762 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): N/A
  • Garage (Sq.Ft.): 162 Sq.Ft.
  • Total Square Feet: 1764 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 38
  • Ridge Height (In.): 3
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
