House Plan 1438 Manchester Court, Multi-Family House Plan

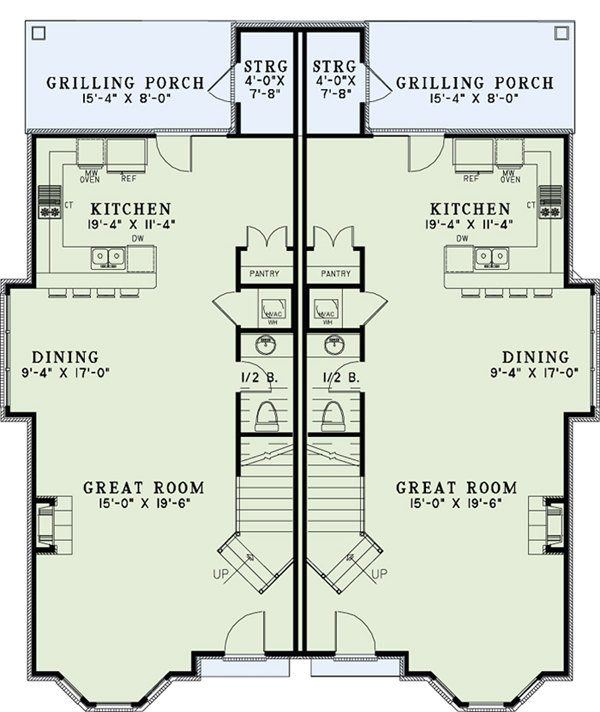

House Plan NDG 1438 Main Floor

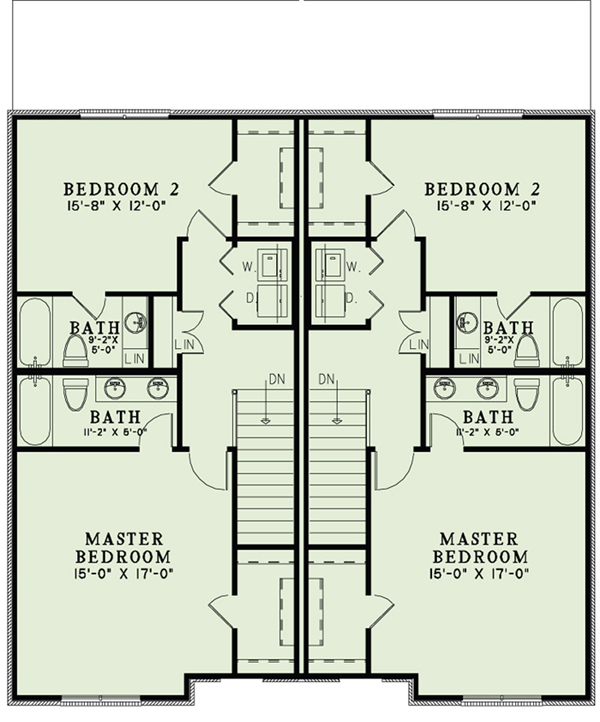

House Plan NDG 1438 Upper Floor
>
House Plan NDG 1438 Main Floor
House Plan NDG 1438 Upper Floor

Floor plans

NDG 1438

House Plan 1438 Manchester Court, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1438
  • Total Living Space:1602Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 44
  • Width In.: 4
  • Depth Ft.: 51
  • Depth In.: 2

Description

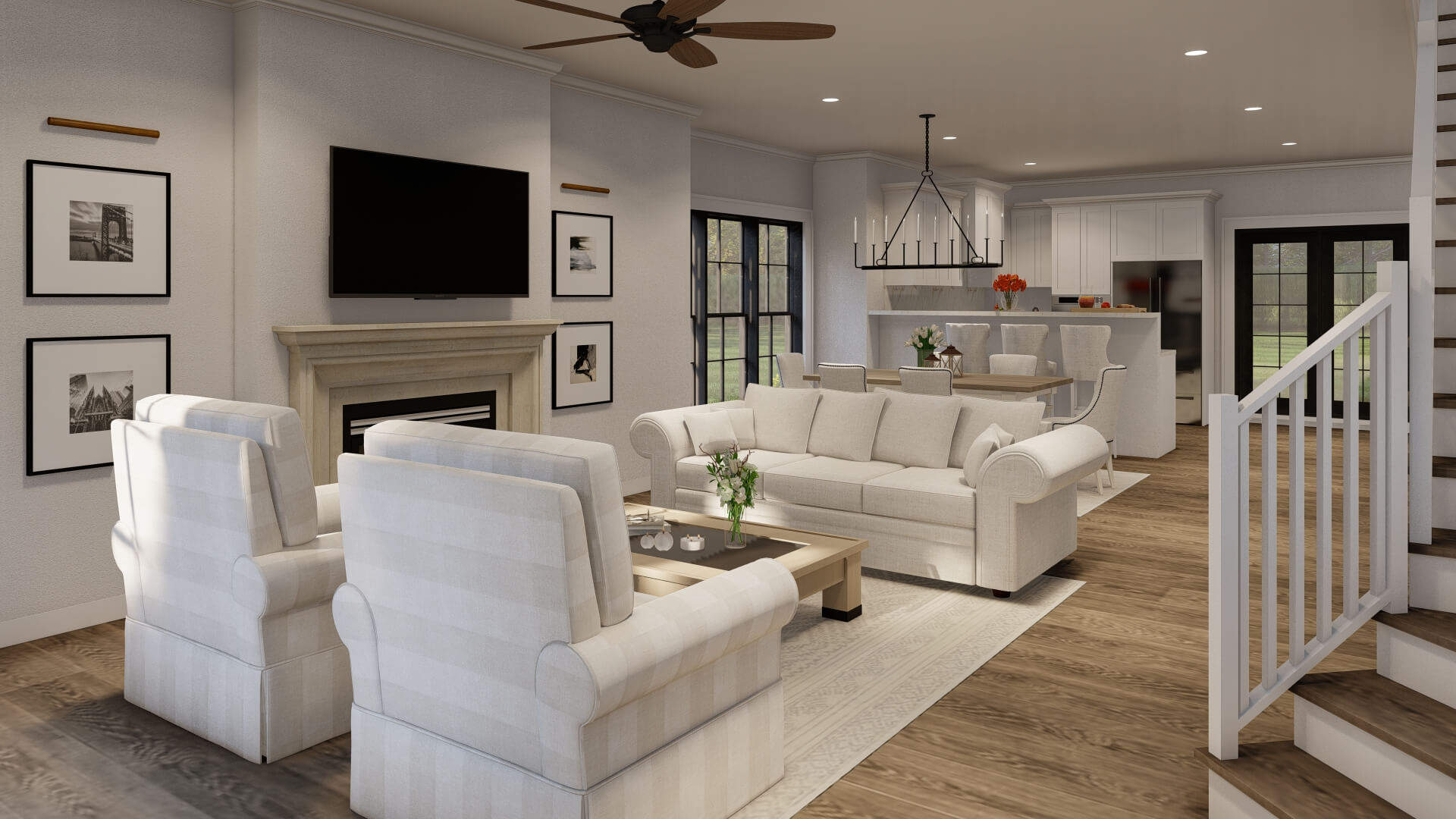

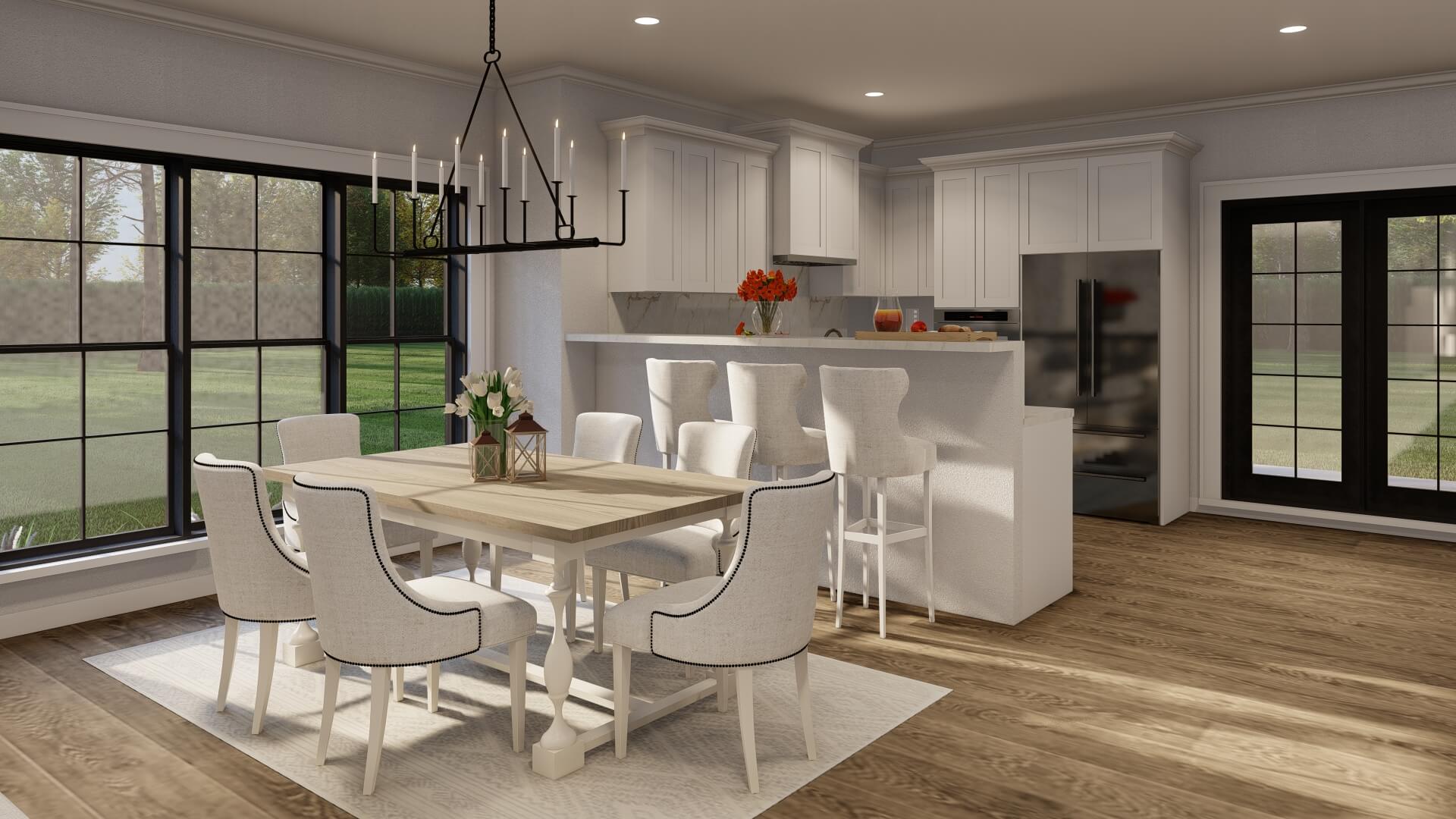

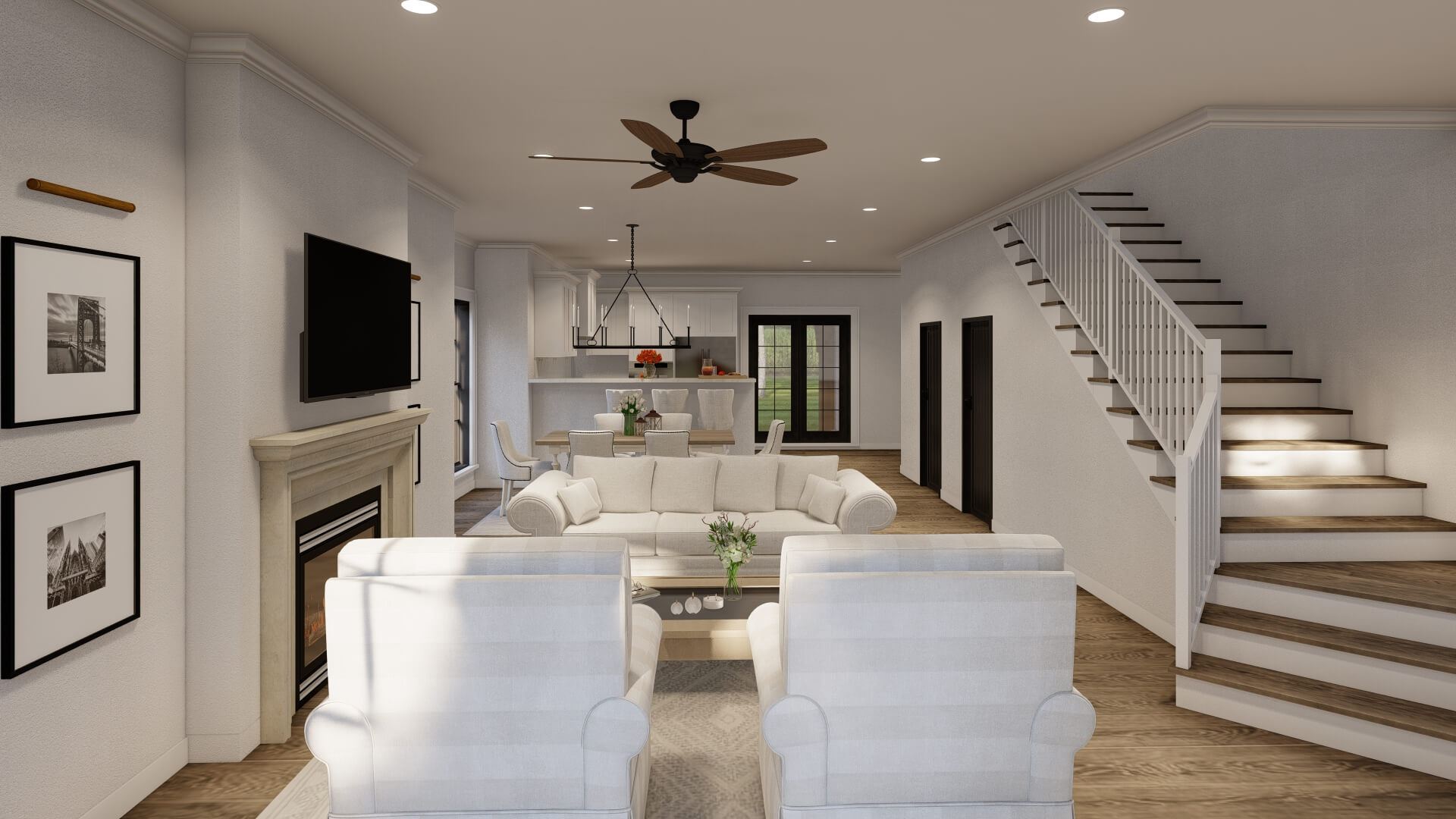

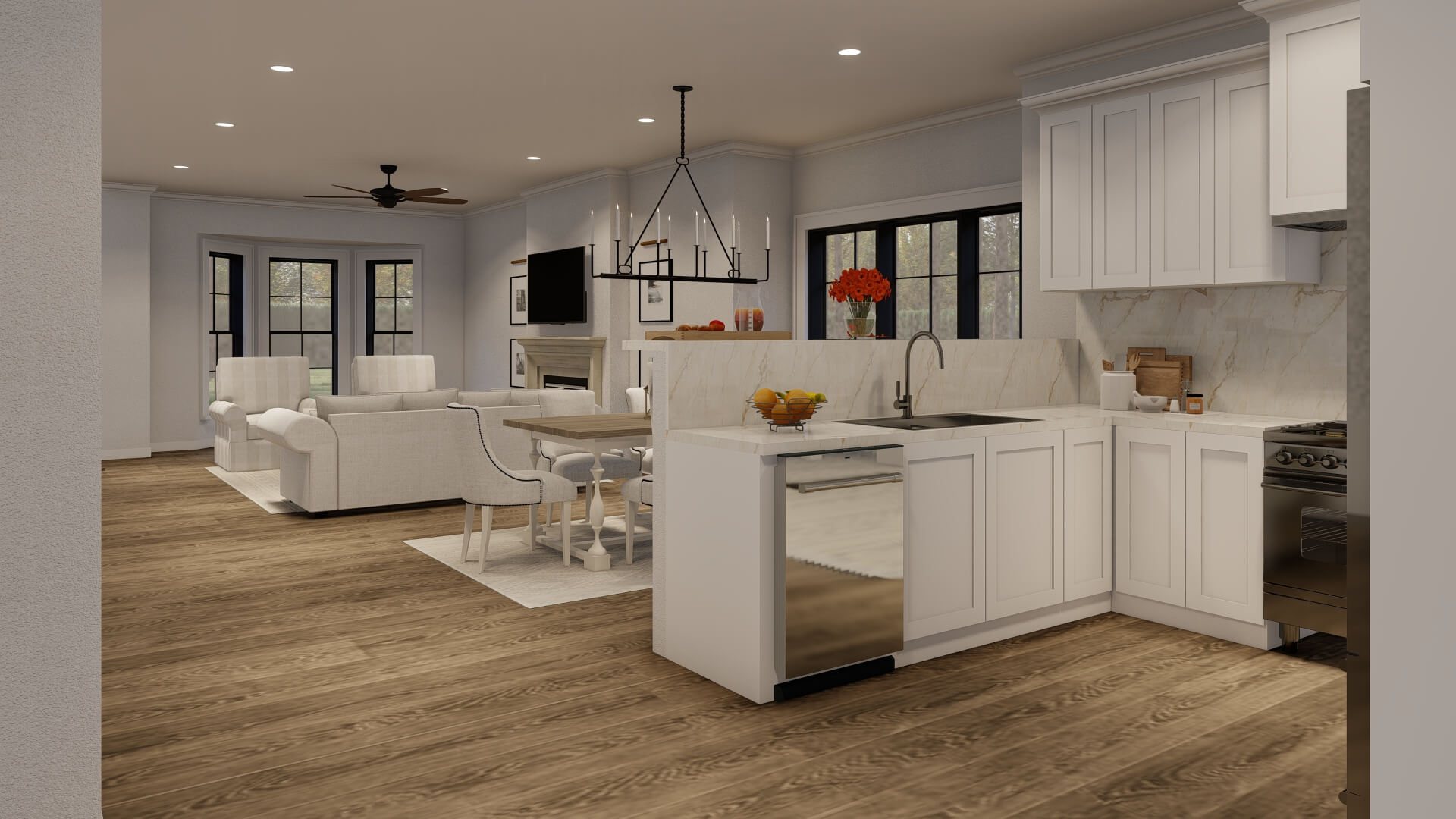

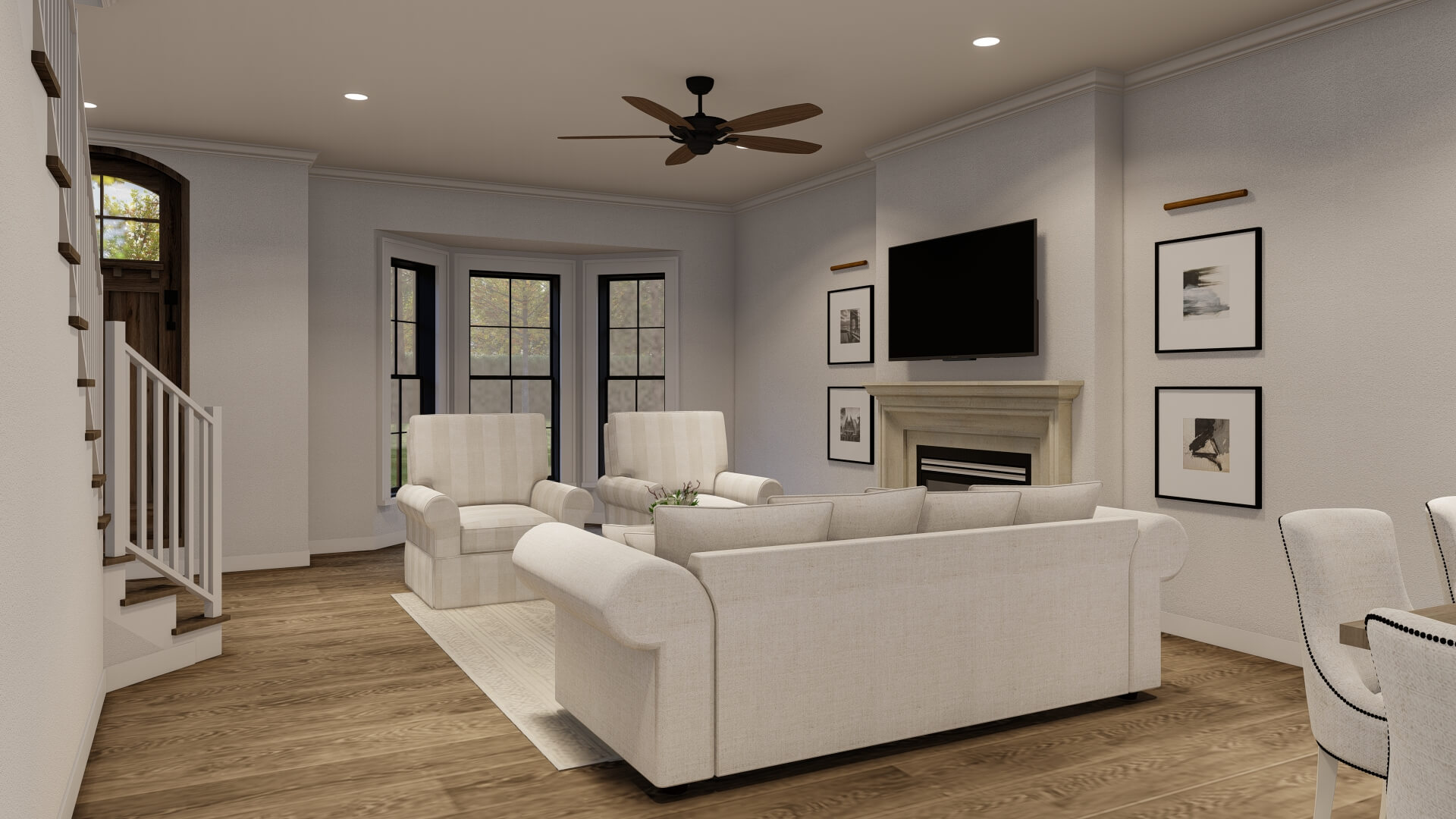

Your next tenants will love their home in this European style duplex. The open first floor, with the Great Room, Dining Room and Kitchen, flows together lending plenty of space. Two spacious bedrooms, each with their own walk-in closets and full baths are located upstairs.

Specifications

  • Total Living Space:1602Sq.Ft.
  • Main Floor: 840 Sq.Ft
  • Upper Floor (Sq.Ft.): 762 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 162 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1764 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: 16:12
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 38
  • Ridge Height (In.): 6
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
