House Plan 1437 McCarroll Street, Multi-Family House Plan

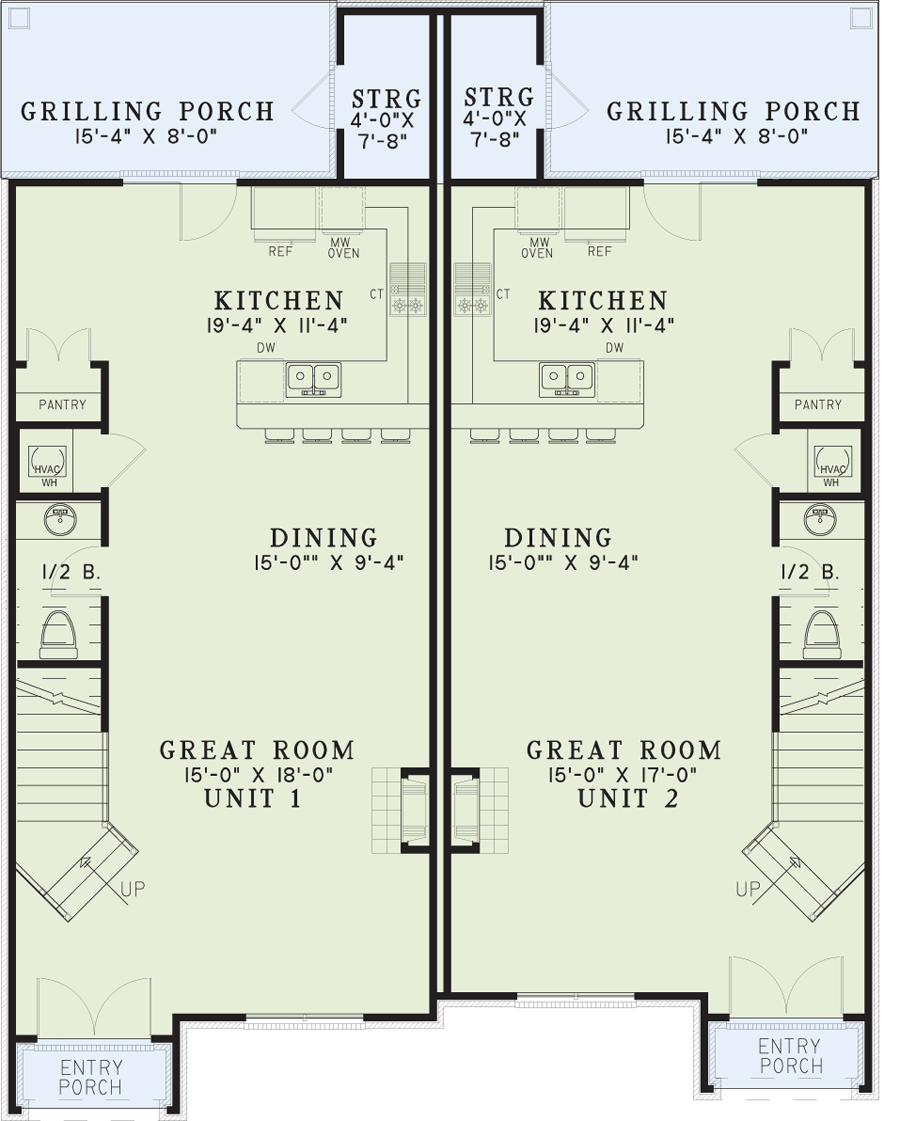

House Plan NDG 1437 Main Floor
House Plan NDG 1437 Upper Floor
House Plan NDG 1437 Main Floor
House Plan NDG 1437 Upper Floor

Floor plans

NDG 1437

House Plan 1437 McCarroll Street, Multi-Family House Plan

PDF: $2,050.00

Plan Details

  • Plan Number: NDG 1437
  • Total Living Space:1523Sq.Ft.
  • Bedrooms: 2
  • Full Baths: 2
  • Half Baths: 1
  • Garage: No
  • Garage Type: N/A
  • Carport: N/A
  • Carport Type: N/A
  • Stories: 2
  • Width Ft.: 40
  • Width In.: 4
  • Depth Ft.: 51
  • Depth In.: 7

Description

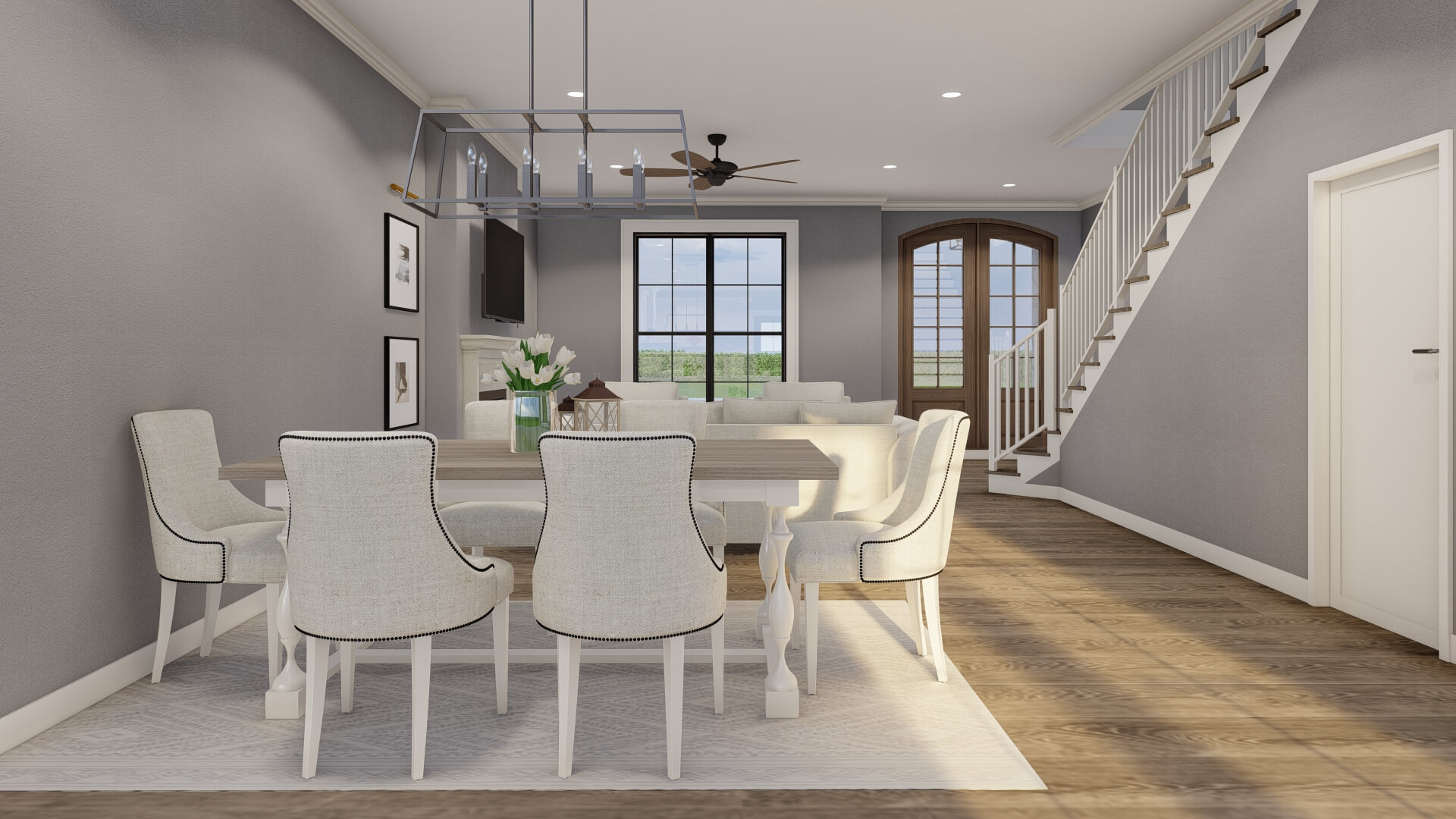

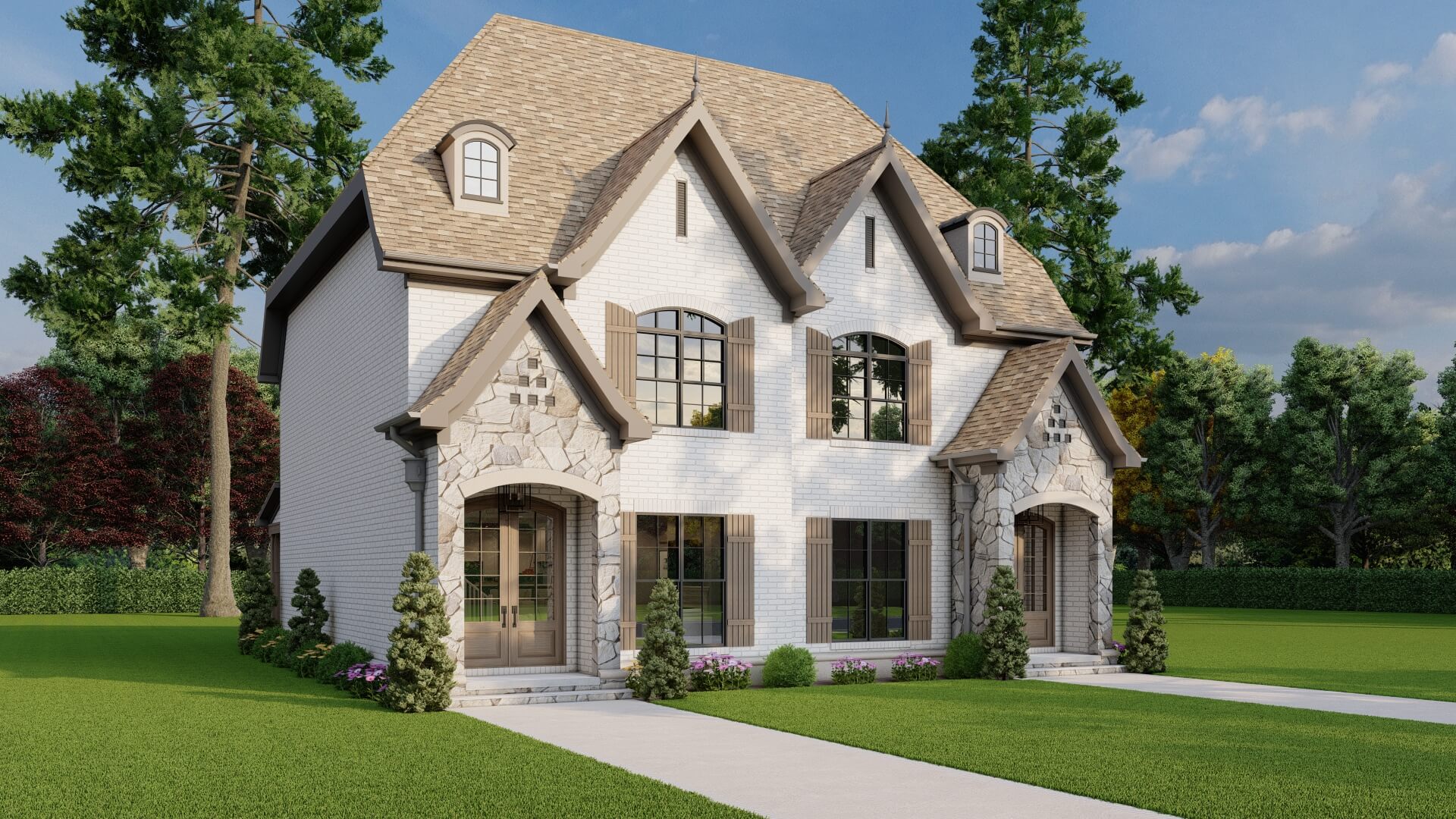

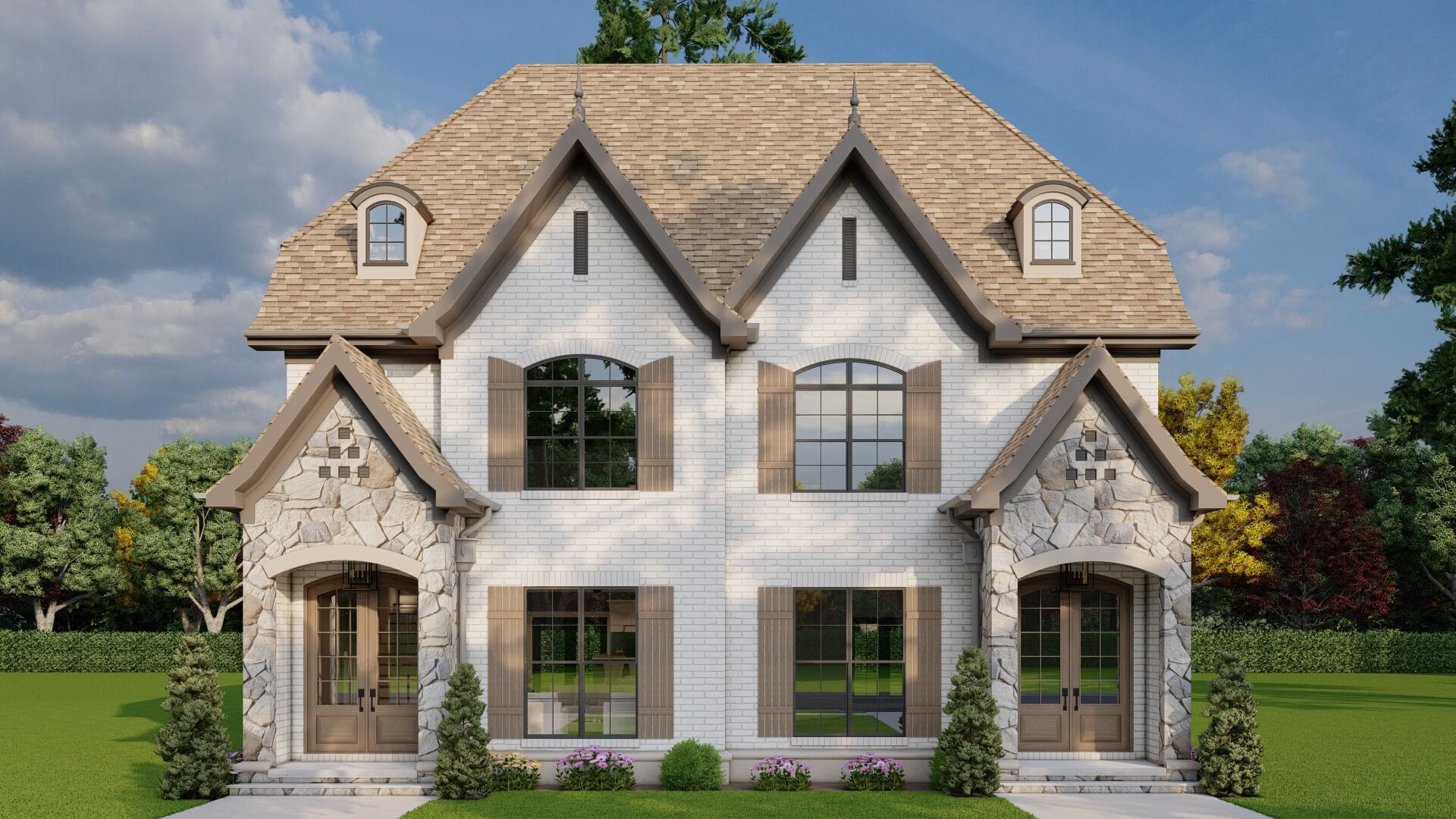

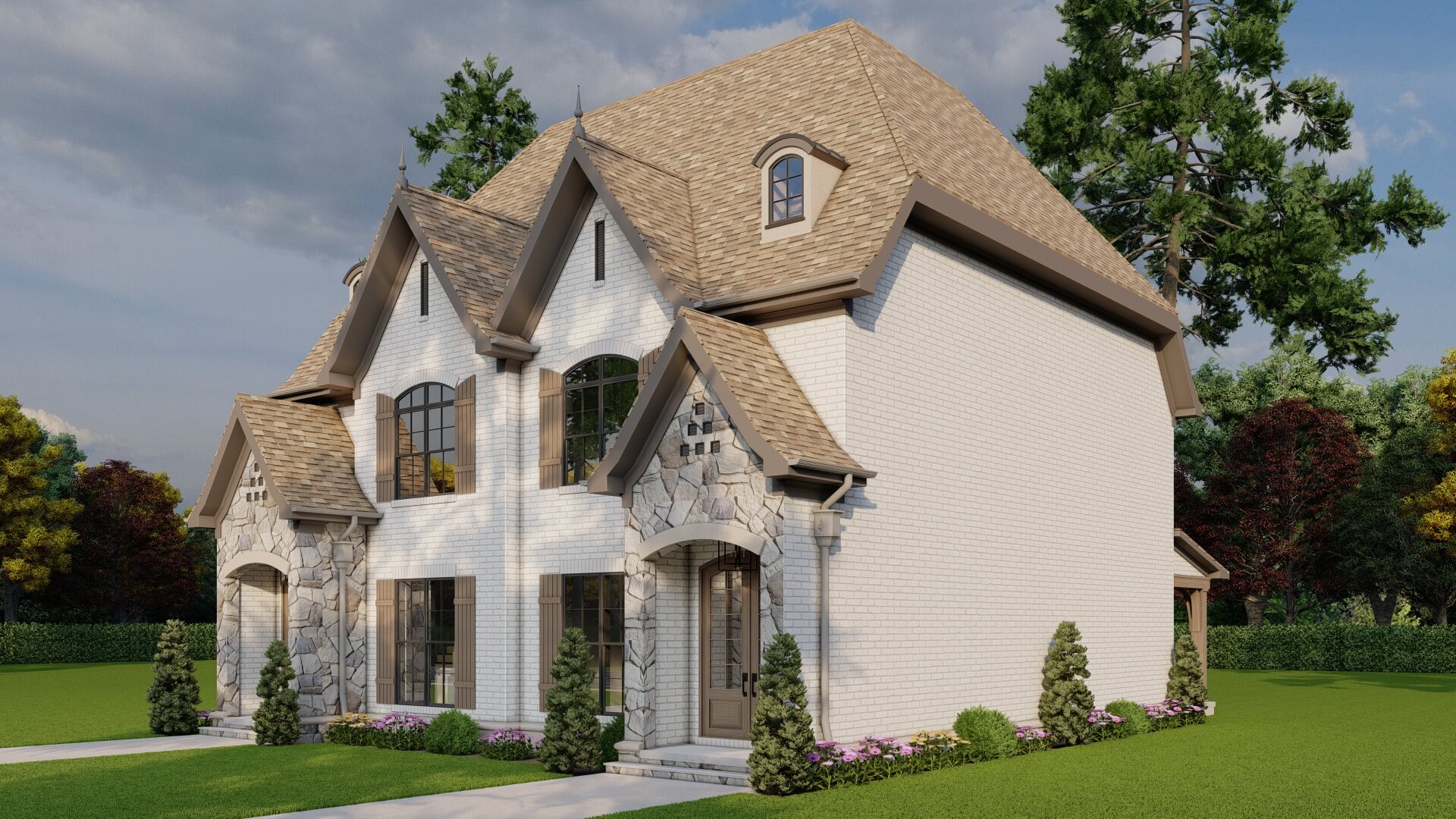

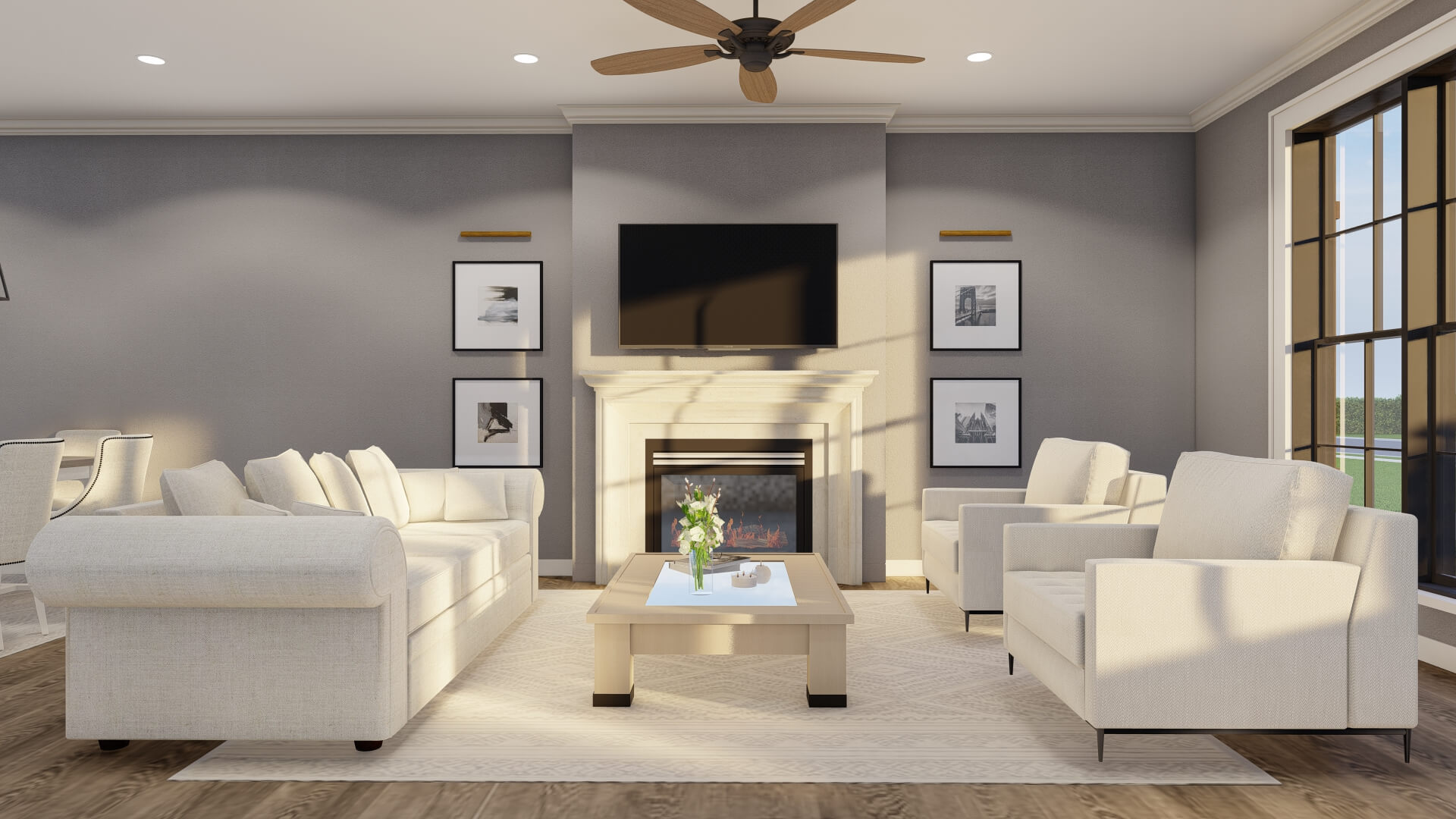

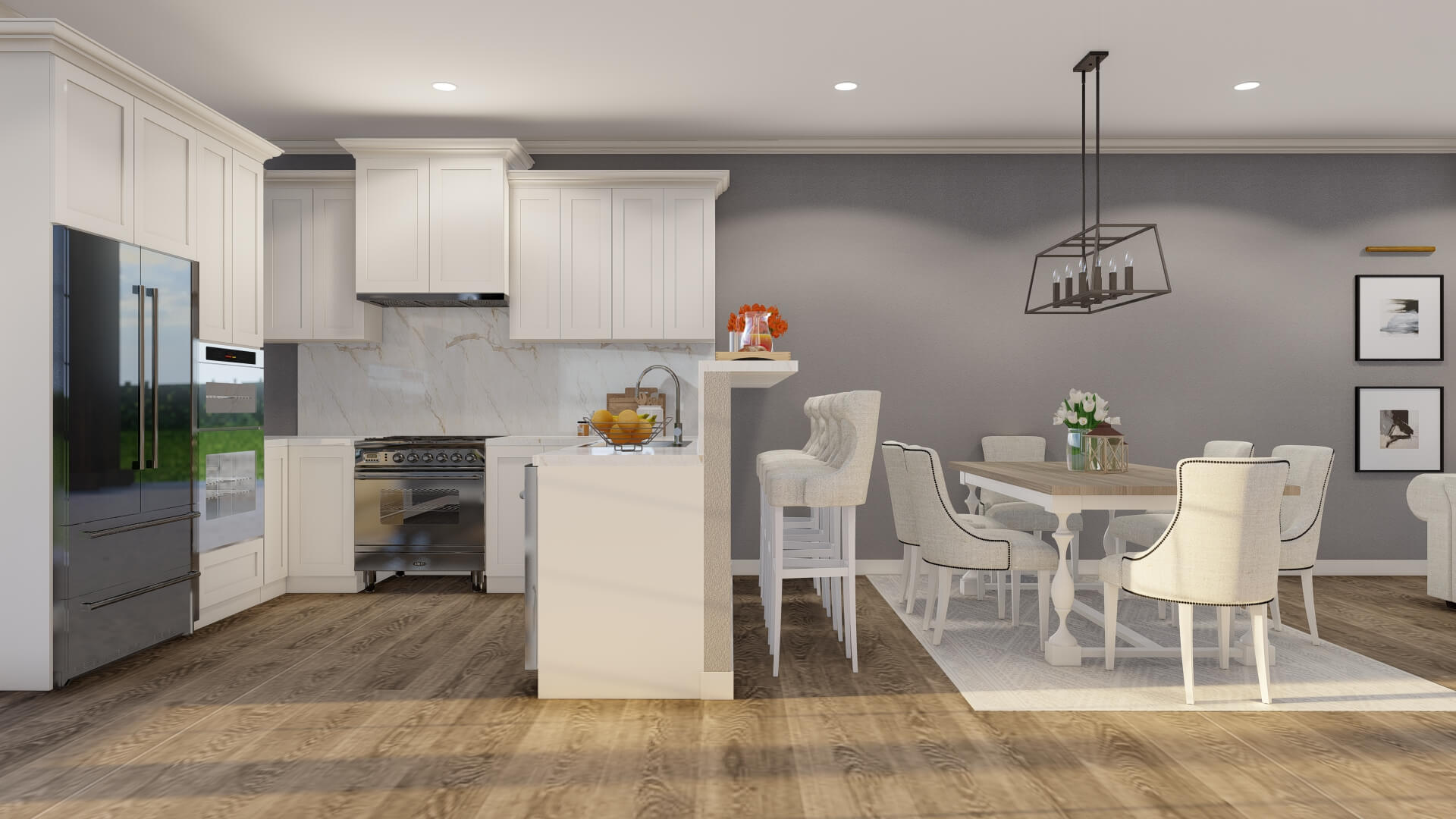

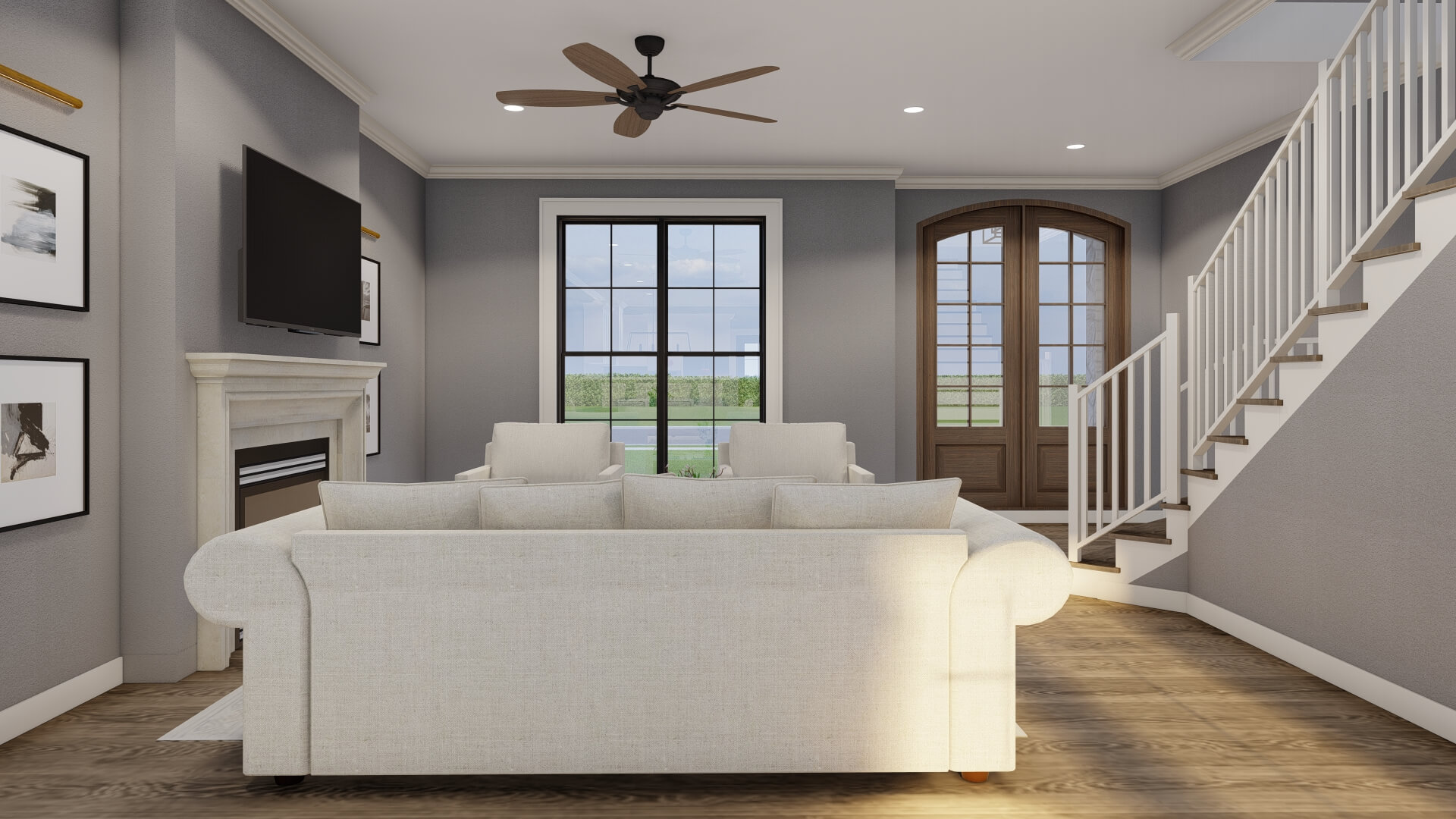

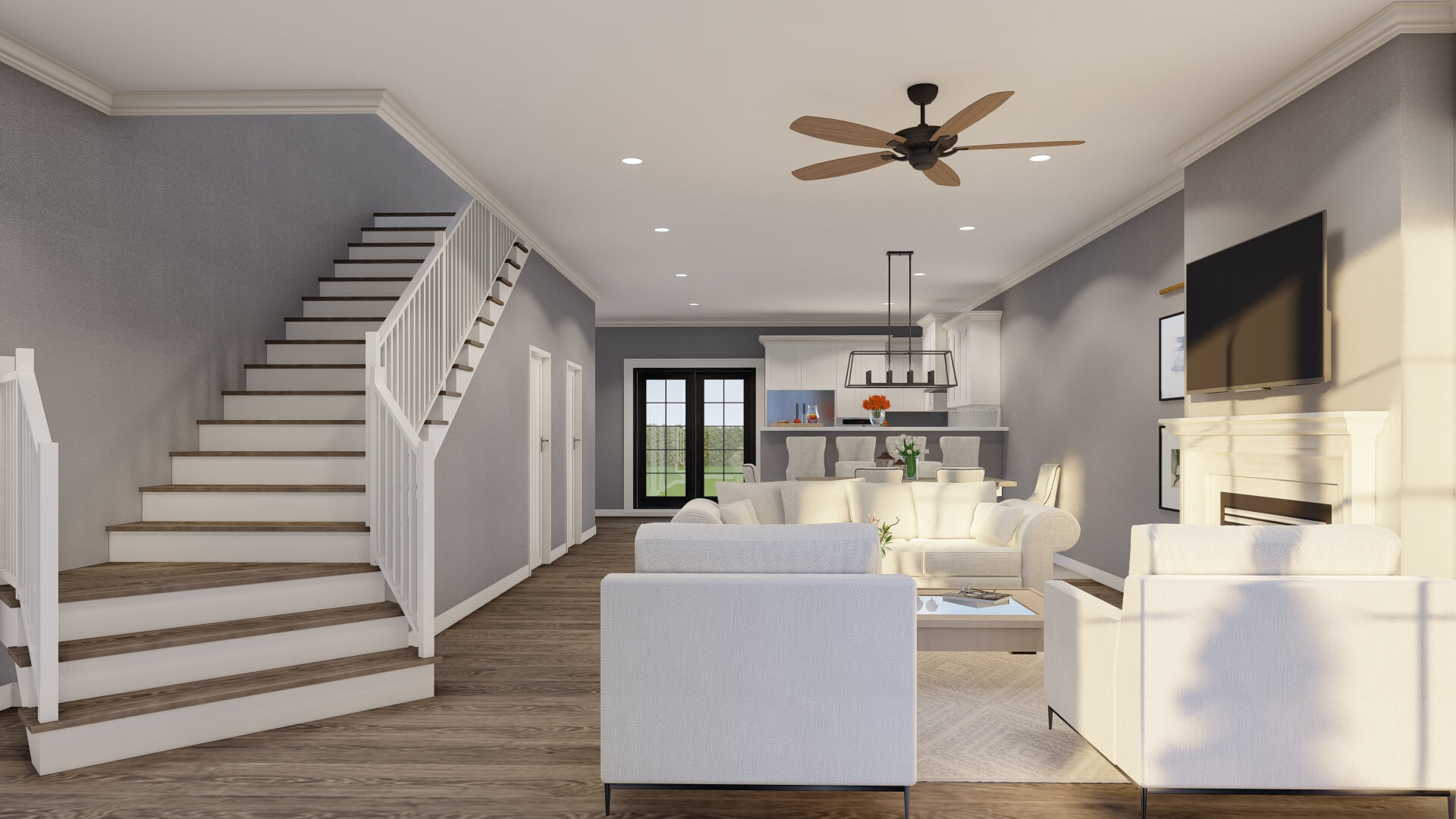

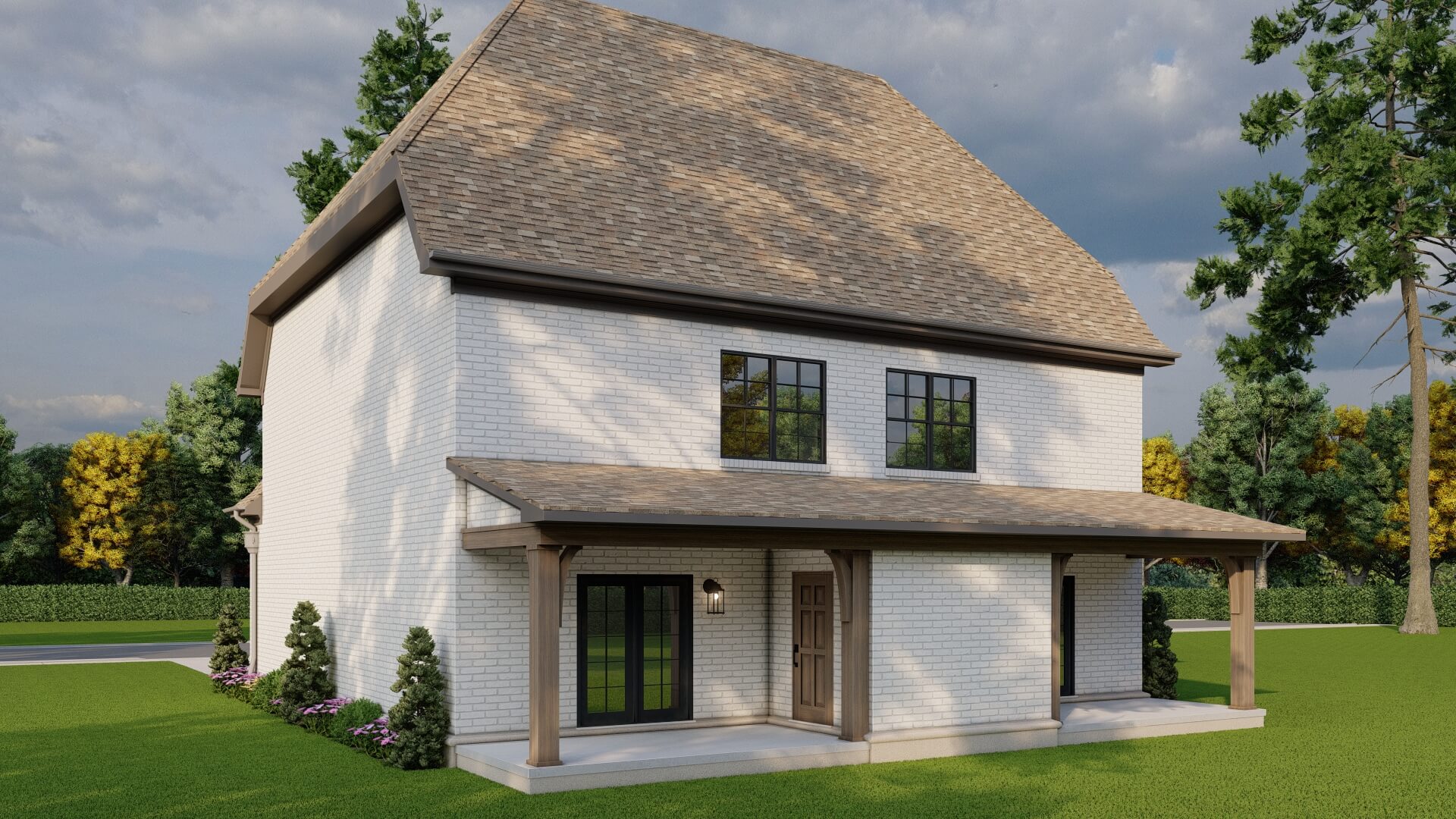

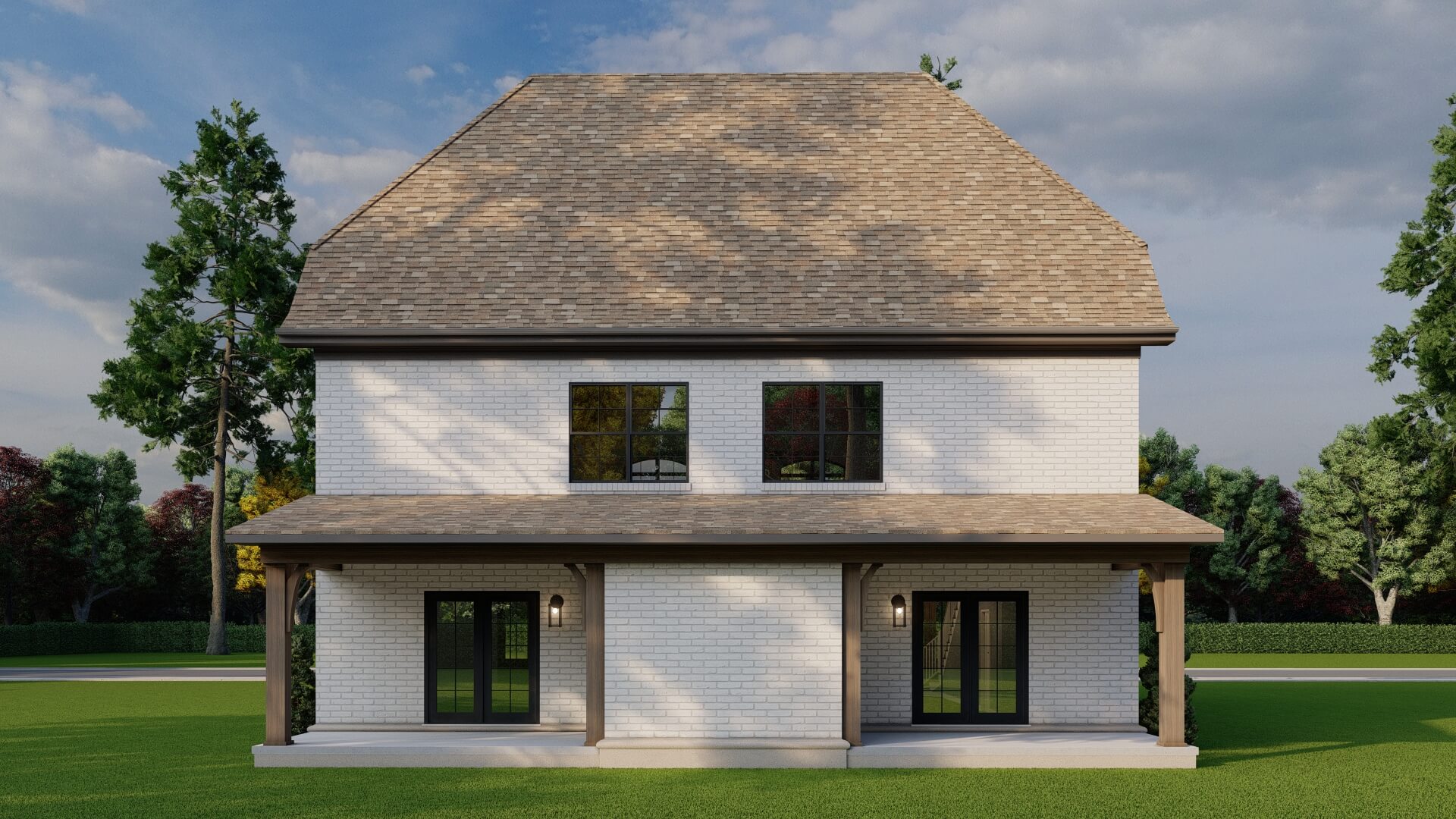

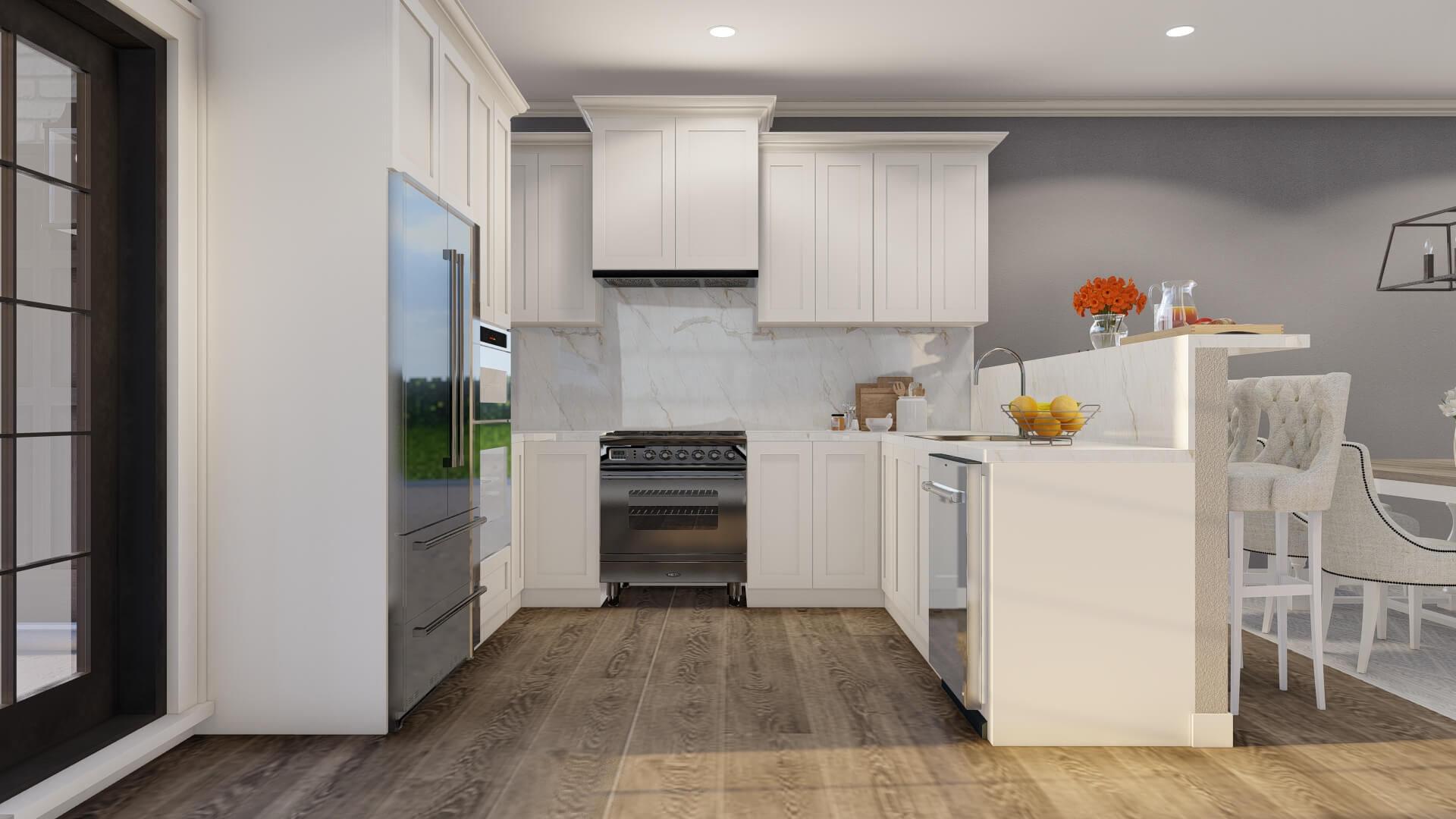

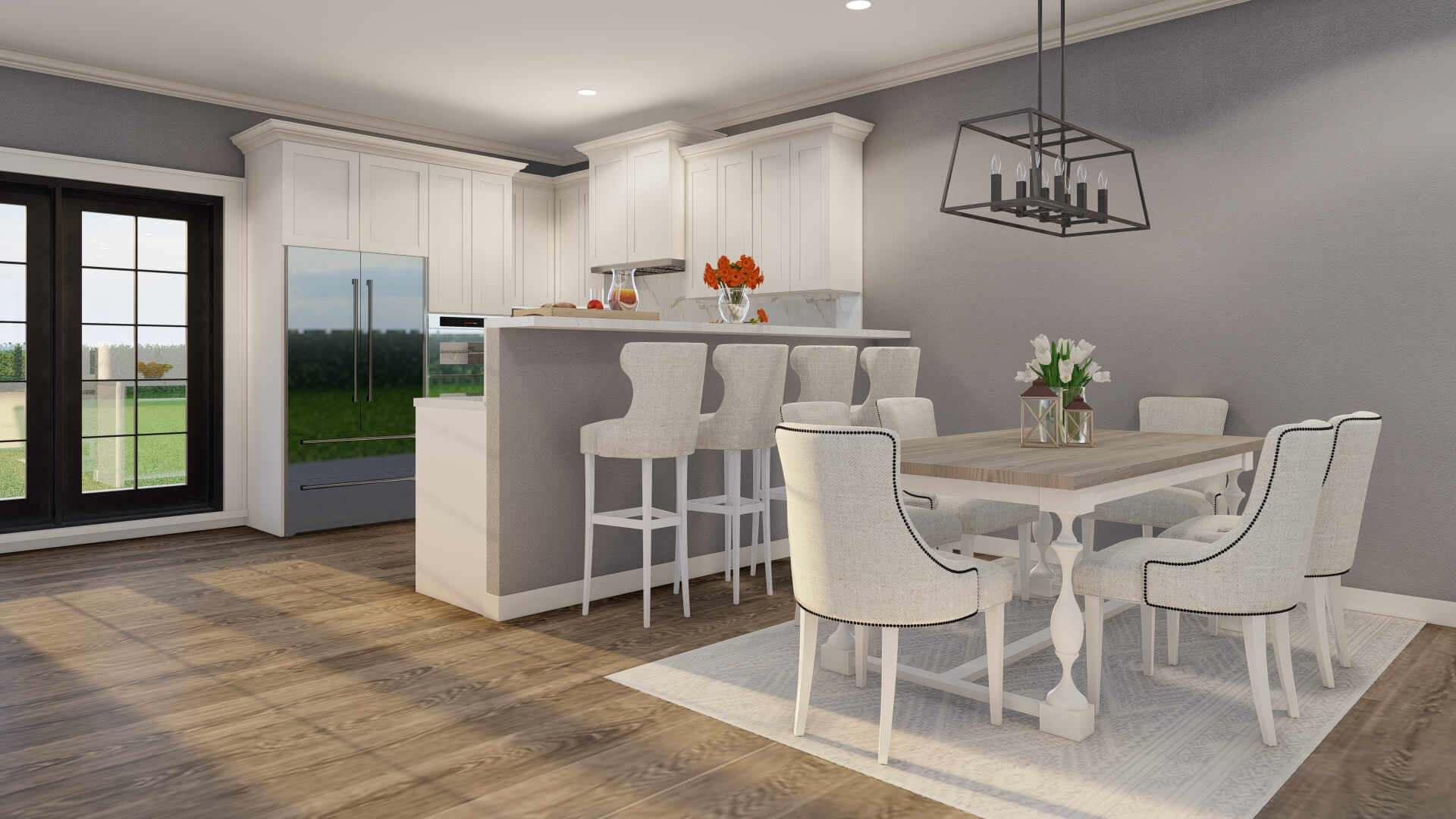

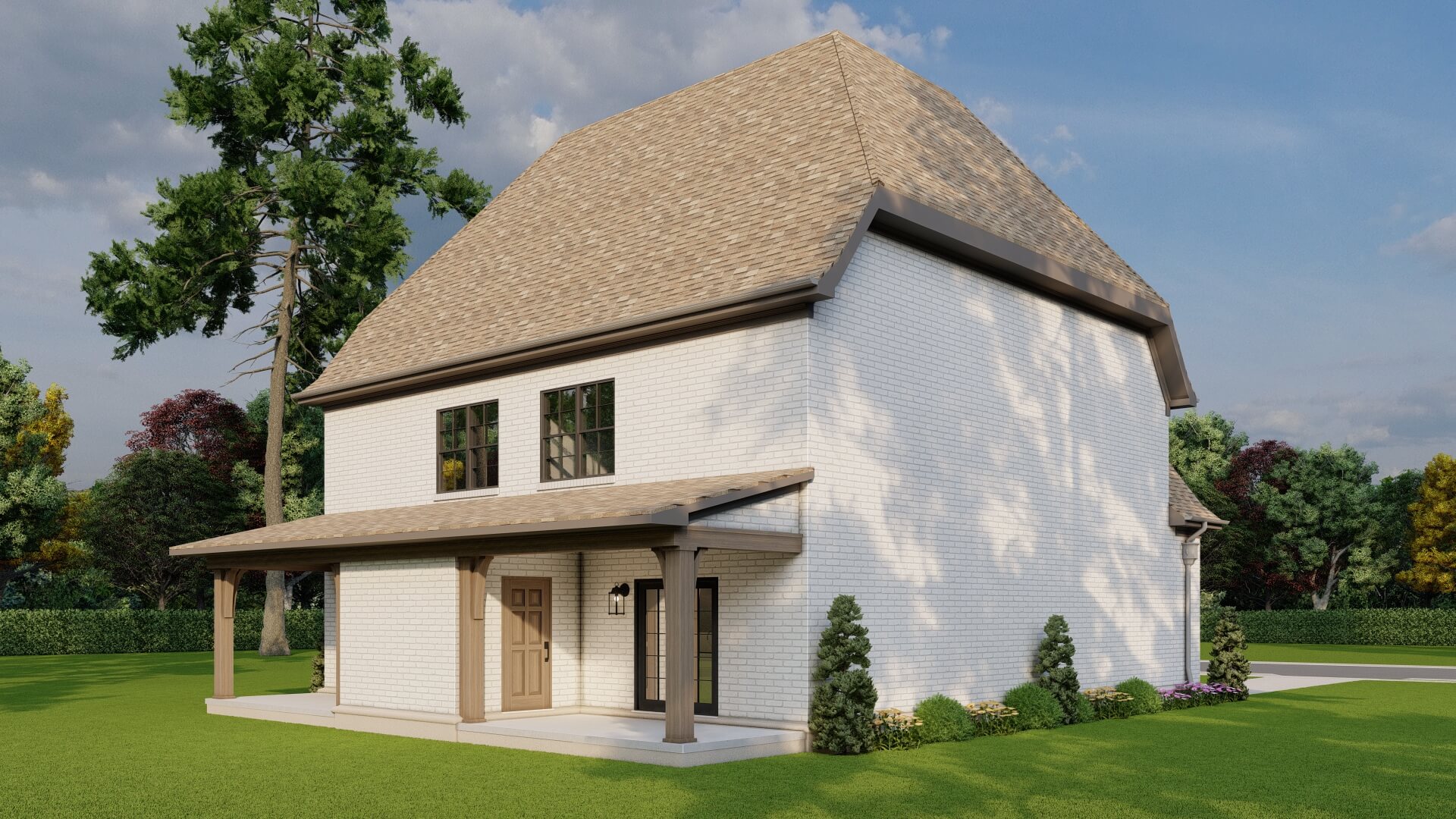

This 2-story, European style duplex features a brick and stone exterior with arched covered front entries. The downstairs offers a Great Room with a fireplace and is open to the dining area and the kitchen. The spacious kitchen features an eat-at peninsula bar, a pantry, and access to a rear grilling porch. Upstairs are the master and second bedrooms, each with its own full bathroom and walk-in closet.

Specifications

  • Total Living Space:1523Sq.Ft.
  • Main Floor: 795 Sq.Ft
  • Upper Floor (Sq.Ft.): 728 Sq.Ft.
  • Lower Floor (Sq.Ft.): N/A
  • Bonus Room (Sq.Ft.): N/A
  • Porch (Sq.Ft.): 188 Sq.Ft.
  • Garage (Sq.Ft.): N/A
  • Total Square Feet: 1711 Sq.Ft.
  • Customizable: Yes
  • Wall Construction: 2x4
  • Vaulted Ceiling Height: No
  • Main Ceiling Height: 9
  • Upper Ceiling Height: 9
  • Lower Ceiling Height: N/A
  • Roof Type: Shingle
  • Main Roof Pitch: 16:12
  • Porch Roof Pitch: N/A
  • Roof Framing Description: Stick
  • Designed Roof Load: 45lbs
  • Ridge Height (Ft.): 38
  • Ridge Height (In.): 10
  • Insulation Exterior: R13
  • Insulation Floor Minimum: R19
  • Insulation Ceiling Minimum: R30
  • Lower Bonus Space (Sq.Ft.): N/A
  • Master Bedroom: Master Bedroom Upper Level
